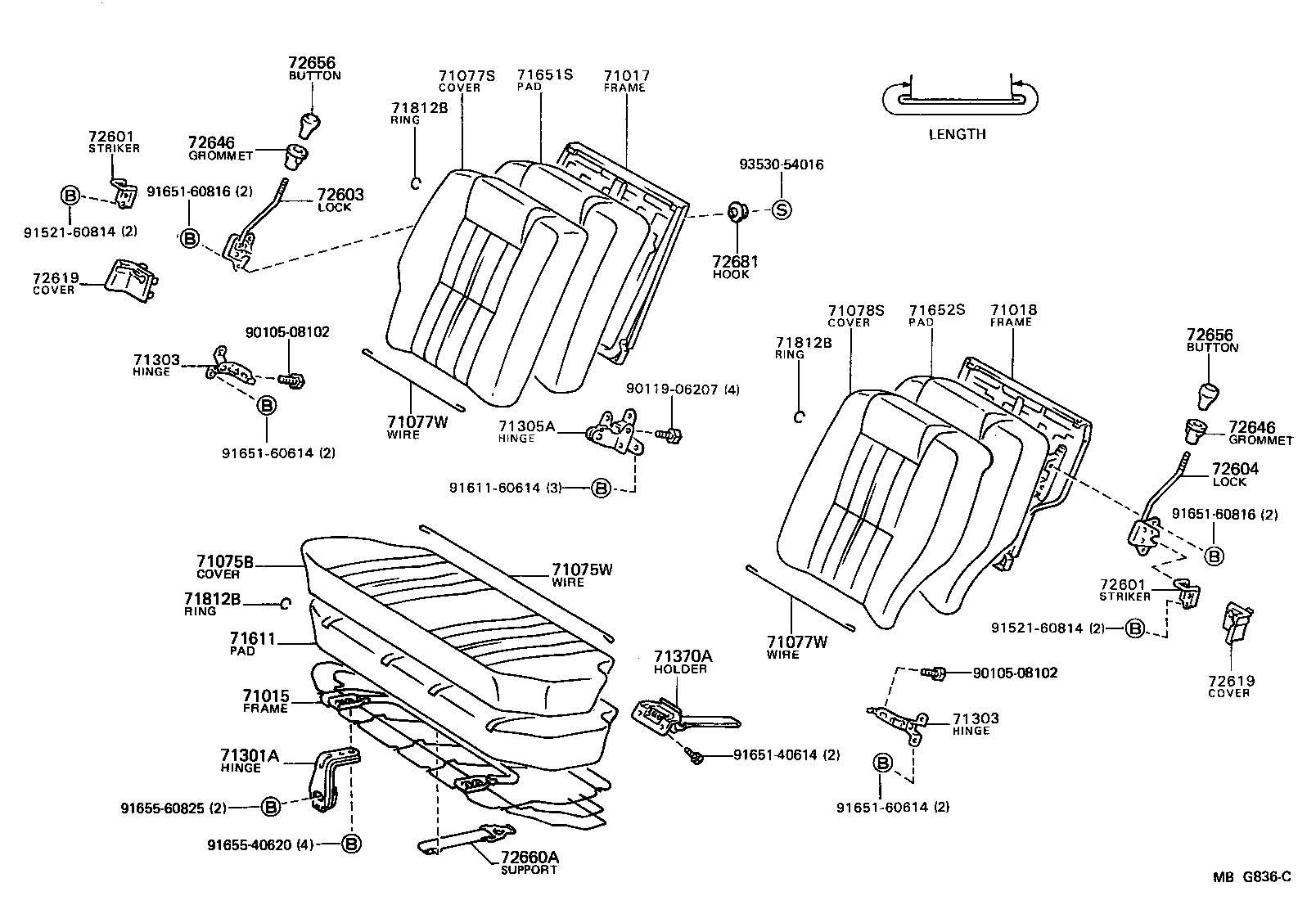

AE82L-ELHDCA (1983)
Toyota Corolla Sed/Lb
(8308-8408)LB ; (8308-8408)SED..LE ; (8408- )SED..LE,LEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-16030 |
AE82,CE80..LB |
1 | ||
| 71015-12250 |
AE82,CE80 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12250 |
AE82,CE80..LB |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12040 |
AE82,CE80..LB |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1A10002 |
AE82,CE80..DX..USA PF,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-1A10004 |
AE82,CE80..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A10003 |
AE82,CE80..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A02002 |
AE82,CE80..DX FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-1A10014 |
AE82,CE80..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A02004 |
AE82,CE80..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A10012 |
AE82,CE80..DX..USA PF,MAROON,MAROON,TRIM3# |
1 | ||
| 71065-1A02003 |
AE82,CE80..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A10013 |
AE82,CE80..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A48003 |
AE82,CE80..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A49006 |
AE82,CE80..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A49004 |
AE82,CE80..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A48006 |
AE82,CE80..LB..DX..USA PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A49003 |
AE82,CE80..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A49103 |
AE82..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A49104 |
AE82..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A48004 |
AE82,CE80..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A49106 |
AE82..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A48104 |
AE82..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A49206 |
AE82..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A48103 |
AE82..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A48106 |
AE82..LB..DX..USA PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A49204 |
AE82..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A49203 |
AE82..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20132 |
AE82,CE80 L=1030 |
2 | ||
| 90580-20015 |
AE82,CE80 L=930 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1E77012 |
AE82,CE80..LB..DX..USA PF,MAROON,MAROON,TRIM3#,4# |
1 | ||
| 71077-1E77002 |
AE82,CE80..LB..DX..USA PF,MAROON,MAROON,TRIM3# |
1 | ||
| 71077-1E77014 |
AE82,CE80..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E77004 |
AE82,CE80..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E77003 |
AE82,CE80..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E77013 |
AE82,CE80..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E62003 |
AE82,CE80..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E62002 |
AE82,CE80..LB..DX FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71077-1E62014 |
AE82,CE80..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E62006 |
AE82,CE80..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1E62004 |
AE82,CE80..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E62106 |
AE82..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1E62103 |
AE82..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E62013 |
AE82,CE80..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E62104 |
AE82..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E62203 |
AE82..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E77106 |
AE82..LB..DX..USA PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1E77104 |
AE82..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E77103 |
AE82..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E62204 |
AE82..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E62206 |
AE82..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20032 |
AE82,CE80..LB L=350 |
2 | ||
| 90580-20021 |
AE82,CE80..LB L=470 |
2 | ||
| 90580-26012 |
AE82,CE80..LB L=600 |
2 | ||
| 90580-20171 |
AE82,CE80..LB L=510 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20032 |
AE82,CE80..LB L=350 |
2 | ||
| 90580-20021 |
AE82,CE80..LB L=470 |
2 | ||
| 90580-26012 |
AE82,CE80..LB L=600 |
2 | ||
| 90580-20171 |
AE82,CE80..LB L=510 |
2 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1287002 |
AE82,CE80..LB..DX..USA PF,MAROON,MAROON,TRIM3# |
1 | ||
| 71078-1288002 |
AE82,CE80..LB..DX FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71078-1287004 |
AE82,CE80..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1287003 |
AE82,CE80..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1288003 |
AE82,CE80..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1288013 |
AE82,CE80..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1287012 |
AE82,CE80..LB..DX..USA PF,MAROON,MAROON,TRIM3#,4# |
1 | ||
| 71078-1287014 |
AE82,CE80..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1287013 |
AE82,CE80..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1288004 |
AE82,CE80..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1288006 |
AE82,CE80..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1288103 |
AE82..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1288106 |
AE82..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1288104 |
AE82..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1288014 |
AE82,CE80..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1287103 |
AE82..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1287106 |
AE82..LB..DX..USA PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1288204 |
AE82..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1287104 |
AE82..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1288206 |
AE82..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1288203 |
AE82..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12030 |
AE82..LB;AE82..SED..(LE,LEL) |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12030 |
AE82..LB;AE82..SED..(LE,LEL) |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12030 |
AE82..LB;AE82..SED..(LE,LEL) |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12470 |
AE82,CE80..LB |
1 | ||
| 71611-12430 |
AE82,CE80 |
1 | ||
| 71611-12510 |
AE82..LB |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12530 |
AE82..LB |
1 | ||
| 71651-12460 |
AE82,CE80..LB |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12390 |
AE82..LB |
1 | ||
| 71652-12340 |
AE82,CE80..LB |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE82,CE80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE82,CE80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE82,CE80 |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12080 |
AE82..LB;AE82..SED..(LE,LEL) |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12080 |
AE82..LB;AE82..SED..(LE,LEL) |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-12120 |
AE82,CE80..LB |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12110 |
AE82,CE80..LB |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1202002 |
AE82,CE80..LB;AE82..SED..LE LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204002 |
AE82,CE80..LB;AE82..SED..LE RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204003 |
AE82..LB;AE82..SED..(LE,LEL) RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1204006 |
AE82..LB;AE82..SED..(LE,LEL) RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72616-1202004 |
AE82..LB;AE82..SED..(LE,LEL) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72616-1202003 |
AE82..LB;AE82..SED..(LE,LEL) LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-1202006 |
AE82..LB;AE82..SED..(LE,LEL) LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-1204004 |
AE82..LB;AE82..SED..(LE,LEL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1202002 |
AE82,CE80..LB;AE82..SED..LE LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204002 |
AE82,CE80..LB;AE82..SED..LE RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204003 |
AE82..LB;AE82..SED..(LE,LEL) RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1204006 |
AE82..LB;AE82..SED..(LE,LEL) RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72616-1202004 |
AE82..LB;AE82..SED..(LE,LEL) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72616-1202003 |
AE82..LB;AE82..SED..(LE,LEL) LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-1202006 |
AE82..LB;AE82..SED..(LE,LEL) LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-1204004 |
AE82..LB;AE82..SED..(LE,LEL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002033 |
AE82,CE80..LB;AE82..SED..LE GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002025 |
AE82,CE80..LB;AE82..SED..LE BEIGE,BEIGE,TRIM3# |
2 | ||
| 72655-2002024 |
AE82,CE80..LB..DX BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002023 |
AE82..LB;AE82..SED..(LE,LEL) GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002024 |
AE82,CE80..LB;AE82..SED..LE BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002033 |
AE82,CE80..LB..DX GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002025 |
AE82,CE80..LB..DX BEIGE,BEIGE,TRIM4# |
2 | ||
| 72655-2002056 |
AE82..LB;AE82..SED..(LE,LEL) BROWN,BROWN,TRIM4# |
2 | ||
| 72655-2002014 |
AE82..LB;AE82..SED..(LE,LEL) BLUE,BLUE,TRIM8# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002033 |
AE82,CE80..LB;AE82..SED..LE GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002025 |
AE82,CE80..LB;AE82..SED..LE BEIGE,BEIGE,TRIM3# |
2 | ||
| 72655-2002024 |
AE82,CE80..LB..DX BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002023 |
AE82..LB;AE82..SED..(LE,LEL) GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002024 |
AE82,CE80..LB;AE82..SED..LE BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002033 |
AE82,CE80..LB..DX GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002025 |
AE82,CE80..LB..DX BEIGE,BEIGE,TRIM4# |
2 | ||
| 72655-2002056 |
AE82..LB;AE82..SED..(LE,LEL) BROWN,BROWN,TRIM4# |
2 | ||
| 72655-2002014 |
AE82..LB;AE82..SED..(LE,LEL) BLUE,BLUE,TRIM8# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001025 |
AE82,CE80..LB;AE82..SED..LE BEIGE,BEIGE,TRIM3# |
2 | ||
| 72656-2001024 |
AE82,CE80..LB;AE82..SED..LE BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001025 |
AE82,CE80..LB..DX BEIGE,BEIGE,TRIM4# |
2 | ||
| 72656-2001023 |
AE82..LB;AE82..SED..(LE,LEL) GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001056 |
AE82..LB;AE82..SED..(LE,LEL) BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001024 |
AE82,CE80..LB..DX BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001033 |
AE82,CE80..LB..DX GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001014 |
AE82..LB;AE82..SED..(LE,LEL) BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001033 |
AE82,CE80..LB;AE82..SED..LE GRAY,GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001025 |
AE82,CE80..LB;AE82..SED..LE BEIGE,BEIGE,TRIM3# |
2 | ||
| 72656-2001024 |
AE82,CE80..LB;AE82..SED..LE BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001025 |
AE82,CE80..LB..DX BEIGE,BEIGE,TRIM4# |
2 | ||
| 72656-2001023 |
AE82..LB;AE82..SED..(LE,LEL) GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001056 |
AE82..LB;AE82..SED..(LE,LEL) BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001024 |
AE82,CE80..LB..DX BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001033 |
AE82,CE80..LB..DX GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001014 |
AE82..LB;AE82..SED..(LE,LEL) BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001033 |
AE82,CE80..LB;AE82..SED..LE GRAY,GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-16010 |
AE82,CE80 |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-06207 | ||||
| 90119-06241 | ||||
| 90179-06070 | ||||
| 91521-60814 | ||||
| 91611-60614 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||
(8408- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-16030 |
AE82,CE80..LB |
1 | ||
| 71015-12250 |
AE82,CE80 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12250 |
AE82,CE80..LB |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12040 |
AE82,CE80..LB |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1A10002 |
AE82,CE80..DX..USA PF,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-1A10004 |
AE82,CE80..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A10003 |
AE82,CE80..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A02002 |
AE82,CE80..DX FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-1A10014 |
AE82,CE80..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A02004 |
AE82,CE80..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A10012 |
AE82,CE80..DX..USA PF,MAROON,MAROON,TRIM3# |
1 | ||
| 71065-1A02003 |
AE82,CE80..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A10013 |
AE82,CE80..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A48003 |
AE82,CE80..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A49006 |
AE82,CE80..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A49004 |
AE82,CE80..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A48006 |
AE82,CE80..LB..DX..USA PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A49003 |
AE82,CE80..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A49103 |
AE82..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A49104 |
AE82..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A48004 |
AE82,CE80..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A49106 |
AE82..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A48104 |
AE82..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A49206 |
AE82..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A48103 |
AE82..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A48106 |
AE82..LB..DX..USA PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1A49204 |
AE82..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A49203 |
AE82..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20132 |
AE82,CE80 L=1030 |
2 | ||
| 90580-20015 |
AE82,CE80 L=930 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1E77012 |
AE82,CE80..LB..DX..USA PF,MAROON,MAROON,TRIM3#,4# |
1 | ||
| 71077-1E77002 |
AE82,CE80..LB..DX..USA PF,MAROON,MAROON,TRIM3# |
1 | ||
| 71077-1E77014 |
AE82,CE80..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E77004 |
AE82,CE80..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E77003 |
AE82,CE80..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E77013 |
AE82,CE80..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E62003 |
AE82,CE80..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E62002 |
AE82,CE80..LB..DX FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71077-1E62014 |
AE82,CE80..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E62006 |
AE82,CE80..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1E62004 |
AE82,CE80..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E62106 |
AE82..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1E62103 |
AE82..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E62013 |
AE82,CE80..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E62104 |
AE82..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E62203 |
AE82..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E77106 |
AE82..LB..DX..USA PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1E77104 |
AE82..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E77103 |
AE82..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E62204 |
AE82..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E62206 |
AE82..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20032 |
AE82,CE80..LB L=350 |
2 | ||
| 90580-20021 |
AE82,CE80..LB L=470 |
2 | ||
| 90580-26012 |
AE82,CE80..LB L=600 |
2 | ||
| 90580-20171 |
AE82,CE80..LB L=510 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20032 |
AE82,CE80..LB L=350 |
2 | ||
| 90580-20021 |
AE82,CE80..LB L=470 |
2 | ||
| 90580-26012 |
AE82,CE80..LB L=600 |
2 | ||
| 90580-20171 |
AE82,CE80..LB L=510 |
2 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1287002 |
AE82,CE80..LB..DX..USA PF,MAROON,MAROON,TRIM3# |
1 | ||
| 71078-1288002 |
AE82,CE80..LB..DX FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71078-1287004 |
AE82,CE80..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1287003 |
AE82,CE80..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1288003 |
AE82,CE80..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1288013 |
AE82,CE80..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1287012 |
AE82,CE80..LB..DX..USA PF,MAROON,MAROON,TRIM3#,4# |
1 | ||
| 71078-1287014 |
AE82,CE80..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1287013 |
AE82,CE80..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1288004 |
AE82,CE80..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1288006 |
AE82,CE80..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1288103 |
AE82..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1288106 |
AE82..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1288104 |
AE82..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1288014 |
AE82,CE80..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1287103 |
AE82..LB..DX..USA PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1287106 |
AE82..LB..DX..USA PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1288204 |
AE82..LB..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1287104 |
AE82..LB..DX..USA PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1288206 |
AE82..LB..DX FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1288203 |
AE82..LB..DX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-1601016 |
AE82,CE80..LB BROWN,BROWN,TRIM4# |
2 | ||
| 71301-1601004 |
AE82,CE80..LB BLUE,BLUE,TRIM8# |
2 | ||
| 71301-1601013 |
AE82,CE80..LB GRAY,GRAY,TRIM1# |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12030 |
AE82..LB;AE82..SED..(LE,LEL) |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12030 |
AE82..LB;AE82..SED..(LE,LEL) |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12030 |
AE82..LB;AE82..SED..(LE,LEL) |
1 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-1201006 |
AE82,CE80..LB BROWN,BROWN,TRIM4# |
1 | ||
| 71370-1201004 |
AE82,CE80..LB BLUE,BLUE,TRIM8# |
1 | ||
| 71370-1201003 |
AE82,CE80..LB GRAY,GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12470 |
AE82,CE80..LB |
1 | ||
| 71611-12430 |
AE82,CE80 |
1 | ||
| 71611-12510 |
AE82..LB |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12530 |
AE82..LB |
1 | ||
| 71651-12460 |
AE82,CE80..LB |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12390 |
AE82..LB |
1 | ||
| 71652-12340 |
AE82,CE80..LB |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE82,CE80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE82,CE80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE82,CE80 |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12080 |
AE82..LB;AE82..SED..(LE,LEL) |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12080 |
AE82..LB;AE82..SED..(LE,LEL) |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-12120 |
AE82,CE80..LB |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12110 |
AE82,CE80..LB |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1202002 |
AE82,CE80..LB;AE82..SED..LE LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204002 |
AE82,CE80..LB;AE82..SED..LE RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204003 |
AE82..LB;AE82..SED..(LE,LEL) RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1204006 |
AE82..LB;AE82..SED..(LE,LEL) RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72616-1202004 |
AE82..LB;AE82..SED..(LE,LEL) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72616-1202003 |
AE82..LB;AE82..SED..(LE,LEL) LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-1202006 |
AE82..LB;AE82..SED..(LE,LEL) LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-1204004 |
AE82..LB;AE82..SED..(LE,LEL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1202002 |
AE82,CE80..LB;AE82..SED..LE LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204002 |
AE82,CE80..LB;AE82..SED..LE RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204003 |
AE82..LB;AE82..SED..(LE,LEL) RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1204006 |
AE82..LB;AE82..SED..(LE,LEL) RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72616-1202004 |
AE82..LB;AE82..SED..(LE,LEL) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72616-1202003 |
AE82..LB;AE82..SED..(LE,LEL) LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-1202006 |
AE82..LB;AE82..SED..(LE,LEL) LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-1204004 |
AE82..LB;AE82..SED..(LE,LEL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002033 |
AE82,CE80..LB;AE82..SED..LE GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002025 |
AE82,CE80..LB;AE82..SED..LE BEIGE,BEIGE,TRIM3# |
2 | ||
| 72655-2002024 |
AE82,CE80..LB..DX BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002023 |
AE82..LB;AE82..SED..(LE,LEL) GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002024 |
AE82,CE80..LB;AE82..SED..LE BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002033 |
AE82,CE80..LB..DX GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002025 |
AE82,CE80..LB..DX BEIGE,BEIGE,TRIM4# |
2 | ||
| 72655-2002056 |
AE82..LB;AE82..SED..(LE,LEL) BROWN,BROWN,TRIM4# |
2 | ||
| 72655-2002014 |
AE82..LB;AE82..SED..(LE,LEL) BLUE,BLUE,TRIM8# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002033 |
AE82,CE80..LB;AE82..SED..LE GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002025 |
AE82,CE80..LB;AE82..SED..LE BEIGE,BEIGE,TRIM3# |
2 | ||
| 72655-2002024 |
AE82,CE80..LB..DX BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002023 |
AE82..LB;AE82..SED..(LE,LEL) GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002024 |
AE82,CE80..LB;AE82..SED..LE BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002033 |
AE82,CE80..LB..DX GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002025 |
AE82,CE80..LB..DX BEIGE,BEIGE,TRIM4# |
2 | ||
| 72655-2002056 |
AE82..LB;AE82..SED..(LE,LEL) BROWN,BROWN,TRIM4# |
2 | ||
| 72655-2002014 |
AE82..LB;AE82..SED..(LE,LEL) BLUE,BLUE,TRIM8# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001025 |
AE82,CE80..LB;AE82..SED..LE BEIGE,BEIGE,TRIM3# |
2 | ||
| 72656-2001024 |
AE82,CE80..LB;AE82..SED..LE BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001025 |
AE82,CE80..LB..DX BEIGE,BEIGE,TRIM4# |
2 | ||
| 72656-2001023 |
AE82..LB;AE82..SED..(LE,LEL) GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001056 |
AE82..LB;AE82..SED..(LE,LEL) BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001024 |
AE82,CE80..LB..DX BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001033 |
AE82,CE80..LB..DX GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001014 |
AE82..LB;AE82..SED..(LE,LEL) BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001033 |
AE82,CE80..LB;AE82..SED..LE GRAY,GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001025 |
AE82,CE80..LB;AE82..SED..LE BEIGE,BEIGE,TRIM3# |
2 | ||
| 72656-2001024 |
AE82,CE80..LB;AE82..SED..LE BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001025 |
AE82,CE80..LB..DX BEIGE,BEIGE,TRIM4# |
2 | ||
| 72656-2001023 |
AE82..LB;AE82..SED..(LE,LEL) GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001056 |
AE82..LB;AE82..SED..(LE,LEL) BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001024 |
AE82,CE80..LB..DX BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001033 |
AE82,CE80..LB..DX GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001014 |
AE82..LB;AE82..SED..(LE,LEL) BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001033 |
AE82,CE80..LB;AE82..SED..LE GRAY,GRAY,TRIM1# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-1601004 |
AE82,CE80..LB BLUE,BLUE,TRIM8# |
1 | ||
| 72660-1601013 |
AE82,CE80..LB GRAY,GRAY,TRIM1# |
1 | ||
| 72660-1601016 |
AE82,CE80..LB BROWN,BROWN,TRIM4# |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-1601033 |
AE82,CE80..LB GRAY,GRAY,TRIM1# |
1 | ||
| 72681-1601004 |
AE82,CE80..LB BLUE,BLUE,TRIM8# |
1 | ||
| 72681-1601026 |
AE82,CE80..LB BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-06207 | ||||
| 91521-60814 | ||||
| 91611-60614 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||
| 91655-40620 | ||||
| 91655-60825 | ||||
| 93530-54016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
