AE82L-ELHDCA (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Jul 1987
Engine 4ALC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LB

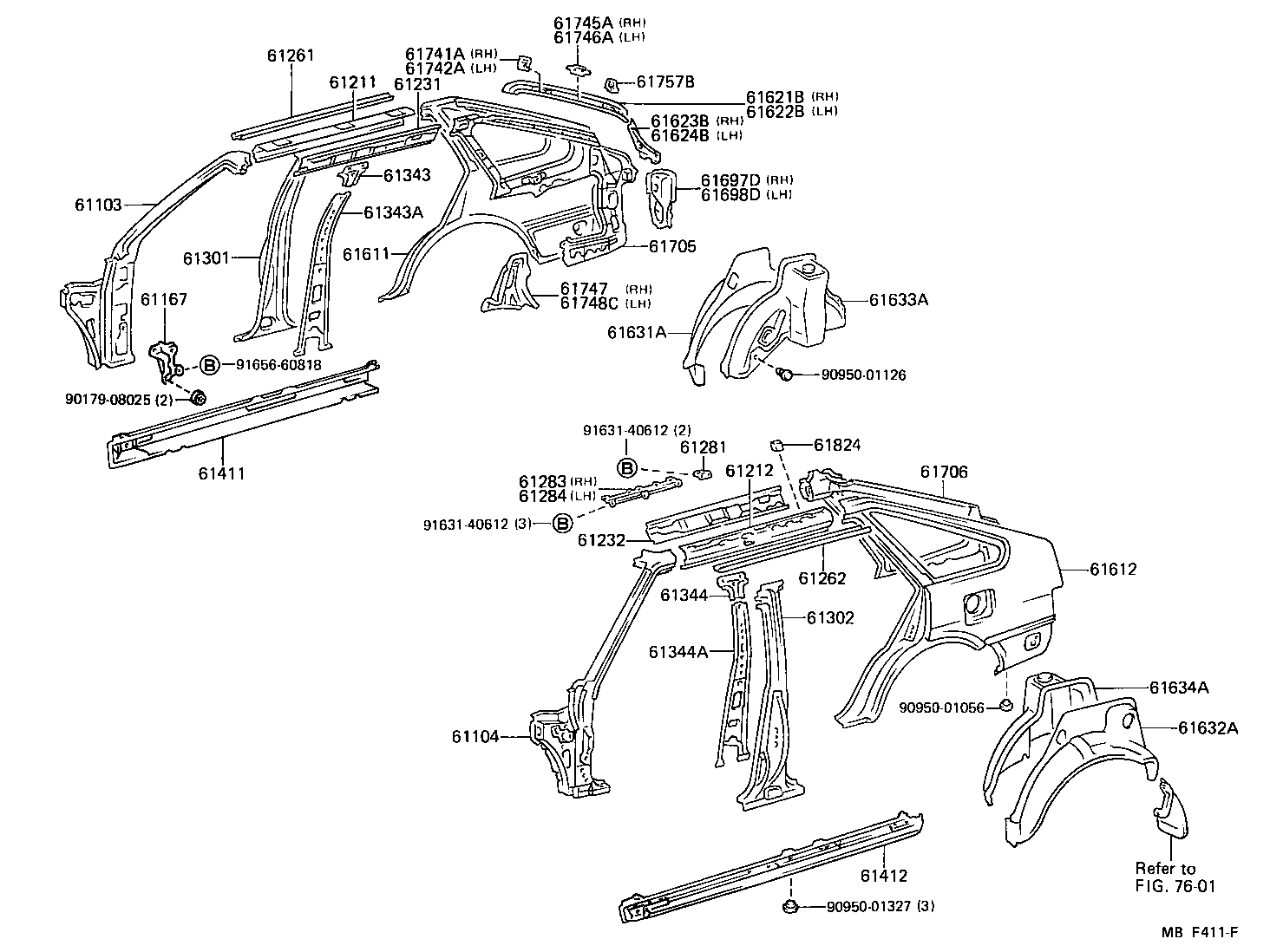

Click highlighted areas on diagram

diagram 61103 61104 61167 61211 61212 61231 61232 61261 61262 61281 61283 61284 61301 61302 61343 61343A 61344 61344A 61411 61412 61611 61612 61621B 61622B 61623B 61624B 61631A 61632A 61633A 61634A 61697D 61698D 61705 61706 61741A 61742A 61745A 61746A 61747 61748C 61757B 61824 7601 9017908025 9095001056 9095001126 9095001327 9163140612 9163140612 9165660818
Part # Description Qty Price
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61021-12480

AE82,CE80..LB

W/O ELECTRIC *RCM,*PW

 1
61021-12480

AE82..LB

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61022-12540

AE82,CE80..LB

W/O ELECTRIC *RCM,*PW

 1
61022-12540

AE82..LB

 1
61167 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH
61035-12030

AE82,CE80

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-12200

AE82,CE80..LB

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-12200

AE82,CE80..LB

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-12400

AE82,CE80..LB

W/SUN ROOF

 1
61231-12400

AE82..LB

 1
61231-12390

AE82,CE80..LB

W/O SUN ROOF

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-12290

AE82,CE80..LB

W/O SUN ROOF

 1
61232-12300

AE82..LB

 1
61232-12300

AE82,CE80..LB

W/SUN ROOF

 1
61261 - CHANNEL, ROOF DRIP, RH
61265-12080

AE82,CE80..LB

 1
61262 - CHANNEL, ROOF DRIP, LH
61266-12080

AE82,CE80..LB

 1
61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61281-12020

AE82,CE80..DX,LE,LEL

 2
61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61283-12020

AE82,CE80..DX,LE,LEL

 1
61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61284-12020

AE82,CE80..DX,LE,LEL

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61301-12150

AE82,CE80

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61302-12200

AE82,CE80

 1
61343 - PILLAR, CENTER BODY, INNER UPPER RH
61341-12060

AE82,CE80

 1
61343A - PILLAR, CENTER BODY, INNER RH
61343-12901

AE82,CE80

 1
61344 - PILLAR, CENTER BODY, INNER UPPER LH
61342-12060

AE82,CE80

 1
61344A - PILLAR, CENTER BODY, INNER LH
61344-12901

AE82,CE80

 1
61411 - PANEL, ROCKER, OUTER RH
61411-12290

AE82,CE80

 1
61412 - PANEL, ROCKER, OUTER LH
61412-12300

AE82,CE80

 1
61611 - PANEL, QUARTER, RH
61601-1A840

AE82,CE80..LB

 1
61601-12913

AE82,CE80..LB

 1
61612 - PANEL, QUARTER, LH
61602-1A470

AE82,CE80..LB..DX

 1
61602-12918

AE82..LB

 1
61602-12917

AE82,CE80..LB..DX

 1
61621B - TROUGH, BACK DOOR OPENING, FRONT RH
61621-12250

AE82,CE80..LB

 1
61622B - TROUGH, BACK DOOR OPENING, FRONT LH
61622-12250

AE82,CE80..LB

 1
61623B - TROUGH, BACK DOOR OPENING, REAR RH
61623-12050

AE82,CE80..LB

 1
61624B - TROUGH, BACK DOOR OPENING, REAR LH
61624-12050

AE82,CE80..LB

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-12160

AE82,CE80

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-12160

AE82,CE80

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-12902

AE82,CE80..LB

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-12902

AE82,CE80..LB

 1
61697D - HOUSING, QUARTER PANEL END, RH
61697-12030

AE82,CE80..LB

 1
61698D - HOUSING, QUARTER PANEL END, LH
61698-12030

AE82,CE80..LB

 1
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-12944

AE82,CE80..LB

 1
61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706-12946

AE82,CE80..LB

 1
61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH
61741-12040

AE82,CE80..LB

 1
61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH
61741-12040

AE82,CE80..LB

 1
61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH
61745-32010

AE82,CE80..LB

 1
61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH
61745-32010

AE82,CE80..LB

 1
61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61747-12070

AE82,CE80

 1
61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61748-12070

AE82,CE80

 1
61757B - RETAINER, DECK SIDE TRIM, LOWER
61757-32010

AE82,CE80..LB

 2
61824 - PLATE, NOISE CONTROL, NO.1
61824-12010

AE82,CE80

 4
Common parts
90179-08025
90950-01056
90950-01126
90950-01327
91631-40612
91656-60818
