AE82L-EGMQFW (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )4AG#

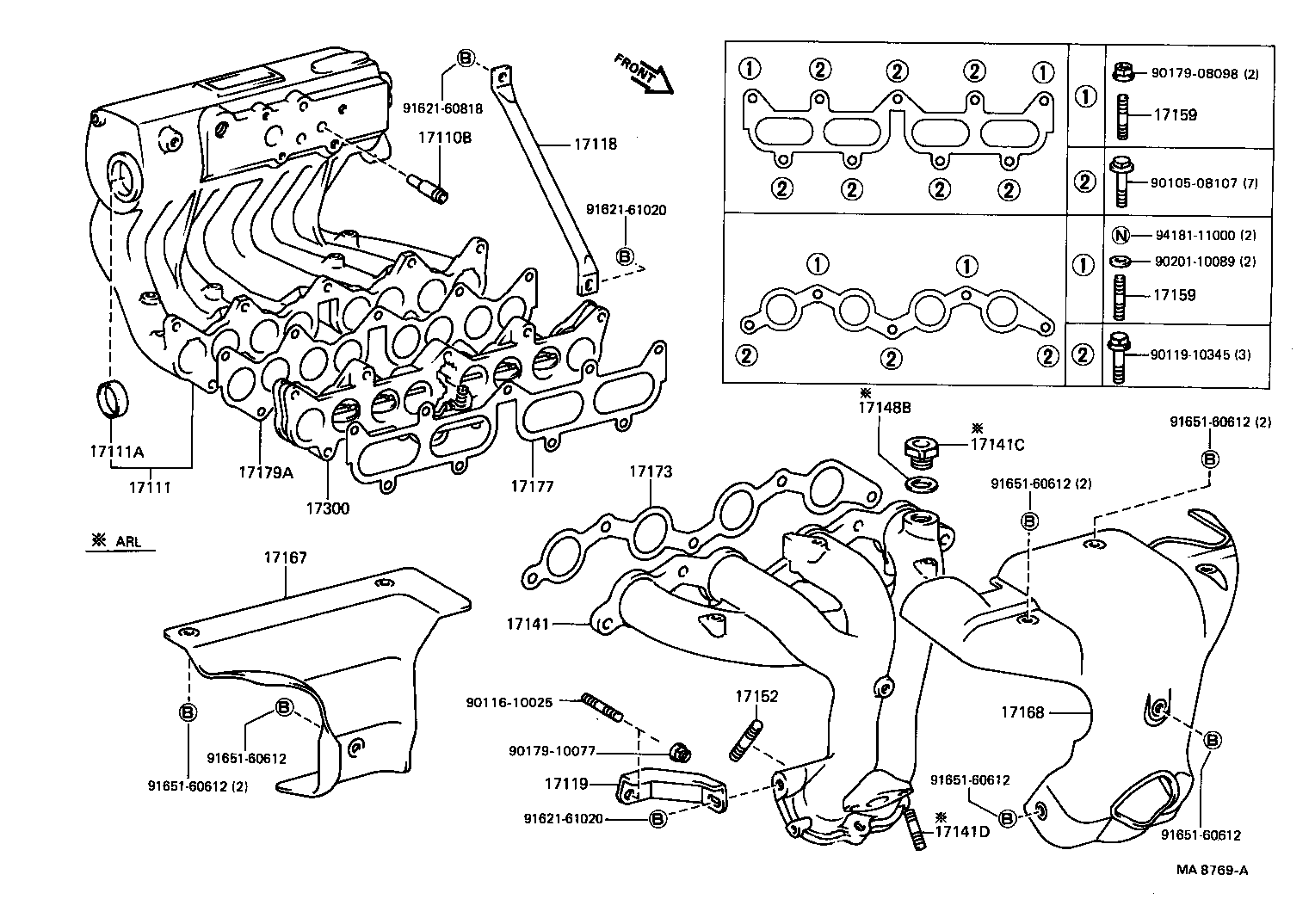

Click highlighted areas on diagram

diagram 17110B 17111 17111A 17118 17119 17141 17141C 17141D 17148B 17152 17159 17159 17167 17168 17173 17177 17179A 17300 9010508107 9011610025 9011910345 9017908098 9017910077 9020110089 9162160818 9162161020 9162161020 9165160612 9165160612 9165160612 9165160612 9165160612 9165160612 9418111000
Part # Description Qty Price
17118 - STAY, MANIFOLD
17125-16030

4AGEL..AE82

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2AL#,4AG#,4AL#..AE8#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60850

4AGEL..AE82

INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60850

4AGEL..AE82

INTAKE MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-16030

4AGEL..AE82

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-16020

4AGEL..AE82

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-16011

4AGEL..AE82

 1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17171-16011

4AGEL..AE82

 1
Common parts
90105-08107
90116-10025
90119-10345
90179-08098
90179-10077
90201-10089
91621-60818
91621-61020
91651-60612
94181-11000
