AE82L-EGMQF (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )4AG#

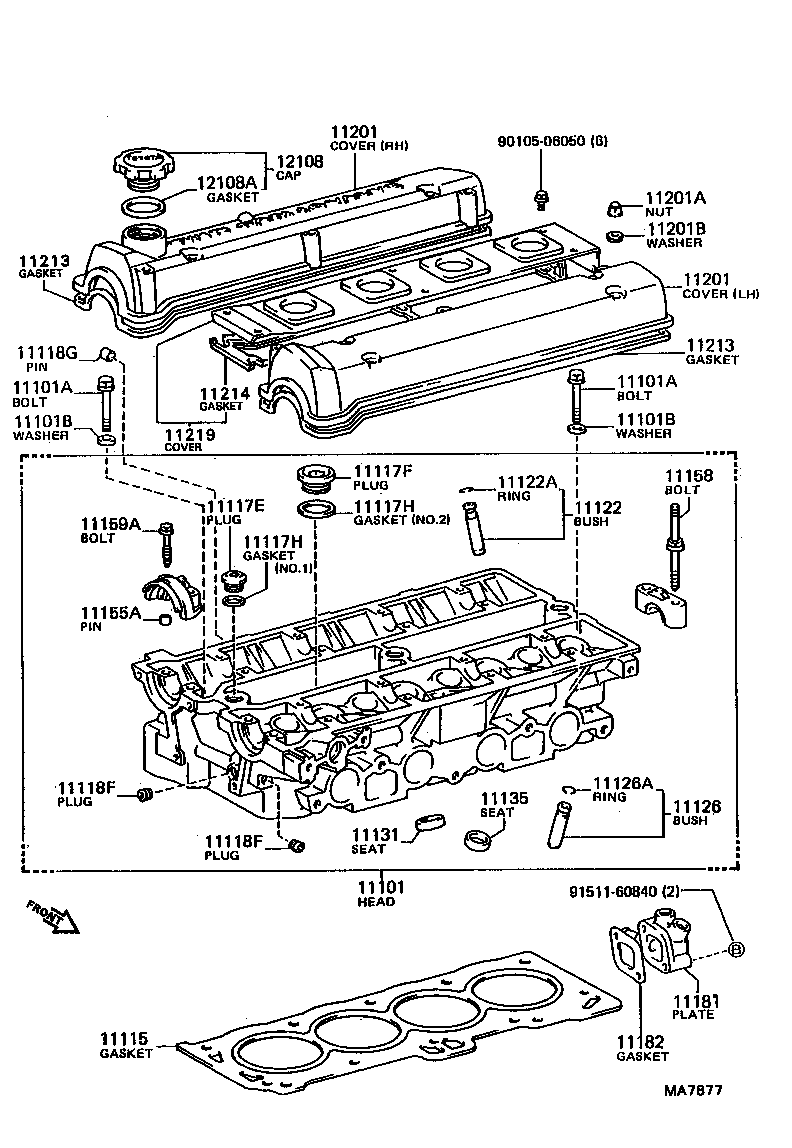

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11115 11117E 11117F 11117H 11117H 11118F 11118F 11118G 11122 11122A 11126 11126A 11131 11135 11155A 11158 11159A 11181 11182 11201 11201 11201A 11201B 11213 11213 11214 11219 12108 12108A 9010506050 9151160840
Part # Description Qty Price
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

2AL#,4AG#,4AL#..AE8#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

2AL#,4AG#,4AL#..AE8#

 10
11118F - PLUG, TAPER, NO.1
90344-51002

4AG#..AE82

 2
11118F - PLUG, TAPER, NO.1
90344-51002

4AG#..AE82

 2
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

2AL#,4AG#,4AL#..AE8#

 1
12180-70010

2ALC,4AG#,4AL#..AE8#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

2AL#,4AG#,4AL#..AE8#

 1
Common parts
90105-06050
91511-60840
