AE82L-EGMDCC (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 4ALC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )CS,CSX,S

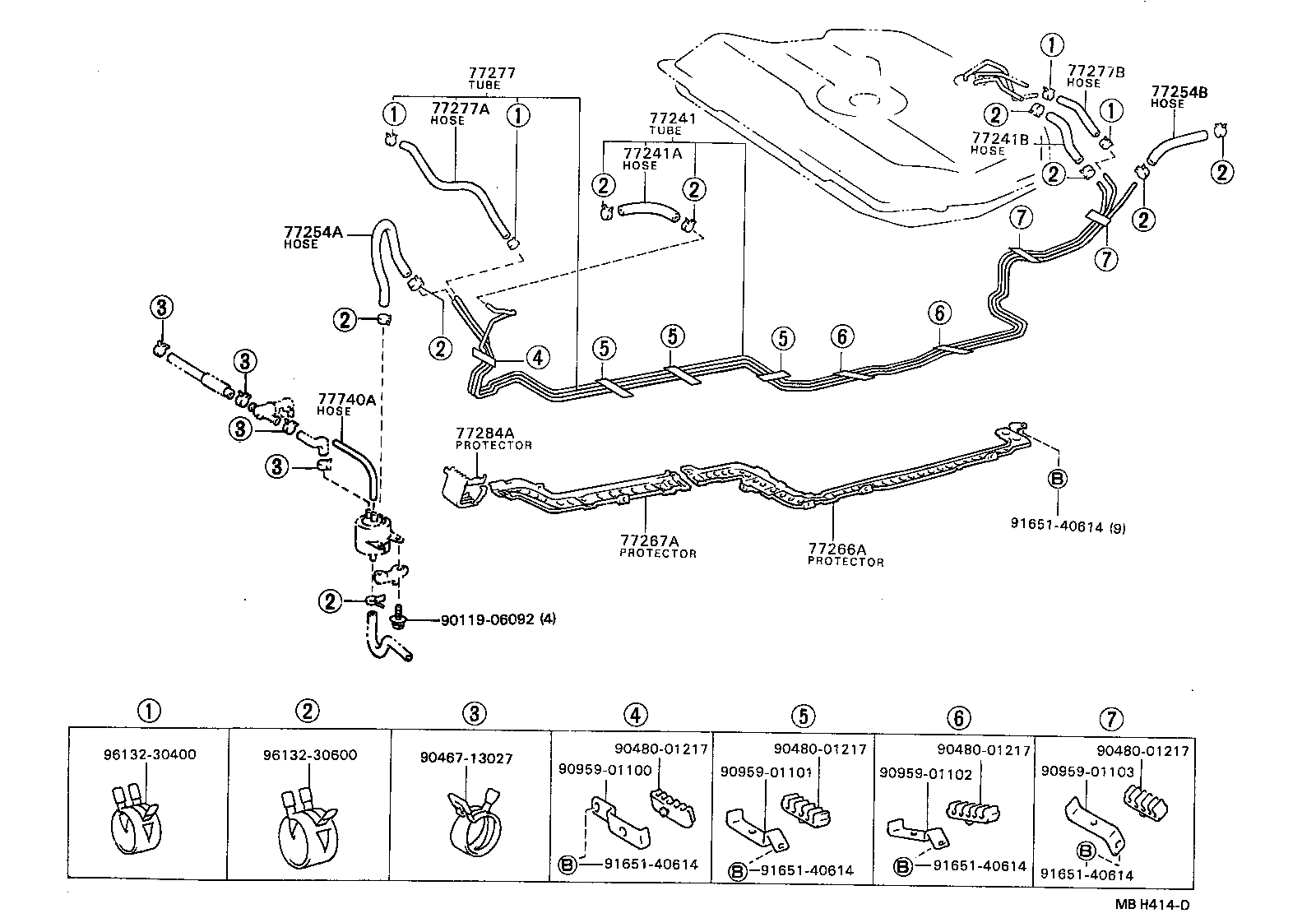

Click highlighted areas on diagram

diagram 77241 77241A 77241B 77254A 77254B 77266A 77267A 77277 77277A 77277B 77284A 77740A 9011906092 9046713027 9048001217 9048001217 9048001217 9048001217 9095901100 9095901101 9095901102 9095901103 9165140614 9165140614 9165140614 9165140614 9165140614 9613230400 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77205-12180

AE8#

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06020

AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL

*H,L=150

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06020

AE8#

*H,L=130

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-12020

AE8#,CE80,EE80

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-12040

AE8#,CE80,EE80

 1
77277 - TUBE, FUEL RETURN, NO.1
77207-12030

AE8#..LHD

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-15060

AE8#..LHD

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-04020

AE8#..CS,CSX,DX,GL,S,STD,XL

*H,L=160

 1
77284A - PROTECTOR, FUEL TUBE, NO.3
77284-12010

AE8#,CE80,EE80

 1
Common parts
90119-06092
90467-13027
90480-01217
90959-01100
90959-01101
90959-01102
90959-01103
91651-40614
96132-30400
96132-30600
