AE82L-EGMDCC (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 4ALC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )3DS,5DS

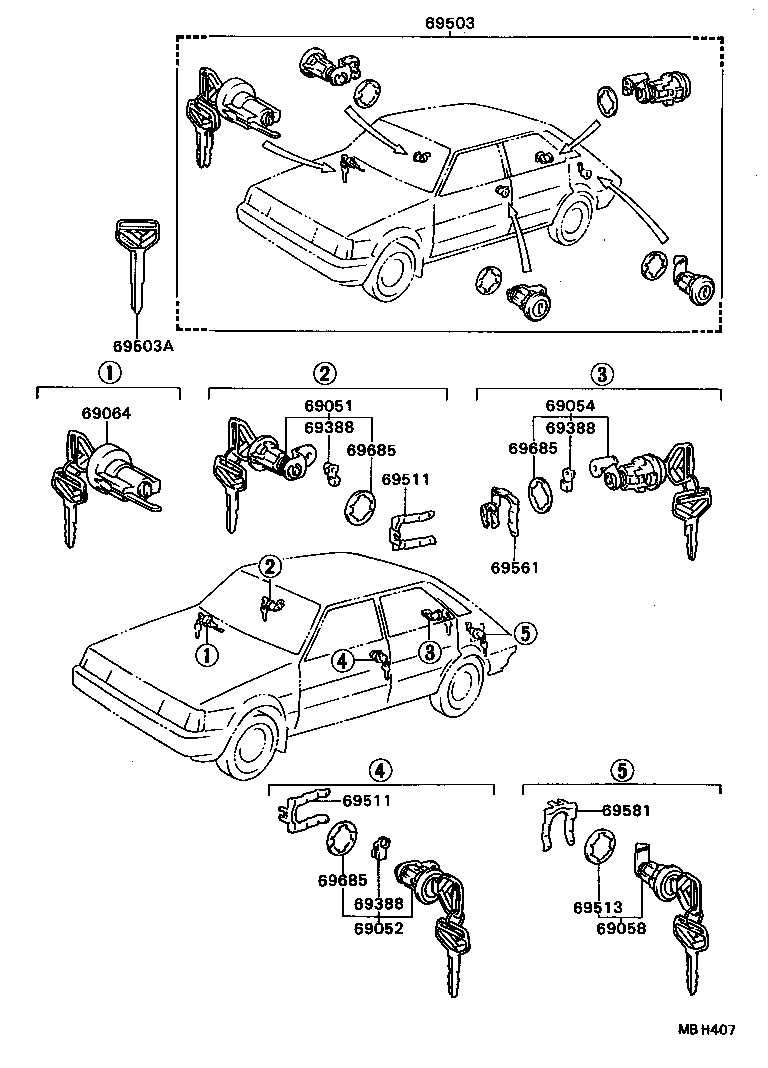

Click highlighted areas on diagram

diagram 69051 69052 69054 69058 69064 69388 69388 69388 69503 69503A 69511 69511 69513 69561 69581 69685 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-12170

AE8#,CE80,EE80..EUR

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-12170

AE8#,CE80,EE80..EUR

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-12370

AE82,CE80,EE80..(3DS,5DS)..EUR

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-16040

AE8#,CE80..EUR

 1
69058-12100

AE8#..SED..(CS,S)

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-16050

AE8#,CE80,EE80..EUR

 1
69057-12140

AE82,CE80,EE80..EUR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

AE8#,CE80,EE80

LH DOOR

 1
69759-20080

AE8#,CE80,EE80

RH DOOR,LUGGAGE,BACK DOOR

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

AE8#,CE80,EE80

LH DOOR

 1
69759-20080

AE8#,CE80,EE80

RH DOOR,LUGGAGE,BACK DOOR

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

AE8#,CE80,EE80

LH DOOR

 1
69759-20080

AE8#,CE80,EE80

RH DOOR,LUGGAGE,BACK DOOR

 2
69503 - CYLINDER SET, LOCK
69005-12641

AE82,CE80,EE80..(3DS,5DS)..(DX,GL,GT)..EUR

 1
69005-12640

AE82,CE80,EE80..(3DS,5DS)..(DX,GL,GT)..EUR

 1
69503A - KEY, BLANK
90999-00084

AE8#,CE80,EE80..EUR

MASTER KEY,W(*68),MASTER KEY

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

AE8#,CE80,EE80

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

AE8#,CE80,EE80

 2
69513 - PAD, FUEL FILLER LID LOCK CYLINDER
69513-32010

AE8#..SED..(CS,S)

 1
69513-32010

AE8#,CE80..EUR

 1
69581 - RETAINER, FUEL FILLER LID CYLINDER
69511-32010

AE8#..SED..(CS,S)

 1
69511-32010

AE8#,CE80..EUR

 1
69685 - PAD, LOCK CYLINDER
69513-32010

AE8#,CE80,EE80

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69513-32010

AE8#,CE80,EE80

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69513-32010

AE8#,CE80,EE80

FR DOOR

 2
