AE82L-EGMDCC (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 4ALC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8511)4ALC

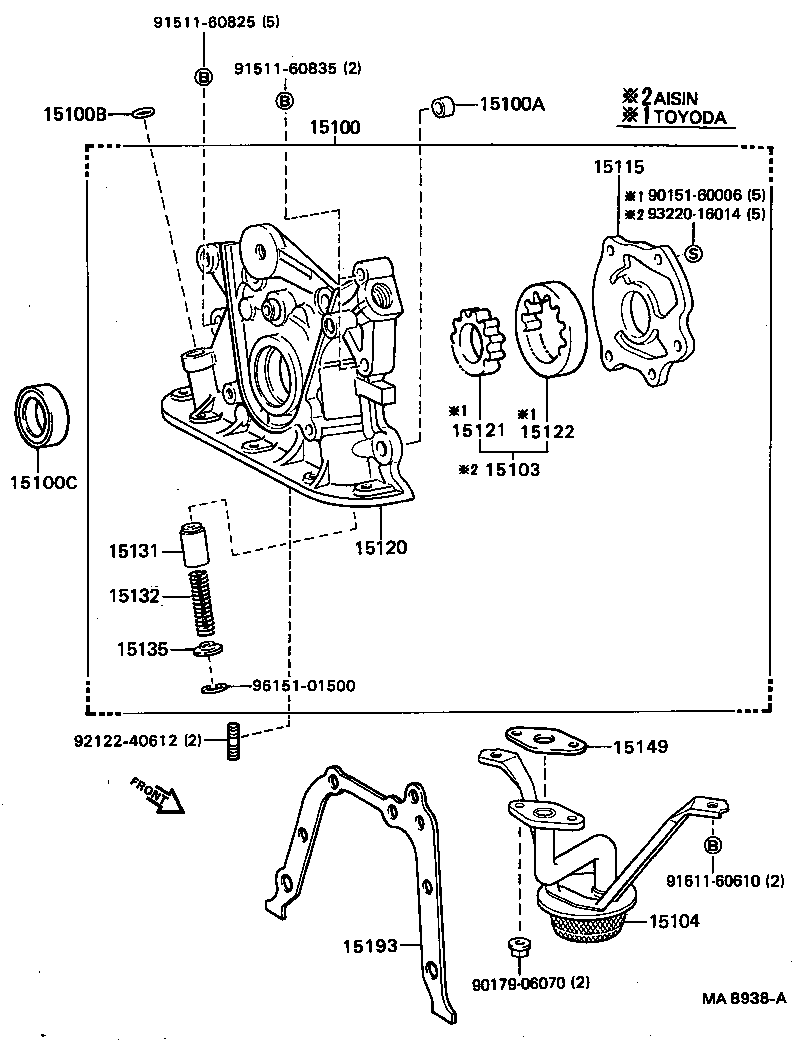

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15104 15115 15120 15121 15121 15122 15122 15131 15132 15135 15149 15193 9011606049 9015160006 9017906070 9151160825 9151160835 9161160610 9322016014 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-19015

2AL#,4AL#..AE8#

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

2AL#,4AG#,4AL#..AE8#

 2
15100B - RING, O(FOR OIL PUMP)
96711-19010

2AL#,4AG#,4AL#..AE8#

 1
15100C - SEAL(FOR OIL PUMP)
90311-32001

2AL#,4AG#,4AL#..AE8#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-15080

2AL#,4AG#,4AL#..AE8#

 1
15115 - COVER, OIL PUMP
15115-15010

2AL#,4AL#..AE8#

AISIN

 1
15120 - BODY SUB-ASSY, OIL PUMP
15120-15011

2AL#,4AL#..AE8#

AISIN

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15010

2AL#,4AL#..AE8#

AISIN

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15010

2AL#,4AL#..AE8#

AISIN

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15010

2AL#,4AL#..AE8#

AISIN

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15010

2AL#,4AL#..AE8#

AISIN

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

2AL#,4AG#,4AL#..AE8#

AISIN

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

2AL#,4AG#,4AL#..AE8#

AISIN

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

2AL#,4AG#,4AL#..AE8#

AISIN

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-15010

2AL#,4AG#,4AL#..AE8#

 1
15193 - GASKET, OIL PUMP
15197-15011

2AL#,4AG#,4AL#..AE8#

 1
Common parts
90116-06049
90151-60006
90179-06070
91511-60825
91511-60835
91611-60610
93220-16014
96151-01500

(8511- )

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15103 15104 15115 15120 15121 15122 15131 15132 15135 15149 15193 9011606049 9015160006 9017906070 9151160825 9151160835 9161160610 9322016014 9615101500
Part # Description Qty Price
Common parts
90116-06049
90151-60006
90179-06070
91511-60825
91511-60835
91611-60610
93220-16014
96151-01500

(8305-8511)2AL#,4AL#

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15104 15115 15120 15121 15121 15122 15122 15131 15132 15135 15149 15193 9011606049 9015160006 9017906070 9151160825 9151160835 9161160610 9322016014 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-19015

2AL#,4AL#..AE8#

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

2AL#,4AG#,4AL#..AE8#

 2
15100B - RING, O(FOR OIL PUMP)
96711-19010

2AL#,4AG#,4AL#..AE8#

 1
15100C - SEAL(FOR OIL PUMP)
90311-32001

2AL#,4AG#,4AL#..AE8#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-15080

2AL#,4AG#,4AL#..AE8#

 1
15115 - COVER, OIL PUMP
15115-15010

2AL#,4AL#..AE8#

AISIN

 1
15120 - BODY SUB-ASSY, OIL PUMP
15120-15011

2AL#,4AL#..AE8#

AISIN

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15010

2AL#,4AL#..AE8#

AISIN

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15010

2AL#,4AL#..AE8#

AISIN

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15010

2AL#,4AL#..AE8#

AISIN

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15010

2AL#,4AL#..AE8#

AISIN

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

2AL#,4AG#,4AL#..AE8#

AISIN

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

2AL#,4AG#,4AL#..AE8#

AISIN

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

2AL#,4AG#,4AL#..AE8#

AISIN

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-15010

2AL#,4AG#,4AL#..AE8#

 1
15193 - GASKET, OIL PUMP
15197-15011

2AL#,4AG#,4AL#..AE8#

 1
Common parts
90116-06049
90151-60006
90179-06070
91511-60825
91511-60835
91611-60610
93220-16014
96151-01500

(8511- )2ALC,4AL#

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15103 15104 15115 15120 15121 15122 15131 15132 15135 15149 15193 9015160006 9017906070 9151160825 9151160835 9161160610 9212240612 9322016014 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-19015

2AL#,4AL#..AE8#

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

2AL#,4AG#,4AL#..AE8#

 2
15100B - RING, O(FOR OIL PUMP)
96711-19010

2AL#,4AG#,4AL#..AE8#

 1
15100C - SEAL(FOR OIL PUMP)
90311-32001

2AL#,4AG#,4AL#..AE8#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-15080

2AL#,4AG#,4AL#..AE8#

 1
15115 - COVER, OIL PUMP
15115-15010

2AL#,4AL#..AE8#

AISIN

 1
15120 - BODY SUB-ASSY, OIL PUMP
15120-15011

2AL#,4AL#..AE8#

AISIN

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15010

2AL#,4AL#..AE8#

AISIN

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15010

2AL#,4AL#..AE8#

AISIN

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

2AL#,4AG#,4AL#..AE8#

AISIN

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

2AL#,4AG#,4AL#..AE8#

AISIN

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

2AL#,4AG#,4AL#..AE8#

AISIN

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-15010

2AL#,4AG#,4AL#..AE8#

 1
15193 - GASKET, OIL PUMP
15197-15011

2AL#,4AG#,4AL#..AE8#

 1
Common parts
90151-60006
90179-06070
91511-60825
91511-60835
91611-60610
92122-40612
93220-16014
96151-01500
