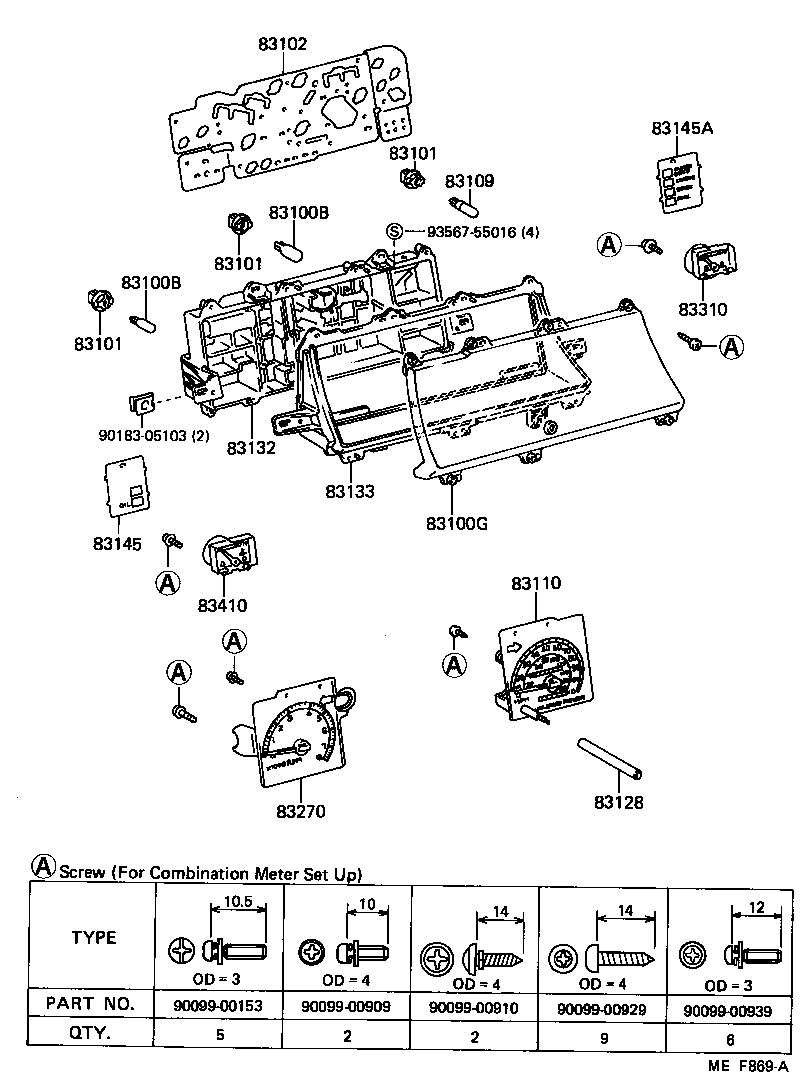

AE82L-EEPECA (1984)
Toyota Corolla Sed/Lb
(8308-8508)DX,LE,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE82,CE80..DX,LE,LEL 12V 1.2W W/O SOCKET,12V 1.4KW |
6 | ||
| 99132-12034 |
AE82,CE80 12V 3.4W,12V 3.4W |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE82,CE80..DX,LE,LEL 12V 1.2W W/O SOCKET,12V 1.4KW |
6 | ||
| 99132-12034 |
AE82,CE80 12V 3.4W,12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12730 |
AE82..LEL |
1 | ||
| 83138-12530 |
AE82..LEL |
1 | ||
| 83138-12810 |
AE82..DX,LE |
1 | ||
| 83138-12470 |
AE82,CE80..DX,LE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE82,CE80 OD=18 |
10 | ||
| 83101-14040 |
AE82..LEL OD=11.3 |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE82,CE80 OD=18 |
10 | ||
| 83101-14040 |
AE82..LEL OD=11.3 |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE82,CE80 OD=18 |
10 | ||
| 83101-14040 |
AE82..LEL OD=11.3 |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1A630 |
AE82..DX,LE |
1 | ||
| 83247-1E690 |
AE82..LEL W/*CRC |
1 | ||
| 83247-1E710 |
AE82..LEL |
1 | ||
| 83247-1A650 |
AE82..LE W/*CRC |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE82,CE80 12V3.4W W(GREEN CAP),W/GREEN CAP |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A501 |
AE82..LE..USA W/*CRC |
1 | ||
| 83110-1A750 |
AE82..LEL |
1 | ||
| 83110-1A490 |
AE82..USA |
1 | ||
| 83110-1A500 |
AE82..LE..USA W/*CRC |
1 | ||
| 83110-1A491 |
AE82..(DX,LE)..USA |
1 | ||
| 83110-1A502 |
AE82..(DX,LE)..USA W/*CRC |
1 | ||
| 83110-1A492 |
AE82..(DX,LE)..USA |
1 | ||
| 83110-1A761 |
AE82..LEL W/*CRC |
1 | ||
| 83110-1A760 |
AE82..LEL W/*CRC |
1 | ||
| 83110-1A751 |
AE82..LEL |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12690 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83128-12710 |
AE82..LEL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12530 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83132-12570 |
AE82..LEL |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-12670 |
AE82..LEL |
1 | ||
| 83133-12630 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83133-1A110 |
AE82..DX,LE |
1 | ||
| 83133-1A150 |
AE82..LEL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E210 |
AE82..LEL |
1 | ||
| 83145-1A470 |
AE82..LEL |
1 | ||
| 83145-12710 |
AE82..DX,LE |
1 | ||
| 83145-1A630 |
AE82..DX,LE |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-12850 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83145-1E150 |
AE82..LEL |
1 | ||
| 83145-1A450 |
AE82..LEL |
1 | ||
| 83145-1A750 |
AE82..DX,LE |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A070 |
AE82..LEL |
1 | ||
| 83243-12890 |
AE82..LEL |
1 | ||
| 83243-12550 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A390 |
AE82..LEL |
1 | ||
| 83244-1A490 |
AE82..LEL |
1 | ||
| 83244-12790 |
AE82,CE80..DX,LE,STD |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
(8408-8508)LEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE82,CE80..DX,LE,LEL 12V 1.2W W/O SOCKET,12V 1.4KW |
6 | ||
| 99132-12034 |
AE82,CE80 12V 3.4W,12V 3.4W |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE82,CE80..DX,LE,LEL 12V 1.2W W/O SOCKET,12V 1.4KW |
6 | ||
| 99132-12034 |
AE82,CE80 12V 3.4W,12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12730 |
AE82..LEL |
1 | ||
| 83138-12530 |
AE82..LEL |
1 | ||
| 83138-12810 |
AE82..DX,LE |
1 | ||
| 83138-12470 |
AE82,CE80..DX,LE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE82,CE80 OD=18 |
10 | ||
| 83101-14040 |
AE82..LEL OD=11.3 |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE82,CE80 OD=18 |
10 | ||
| 83101-14040 |
AE82..LEL OD=11.3 |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE82,CE80 OD=18 |
10 | ||
| 83101-14040 |
AE82..LEL OD=11.3 |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1A630 |
AE82..DX,LE |
1 | ||
| 83247-1E690 |
AE82..LEL W/*CRC |
1 | ||
| 83247-1E710 |
AE82..LEL |
1 | ||
| 83247-1A650 |
AE82..LE W/*CRC |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE82,CE80 12V3.4W W(GREEN CAP),W/GREEN CAP |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A501 |
AE82..LE..USA W/*CRC |
1 | ||
| 83110-1A750 |
AE82..LEL |
1 | ||
| 83110-1A490 |
AE82..USA |
1 | ||
| 83110-1A500 |
AE82..LE..USA W/*CRC |
1 | ||
| 83110-1A491 |
AE82..(DX,LE)..USA |
1 | ||
| 83110-1A502 |
AE82..(DX,LE)..USA W/*CRC |
1 | ||
| 83110-1A492 |
AE82..(DX,LE)..USA |
1 | ||
| 83110-1A761 |
AE82..LEL W/*CRC |
1 | ||
| 83110-1A760 |
AE82..LEL W/*CRC |
1 | ||
| 83110-1A751 |
AE82..LEL |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12690 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83128-12710 |
AE82..LEL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12530 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83132-12570 |
AE82..LEL |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-12670 |
AE82..LEL |
1 | ||
| 83133-12630 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83133-1A110 |
AE82..DX,LE |
1 | ||
| 83133-1A150 |
AE82..LEL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E210 |
AE82..LEL |
1 | ||
| 83145-1A470 |
AE82..LEL |
1 | ||
| 83145-12710 |
AE82..DX,LE |
1 | ||
| 83145-1A630 |
AE82..DX,LE |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-12850 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83145-1E150 |
AE82..LEL |
1 | ||
| 83145-1A450 |
AE82..LEL |
1 | ||
| 83145-1A750 |
AE82..DX,LE |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1A410 |
AE82..LEL |
1 | ||
| 83242-1A210 |
AE82..LEL |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A070 |
AE82..LEL |
1 | ||
| 83243-12890 |
AE82..LEL |
1 | ||
| 83243-12550 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A390 |
AE82..LEL |
1 | ||
| 83244-1A490 |
AE82..LEL |
1 | ||
| 83244-12790 |
AE82,CE80..DX,LE,STD |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
(8508- )DX,LE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE82,CE80..DX,LE,LEL 12V 1.2W W/O SOCKET,12V 1.4KW |
6 | ||
| 99132-12034 |
AE82,CE80 12V 3.4W,12V 3.4W |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE82,CE80..DX,LE,LEL 12V 1.2W W/O SOCKET,12V 1.4KW |
6 | ||
| 99132-12034 |
AE82,CE80 12V 3.4W,12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12730 |
AE82..LEL |
1 | ||
| 83138-12530 |
AE82..LEL |
1 | ||
| 83138-12810 |
AE82..DX,LE |
1 | ||
| 83138-12470 |
AE82,CE80..DX,LE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE82,CE80 OD=18 |
10 | ||
| 83101-14040 |
AE82..LEL OD=11.3 |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE82,CE80 OD=18 |
10 | ||
| 83101-14040 |
AE82..LEL OD=11.3 |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE82,CE80 OD=18 |
10 | ||
| 83101-14040 |
AE82..LEL OD=11.3 |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1A630 |
AE82..DX,LE |
1 | ||
| 83247-1E690 |
AE82..LEL W/*CRC |
1 | ||
| 83247-1E710 |
AE82..LEL |
1 | ||
| 83247-1A650 |
AE82..LE W/*CRC |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE82,CE80 12V3.4W W(GREEN CAP),W/GREEN CAP |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A501 |
AE82..LE..USA W/*CRC |
1 | ||
| 83110-1A750 |
AE82..LEL |
1 | ||
| 83110-1A490 |
AE82..USA |
1 | ||
| 83110-1A500 |
AE82..LE..USA W/*CRC |
1 | ||
| 83110-1A491 |
AE82..(DX,LE)..USA |
1 | ||
| 83110-1A502 |
AE82..(DX,LE)..USA W/*CRC |
1 | ||
| 83110-1A492 |
AE82..(DX,LE)..USA |
1 | ||
| 83110-1A761 |
AE82..LEL W/*CRC |
1 | ||
| 83110-1A760 |
AE82..LEL W/*CRC |
1 | ||
| 83110-1A751 |
AE82..LEL |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12690 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83128-12710 |
AE82..LEL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12530 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83132-12570 |
AE82..LEL |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-12670 |
AE82..LEL |
1 | ||
| 83133-12630 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83133-1A110 |
AE82..DX,LE |
1 | ||
| 83133-1A150 |
AE82..LEL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E210 |
AE82..LEL |
1 | ||
| 83145-1A470 |
AE82..LEL |
1 | ||
| 83145-12710 |
AE82..DX,LE |
1 | ||
| 83145-1A630 |
AE82..DX,LE |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-12850 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83145-1E150 |
AE82..LEL |
1 | ||
| 83145-1A450 |
AE82..LEL |
1 | ||
| 83145-1A750 |
AE82..DX,LE |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A070 |
AE82..LEL |
1 | ||
| 83243-12890 |
AE82..LEL |
1 | ||
| 83243-12550 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A390 |
AE82..LEL |
1 | ||
| 83244-1A490 |
AE82..LEL |
1 | ||
| 83244-12790 |
AE82,CE80..DX,LE,STD |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
(8508- )LEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE82,CE80..DX,LE,LEL 12V 1.2W W/O SOCKET,12V 1.4KW |
6 | ||
| 99132-12034 |
AE82,CE80 12V 3.4W,12V 3.4W |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE82,CE80..DX,LE,LEL 12V 1.2W W/O SOCKET,12V 1.4KW |
6 | ||
| 99132-12034 |
AE82,CE80 12V 3.4W,12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12730 |
AE82..LEL |
1 | ||
| 83138-12530 |
AE82..LEL |
1 | ||
| 83138-12810 |
AE82..DX,LE |
1 | ||
| 83138-12470 |
AE82,CE80..DX,LE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE82,CE80 OD=18 |
10 | ||
| 83101-14040 |
AE82..LEL OD=11.3 |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE82,CE80 OD=18 |
10 | ||
| 83101-14040 |
AE82..LEL OD=11.3 |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE82,CE80 OD=18 |
10 | ||
| 83101-14040 |
AE82..LEL OD=11.3 |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1A630 |
AE82..DX,LE |
1 | ||
| 83247-1E690 |
AE82..LEL W/*CRC |
1 | ||
| 83247-1E710 |
AE82..LEL |
1 | ||
| 83247-1A650 |
AE82..LE W/*CRC |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE82,CE80 12V3.4W W(GREEN CAP),W/GREEN CAP |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A501 |
AE82..LE..USA W/*CRC |
1 | ||
| 83110-1A750 |
AE82..LEL |
1 | ||
| 83110-1A490 |
AE82..USA |
1 | ||
| 83110-1A500 |
AE82..LE..USA W/*CRC |
1 | ||
| 83110-1A491 |
AE82..(DX,LE)..USA |
1 | ||
| 83110-1A502 |
AE82..(DX,LE)..USA W/*CRC |
1 | ||
| 83110-1A492 |
AE82..(DX,LE)..USA |
1 | ||
| 83110-1A761 |
AE82..LEL W/*CRC |
1 | ||
| 83110-1A760 |
AE82..LEL W/*CRC |
1 | ||
| 83110-1A751 |
AE82..LEL |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12690 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83128-12710 |
AE82..LEL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12530 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83132-12570 |
AE82..LEL |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-12670 |
AE82..LEL |
1 | ||
| 83133-12630 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83133-1A110 |
AE82..DX,LE |
1 | ||
| 83133-1A150 |
AE82..LEL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E210 |
AE82..LEL |
1 | ||
| 83145-1A470 |
AE82..LEL |
1 | ||
| 83145-12710 |
AE82..DX,LE |
1 | ||
| 83145-1A630 |
AE82..DX,LE |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-12850 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83145-1E150 |
AE82..LEL |
1 | ||
| 83145-1A450 |
AE82..LEL |
1 | ||
| 83145-1A750 |
AE82..DX,LE |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1A410 |
AE82..LEL |
1 | ||
| 83242-1A210 |
AE82..LEL |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A070 |
AE82..LEL |
1 | ||
| 83243-12890 |
AE82..LEL |
1 | ||
| 83243-12550 |
AE82,CE80..DX,LE,STD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A390 |
AE82..LEL |
1 | ||
| 83244-1A490 |
AE82..LEL |
1 | ||
| 83244-12790 |
AE82,CE80..DX,LE,STD |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
(8305-8505)CS,DX,GL,S,STD ; (8505-8605)CS,S,STD..ARL,SA ; (8605- )CS,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
(8505-8707)DX,GL,GT,XL..EUR,GEN,SAA ; (8605-)3FC,4FC,5F..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
