AE82L-EEPECA (1984)
Toyota Corolla Sed/Lb
(8408- )4FC

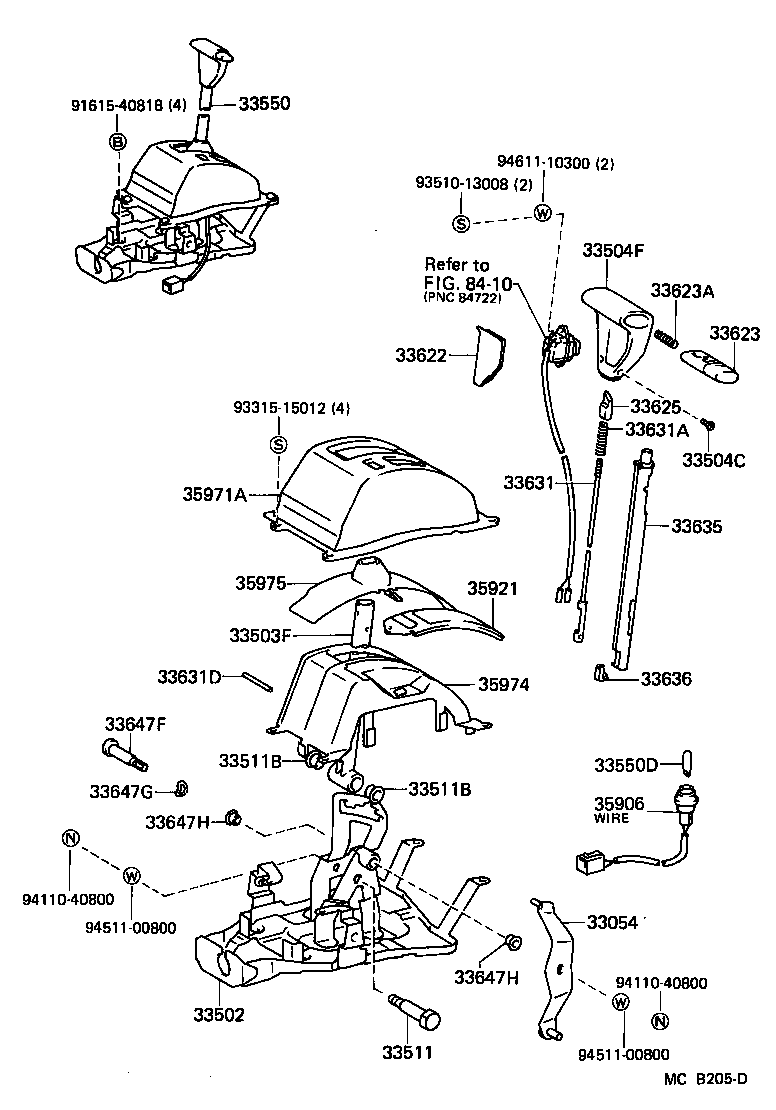

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-12020 |
AE82,CE80..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-12200 |
AE82,CE80..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12280 |
AE82..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
AE82..4FC |
2 | ||
| 90159-40109 |
AE82,CE80..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3205006 |
AE82..4FC BROWN,BROWN,TRIM4# |
1 | ||
| 33542-3205004 |
AE82..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33542-3205003 |
AE82..4FC GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20240 |
AE82,CE80..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
AE82,CE80..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
AE82,CE80..ATM |
2 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-1237003 |
AE82..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33550-1237004 |
AE82..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-1237006 |
AE82..4FC BROWN,BROWN,TRIM4# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11036 |
AE82,CE80..ATM 12V 1.7W,12V 1.7W |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-1602004 |
AE82..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33622-1602013 |
AE82..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33622-1602016 |
AE82..4FC BROWN,BROWN,TRIM4# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1602004 |
AE82..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-1602016 |
AE82..4FC BROWN,BROWN,TRIM4# |
1 | ||
| 33623-1602013 |
AE82..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AE82,CE80..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
AE82..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-32011 |
AE82..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07005 |
AE82..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04001 |
AE82,CE80..ATM |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-12020 |
AE82..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
AE82..4FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-32010 |
AE82,CE80..ATM |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-10003 |
AE82,CE80..ATM |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
AE82,CE80..ATM |
2 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
AE82,CE80..ATM |
2 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12050 |
AE82..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12190 |
AE82,CE80..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-12100 |
AE82,CE80..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-12090 |
AE82,CE80..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12110 |
AE82..4FC |
1 | ||
| Common parts | ||||
| 91615-40818 | ||||
| 93315-15012 | ||||
| 93510-13008 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94611-10300 | ||||
| Linked diagrams | ||||
| 8410 | ||||
