AE82L-EEMNCA (1983)
Toyota Corolla Sed/Lb
(8308- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-12620 |
AE82,CE80..SED |
1 | ||
| 64401-12621 |
AE82..SED |
1 | ||
| 64401-12622 |
AE82..SED |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09041 |
AE82,CE80..SED RR,OD=18,TYPE A |
2 | ||
| 90541-07003 |
AE82,CE80..SED FR |
2 | ||
| 90541-19001 |
AE82,CE80..SED RR,OD=27,TYPE B |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09041 |
AE82,CE80..SED RR,OD=18,TYPE A |
2 | ||
| 90541-07003 |
AE82,CE80..SED FR |
2 | ||
| 90541-19001 |
AE82,CE80..SED RR,OD=27,TYPE B |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-12250 |
AE82,CE80..SED |
1 | ||
| 64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-12170 |
AE82,CE80..SED |
1 | ||
| 64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-12160 |
AE82,CE80..SED |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-20010 |
AE82,CE80..SED |
4 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-12160 |
AE82,CE80..SED |
1 | ||
| 64531-12160 |
AE82..SED..(DX,LE) |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-12150 |
AE82..SED..(DX,LE) |
1 | ||
| 64532-12150 |
AE82,CE80..SED |
1 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-07007 |
AE82,CE80..SED |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12010 |
AE82,CE80..SED |
2 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-12070 |
AE82..SED..(LE,LEL) |
1 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-12070 |
AE82..SED..(LE,LEL) |
1 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-12050 |
AE82..SED |
1 | ||
| 64606-12050 |
AE82..SED..(LE,LEL) |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
AE82..SED |
2 | ||
| 90506-09034 |
AE82..SED..(LE,LEL) |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
AE82..SED |
2 | ||
| 90506-09034 |
AE82..SED..(LE,LEL) |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-12230 |
AE82..SED |
1 | ||
| 64607-12230 |
AE82..SED..(LE,LEL) |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AE82..SED |
2 | ||
| 69749-12010 |
AE82..SED..(LE,LEL) |
2 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AE82..SED |
2 | ||
| 69749-12010 |
AE82..SED..(LE,LEL) |
2 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-12110 |
AE82..SED..(LE,LEL) |
1 | ||
| 64610-12110 |
AE82..SED |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-08001 |
AE82,CE80..SED |
1 | ||
| 64631 - PROTECTOR, LUGGAGE DOOR LOCK | ||||
| 64631-12010 |
AE82,CE80..SED |
1 | ||
| 69565B - FUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER | ||||
| 69565-12010 |
AE82,CE80..SED |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90119-06136 | ||||
| 90119-06229 | ||||
| 90249-06017 | ||||
| 90950-01013 | ||||
| 91651-40612 | ||||
| 96160-00500 | ||||

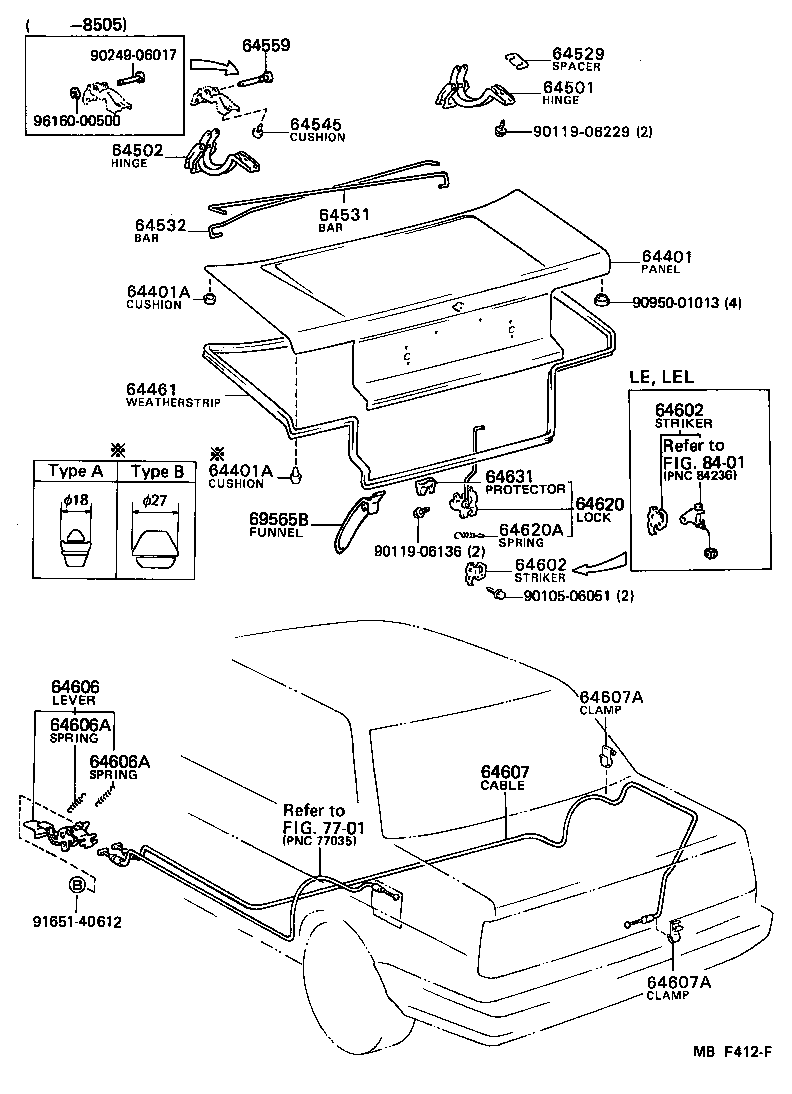

| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||
