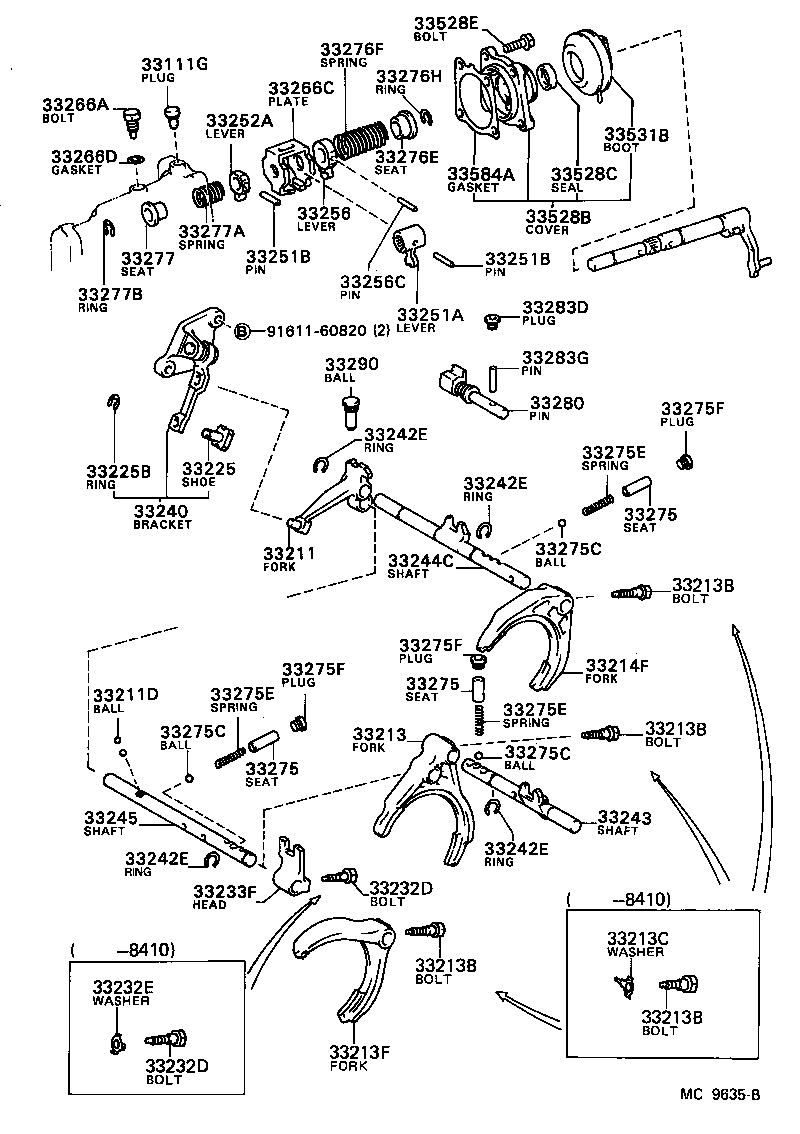

AE82L-EEMDCK (1983)
Toyota Corolla Sed/Lb
(8308- )AE82..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03080 |
AE82,CE80..MTM |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-12020 |
AE82..5F |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-06004 |
AE82..5F OD=6.35 |
2 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-12010 |
AE82..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06005 |
AE82..5F |
3 | ||
| 90105-06052 |
AE82..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06005 |
AE82..5F |
3 | ||
| 90105-06052 |
AE82..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06005 |
AE82..5F |
3 | ||
| 90105-06052 |
AE82..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06005 |
AE82..5F |
3 | ||
| 90105-06052 |
AE82..5F |
3 | ||
| 33213C - WASHER, LOCK(FOR SHIFT FORK SET) | ||||
| 90215-08004 |
AE82..5F |
3 | ||
| 33213F - FORK, 3RD & 4TH SHIFT | ||||
| 33213-12020 |
AE82..5F |
1 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-12010 |
AE82..5F |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-12010 |
AE82..5F |
1 | ||
| 33225B - RING, E(FOR SHIFT ARM SHOE) | ||||
| 96160-00800 |
AE82..5F |
1 | ||
| 33232D - BOLT (FOR SHIFT HEAD SET) | ||||
| 90105-06052 |
AE82..5F |
1 | ||
| 90113-06005 |
AE82..5F |
1 | ||
| 33232D - BOLT (FOR SHIFT HEAD SET) | ||||
| 90105-06052 |
AE82..5F |
1 | ||
| 90113-06005 |
AE82..5F |
1 | ||
| 33232E - WASHER, LOCK (FOR SHIFT HEAD SET) | ||||
| 90215-09004 |
AE82..5F |
1 | ||
| 33233F - HEAD, 3RD & 4TH SHIFT | ||||
| 33232-12011 |
AE82..5F |
1 | ||
| 33232-12010 |
AE82..5F |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-12011 |
AE82..5F |
1 | ||
| 33240-12010 |
AE82..5F |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
AE82..5F |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
AE82..5F |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
AE82..5F |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
AE82..5F |
4 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33205-12020 |
AE82..5F |
1 | ||
| 33244C - SHAFT, REVERSE & 5TH SHIFT FORK | ||||
| 33244-12051 |
AE82..5F |
1 | ||
| 33244-12052 |
AE82..5F |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-12091 |
AE82..5F |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-12060 |
AE82..5F |
1 | ||
| 33251-10050 |
AE82..5F |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
AE82..5F L=25.5 |
2 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
AE82..5F L=25.5 |
2 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-12010 |
AE82..5F |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-12020 |
AE82..5F |
1 | ||
| 33256-12021 |
AE82..5F |
1 | ||
| 33256C - PIN, SLOTTED SPRING (FOR SELECT INNER LEVER) | ||||
| 90254-05002 |
AE82..5F |
1 | ||
| 33266A - BOLT (FOR SHIFT INTER LOCK PLATE) | ||||
| 90109-12019 |
AE82..5F |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-12020 |
AE82..5F |
1 | ||
| 33266-12021 |
AE82..5F |
1 | ||
| 33266D - GASKET (FOR SHIFT INTER LOCK PLATE) | ||||
| 90430-12008 |
AE82..5F |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
AE82..5F OD=10.7 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
AE82..5F OD=10.7 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
AE82..5F OD=10.7 |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
AE82..5F |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
AE82..5F |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
AE82..5F |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14077 |
AE82..5F |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14077 |
AE82..5F |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14077 |
AE82..5F |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
AE82..5F |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
AE82..5F |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
AE82..5F |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-12021 |
AE82..5F |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-16076 |
AE82..5F |
1 | ||
| 33276H - RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT) | ||||
| 90520-15003 |
AE82..5F |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-12010 |
AE82..5F |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-18052 |
AE82..5F |
1 | ||
| 33277B - RING, E (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90523-12003 |
AE82..5F |
1 | ||
| 90523-12003 |
AE82,CE80..MTM |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-12060 |
AE82..5F |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
AE82..5F |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05003 |
AE82..5F |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-12010 |
AE82..5F |
1 | ||
| 33290-12011 |
AE82..5F |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-12061 |
AE82..5F |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90311-18006 |
AE82..5F |
1 | ||
| 33528E - BOLT (FOR CONTROL SHAFT COVER) | ||||
| 90119-10288 |
AE82..5F *10-1.25PX25-19.8,*10-1.25PX25-19.8 |
2 | ||
| 91611-61025 |
AE82..5F *10-1.25PX25-25,*10-1.25PX25-25 |
2 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-12020 |
AE82..5F |
1 | ||
| 33584A - GASKET, CONTROL SHIFT LEVER RETAINER | ||||
| 33584-12050 |
AE82..5F |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
