AE82L-EEMDCA (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Jul 1987
Engine 4ALC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

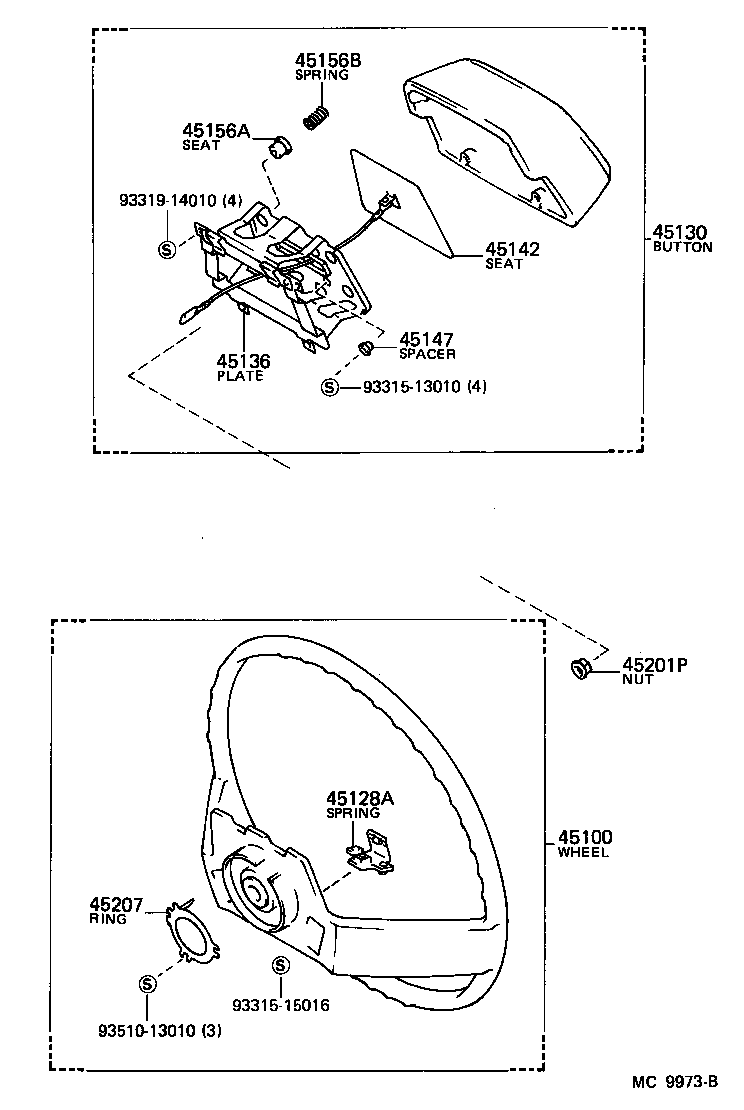

(8308- )DX,STD..USA

Click highlighted areas on diagram

diagram 45100 45128A 45130 45136 45142 45147 45156A 45156B 45201P 45207 9331513010 9331515016 9331914010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1243003

AE82,CE80..(DX,STD)..USA

GRAY,GRAY,TRIM1#

 1
45100-1243002

AE82,CE80..(DX,STD)..USA

MAROON,RED/MAROON,TRIM3#

 1
45100-1243016

AE82,CE80..DX..USA

BROWN,BROWN,TRIM4#

 1
45100-1243004

AE82,CE80..(DX,STD)..USA

BLUE,BLUE,TRIM8#

 1
45128A - SPRING, STEERING WHEEL PAD SET
45128-12010

AE82..DX..USA

 1
45130 - BUTTON ASSY, HORN
45130-1227002

AE82,CE80..(DX,STD)..USA

MAROON,RED/MAROON,TRIM3#

 1
45130-1227003

AE82,CE80..(DX,STD)..USA

GRAY,GRAY,TRIM1#

 1
45130-1227004

AE82,CE80..(DX,STD)..USA

BLUE,BLUE,TRIM8#

 1
45130-1227016

AE82,CE80..DX..USA

BROWN,BROWN,TRIM4#

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-12130

AE82,CE80..(DX,STD)..USA

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-16010

AE82,CE80..USA

 1
45147 - SPACER, HORN BUTTON
90561-02001

AE82,CE80..USA

 4
45156A - SEAT, HORN CONTACT SPRING SET
45156-16010

AE82,CE80..USA

 4
45156B - SPRING(FOR HORN CONTACT SPRING SET SEAT)
90501-06032

AE82,CE80..USA

 4
45201P - NUT, STEERING WHEEL SET
90179-12086

AE82,CE80

 1
45207 - RING, HORN CONTACT
45176-22050

AE82,CE80..USA

 1
Common parts
93315-13010
93315-15016
93319-14010
93510-13010

(8305-8502)DX,STD..GEN,SA,SAA ; (8502- )DX,STD,XL..GEN,SAA

Click highlighted areas on diagram

diagram 45100 45125 45129 45130 45131 45136A 45146 45146 45146 45201P 45207 9015950061 9351013010 9351013010 9351015014
Part # Description Qty Price
Common parts
90159-50061
93510-13010
93510-15014

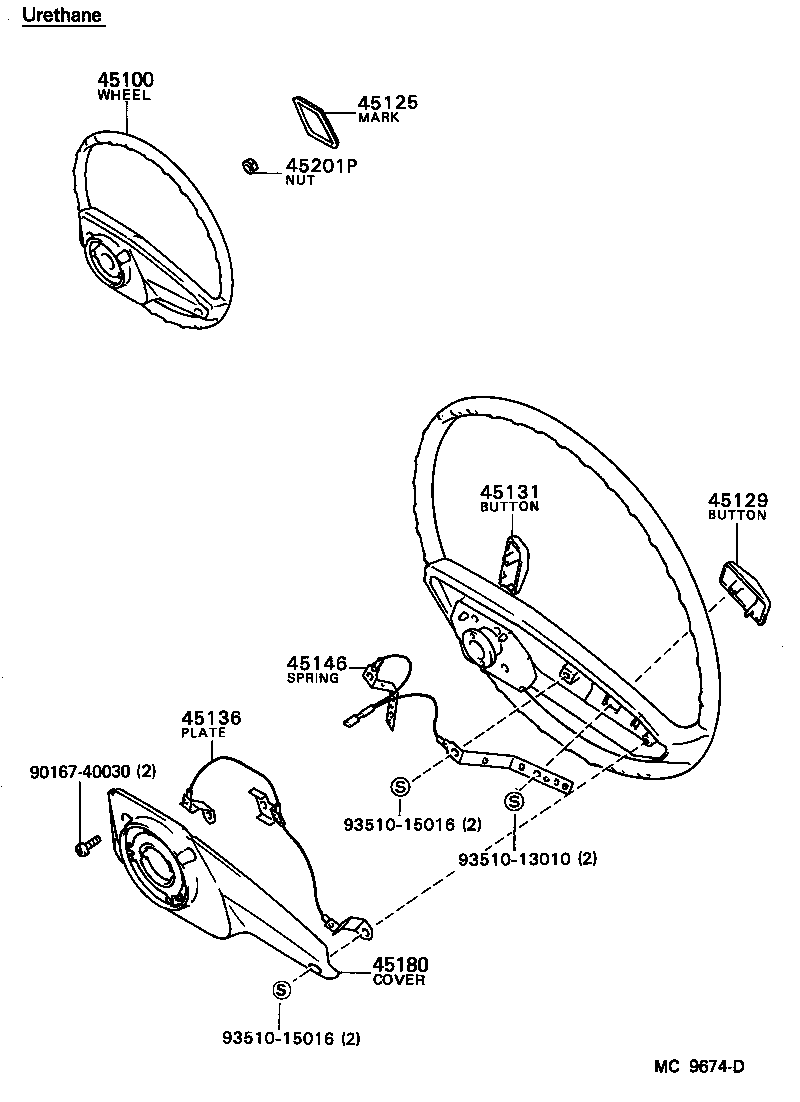

(8402-8502)GL..SA ; (8502- )DX,GL,SE,STD..SA

Click highlighted areas on diagram

diagram 45100 45125 45129 45131 45136 45146 45180 45201P 9016740030 9351013010 9351015016 9351015016
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1243003

AE82,CE80..(DX,STD)..USA

GRAY,GRAY,TRIM1#

 1
45100-1243002

AE82,CE80..(DX,STD)..USA

MAROON,RED/MAROON,TRIM3#

 1
45100-1243016

AE82,CE80..DX..USA

BROWN,BROWN,TRIM4#

 1
45100-1243004

AE82,CE80..(DX,STD)..USA

BLUE,BLUE,TRIM8#

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-12130

AE82,CE80..(DX,STD)..USA

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

AE82,CE80

 1
Common parts
90167-40030
93510-13010
93510-15016

(8402- ) ; (8410- )GT

Click highlighted areas on diagram

(8512-8606)SR PACKAGE

diagram 45100 45105B 45125 45136 45136B 45142 45155A 45184 45201P 45207 9016740030 9331514016 9351013008 9351013008
Part # Description Qty Price
Common parts
90167-40030
93315-14016
93510-13008
