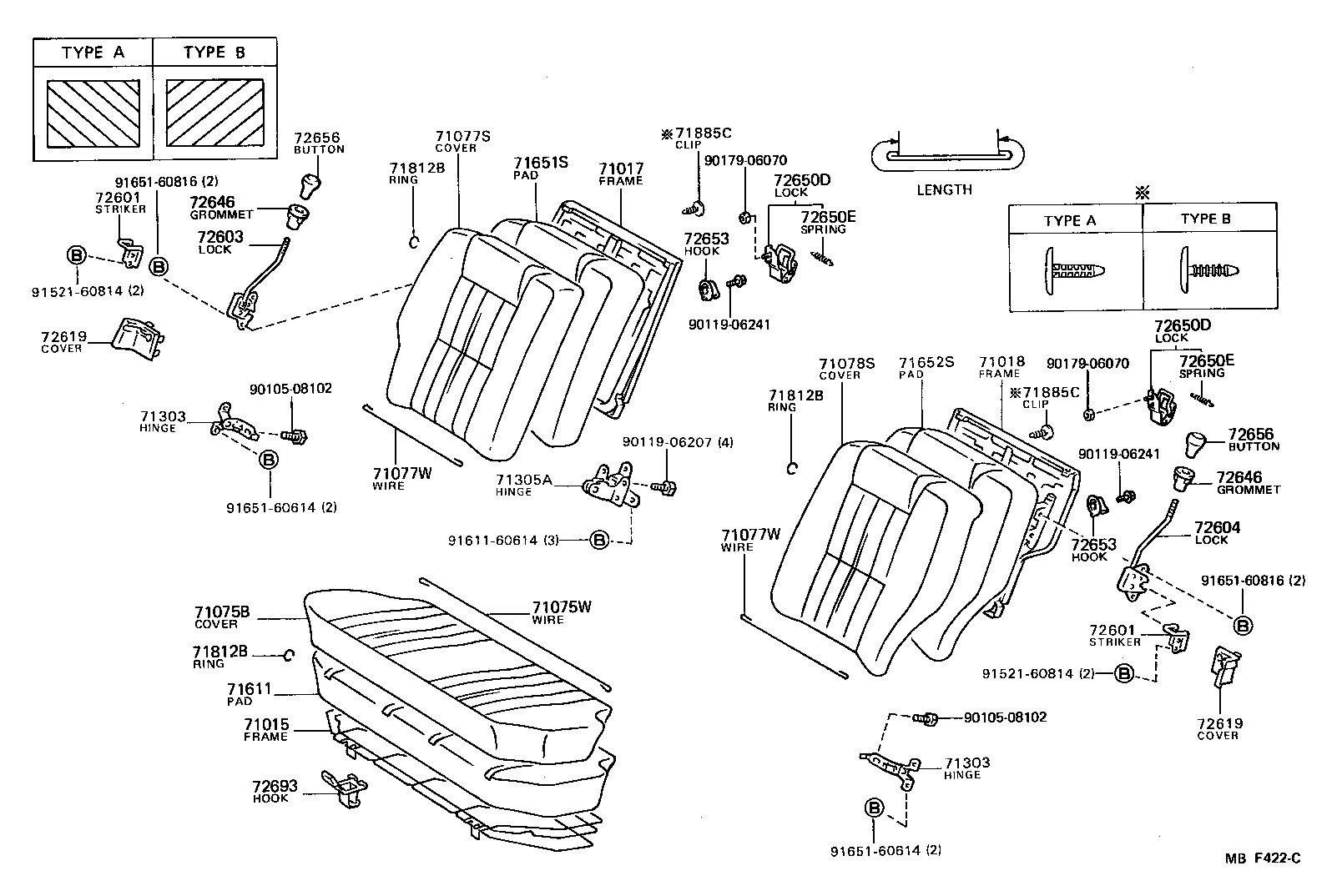

AE82L-EEHNCA (1983)
Toyota Corolla Sed/Lb
(8308-8408)LB ; (8308-8408)SED..LE ; (8408- )SED..LE,LEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12250 |
AE82,CE80 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12240 |
AE82..SED..(LE,LEL) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12030 |
AE82..SED..(LE,LEL) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1A03003 |
AE82..LE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1A03004 |
AE82..LE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-1A03002 |
AE82..LE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20132 |
AE82,CE80 L=1030 |
2 | ||
| 90580-20015 |
AE82,CE80 L=930 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1E57004 |
AE82..SED..LE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E57003 |
AE82..SED..LE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1E57002 |
AE82..SED..LE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20108 |
AE82..SED..(LE,LEL) L=580 |
2 | ||
| 90580-20171 |
AE82..SED..(LE,LEL) L=510 |
2 | ||
| 90580-20032 |
AE82..SED..(LE,LEL) L=350 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20108 |
AE82..SED..(LE,LEL) L=580 |
2 | ||
| 90580-20171 |
AE82..SED..(LE,LEL) L=510 |
2 | ||
| 90580-20032 |
AE82..SED..(LE,LEL) L=350 |
2 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1276003 |
AE82..SED..LE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1276002 |
AE82..SED..LE FB,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71078-1276004 |
AE82..SED..LE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12030 |
AE82..LB;AE82..SED..(LE,LEL) |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12030 |
AE82..LB;AE82..SED..(LE,LEL) |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12030 |
AE82..LB;AE82..SED..(LE,LEL) |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12430 |
AE82,CE80 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12430 |
AE82..SED..(LE,LEL) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12330 |
AE82..SED..(LE,LEL) |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE82,CE80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE82,CE80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE82,CE80 |
1 | ||
| 71885C - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0603704 |
AE82..SED..(LE,LEL) TYPE B,BLUE,BLUE,TRIM8# |
8 | ||
| 90467-0603712 |
AE82..SED..LE TYPE B,MAROON,RED/MAROON,TRIM3# |
8 | ||
| 90467-0603713 |
AE82..SED..(LE,LEL) TYPE B,GRAY,GRAY,TRIM1# |
8 | ||
| 90467-0601622 |
AE82..SED..LE TYPE A,MAROON,RED/MAROON,TRIM3# |
8 | ||
| 90467-0601633 |
AE82..SED..LE TYPE A,GRAY,GRAY,TRIM1# |
8 | ||
| 90467-0601604 |
AE82..SED..LE TYPE A,BLUE,BLUE,TRIM8# |
8 | ||
| 71885C - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0603704 |
AE82..SED..(LE,LEL) TYPE B,BLUE,BLUE,TRIM8# |
8 | ||
| 90467-0603712 |
AE82..SED..LE TYPE B,MAROON,RED/MAROON,TRIM3# |
8 | ||
| 90467-0603713 |
AE82..SED..(LE,LEL) TYPE B,GRAY,GRAY,TRIM1# |
8 | ||
| 90467-0601622 |
AE82..SED..LE TYPE A,MAROON,RED/MAROON,TRIM3# |
8 | ||
| 90467-0601633 |
AE82..SED..LE TYPE A,GRAY,GRAY,TRIM1# |
8 | ||
| 90467-0601604 |
AE82..SED..LE TYPE A,BLUE,BLUE,TRIM8# |
8 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12080 |
AE82..LB;AE82..SED..(LE,LEL) |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12080 |
AE82..LB;AE82..SED..(LE,LEL) |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-12110 |
AE82..SED..(LE,LEL) |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12100 |
AE82..SED..(LE,LEL) |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1202002 |
AE82,CE80..LB;AE82..SED..LE LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204002 |
AE82,CE80..LB;AE82..SED..LE RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204003 |
AE82..LB;AE82..SED..(LE,LEL) RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-1202004 |
AE82..LB;AE82..SED..(LE,LEL) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72616-1202003 |
AE82..LB;AE82..SED..(LE,LEL) LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1204004 |
AE82..LB;AE82..SED..(LE,LEL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1202002 |
AE82,CE80..LB;AE82..SED..LE LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204002 |
AE82,CE80..LB;AE82..SED..LE RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72615-1204003 |
AE82..LB;AE82..SED..(LE,LEL) RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-1202004 |
AE82..LB;AE82..SED..(LE,LEL) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72616-1202003 |
AE82..LB;AE82..SED..(LE,LEL) LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1204004 |
AE82..LB;AE82..SED..(LE,LEL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002033 |
AE82,CE80..LB;AE82..SED..LE GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002025 |
AE82,CE80..LB;AE82..SED..LE BEIGE,BEIGE,TRIM3# |
2 | ||
| 72655-2002024 |
AE82,CE80..LB;AE82..SED..LE BLUE,BLUE,TRIM8# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002033 |
AE82,CE80..LB;AE82..SED..LE GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002025 |
AE82,CE80..LB;AE82..SED..LE BEIGE,BEIGE,TRIM3# |
2 | ||
| 72655-2002024 |
AE82,CE80..LB;AE82..SED..LE BLUE,BLUE,TRIM8# |
2 | ||
| 72650D - LOCK ASSY, REAR SEAT BACK, REAR | ||||
| 72650-12020 |
AE82..SED..(LE,LEL) |
2 | ||
| 72650D - LOCK ASSY, REAR SEAT BACK, REAR | ||||
| 72650-12020 |
AE82..SED..(LE,LEL) |
2 | ||
| 72650E - SPRING(FOR REAR SEAT BACK, REAR LOCK) | ||||
| 90508-10029 |
AE82..SED..(LE,LEL) |
2 | ||
| 72650E - SPRING(FOR REAR SEAT BACK, REAR LOCK) | ||||
| 90508-10029 |
AE82..SED..(LE,LEL) |
2 | ||
| 72653 - HOOK, REAR SEAT BACK REAR LOCK | ||||
| 72653-1202002 |
AE82..SED..LE MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72653-1202004 |
AE82..SED..(LE,LEL) BLUE,BLUE,TRIM8# |
2 | ||
| 72653-1202003 |
AE82..SED..(LE,LEL) GRAY,GRAY,TRIM1# |
2 | ||
| 72653 - HOOK, REAR SEAT BACK REAR LOCK | ||||
| 72653-1202002 |
AE82..SED..LE MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72653-1202004 |
AE82..SED..(LE,LEL) BLUE,BLUE,TRIM8# |
2 | ||
| 72653-1202003 |
AE82..SED..(LE,LEL) GRAY,GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001025 |
AE82,CE80..LB;AE82..SED..LE BEIGE,BEIGE,TRIM3# |
2 | ||
| 72656-2001024 |
AE82,CE80..LB;AE82..SED..LE BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001033 |
AE82,CE80..LB;AE82..SED..LE GRAY,GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001025 |
AE82,CE80..LB;AE82..SED..LE BEIGE,BEIGE,TRIM3# |
2 | ||
| 72656-2001024 |
AE82,CE80..LB;AE82..SED..LE BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001033 |
AE82,CE80..LB;AE82..SED..LE GRAY,GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-16010 |
AE82,CE80 |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-06207 | ||||
| 90119-06241 | ||||
| 90179-06070 | ||||
| 91521-60814 | ||||
| 91611-60614 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||
