AE82L-EEHNCA (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Aug 1984
Engine 4ALC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

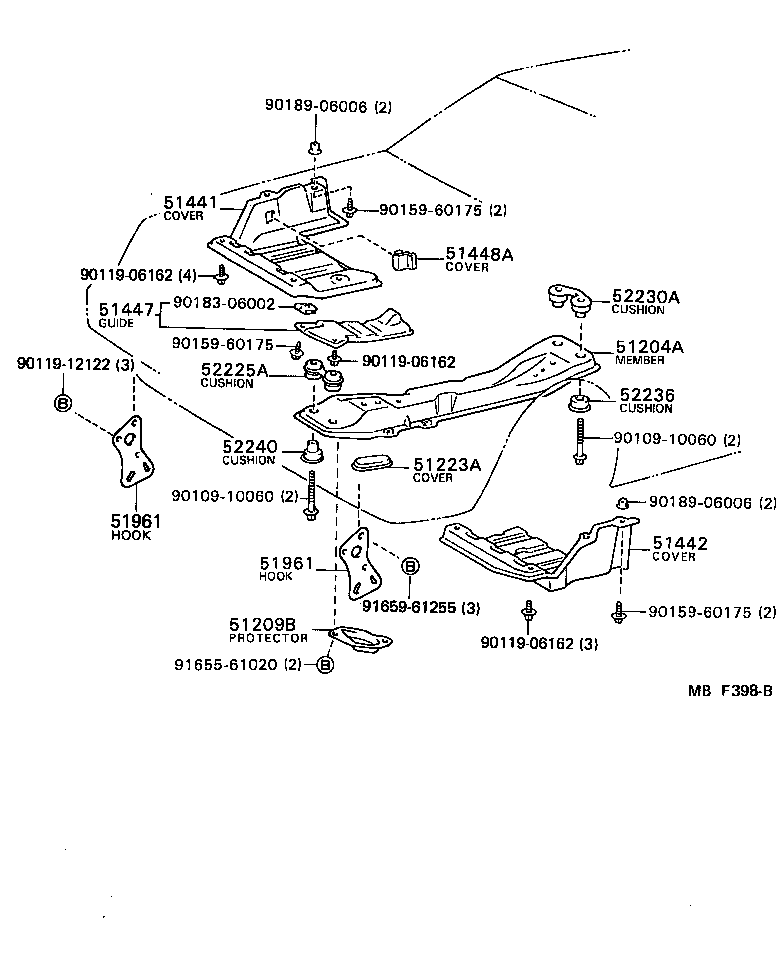

Click highlighted areas on diagram

diagram 51204A 51209B 51223A 51441 51442 51447 51448A 51961 51961 52225A 52230A 52236 52240 9010910060 9010910060 9011906162 9011906162 9011906162 9011912122 9015960175 9015960175 9015960175 9018306002 9018906006 9018906006 9165561020 9165961255
Part # Description Qty Price
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12030

AE82,CE80

 1
51209B - PROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51209-20010

AE82,CE80

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-20020

AE82,CE80

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-20080

AE82,CE80

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20020

AE82,CE80..ATM

 1
51447 - GUIDE, ENGINE UNDER COVER AIR
51447-12070

AE82

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20010

AE82,CE80

 1
51961 - HOOK, NO.1
51963-12080

AE82,CE80

 2
51961 - HOOK, NO.1
51963-12080

AE82,CE80

 2
52225A - CUSHION, CENTER MEMBER MOUNTING, FRONT UPPER
52225-20010

AE82,CE80

 1
52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER
52230-20010

AE82,CE80

 1
52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER
52236-20010

AE82,CE80

 2
52240 - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER
52240-20010

AE82,CE80

 2
Common parts
90109-10060
90119-06162
90119-12122
90159-60175
90183-06002
90189-06006
91655-61020
91659-61255
