AE82L-EEHDS (1984)

Toyota Corolla Sed/Lb

Production Aug 1984 - Apr 1987
Engine 4AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8508)

Click highlighted areas on diagram

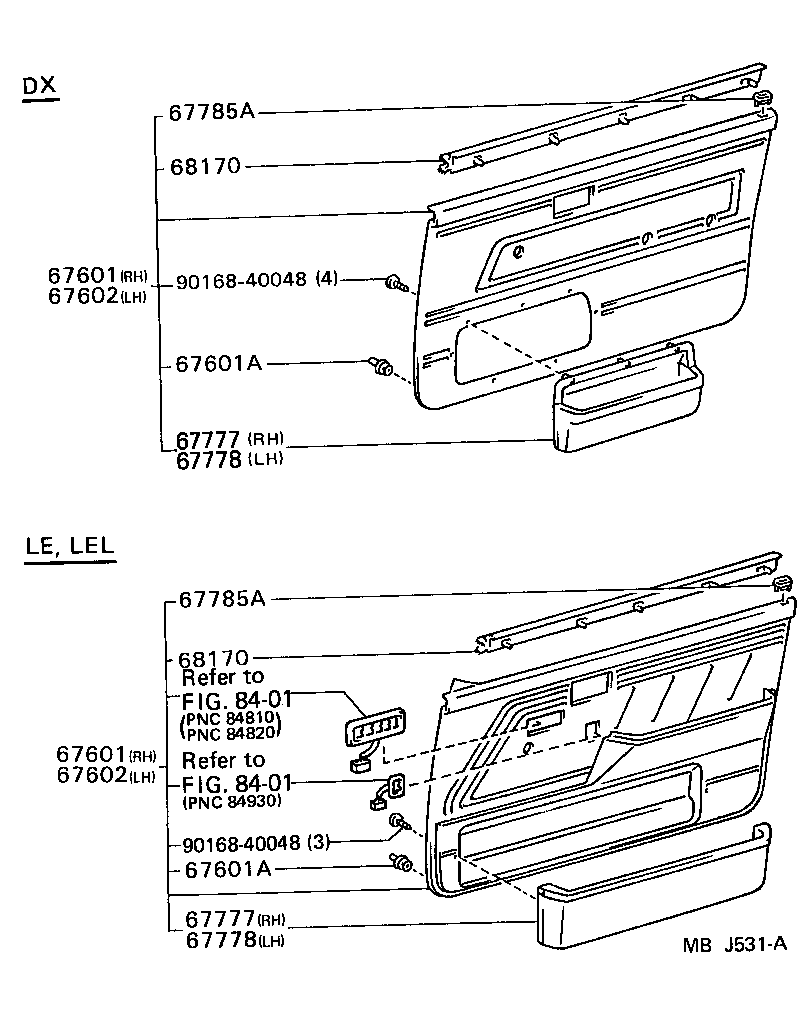

diagram 67601 67601 67601 67601A 67601A 67601A 67601B 67601B 67602 67602 67602 67777 67777 67778 67778 67785A 67785A 67786A 67786A 68170 68170 68170 68170A 68170A 68170A 68192C 68193C 9016840048 9016840048
Part # Description Qty Price
Common parts
90168-40048

(8508- )

Click highlighted areas on diagram

diagram 67601 67601 67601A 67601A 67602 67602 67777 67777 67778 67778 67785A 67785A 68170 68170 8401 8401 9016840048 9016840048
Part # Description Qty Price
Common parts
90168-40048
Linked diagrams
8401

(8305-8505)4DS,5D,5DS ; (8305-8505)4DS,5D,5DS ;(8505-8605)ARL,SA ; (8505-8605)ARL,

Click highlighted areas on diagram

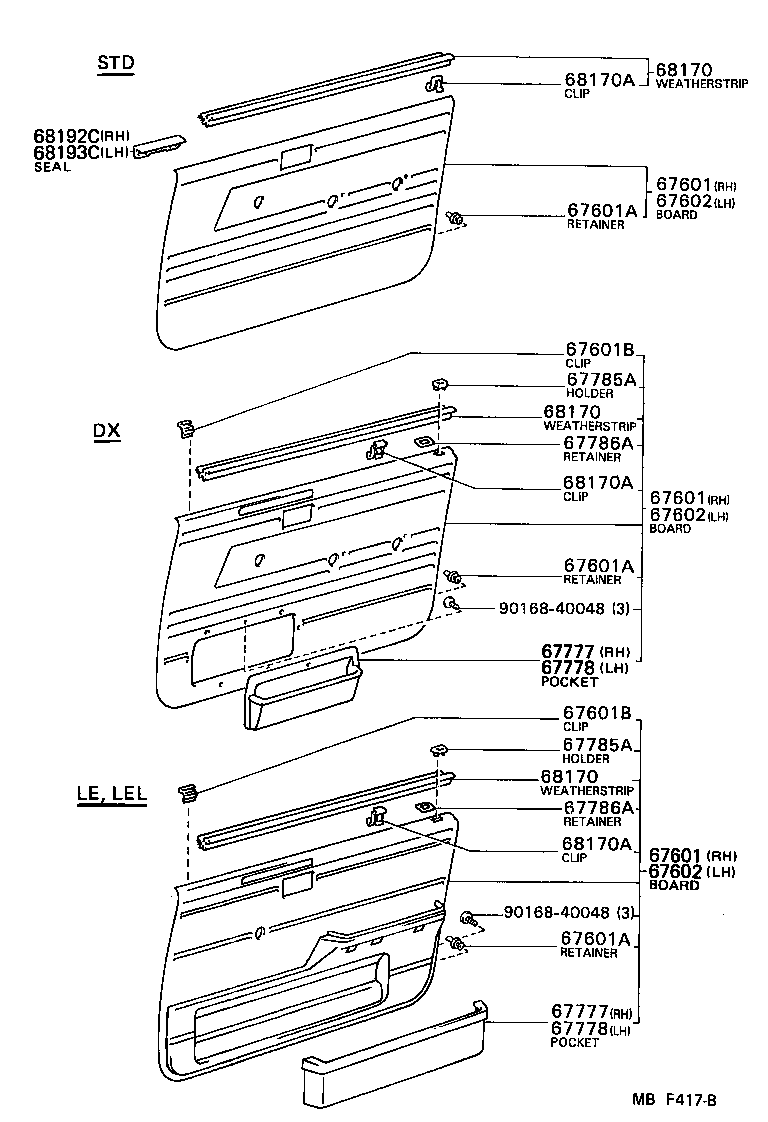

diagram 67601 67601 67601 67601A 67601A 67601A 67601B 67601B 67602 67602 67602 67777 67777 67778 67778 67785A 67785A 67786A 67786A 68170 68170 68170 68170A 68170A 68170A 68192C 68193C 9016840048 9016840048
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1227003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67650-1227004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67650-1227002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67650-1227106

AE8#,CE80,EE80..(4DS,5D,5DS)..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67650-1221103

AE8#..S

GRAY,GRAY,TRIM1#

 1
67650-1221106

AE8#..S

BROWN,BROWN,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1227003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67650-1227004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67650-1227002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67650-1227106

AE8#,CE80,EE80..(4DS,5D,5DS)..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67650-1221103

AE8#..S

GRAY,GRAY,TRIM1#

 1
67650-1221106

AE8#..S

BROWN,BROWN,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1227003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67650-1227004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67650-1227002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67650-1227106

AE8#,CE80,EE80..(4DS,5D,5DS)..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67650-1221103

AE8#..S

GRAY,GRAY,TRIM1#

 1
67650-1221106

AE8#..S

BROWN,BROWN,TRIM4#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80

 34
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80

 34
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80

 34
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
67774-10010

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

 2
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
67774-10010

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1A18003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67620-1A18002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67620-1A18004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67620-1A18106

AE8#,CE80,EE80..(4DS,5D,5DS)..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67620-1A17103

AE8#..S

GRAY,GRAY,TRIM1#

 1
67620-1A17106

AE8#..S

BROWN,BROWN,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1A18003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67620-1A18002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67620-1A18004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67620-1A18106

AE8#,CE80,EE80..(4DS,5D,5DS)..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67620-1A17103

AE8#..S

GRAY,GRAY,TRIM1#

 1
67620-1A17106

AE8#..S

BROWN,BROWN,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1A18003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67620-1A18002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67620-1A18004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67620-1A18106

AE8#,CE80,EE80..(4DS,5D,5DS)..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67620-1A17103

AE8#..S

GRAY,GRAY,TRIM1#

 1
67620-1A17106

AE8#..S

BROWN,BROWN,TRIM4#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-1203006

AE82,CE80,EE80..DX,XL

BROWN,BROWN,TRIM4#

 1
67777-1203003

AE82,CE80,EE80..DX,XL

GRAY,GRAY,TRIM1#

 1
67777-1203004

AE82,CE80,EE80..(4DS,5D)..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-1203006

AE82,CE80,EE80..DX,XL

BROWN,BROWN,TRIM4#

 1
67777-1203003

AE82,CE80,EE80..DX,XL

GRAY,GRAY,TRIM1#

 1
67777-1203004

AE82,CE80,EE80..(4DS,5D)..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67777-1203003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67777-1203004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67777-1203002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67777-1203006

AE8#,CE80,EE80..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67777-1203003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67777-1203004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67777-1203002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67777-1203006

AE8#,CE80,EE80..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
69751-2006006

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

BROWN,SEPIA BROWN,TRIM4#

 2
69751-2006003

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

GRAY,SHADOW GRAY,TRIM1#

 2
69751-1201001

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

BLACK,BLACK,TRIM1#,3#,4#,8#

 2
69751-2006004

AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 2
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
69751-2006006

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

BROWN,SEPIA BROWN,TRIM4#

 2
69751-2006003

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

GRAY,SHADOW GRAY,TRIM1#

 2
69751-1201001

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

BLACK,BLACK,TRIM1#,3#,4#,8#

 2
69751-2006004

AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 2
67786A - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
67786-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

 2
67786A - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
67786-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12110

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

 2
68171-12080

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

RH

 1
68172-12040

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

LH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12110

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

 2
68171-12080

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

RH

 1
68172-12040

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

LH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12110

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

 2
68171-12080

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

RH

 1
68172-12040

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

LH

 1
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
67773-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

 12
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
67773-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

 12
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
67773-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

 12
Common parts
90168-40048

(8505-8605)4DS,5D,5DS..EUR,GEN,SAA ; (8505-8605)4DS,5D,5DS..EUR,GEN,SAA ; (8605-

Click highlighted areas on diagram

diagram 67601 67601 67601 67601A 67601A 67601A 67602 67602 67602 67777 67777 67778 67778 67785A 67785A 68170 68170 68170 68170A 68192C 68193C 8401 9016840048 9016840048
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1227003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67650-1227004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67650-1227002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67650-1227106

AE8#,CE80,EE80..(4DS,5D,5DS)..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67650-1221103

AE8#..S

GRAY,GRAY,TRIM1#

 1
67650-1221106

AE8#..S

BROWN,BROWN,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1227003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67650-1227004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67650-1227002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67650-1227106

AE8#,CE80,EE80..(4DS,5D,5DS)..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67650-1221103

AE8#..S

GRAY,GRAY,TRIM1#

 1
67650-1221106

AE8#..S

BROWN,BROWN,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1227003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67650-1227004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67650-1227002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67650-1227106

AE8#,CE80,EE80..(4DS,5D,5DS)..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67650-1221103

AE8#..S

GRAY,GRAY,TRIM1#

 1
67650-1221106

AE8#..S

BROWN,BROWN,TRIM4#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80

 34
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80

 34
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80

 34
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1A18003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67620-1A18002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67620-1A18004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67620-1A18106

AE8#,CE80,EE80..(4DS,5D,5DS)..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67620-1A17103

AE8#..S

GRAY,GRAY,TRIM1#

 1
67620-1A17106

AE8#..S

BROWN,BROWN,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1A18003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67620-1A18002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67620-1A18004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67620-1A18106

AE8#,CE80,EE80..(4DS,5D,5DS)..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67620-1A17103

AE8#..S

GRAY,GRAY,TRIM1#

 1
67620-1A17106

AE8#..S

BROWN,BROWN,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1A18003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67620-1A18002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67620-1A18004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67620-1A18106

AE8#,CE80,EE80..(4DS,5D,5DS)..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67620-1A17103

AE8#..S

GRAY,GRAY,TRIM1#

 1
67620-1A17106

AE8#..S

BROWN,BROWN,TRIM4#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-1203006

AE82,CE80,EE80..DX,XL

BROWN,BROWN,TRIM4#

 1
67777-1203003

AE82,CE80,EE80..DX,XL

GRAY,GRAY,TRIM1#

 1
67777-1203004

AE82,CE80,EE80..(4DS,5D)..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-1203006

AE82,CE80,EE80..DX,XL

BROWN,BROWN,TRIM4#

 1
67777-1203003

AE82,CE80,EE80..DX,XL

GRAY,GRAY,TRIM1#

 1
67777-1203004

AE82,CE80,EE80..(4DS,5D)..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67777-1203003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67777-1203004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67777-1203002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67777-1203006

AE8#,CE80,EE80..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67777-1203003

AE8#,CE80..LHD..(DX,XL)

GRAY,GRAY,TRIM1#

 1
67777-1203004

AE8#,CE80..LHD..(DX,XL)

BLUE,BLUE,TRIM8#

 1
67777-1203002

AE8#,CE80..LHD..(DX,XL)

MAROON,RED/MAROON,TRIM3#

 1
67777-1203006

AE8#,CE80,EE80..LHD..(DX,XL)..(GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
69751-2006006

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

BROWN,SEPIA BROWN,TRIM4#

 2
69751-2006003

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

GRAY,SHADOW GRAY,TRIM1#

 2
69751-1201001

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

BLACK,BLACK,TRIM1#,3#,4#,8#

 2
69751-2006004

AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 2
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
69751-2006006

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

BROWN,SEPIA BROWN,TRIM4#

 2
69751-2006003

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

GRAY,SHADOW GRAY,TRIM1#

 2
69751-1201001

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

BLACK,BLACK,TRIM1#,3#,4#,8#

 2
69751-2006004

AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12110

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

 2
68171-12080

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

RH

 1
68172-12040

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

LH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12110

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

 2
68171-12080

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

RH

 1
68172-12040

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

LH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12110

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

 2
68171-12080

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

RH

 1
68172-12040

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

LH

 1
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
67773-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

 12
Common parts
90168-40048
Linked diagrams
8401
