AE82L-EEHDS (1984)

Toyota Corolla Sed/Lb

Production Aug 1984 - Apr 1987
Engine 4AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505)AE82..LHD..GL..GEN ; (8305- )AE82..4DS,5D..LHD..GEN

Click highlighted areas on diagram

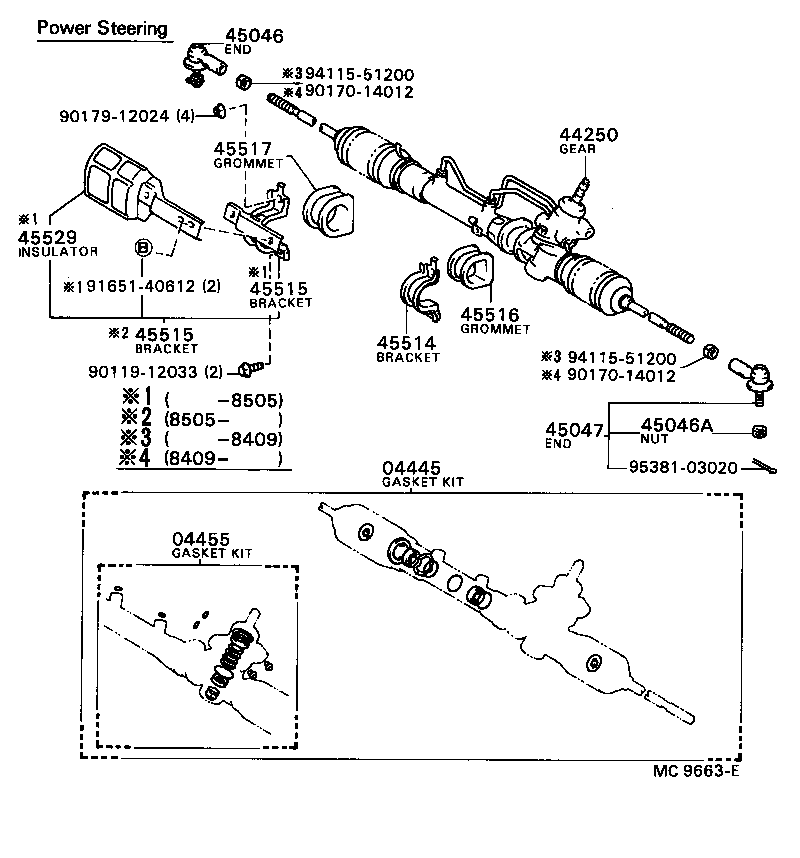

diagram 04445 04455 44250 45046 45046A 45047 45514 45515 45515 45516 45517 45529 9011912033 9017014012 9017014012 9017912024 9165140612 9411551200 9411551200 9538103020
Part # Description Qty Price
04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
04445-12030

AE82..(4DS,5D)..LHD..GEN

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-16010

AE82..(4DS,5D)..LHD..GEN

 1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-12091

AE82..(4DS,5D)..LHD..GEN

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-29135

AE8#,CE80

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AE8#,CE80,EE80

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-29135

AE8#,CE80

 1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-20010

CE80;AE82..(4DS,5D)..LHD..GEN

W/POWER STEERING

 1
45514-12040

CE80,EE80;AE8#..LHD..(DX,GL,STD,XL)

 1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-12110

AE8#..LHD..(DX,GL,STD,XL)

 1
45506-12020

AE82..LHD..(DX,GL,STD,XL)

 1
45506-12010

AE82..(4DS,5D)..LHD..GEN

W/POWER STEERING

 1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-12110

AE8#..LHD..(DX,GL,STD,XL)

 1
45506-12020

AE82..LHD..(DX,GL,STD,XL)

 1
45506-12010

AE82..(4DS,5D)..LHD..GEN

W/POWER STEERING

 1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-20010

AE8#,CE80,EE80

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-12050

AE8#,CE80,EE80

 1
45529 - INSULATOR, STEERING RACK BOOT HEAT
45529-12010

AE8#..CS,CSX,DX,GL,S,STD,XL

 1
Common parts
90119-12033
90170-14012
90179-12024
91651-40612
94115-51200
95381-03020

(8305-8505)AE82..LHD..GL..GEN ; (8305- )AE82..4DS,5D..LHD..GEN

Click highlighted areas on diagram

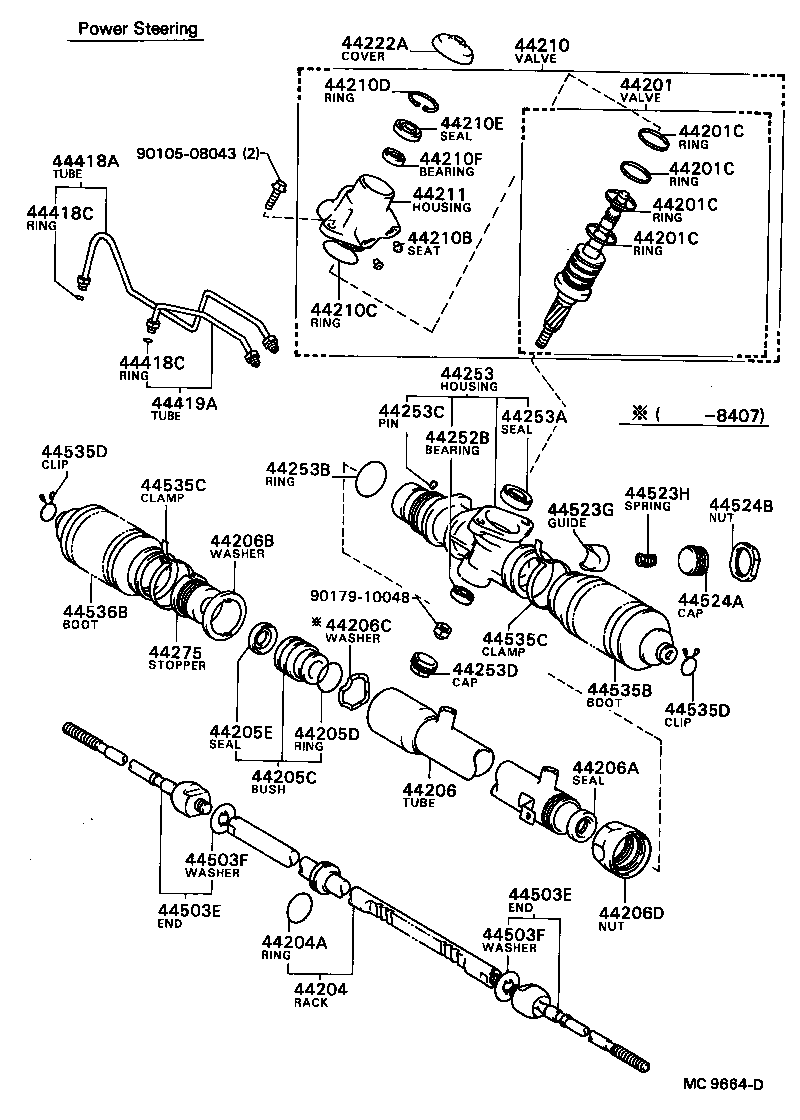

diagram 44201 44201C 44201C 44201C 44201C 44204 44204A 44205C 44205D 44205E 44206 44206A 44206B 44206C 44206D 44210 44210B 44210C 44210D 44210E 44210F 44211 44222A 44252B 44253 44253A 44253B 44253C 44253D 44275 44418A 44418C 44418C 44419A 44503E 44503E 44503F 44503F 44523G 44523H 44524A 44524B 44535B 44535C 44535C 44535D 44535D 44536B 9010508043 9017910048
Part # Description Qty Price
44201 - VALVE SUB-ASSY, POWER STEERING CONTROL
44201-12070

AE82..(4DS,5D)..LHD..GEN

 1
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33001

AE82..(4DS,5D)..LHD..GEN

 4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33001

AE82..(4DS,5D)..LHD..GEN

 4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33001

AE82..(4DS,5D)..LHD..GEN

 4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33001

AE82..(4DS,5D)..LHD..GEN

 4
44204 - RACK SUB-ASSY, POWER STEERING
44204-12060

AE82..(4DS,5D)..LHD..GEN

 1
44204A - RING(FOR RACK STEERING PISTON)
90562-34002

AE82..(4DS,5D)..LHD..GEN

 1
44205C - BUSH SUB-ASSY, POWER STEERING RACK
44205-12040

AE82..LHD..GEN

 1
44205-12041

AE82..(4DS,5D)..LHD..GEN

 1
44205D - RING, O(FOR POWER STEERING RACK BUSH)
90301-33004

AE82..(4DS,5D)..LHD..GEN

 1
44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH)
90311-24005

AE82..(4DS,5D)..LHD..GEN

 1
44206 - TUBE SUB-ASSY, POWER STEERING CYLINDER
44206-12040

AE82..(4DS,5D)..LHD..GEN

 1
44206A - SEAL, OIL(FOR POWER STEERING CYLINDER)
90311-24002

AE82..(4DS,5D)..LHD..GEN

 1
90311-24004

AE82..(4DS,5D)..LHD..GEN

 1
44206B - WASHER, CLAW(FOR POWER STEERING CYLINDER)
90214-47001

AE82..(4DS,5D)..LHD..GEN

 1
44206C - WASHER, WAVE(FOR POWER STEERING CYLINDER)
90206-39001

AE82..LHD..GEN

 1
44206D - NUT(FOR POWER STEERING CYLINDER SET)
90179-45001

AE82..(4DS,5D)..LHD..GEN

 1
44210 - VALVE ASSY, POWER STEERING CONTROL
44210-12060

AE82..(4DS,5D)..LHD..GEN

 1
44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
90410-07003

AE82..(4DS,5D)..LHD..GEN

 2
44210C - RING, O(FOR POWER STEERING CONTROL VALVE)
90301-42001

AE82..(4DS,5D)..LHD..GEN

 1
44210D - RING, HOLE SNAP(FOR POWER STEERING CONTROL VALVE)
96151-03200

AE82..(4DS,5D)..LHD..GEN

 1
44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
90311-19005

AE82..(4DS,5D)..LHD..GEN

 1
44210F - BEARING(FOR POWER STEERING CONTROL VALVE)
90364-19005

AE82..(4DS,5D)..LHD..GEN

 1
44211 - HOUSING, CONTROL VALVE
44211-12050

AE82..(4DS,5D)..LHD..GEN

 1
44222A - COVER, DUST(FOR POWER STEERING GEAR)
45222-16020

AE82..(4DS,5D)..LHD..GEN

 1
44252B - BEARING(FOR POWER STEERING PINION)
90363-12006

AE82..(4DS,5D)..LHD..GEN

 1
44253 - HOUSING, POWER STEERING RACK
44203-12080

AE82..(4DS,5D)..LHD..GEN

 1
44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING)
90310-23004

AE82..(4DS,5D)..LHD..GEN

 1
44253B - RING, O(FOR POWER STEERING RACK HOUSING)
90301-33004

AE82..(4DS,5D)..LHD..GEN

 1
44253C - PIN(FOR POWER STEERING RACK HOUSING)
90256-04002

AE82..(4DS,5D)..LHD..GEN

 1
44253D - CAP, POWER STEERING RACK HOUSING
44283-16010

AE82..(4DS,5D)..LHD..GEN

 1
44275 - STOPPER, CYLINDER END
44275-16010

AE82..(4DS,5D)..LHD..GEN

 1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-12060

AE82..(4DS,5D)..LHD..GEN

 1
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-05005

AE82..(4DS,5D)..LHD..GEN

 4
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-05005

AE82..(4DS,5D)..LHD..GEN

 4
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-12070

AE82..(4DS,5D)..LHD..GEN

 1
44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING)
45503-19056

CE80;AE82..(GL,STD,XL)..GEN

 2
44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING)
45503-19056

CE80;AE82..(GL,STD,XL)..GEN

 2
44503F - WASHER, CLAW(FOR POWER STEERING RACK END)
90214-14002

CE80;AE82..(GL,STD,XL)..GEN

 2
44503F - WASHER, CLAW(FOR POWER STEERING RACK END)
90214-14002

CE80;AE82..(GL,STD,XL)..GEN

 2
44523G - GUIDE, RACK(FOR POWER STEERING)
45523-16040

AE82..(4DS,5D)..LHD..GEN

 1
44523H - SPRING(FOR POWER STEERING RACK GUIDE)
90501-26042

AE82..(4DS,5D)..LHD..GEN

 1
44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING)
45524-16030

AE82..(4DS,5D)..LHD..GEN

 1
44524B - NUT(FOR POWER STEERING RACK GUIDE CAP)
90179-36002

AE82..(4DS,5D)..LHD..GEN

 1
44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING)
45535-16020

AE82..(4DS,5D)..LHD..GEN

 1
44535C - CLAMP(FOR POWER STEERING RACK BOOT)
90949-01027

AE82..(4DS,5D)..LHD..GEN

 2
44535C - CLAMP(FOR POWER STEERING RACK BOOT)
90949-01027

AE82..(4DS,5D)..LHD..GEN

 2
44535D - CLIP(FOR POWER STEERING RACK BOOT)
90467-18003

CE80;AE82..(GL,STD,XL)..GEN

 2
44535D - CLIP(FOR POWER STEERING RACK BOOT)
90467-18003

CE80;AE82..(GL,STD,XL)..GEN

 2
44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING)
45535-16020

AE82..(4DS,5D)..LHD..GEN

 1
Common parts
90105-08043
90179-10048
