Toyota Corolla sed/lb AE82 METER

AE82L-EEHDCK (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Jul 1987

Engine 4ALC

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

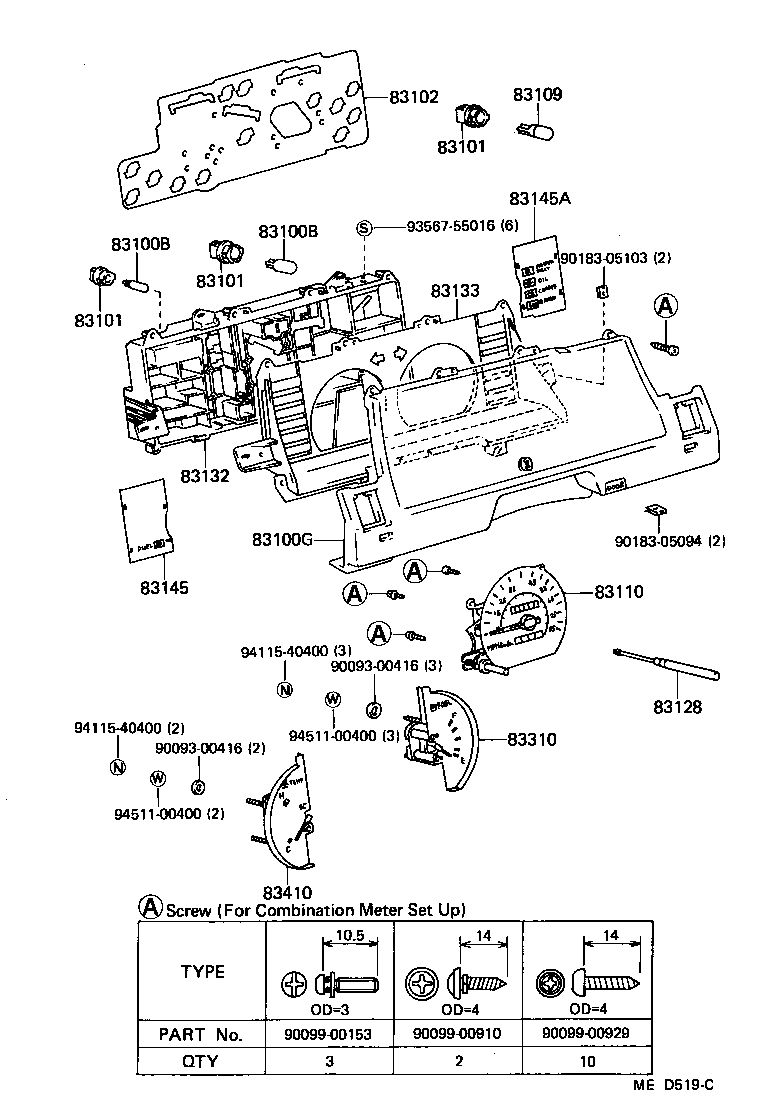

(8308-8508)DX,LE,STD

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
90981-11018	AE82,CE80..DX,LE,LEL 12V 1.2W W/O SOCKET,12V 1.4KW	08/1983 - 07/1987	6
99132-12034	AE82,CE80 12V 3.4W,12V 3.4W	08/1983 - 07/1987	10
83100B - BULB, COMBINATION METER, NO.1
90981-11018	AE82,CE80..DX,LE,LEL 12V 1.2W W/O SOCKET,12V 1.4KW	08/1983 - 07/1987	6
99132-12034	AE82,CE80 12V 3.4W,12V 3.4W	08/1983 - 07/1987	10
83100G - GLASS, COMBINATION METER
83138-12810	AE82..DX,LE	08/1985 - 07/1987	1
83138-12470	AE82,CE80..DX,LE	08/1983 - 08/1985	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	AE82,CE80 OD=18	08/1983 - 07/1987	10
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	AE82,CE80 OD=18	08/1983 - 07/1987	10
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	AE82,CE80 OD=18	08/1983 - 07/1987	10
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1A630	AE82..DX,LE	08/1983 - 07/1987	1
83109 - BULB, COMBINATION METER, NO.2
83109-24030	AE82,CE80 12V3.4W W(GREEN CAP),W/GREEN CAP	08/1983 - 07/1987	3
83110 - SPEEDOMETER ASSY
83110-1A510	AE82..CND	08/1983 - 08/1984	1
83110-1A511	AE82..CND	08/1984 - 08/1985	1
83110-1A512	AE82..CND	08/1985 - 07/1987	1
83128 - KNOB, TRIP COUNTER
83128-12690	AE82,CE80..DX,LE,STD	08/1983 - 07/1987	1
83132 - CASE, COMBINATION METER
83132-12530	AE82,CE80..DX,LE,STD	08/1983 - 07/1987	1
83133 - PLATE, COMBINATION METER, NO.1
83133-12630	AE82,CE80..DX,LE,STD	08/1983 - 08/1985	1
83133-1A110	AE82..DX,LE	08/1985 - 07/1987	1
83145 - LENS, METER, NO.1
83145-12710	AE82..DX,LE	08/1983 - 08/1985	1
83145-1A630	AE82..DX,LE	08/1985 - 07/1987	1
83145A - LENS, METER, NO.2
83145-12850	AE82,CE80..DX,LE,STD	08/1983 - 08/1985	1
83145-1A750	AE82..DX,LE	08/1985 - 07/1987	1
83310 - GAGE ASSY, FUEL RECEIVER
83243-12550	AE82,CE80..DX,LE,STD	08/1983 - 07/1987	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-12790	AE82,CE80..DX,LE,STD	08/1983 - 07/1987	1
Common parts
90093-00416
90099-00153
90099-00910
90099-00929
90183-05094
90183-05103
93567-55016
94115-40400
94511-00400

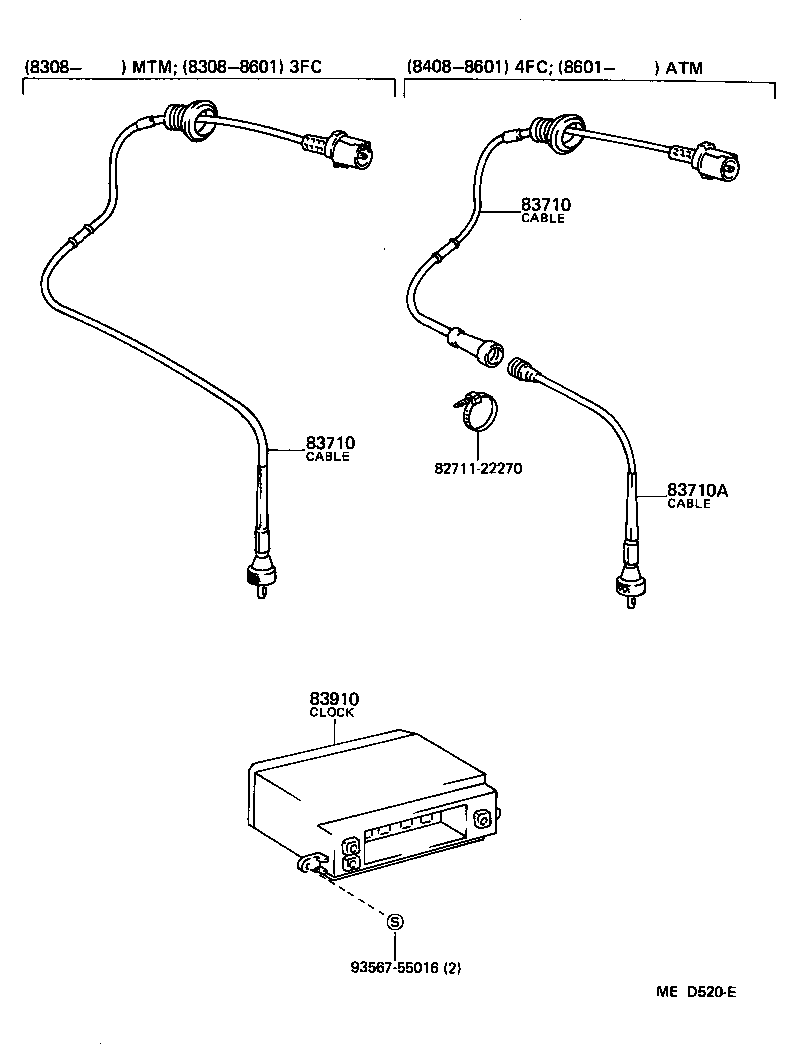

(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-12260	AE82,CE80..3FC	08/1983 - 01/1986	1
83710-12390	AE82..ATM	01/1986 - 07/1987	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-12260	AE82,CE80..3FC	08/1983 - 01/1986	1
83710-12390	AE82..ATM	01/1986 - 07/1987	1
83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83710-12360	AE82..ATM	01/1986 - 07/1986	1
83710-12530	AE82..ATM	07/1986 - 07/1987	1
83910 - CLOCK ASSY
83910-12330	AE82,CE80	08/1983 - 07/1987	1
Common parts
82711-22270
93567-55016

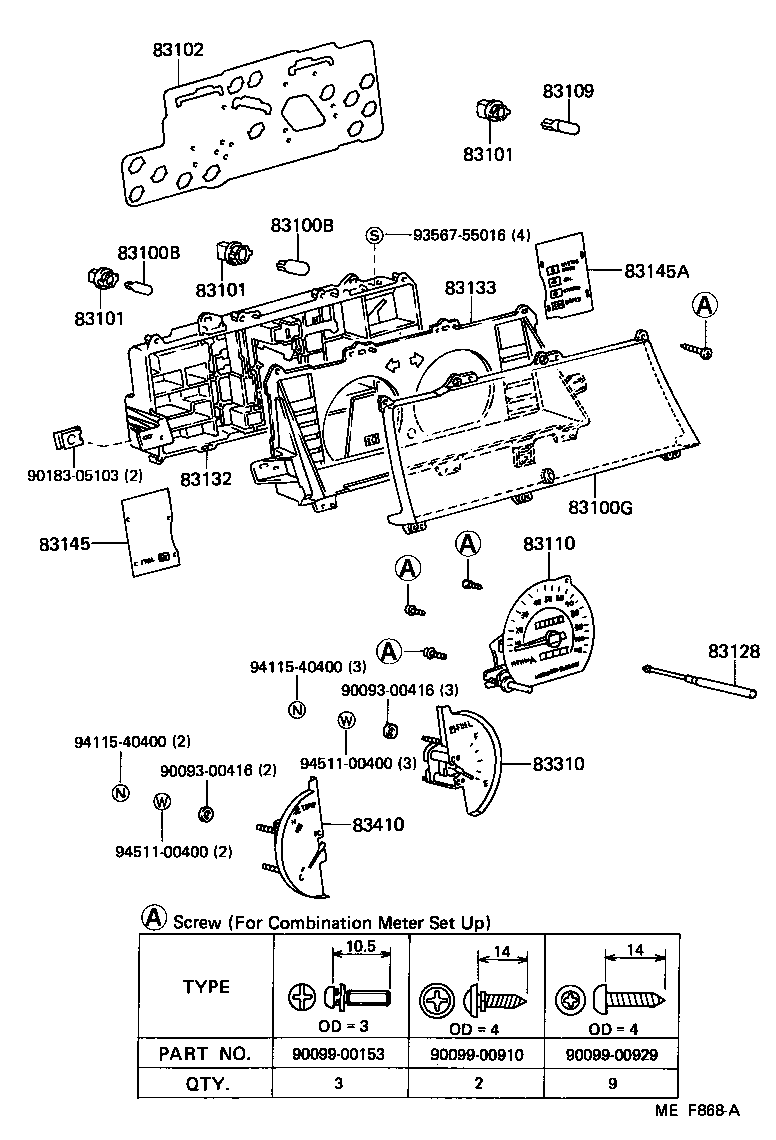

(8508- )DX,LE

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
90981-11018	AE82,CE80..DX,LE,LEL 12V 1.2W W/O SOCKET,12V 1.4KW	08/1983 - 07/1987	6
99132-12034	AE82,CE80 12V 3.4W,12V 3.4W	08/1983 - 07/1987	10
83100B - BULB, COMBINATION METER, NO.1
90981-11018	AE82,CE80..DX,LE,LEL 12V 1.2W W/O SOCKET,12V 1.4KW	08/1983 - 07/1987	6
99132-12034	AE82,CE80 12V 3.4W,12V 3.4W	08/1983 - 07/1987	10
83100G - GLASS, COMBINATION METER
83138-12810	AE82..DX,LE	08/1985 - 07/1987	1
83138-12470	AE82,CE80..DX,LE	08/1983 - 08/1985	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	AE82,CE80 OD=18	08/1983 - 07/1987	10
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	AE82,CE80 OD=18	08/1983 - 07/1987	10
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	AE82,CE80 OD=18	08/1983 - 07/1987	10
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1A630	AE82..DX,LE	08/1983 - 07/1987	1
83109 - BULB, COMBINATION METER, NO.2
83109-24030	AE82,CE80 12V3.4W W(GREEN CAP),W/GREEN CAP	08/1983 - 07/1987	3
83110 - SPEEDOMETER ASSY
83110-1A510	AE82..CND	08/1983 - 08/1984	1
83110-1A511	AE82..CND	08/1984 - 08/1985	1
83110-1A512	AE82..CND	08/1985 - 07/1987	1
83128 - KNOB, TRIP COUNTER
83128-12690	AE82,CE80..DX,LE,STD	08/1983 - 07/1987	1
83132 - CASE, COMBINATION METER
83132-12530	AE82,CE80..DX,LE,STD	08/1983 - 07/1987	1
83133 - PLATE, COMBINATION METER, NO.1
83133-12630	AE82,CE80..DX,LE,STD	08/1983 - 08/1985	1
83133-1A110	AE82..DX,LE	08/1985 - 07/1987	1
83145 - LENS, METER, NO.1
83145-12710	AE82..DX,LE	08/1983 - 08/1985	1
83145-1A630	AE82..DX,LE	08/1985 - 07/1987	1
83145A - LENS, METER, NO.2
83145-12850	AE82,CE80..DX,LE,STD	08/1983 - 08/1985	1
83145-1A750	AE82..DX,LE	08/1985 - 07/1987	1
83310 - GAGE ASSY, FUEL RECEIVER
83243-12550	AE82,CE80..DX,LE,STD	08/1983 - 07/1987	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-12790	AE82,CE80..DX,LE,STD	08/1983 - 07/1987	1
Common parts
90093-00416
90099-00153
90099-00910
90099-00929
90183-05103
93567-55016
94115-40400
94511-00400

(8305-8505)CS,DX,GL,S,STD ; (8505-8605)CS,S,STD..ARL,SA ; (8605- )CS,S

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90093-00416
90099-00153
90099-00910
90099-00929
90183-05094
90183-05103
93567-55016
94115-40400
94511-00400

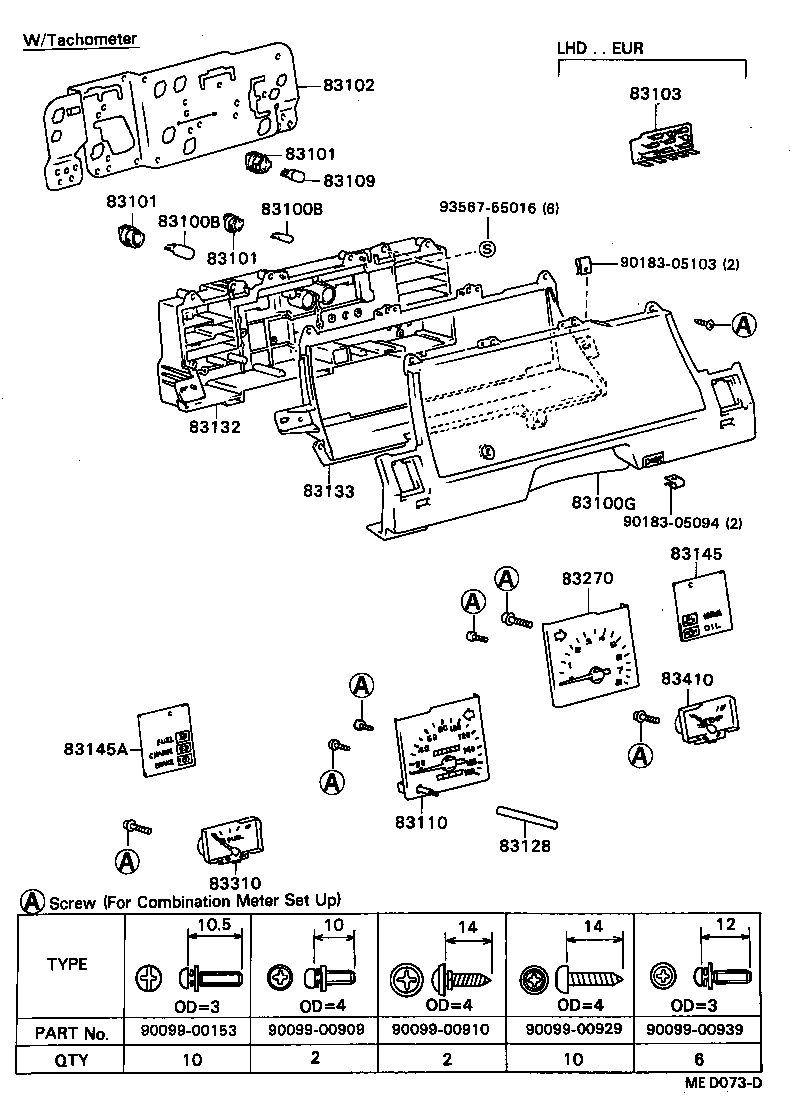

(8305-8505)CSX,DX,GL,GT ; (8505-8605)CSX,DX,GL,GT..ARL,SA ; (8605- )CSX,GT..ARL

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90099-00153
90099-00909
90099-00910
90099-00929
90099-00939
90183-05094
90183-05103
93567-55016
