AE82L-EEHDCK (1983)
Toyota Corolla Sed/Lb
Production
Aug 1983
-
Jul 1987
Engine
4ALC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

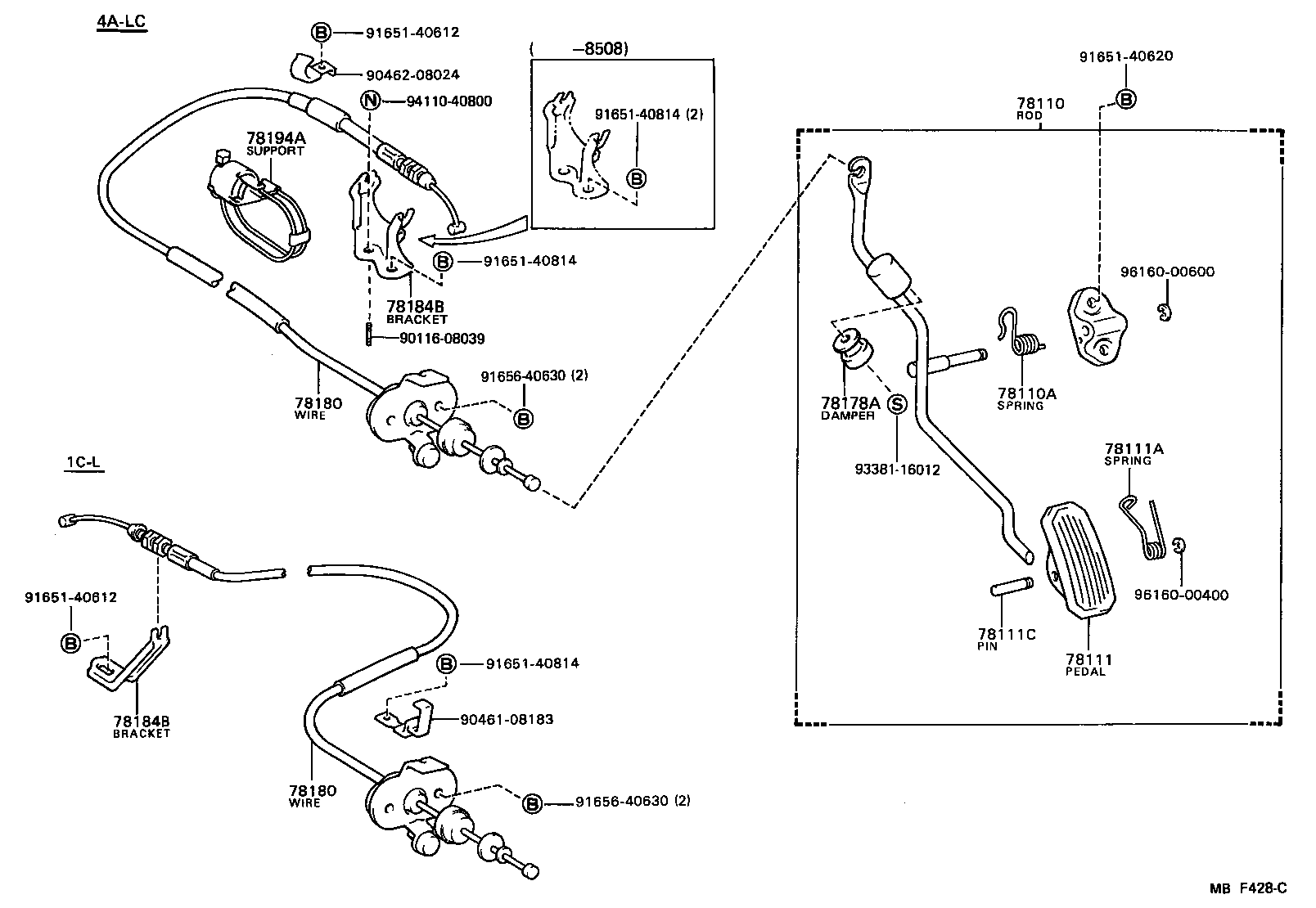

(8308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12050 |
AE82..ATM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18025 |
AE82,CE80..ATM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
AE82,CE80 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-20056 |
AE82,CE80 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AE82,CE80 |
1 | ||
| 78178A - DAMPER, ACCELRATOR PEDAL ROD DYNAMIC | ||||
| 78178-12030 |
AE82 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12651 |
AE82 W/O AUTO DRIVE |
1 | ||
| 78180-12650 |
AE82 W/O AUTO DRIVE |
1 | ||
| 78180-12550 |
AE82 W/AUTO DRIVE |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12651 |
AE82 W/O AUTO DRIVE |
1 | ||
| 78180-12650 |
AE82 W/O AUTO DRIVE |
1 | ||
| 78180-12550 |
AE82 W/AUTO DRIVE |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12160 |
AE82 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12160 |
AE82 |
1 | ||
| 78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4 | ||||
| 78194-12040 |
AE82 |
1 | ||
| 78194-12041 |
AE82 |
1 | ||
| Common parts | ||||
| 90116-08039 | ||||
| 90461-08183 | ||||
| 90462-08024 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91651-40814 | ||||
| 91656-40630 | ||||
| 93381-16012 | ||||
| 94110-40800 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||

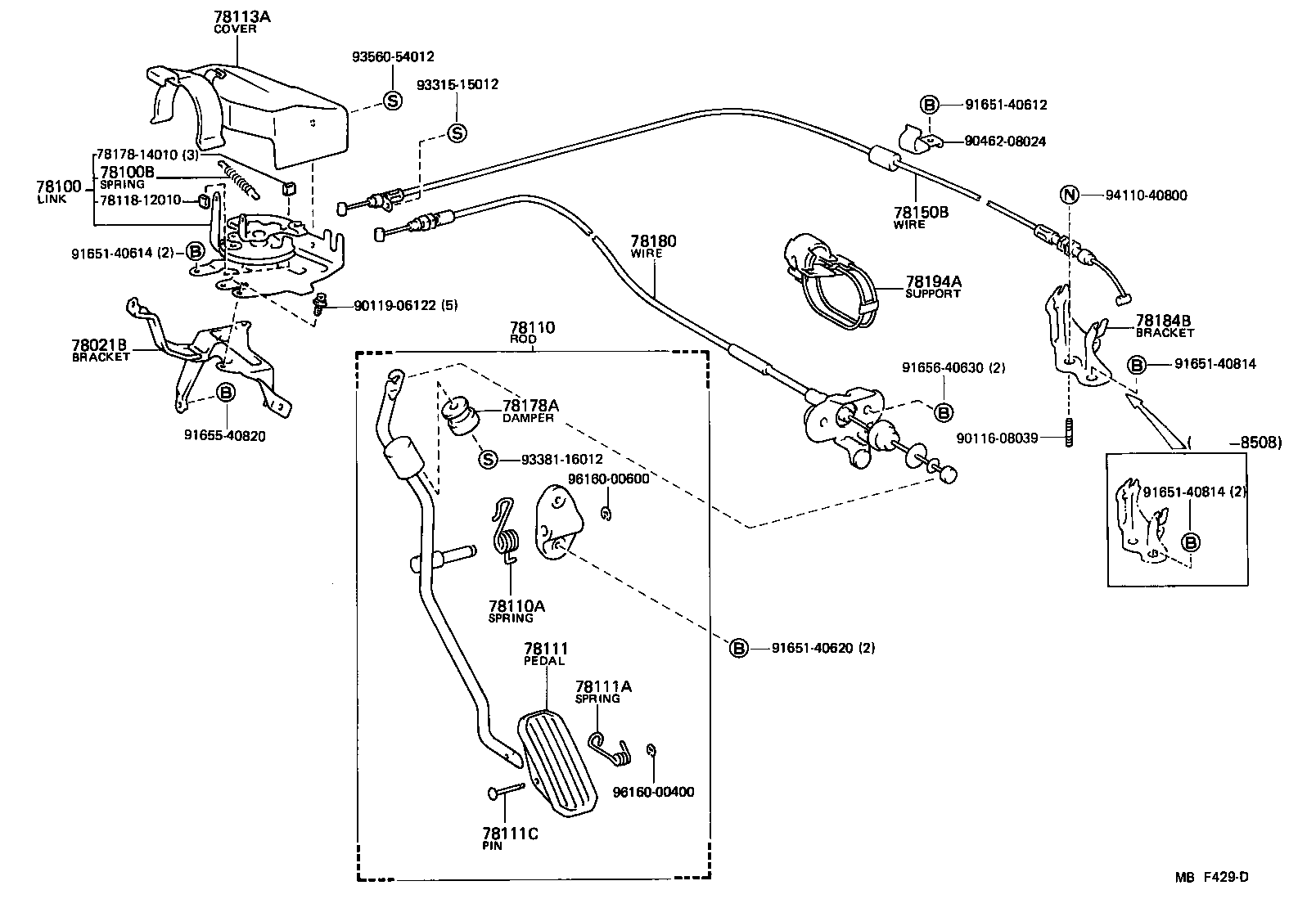

(8308-8508)LE,LEL ; (8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78021B - BRACKET SUB-ASSY, ACCEL CONTROL BELLCRANK | ||||
| 78021-12020 |
AE82 |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-12080 |
AE82 |
1 | ||
| 78100B - SPRING (FOR ACCELERATOR LINK) | ||||
| 90506-08019 |
AE82 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12050 |
AE82..ATM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18025 |
AE82,CE80..ATM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
AE82,CE80 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-20056 |
AE82,CE80 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AE82,CE80 |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-12110 |
AE82 |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-12070 |
AE82 |
1 | ||
| 78178A - DAMPER, ACCELRATOR PEDAL ROD DYNAMIC | ||||
| 78178-12030 |
AE82 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12651 |
AE82 W/O AUTO DRIVE |
1 | ||
| 78180-12650 |
AE82 W/O AUTO DRIVE |
1 | ||
| 78180-12550 |
AE82 W/AUTO DRIVE |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12160 |
AE82 |
1 | ||
| 78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4 | ||||
| 78194-12040 |
AE82 |
1 | ||
| 78194-12041 |
AE82 |
1 | ||
| Common parts | ||||
| 78118-12010 | ||||
| 78178-14010 | ||||
| 90116-08039 | ||||
| 90119-06122 | ||||
| 90462-08024 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91651-40814 | ||||
| 91655-40820 | ||||
| 91656-40630 | ||||
| 93315-15012 | ||||
| 93381-16012 | ||||
| 93560-54012 | ||||
| 94110-40800 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
