AE82L-EEHDCK (1983)
Toyota Corolla Sed/Lb
(8308- )

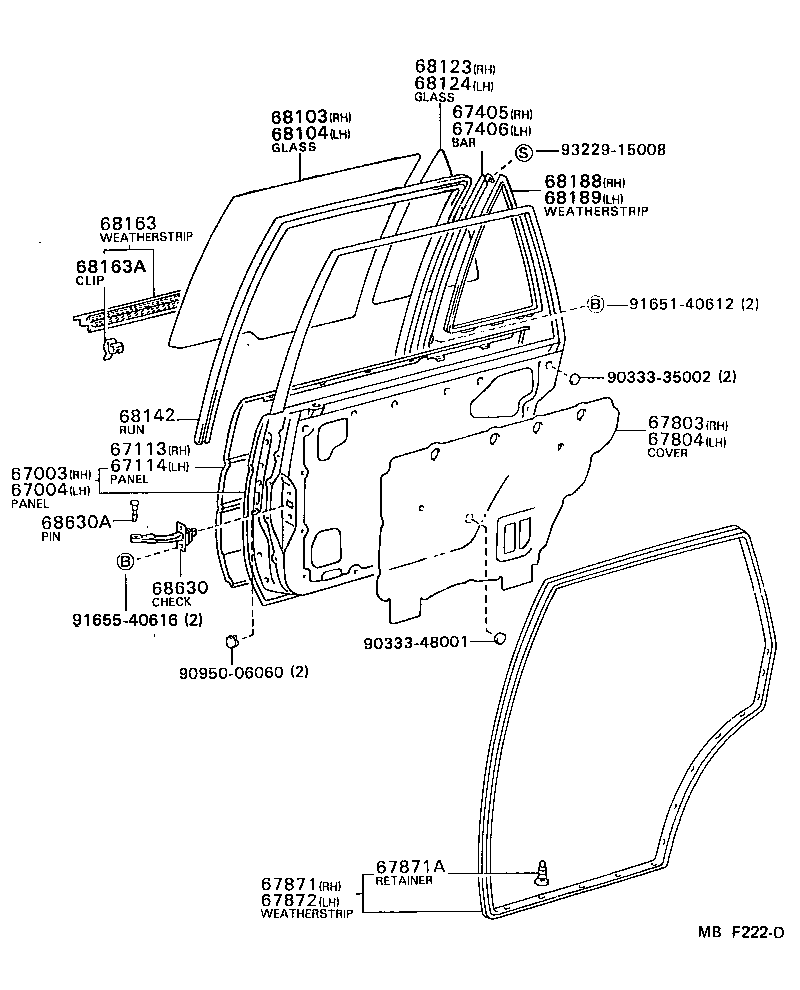

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12300 |
AE82,CE80..SED |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12300 |
AE82,CE80..SED |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12110 |
AE82,CE80 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12110 |
AE82,CE80 |
1 | ||
| 67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12110 |
AE82,CE80 |
1 | ||
| 67407-12110 |
AE82,CE80..DX,STD |
1 | ||
| 67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12110 |
AE82,CE80 |
1 | ||
| 67408-12110 |
AE82,CE80..DX,STD |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-12170 |
AE82,CE80 |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-12050 |
AE82,CE80 |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12170 |
AE82,CE80..SED |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AE82,CE80 |
34 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12170 |
AE82,CE80..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-12130 |
AE82,CE80..DX,LE,LEL *TT,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-12130 |
AE82,CE80..DX,LE,LEL *TT,T=3.5 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-12180 |
AE82,CE80..SED..(DX,LE,LEL) *TT,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-12180 |
AE82,CE80..SED..(DX,LE,LEL) *TT,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-12050 |
AE82,CE80 |
2 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68180-12050 |
AE82,CE80..DX,STD RH |
1 | ||
| 68230-12030 |
AE82,CE80..DX,STD LH |
1 | ||
| 68163A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-12080 |
AE82,CE80..DX,STD |
8 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12090 |
AE82,CE80..SED..(DX,STD) |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12090 |
AE82,CE80..SED..(DX,STD) LH |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12020 |
AE82,CE80 |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-12010 |
AE82,CE80 |
2 | ||
| 68617-22010 |
AE82,CE80 |
2 | ||
| 68617-90A00 |
AE82,CE80 |
2 | ||
| Common parts | ||||
| 90333-35002 | ||||
| 90333-48001 | ||||
| 90950-06060 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 93229-15008 | ||||

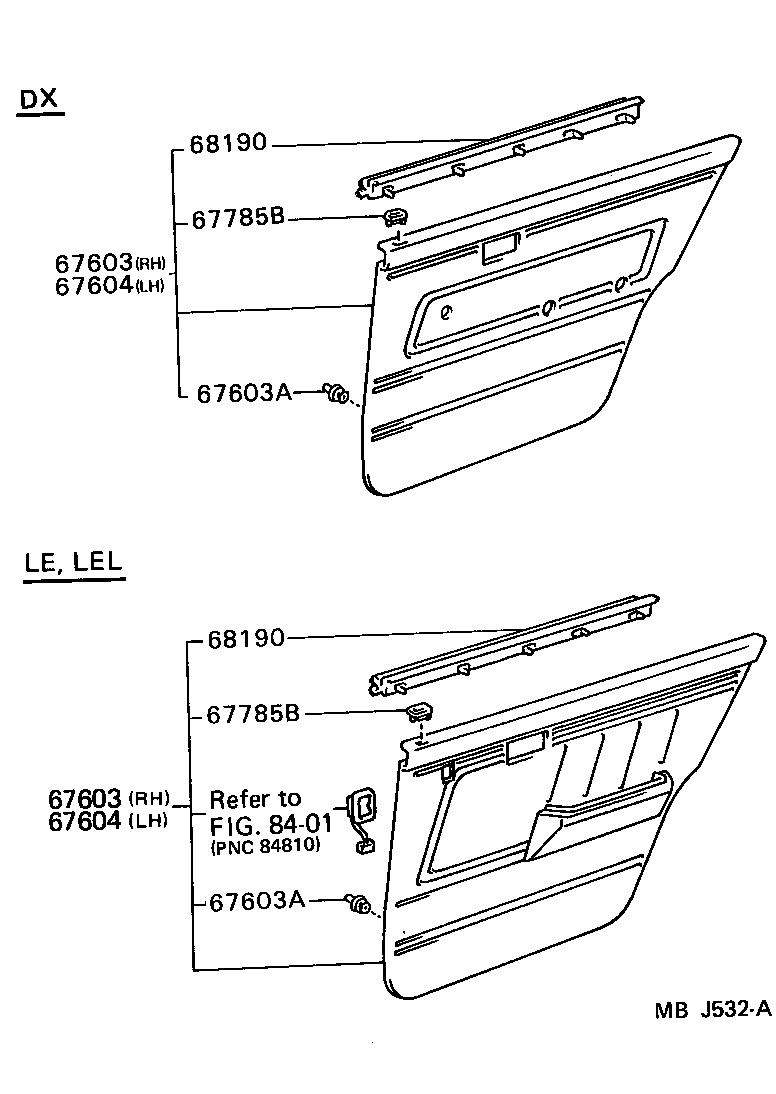

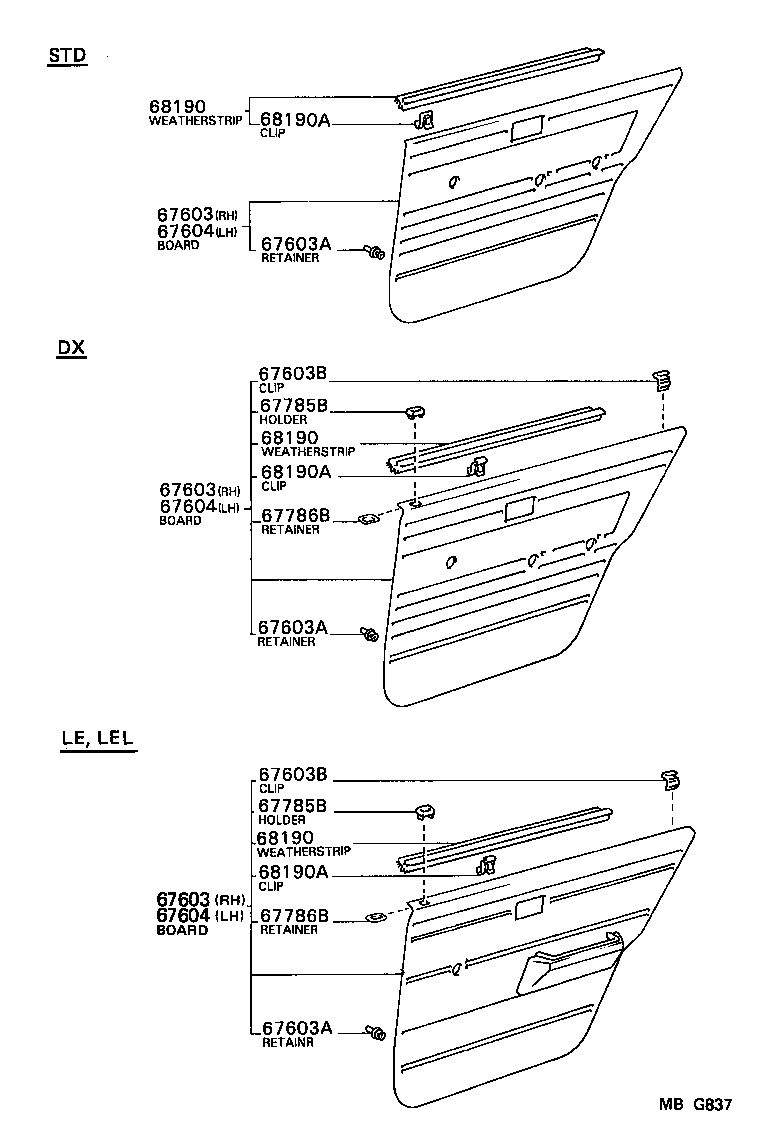

(8308-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1233002 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233103 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1233004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1233102 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233104 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1248002 |
AE82,CE80..DX MAROON,MAROON,TRIM3# |
1 | ||
| 67630-1233003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1248003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1248004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1238203 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1261004 |
AE82,CE80..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1261003 |
AE82,CE80..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1261006 |
AE82,CE80..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1238204 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1238206 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1276004 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1276003 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1276006 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1233002 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233103 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1233004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1233102 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233104 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1248002 |
AE82,CE80..DX MAROON,MAROON,TRIM3# |
1 | ||
| 67630-1233003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1248003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1248004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1238203 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1261004 |
AE82,CE80..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1261003 |
AE82,CE80..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1261006 |
AE82,CE80..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1238204 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1238206 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1276004 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1276003 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1276006 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1233002 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233103 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1233004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1233102 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233104 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1248002 |
AE82,CE80..DX MAROON,MAROON,TRIM3# |
1 | ||
| 67630-1233003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1248003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1248004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1238203 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1261004 |
AE82,CE80..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1261003 |
AE82,CE80..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1261006 |
AE82,CE80..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1238204 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1238206 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1276004 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1276003 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1276006 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE82,CE80 |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE82,CE80 |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE82,CE80 |
26 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 67774-10010 |
AE82,CE80..DX,LE |
4 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 67774-10010 |
AE82,CE80..DX,LE |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1233003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233104 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233002 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1248003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233103 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233102 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1248004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1248002 |
AE82,CE80..DX MAROON,MAROON,TRIM3# |
1 | ||
| 67640-1261004 |
AE82,CE80..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1261006 |
AE82,CE80..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1261003 |
AE82,CE80..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1238204 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1238206 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1238203 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1276003 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1276006 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1276004 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1233003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233104 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233002 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1248003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233103 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233102 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1248004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1248002 |
AE82,CE80..DX MAROON,MAROON,TRIM3# |
1 | ||
| 67640-1261004 |
AE82,CE80..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1261006 |
AE82,CE80..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1261003 |
AE82,CE80..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1238204 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1238206 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1238203 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1276003 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1276006 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1276004 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1233003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233104 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233002 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1248003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233103 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233102 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1248004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1248002 |
AE82,CE80..DX MAROON,MAROON,TRIM3# |
1 | ||
| 67640-1261004 |
AE82,CE80..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1261006 |
AE82,CE80..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1261003 |
AE82,CE80..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1238204 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1238206 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1238203 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1276003 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1276006 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1276004 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-2006004 |
AE82 BLUE,BLUE,TRIM8# |
2 | ||
| 69751-20040 |
AE82,CE80..DX,LE,LEL |
2 | ||
| 69751-2006003 |
AE82 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006006 |
AE82 BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-2006004 |
AE82 BLUE,BLUE,TRIM8# |
2 | ||
| 69751-20040 |
AE82,CE80..DX,LE,LEL |
2 | ||
| 69751-2006003 |
AE82 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006006 |
AE82 BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67786-10010 |
AE82,CE80..DX,LE,LEL |
2 | ||
| 67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67786-10010 |
AE82,CE80..DX,LE,LEL |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12060 |
AE82 |
2 | ||
| 68173-12040 |
AE82,CE80..DX,LE,LEL RH |
1 | ||
| 68174-12020 |
AE82,CE80..DX,LE,LEL LH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12060 |
AE82 |
2 | ||
| 68173-12040 |
AE82,CE80..DX,LE,LEL RH |
1 | ||
| 68174-12020 |
AE82,CE80..DX,LE,LEL LH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12060 |
AE82 |
2 | ||
| 68173-12040 |
AE82,CE80..DX,LE,LEL RH |
1 | ||
| 68174-12020 |
AE82,CE80..DX,LE,LEL LH |
1 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
AE82,CE80..DX,LE,LEL |
10 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
AE82,CE80..DX,LE,LEL |
10 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
AE82,CE80..DX,LE,LEL |
10 | ||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1233002 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233103 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1233004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1233102 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233104 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1248002 |
AE82,CE80..DX MAROON,MAROON,TRIM3# |
1 | ||
| 67630-1233003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1248003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1248004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1238203 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1261004 |
AE82,CE80..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1261003 |
AE82,CE80..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1261006 |
AE82,CE80..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1238204 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1238206 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1276004 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1276003 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1276006 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1233002 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233103 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1233004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1233102 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233104 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1248002 |
AE82,CE80..DX MAROON,MAROON,TRIM3# |
1 | ||
| 67630-1233003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1248003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1248004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1238203 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1261004 |
AE82,CE80..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1261003 |
AE82,CE80..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1261006 |
AE82,CE80..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1238204 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1238206 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1276004 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1276003 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1276006 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE82,CE80 |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE82,CE80 |
26 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1233003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233104 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233002 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1248003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233103 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233102 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1248004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1248002 |
AE82,CE80..DX MAROON,MAROON,TRIM3# |
1 | ||
| 67640-1261004 |
AE82,CE80..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1261006 |
AE82,CE80..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1261003 |
AE82,CE80..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1238204 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1238206 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1238203 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1276003 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1276006 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1276004 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1233003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233104 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233002 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1248003 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233103 |
AE82,CE80..DX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233102 |
AE82,CE80..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1248004 |
AE82,CE80..DX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1248002 |
AE82,CE80..DX MAROON,MAROON,TRIM3# |
1 | ||
| 67640-1261004 |
AE82,CE80..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1261006 |
AE82,CE80..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1261003 |
AE82,CE80..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1238204 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1238206 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1238203 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1276003 |
AE82..DX W/FB SEAT,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1276006 |
AE82..DX W/FB SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1276004 |
AE82..DX W/FB SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-2006004 |
AE82 BLUE,BLUE,TRIM8# |
2 | ||
| 69751-20040 |
AE82,CE80..DX,LE,LEL |
2 | ||
| 69751-2006003 |
AE82 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006006 |
AE82 BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-2006004 |
AE82 BLUE,BLUE,TRIM8# |
2 | ||
| 69751-20040 |
AE82,CE80..DX,LE,LEL |
2 | ||
| 69751-2006003 |
AE82 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69751-2006006 |
AE82 BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12060 |
AE82 |
2 | ||
| 68173-12040 |
AE82,CE80..DX,LE,LEL RH |
1 | ||
| 68174-12020 |
AE82,CE80..DX,LE,LEL LH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12060 |
AE82 |
2 | ||
| 68173-12040 |
AE82,CE80..DX,LE,LEL RH |
1 | ||
| 68174-12020 |
AE82,CE80..DX,LE,LEL LH |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
(8305-8505)4DS,5D,5DS ; (8305-8505)4DS,5D,5DS ;(8505-8605)ARL,SA ; (8505-8605)ARL,
| Part # | Description | Qty | Price |
|---|
(8505-8605)4DS,5D,5DS..EUR,GEN,SAA ; (8505-8605)4DS,5D,5DS..EUR,GEN,SAA ; (8605-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
