AE82L-EEHDCK (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Jul 1987
Engine 4ALC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

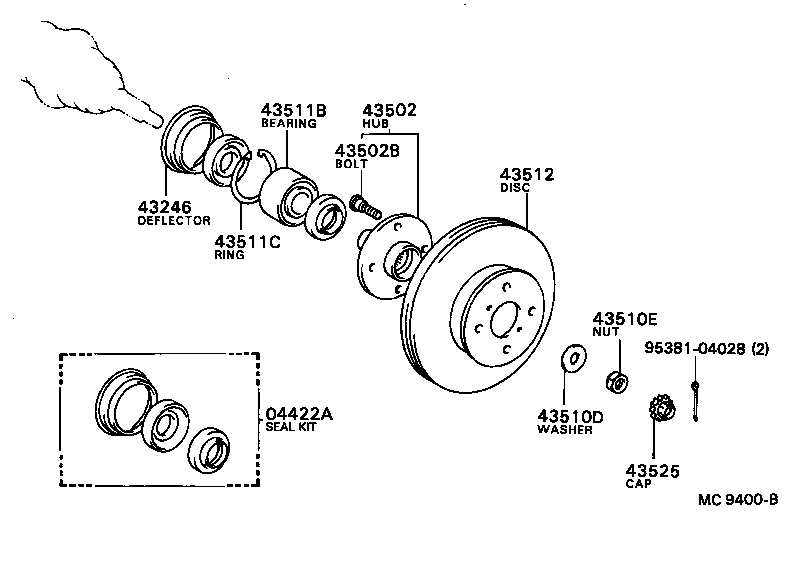

Click highlighted areas on diagram

diagram 04422A 43246 43502 43502B 43510D 43510E 43511B 43511C 43512 43525 9538104028
Part # Description Qty Price
04422A - SEAL KIT, FRONT AXLE OIL
04422-20010

AE82,CE80

 2
43246 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1
43246-20010

AE82,CE80

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43502-20030

AE82,CE80

 2
43502B - BOLT, HUB (FOR FRONT AXLE)
90942-02047

AE82,CE80

 8
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90201-20012

AE82,CE80

 2
90201-20006

AE82,CE80

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19001

AE82,CE80

 2
43511B - BEARING (FOR FRONT AXLE HUB)
90369-38003

AE82,CE80

 2
43511C - RING, HOLE SNAP (FOR FRONT AXLE HUB)
90521-79002

AE82,CE80

OD=79,T=2.40-2.50

 2
90521-79006

AE82,CE80

T=2.67-2.72,T=2.67-2.72

 2
90521-79003

AE82,CE80

T=2.50-2.57,T=2.50-2.57

 2
90521-79005

AE82,CE80

T=2.62-2.67,T=2.62-2.67

 2
90521-79004

AE82,CE80

T=2.57-2.62,T=2.57-2.62

 2
43512 - DISC, FRONT
43512-12160

AE82,CE80

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-16010

AE82,CE80

 2
Common parts
95381-04028
