AE82L-EEHDCA (1983)
Toyota Corolla Sed/Lb
Production
Aug 1983
-
Jul 1987
Engine
4ALC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )4ALC..USA

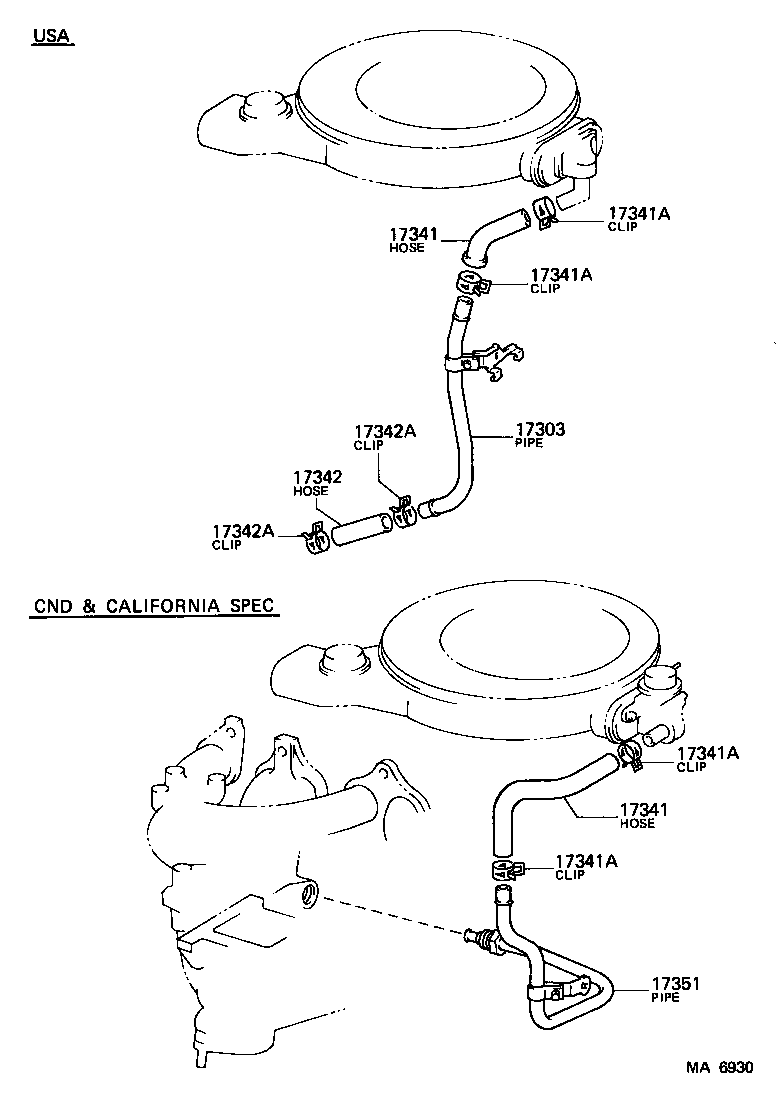

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303 - PIPE SUB-ASSY, AIR | ||||
| 17303-16030 |
4ALC..AE82..USA |
1 | ||
| 17303-16070 |
4ALC..AE82..USA |
1 | ||
| 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-16040 |
4ALC..AE82..USA |
1 | ||
| 17341-16050 |
4ALC..AE82..USA CALIFORNIA SPEC |
1 | ||
| 17341-16051 |
4ALC..AE82..USA CALIFORNIA SPEC |
1 | ||
| 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-16040 |
4ALC..AE82..USA |
1 | ||
| 17341-16050 |
4ALC..AE82..USA CALIFORNIA SPEC |
1 | ||
| 17341-16051 |
4ALC..AE82..USA CALIFORNIA SPEC |
1 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 90467-31002 |
4ALC..AE82..USA |
2 | ||
| 90467-23003 |
4ALC..AE82..USA CALIFORNIA SPEC |
2 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 90467-31002 |
4ALC..AE82..USA |
2 | ||
| 90467-23003 |
4ALC..AE82..USA CALIFORNIA SPEC |
2 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 90467-31002 |
4ALC..AE82..USA |
2 | ||
| 90467-23003 |
4ALC..AE82..USA CALIFORNIA SPEC |
2 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 90467-31002 |
4ALC..AE82..USA |
2 | ||
| 90467-23003 |
4ALC..AE82..USA CALIFORNIA SPEC |
2 | ||
| 17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM) | ||||
| 90445-36001 |
4ALC..AE82..USA |
1 | ||
| 17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2 | ||||
| 90467-31002 |
4ALC..AE82..USA |
2 | ||
| 17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2 | ||||
| 90467-31002 |
4ALC..AE82..USA |
2 | ||
| 17351 - MANIFOLD, AIR INJECTION | ||||
| 17306-16010 |
4ALC..AE82..USA CALIFORNIA SPEC |
1 | ||
(8504-8505)4ALC ; (8508- )4ALC..FRG ; (8511-)2ALC,4ALC..ARL
Click highlighted areas on diagram
(8504-8505)FRG SPEC
| Part # | Description | Qty | Price |
|---|
