AE80R-EEMDSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

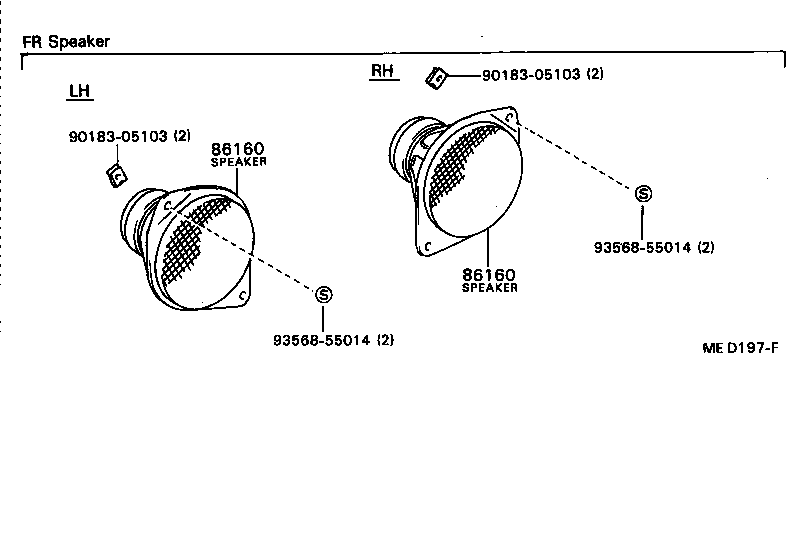

Click highlighted areas on diagram

diagram 86160 86160 9018305103 9018305103 9356855014 9356855014
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-12170

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-12170

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 2
Common parts
90183-05103
93568-55014

(8305- )

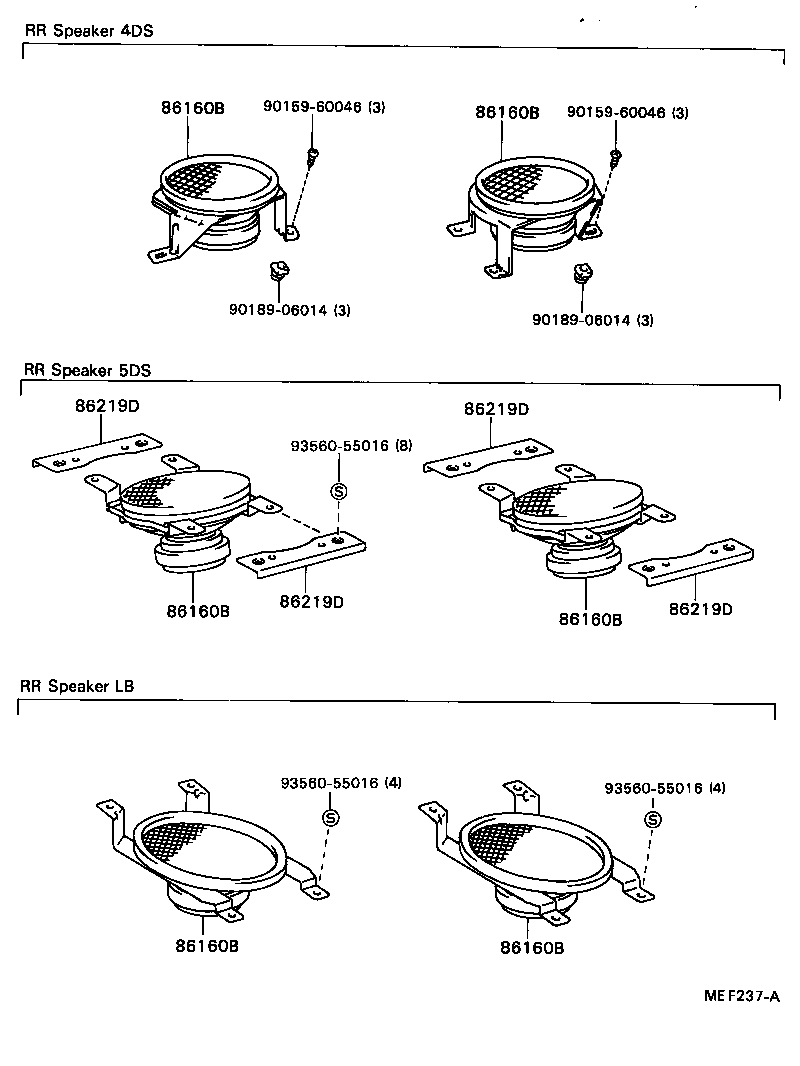

Click highlighted areas on diagram

diagram 86160B 86160B 86160B 86160B 86160B 86160B 86219D 86219D 86219D 86219D 9015960046 9015960046 9018906014 9018906014 9356055016 9356055016 9356055016
Part # Description Qty Price
Common parts
90159-60046
90189-06014
93560-55016
