AE80R-EEMDS (1983)
Toyota Corolla Sed/Lb
(8305- )

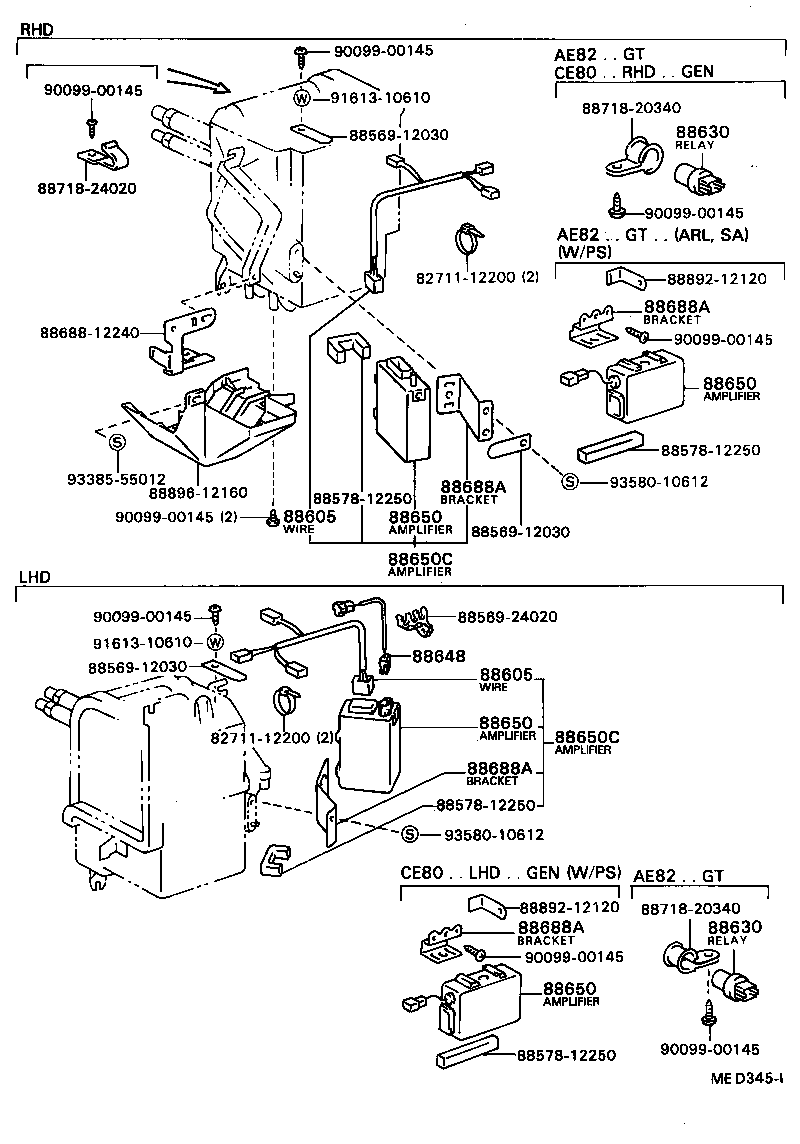

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-12500 |
AE8#,EE80..RHD..(DX,GL,STD,XL)..(GEN,SA) W/HEATER |
1 | ||
| 88605-12600 |
AE8#,EE80..RHD..(DX,GL,STD,XL)..GEN W/*BV ONLY |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-12500 |
AE8#,EE80..RHD..(DX,GL,STD,XL)..(GEN,SA) W/HEATER |
1 | ||
| 88605-12600 |
AE8#,EE80..RHD..(DX,GL,STD,XL)..GEN W/*BV ONLY |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-16030 |
AE8#..GEN,SAA W/HEATER |
1 | ||
| 88650-14150 |
AE8#..RHD..GEN W/*BV ONLY |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-16030 |
AE8#..GEN,SAA W/HEATER |
1 | ||
| 88650-14150 |
AE8#..RHD..GEN W/*BV ONLY |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-16030 |
AE8#..GEN,SAA W/HEATER |
1 | ||
| 88650-14150 |
AE8#..RHD..GEN W/*BV ONLY |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-16030 |
AE8#..GEN,SAA W/HEATER |
1 | ||
| 88650-14150 |
AE8#..RHD..GEN W/*BV ONLY |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-16070 |
AE8#,CE80,EE80..RHD..(ARL,GEN,SA) W/O PS |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-16070 |
AE8#,CE80,EE80..RHD..(ARL,GEN,SA) W/O PS |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-16070 |
AE8#,CE80,EE80..RHD..(ARL,GEN,SA) W/O PS |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-16070 |
AE8#,CE80,EE80..RHD..(ARL,GEN,SA) W/O PS |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88569-12030 | ||||
| 88569-24020 | ||||
| 88578-12250 | ||||
| 88688-12240 | ||||
| 88718-20340 | ||||
| 88718-24020 | ||||
| 88892-12120 | ||||
| 88896-12160 | ||||
| 90099-00145 | ||||
| 91613-10610 | ||||
| 93385-55012 | ||||
| 93580-10612 | ||||

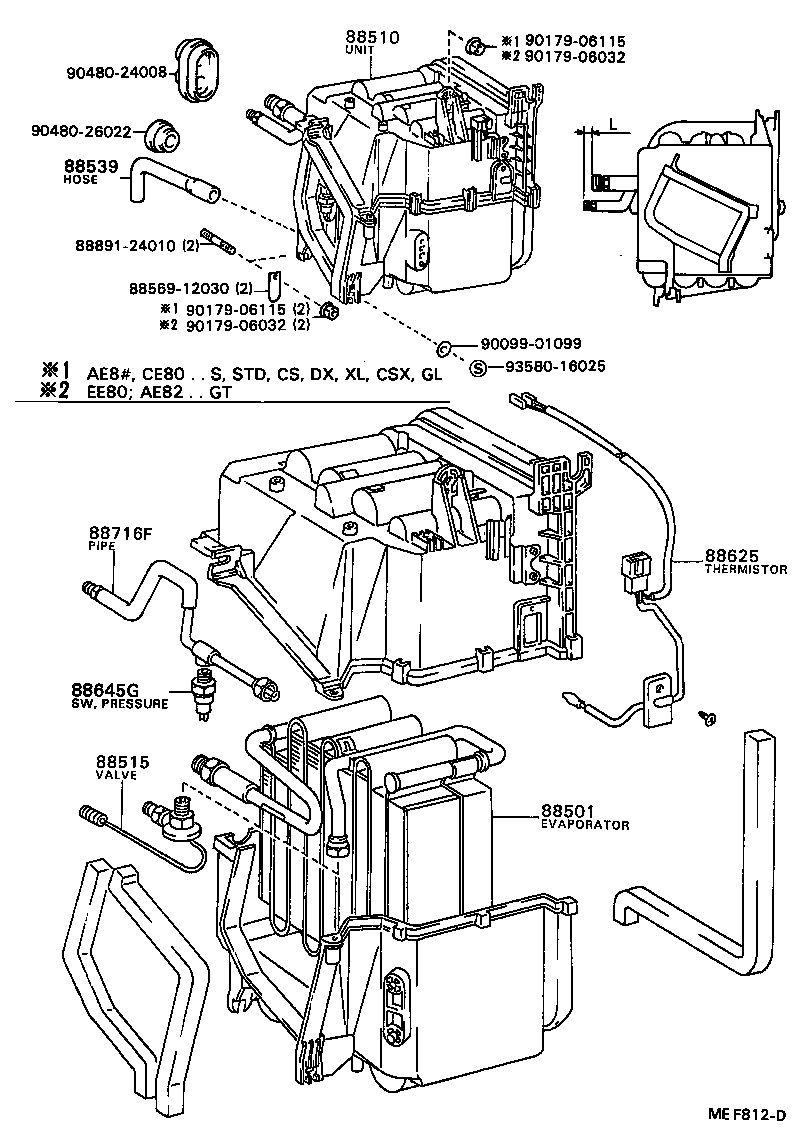

(8305- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-16060 |
AE8#,CE80,EE80..RHD..(ARL,GEN,SA) |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-16080 |
AE8#,CE80,EE80..RHD..(ARL,GEN,SA) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16030 |
AE8#,CE80..GEN,SA,SAA |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12080 |
AE8#,CE80,EE80..ARL,GEN,SA,SAA |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-16060 |
AE8#,CE80,EE80..ARL,GEN,SA,SAA |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-12020 |
AE8#,CE80,EE80..ARL,GEN,SA,SAA |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-16160 |
AE8#,CE80,EE80..RHD..(ARL,GEN,SA) L=5.5 |
1 | ||
| Common parts | ||||
| 88569-12030 | ||||
| 88891-24010 | ||||
| 90099-01099 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90480-24008 | ||||
| 90480-26022 | ||||
| 93580-16025 | ||||
