AE80R-EEMDS (1983)
Toyota Corolla Sed/Lb
(8305- )DX,GL,SE,STD,XL

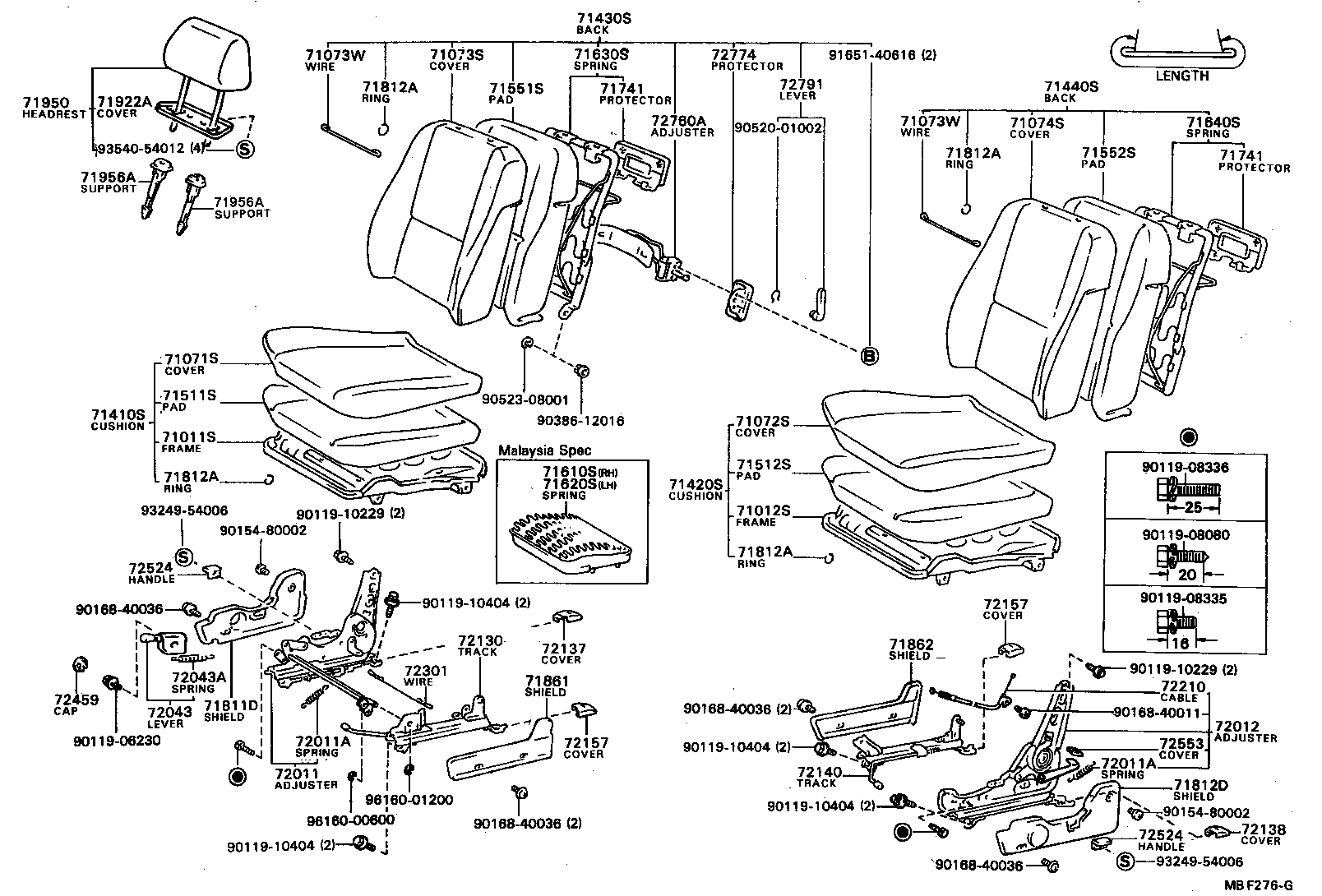

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12180 |
AE8#,CE80,EE80..RHD..(DX,GL,GT,XL)..(EUR,GEN) W/*VA |
1 | ||
| 71011-12170 |
AE8#,CE80,EE80..RHD..(DX,GL,STD,XL)..(EUR,GEN) W/O *VA |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12170 |
AE8#,CE80,EE80..RHD..(EUR,GEN,SA) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1E40006 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) W/*VA,FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1E28002 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) W/O *VA,FB-A,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-1E28003 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) W/O *VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1E39003 |
AE80,CE80..RHD..DX..(EUR,GEN) W/*VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1E39002 |
AE80,CE80..RHD..DX..(EUR,GEN) W/*VA,FB-A,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-1E45002 |
AE80..4DS..RHD..5F..DX..GEN MALAYSIA SPEC,FB-A,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-1E40002 |
AE8#,CE80..RHD..(DX,GL)..(EUR,GEN) W/*VA,FB-B,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-1E28004 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) W/O *VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1E39004 |
AE80,CE80..RHD..DX..(EUR,GEN) W/*VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1E06002 |
AE8#,CE80..(DX,STD,XL)..(GEN,SA,SAA) PF,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-1E39002 |
AE80,CE80..RHD..DX..GEN W/*VA,FB-A,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-1E45003 |
AE80..4DS..RHD..5F..DX..GEN MALAYSIA SPEC,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1E45004 |
AE80..4DS..RHD..5F..DX..GEN MALAYSIA SPEC,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1E40004 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) W/*VA,FB-B,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1E28003 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN W/O *VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1E39004 |
AE8#,CE80..RHD..(DX,XL)..GEN W/*VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1E40003 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) W/*VA,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1E39003 |
AE8#,CE80..RHD..(DX,XL)..GEN W/*VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1E28004 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN W/O *VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1E39006 |
AE8#,CE80..RHD..(DX,XL)..GEN W/*VA,FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1E28006 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN W/O *VA,FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1E45006 |
AE80..4DS..RHD..5F..DX..GEN MALAYSIA SPEC,FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1E06003 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA) PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1E06004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..(GEN,SA,SAA) PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1E28002 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) FB-A,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-1E05002 |
AE8#,CE80..RHD..(DX,GL)..(EUR,GEN) FB-B,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-1E28004 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1E28002 |
AE80,CE80..RHD..(DX,STD)..GEN FB-A,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-1E28003 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1E06002 |
AE8#,CE80..(DX,STD,XL)..(GEN,SA,SAA) PF,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-1E43002 |
AE80..4DS..RHD..5F..DX..GEN MALAYSIA SPEC,FB-A,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-1E05003 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1E43003 |
AE80..4DS..RHD..5F..DX..GEN MALAYSIA SPEC,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1E05004 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) FB-B,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1E43004 |
AE80..4DS..RHD..5F..DX..GEN MALAYSIA SPEC,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1E28004 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1E28003 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1E05006 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1E28006 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1E43006 |
AE80..4DS..RHD..5F..DX..GEN MALAYSIA SPEC,FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1E06004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..(GEN,SA,SAA) PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1E06003 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA) PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1E30002 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) W/O *VA,FB-A,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1E64004 |
AE80,CE80..RHD..DX..(EUR,GEN) W/*VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1E30003 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) W/O *VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1E64003 |
AE80,CE80..RHD..DX..(EUR,GEN) W/*VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1E64002 |
AE80,CE80..RHD..DX..(EUR,GEN) W/*VA,FB-A,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1E30004 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) W/O *VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1E65004 |
AE8#,CE80..RHD..(DX,GL)..(EUR,GEN) W/*LUS,FB-B,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1E65002 |
AE8#,CE80..RHD..(DX,GL)..(EUR,GEN) W/*LUS,FB-B,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71073-1E65003 |
AE8#,CE80..RHD..(DX,GL)..(EUR,GEN) W/*LUS,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1E30003 |
AE80,CE80..RHD..(DX,STD)..GEN W/O *VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1E30002 |
AE80,CE80..RHD..(DX,STD)..GEN W/O *VA,FB-A,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1E64003 |
AE80,CE80..RHD..DX..GEN W/*VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1E30004 |
AE80,CE80..RHD..(DX,STD)..GEN W/O *VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1E30006 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN W/O *VA,FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1E64002 |
AE80,CE80..RHD..DX..GEN W/*VA,FB-A,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1E30014 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN W/O *VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1E64004 |
AE80,CE80..RHD..DX..GEN W/*VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1E30013 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN W/O *VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1E64013 |
AE8#,CE80..RHD..(DX,XL)..GEN W/*VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1E65013 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) W/*LUS,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1E65006 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) W/*LUS,FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1E64014 |
AE8#,CE80..RHD..(DX,XL)..GEN W/*VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1E40002 |
AE8#,CE80,EE80..(DX,STD,XL)..GEN W/O *HR,PF,MAROON,MAROON,TRIM3#,4# |
1 | ||
| 71073-1E41002 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA) W/*HR,PF,MAROON,MAROON,TRIM3#,4# |
1 | ||
| 71073-1E40004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..GEN W/O *HR,PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1E40003 |
AE8#,CE80,EE80..(DX,STD,XL)..GEN W/O *HR,PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1E65014 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) W/*LUS,FB-B,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1E41003 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA) W/*HR,PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1E64006 |
AE8#,CE80..RHD..(DX,XL)..GEN W/*VA,FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1E41004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..(GEN,SA,SAA) W/*HR,PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20164 |
AE8#,CE80,EE80..DX,GL,STD,XL L=460 |
2 | ||
| 90580-20129 |
AE8#,CE80,EE80..DX,GL,STD,XL L=490 |
2 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20164 |
AE8#,CE80,EE80..DX,GL,STD,XL L=460 |
2 | ||
| 90580-20129 |
AE8#,CE80,EE80..DX,GL,STD,XL L=490 |
2 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1A32002 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) FB-A,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-1A32003 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1A32004 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1A33004 |
AE8#,CE80..RHD..(DX,GL)..(EUR,GEN) FB-B,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1A33002 |
AE8#,CE80..RHD..(DX,GL)..(EUR,GEN) FB-B,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-1A32002 |
AE80,CE80..RHD..(DX,STD)..GEN FB-A,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-1A32003 |
AE80,CE80..RHD..(DX,STD)..GEN FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1A32004 |
AE80,CE80..RHD..(DX,STD)..GEN FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1A32006 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1A33003 |
AE8#,CE80..RHD..(DX,GL)..(EUR,GEN) FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1A33006 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1A32013 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1A33014 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) FB-B,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1A32014 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1A33013 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1A42004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..(GEN,SA,SAA) W/*HR,PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1A42002 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA) W/*HR,PF,MAROON,MAROON,TRIM3#,4# |
1 | ||
| 71074-1A41003 |
AE8#,CE80,EE80..(DX,STD,XL)..GEN W/O *HR,PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1A41002 |
AE8#,CE80,EE80..(DX,STD,XL)..GEN W/O *HR,PF,MAROON,MAROON,TRIM3#,4# |
1 | ||
| 71074-1A41004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..GEN W/O *HR,PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1A42003 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA) W/*HR,PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1E28003 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) W/O *VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E28002 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) W/O *VA,FB-A,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-1E28004 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) W/O *VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1E58002 |
AE80,CE80..RHD..DX..(EUR,GEN) W/*VA,FB-A,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-1E58004 |
AE80,CE80..RHD..DX..(EUR,GEN) W/*VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1E32002 |
AE8#,CE80..(DX,STD,XL)..(GEN,SA,SAA) PF,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-1E59002 |
AE8#,CE80..RHD..(DX,GL)..(EUR,GEN) W/*VA,FB-B,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-1E58003 |
AE80,CE80..RHD..DX..(EUR,GEN) W/*VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E28002 |
AE80,CE80..RHD..(DX,STD)..GEN W/O *VA,FB-A,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-1E58002 |
AE80,CE80..RHD..DX..GEN W/*VA,FB-A,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-1E59004 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) W/*VA,FB-B,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1E59003 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) W/*VA,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E28003 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN W/O *VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E28004 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN W/O *VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1E58003 |
AE8#,CE80..RHD..(DX,XL)..GEN W/*VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E28006 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN W/O *VA,FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1E59006 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) W/*VA,FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1E58004 |
AE8#,CE80..RHD..(DX,XL)..GEN W/*VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1E58006 |
AE8#,CE80..RHD..(DX,XL)..GEN W/*VA,FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1E32003 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA) PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E32004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..(GEN,SA,SAA) PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1E28002 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) FB-A,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-1E28004 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1E29002 |
AE8#,CE80..RHD..(DX,GL)..(EUR,GEN) FB-B,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-1E32002 |
AE8#,CE80..(DX,STD,XL)..(GEN,SA,SAA) PF,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-1E28003 |
AE80,CE80..RHD..(DX,STD)..(EUR,GEN) FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E28002 |
AE80,CE80..RHD..(DX,STD)..GEN FB-A,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-1E29004 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) FB-B,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1E29003 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E28003 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E28004 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1E29006 |
AE8#,CE80..RHD..(DX,GL,XL)..(EUR,GEN) FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1E28006 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1E32003 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA) PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1E32004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..(GEN,SA,SAA) PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1E54003 |
AE80,CE80..RHD..(DX,STD)..GEN W/O *VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1E56002 |
AE8#,CE80..RHD..(DX,GL)..GEN W/*LUS,FB-B,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-1E56004 |
AE8#,CE80..RHD..(DX,GL)..GEN W/*LUS,FB-B,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1H07002 |
AE80,CE80..RHD..DX..GEN W/*VA,FB-A,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-1E56003 |
AE8#,CE80..RHD..(DX,GL)..GEN W/*LUS,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1E54004 |
AE80,CE80..RHD..(DX,STD)..GEN W/O *VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1E54002 |
AE80,CE80..RHD..(DX,STD)..GEN W/O *VA,FB-A,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-1H07003 |
AE80,CE80..RHD..DX..GEN W/*VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1H07004 |
AE80,CE80..RHD..DX..GEN W/*VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1E54006 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN W/O *VA,FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1E56013 |
AE8#,CE80..RHD..(DX,GL,XL)..GEN W/*LUS,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1E54014 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN W/O *VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1E56006 |
AE8#,CE80..RHD..(DX,GL,XL)..GEN W/*LUS,FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1E56014 |
AE8#,CE80..RHD..(DX,GL,XL)..GEN W/*LUS,FB-B,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1E54013 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN W/O *VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1H07006 |
AE8#,CE80..RHD..(DX,XL)..GEN W/*VA,FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1E70002 |
AE8#,CE80,EE80..(DX,STD,XL)..GEN W/O *HR,PF,MAROON,MAROON,TRIM3#,4# |
1 | ||
| 71430-1E58003 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA) W/*HR,PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1E58004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..(GEN,SA,SAA) W/*HR,PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1H07013 |
AE8#,CE80..RHD..(DX,XL)..GEN W/*VA,FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1E58002 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA) W/*HR,PF,MAROON,MAROON,TRIM3#,4# |
1 | ||
| 71430-1E70004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..GEN W/O *HR,PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1H07014 |
AE8#,CE80..RHD..(DX,XL)..GEN W/*VA,FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1E70003 |
AE8#,CE80,EE80..(DX,STD,XL)..GEN W/O *HR,PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1E49002 |
AE8#..RHD..(DX,GL)..GEN FB-B,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-1E50003 |
AE80,CE80..RHD..(DX,STD)..GEN FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1E50002 |
AE80,CE80..RHD..(DX,STD)..GEN FB-A,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-1E49003 |
AE8#..RHD..(DX,GL)..GEN FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1E50004 |
AE80,CE80..RHD..(DX,STD)..GEN FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1E49004 |
AE8#..RHD..(DX,GL)..GEN FB-B,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1E49013 |
AE8#..RHD..(DX,GL,XL)..GEN FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1E49006 |
AE8#..RHD..(DX,GL,XL)..GEN FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1E50013 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN FB-A,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1E50006 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN FB-A,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1E50014 |
AE8#,CE80..RHD..(DX,STD,XL)..GEN FB-A,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1E49014 |
AE8#..RHD..(DX,GL,XL)..GEN FB-B,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1E56002 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA) W/*HR,PF,MAROON,MAROON,TRIM3#,4# |
1 | ||
| 71440-1E53003 |
AE8#,CE80,EE80..(DX,STD,XL)..GEN W/O *HR,PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1E56003 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SA,SAA) W/*HR,PF,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1E53002 |
AE8#,CE80,EE80..(DX,STD,XL)..GEN W/O *HR,PF,MAROON,MAROON,TRIM3#,4# |
1 | ||
| 71440-1E56004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..(GEN,SA,SAA) W/*HR,PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1E53004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,STD,XL)..GEN W/O *HR,PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12490 |
AE8#,CE80,EE80..DX,GL,STD,XL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12490 |
AE8#,CE80,EE80..DX,GL,STD,XL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12430 |
AE8#,CE80,EE80..(DX,GL,STD,XL)..(GEN,SA,SAA) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12430 |
AE8#,CE80,EE80..(DX,GL,STD,XL)..(GEN,SA,SAA) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12230 |
AE82..5D..RHD..5F..GEN;AE82..4DS..RHD..GL..GEN;AE80..4DS..RHD..5F..DX..GEN MALAYSIA SPEC |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-12220 |
AE82..5D..RHD..5F..GEN;AE82..4DS..RHD..GL..GEN;AE80..4DS..RHD..5F..DX..GEN MALAYSIA SPEC |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-12310 |
AE8#,CE80,EE80..RHD..(DX,GL,STD,XL)..(EUR,GEN) W/O *LUS |
1 | ||
| 71630-12320 |
AE8#,CE80,EE80..RHD..(DX,GL,XL)..(EUR,GEN) W/*LUS |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-12270 |
AE82..4DS..4FC..ARL;AE8#,CE80,EE80..RHD..(DX,GL,SE,STD,XL) |
1 | ||
| 71741 - PROTECTOR, FRONT SEAT BACK HEADREST STAY | ||||
| 71771-12030 |
AE82..4DS..4FC..ARL;AE8#,CE80..DX,GL,SE,STD,XL |
2 | ||
| 71741 - PROTECTOR, FRONT SEAT BACK HEADREST STAY | ||||
| 71771-12030 |
AE82..4DS..4FC..ARL;AE8#,CE80..DX,GL,SE,STD,XL |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1208002 |
AE8#,CE80..EUR,GEN,SAA W/O *VA,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-1209002 |
AE8#,CE80..RHD..(DX,GL)..(EUR,GEN) W/*VA,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-1209003 |
AE8#,CE80,EE80..RHD..(DX,GL,XL)..(EUR,GEN) W/*VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1208004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL)..(EUR,GEN,SAA) W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1208003 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,STD,XL)..(EUR,GEN,SAA) W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1209004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(DX,GL,XL)..(EUR,GEN) W/*VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1204002 |
AE8#,CE80 W/O *VA,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-1204004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) W/O *VA,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-1204003 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,SE,STD,XL) W/O *VA,GRAY,GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1201002 |
AE8#,CE80..GEN,SA,SAA MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71861-1201003 |
AE8#,CE80,EE80..(DX,GL,SE,STD,XL)..(GEN,SA,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 71861-1201004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)..(GEN,SA,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1201002 |
AE8#,CE80..GEN,SA,SAA MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71862-1201004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)..(GEN,SA,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 71862-1201003 |
AE8#,CE80,EE80..(DX,GL,SE,STD,XL)..(GEN,SA,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 71922A - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-3201034 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN) ADJUSTABLE TYPE,BLUE,BLUE,TRIM8# |
2 | ||
| 71922-3201035 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN) ADJUSTABLE TYPE,BEIGE,BEIGE,TRIM3#,4# |
2 | ||
| 71922-3201013 |
AE8#,CE80,EE80..(DX,GL,GT,XL)..(EUR,GEN) ADJUSTABLE TYPE,GRAY,GRAY,TRIM1# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1235003 |
AE8#,CE80..(DX,STD,XL)..(GEN,SAA) SMALL TYPE,GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1232002 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN) ADJUSTABLE TYPE,MAROON,RED/MAROON,TRIM3#,4# |
2 | ||
| 71910-1235004 |
AE8#,CE80..(DX,STD,XL)..(GEN,SAA) SMALL TYPE,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1235005 |
AE8#,CE80..(DX,STD,XL)..(GEN,SAA) SMALL TYPE,BEIGE,BEIGE,TRIM3#,4# |
2 | ||
| 71910-1232004 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN) ADJUSTABLE TYPE,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1232003 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN) ADJUSTABLE TYPE,GRAY,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001025 |
AE8#,CE80 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1006004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL) W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
AE8#,CE80 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1006013 |
AE8#,CE80,EE80..DX,GL,STD,XL W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL) W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
AE8#,CE80,EE80..DX,GL,STD,XL W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001025 |
AE8#,CE80 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1006004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL) W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
AE8#,CE80 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1006013 |
AE8#,CE80,EE80..DX,GL,STD,XL W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL) W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
AE8#,CE80,EE80..DX,GL,STD,XL W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12400 |
AE8#,CE80..GEN,SAA W/O VERTICAL ADJUSTER |
1 | ||
| 72010-12420 |
AE8#,CE80..RHD..(DX,GL,XL)..GEN W/VERTICAL ADJUSTER |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AE82..4DS..4FC..ARL;AE8#,CE80,EE80..DX,GL,SE,STD,XL |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12410 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,SE,STD,XL)..(GEN,SA,SAA) W/O VERTICAL ADJUSTER |
1 | ||
| 72043 - LEVER SUB-ASSY, SEAT LIFTER | ||||
| 72043-1201003 |
AE8#,CE80,EE80..RHD..(DX,GL,GT,XL)..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 72043-1201004 |
AE8#,CE80,EE80..(4DS,5D)..RHD..(DX,GL,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 72043-1201002 |
AE8#,CE80..RHD..(DX,GL)..(EUR,GEN) MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72043A - SPRING, TENSION (FOR SEAT LIFTER LEVER) | ||||
| 90506-04001 |
AE8#,CE80,EE80..(DX,GL,GT,XL)..(EUR,GEN,SAA) |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-12350 |
AE8#,CE80,EE80..RHD..(DX,GL,XL)..GEN W/VERTICAL ADJUSTER |
1 | ||
| 72130-12430 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,STD,XL)..(GEN,SAA) W/O VERTICAL ADJUSTER |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-1201003 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA GRAY,GRAY,TRIM1# |
1 | ||
| 72137-1201002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-1201004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-1201003 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA GRAY,GRAY,TRIM1# |
1 | ||
| 72138-1201002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72138-1201004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-12400 |
AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,SE,STD,XL)..(GEN,SA,SAA) W/O VERTICAL ADJUSTER |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72138-1201002 |
AE8#,CE80 RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-1201003 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72138-1201003 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72137-1201004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72138-1201004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72137-1201002 |
AE8#,CE80 LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72138-1201002 |
AE8#,CE80 RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-1201003 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72138-1201003 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72137-1201004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72138-1201004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72137-1201002 |
AE8#,CE80 LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-12070 |
AE8#,CE80,EE80..(DX,GL,XL)..(GEN,SAA) |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-1201002 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN,SAA) MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72459-1201004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 72459-1201003 |
AE8#,CE80,EE80..(DX,GL,GT,XL)..(EUR,GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209004 |
AE8#,CE80,EE80..(4DS,5D)..(EUR,GEN,SAA) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1209002 |
AE8#,CE80 RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1203002 |
AE8#,CE80 LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1203003 |
AE8#,CE80,EE80..EUR,GEN,SAA LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1209003 |
AE8#,CE80,EE80..EUR,GEN,SAA RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203004 |
AE8#,CE80,EE80..(4DS,5D)..(EUR,GEN,SAA) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209004 |
AE8#,CE80,EE80..(4DS,5D)..(EUR,GEN,SAA) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1209002 |
AE8#,CE80 RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1203002 |
AE8#,CE80 LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1203003 |
AE8#,CE80,EE80..EUR,GEN,SAA LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1209003 |
AE8#,CE80,EE80..EUR,GEN,SAA RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203004 |
AE8#,CE80,EE80..(4DS,5D)..(EUR,GEN,SAA) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-12040 |
AE8#,CE80,EE80..RHD..(DX,GL,XL)..(EUR,GEN) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202005 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN) BEIGE,BEIGE,TRIM3# |
1 | ||
| 72791-2202023 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 72791-2202026 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN) BROWN,BROWN,TRIM4# |
1 | ||
| 72791-2202033 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 72791-2202004 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 72791-2202014 |
AE8#,CE80..(DX,GL,XL)..(EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-06230 | ||||
| 90119-08080 | ||||
| 90119-08335 | ||||
| 90119-08336 | ||||
| 90119-10229 | ||||
| 90119-10404 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90386-12016 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91651-40616 | ||||
| 93249-54006 | ||||
| 93540-54012 | ||||
| 96160-00600 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
