Toyota Corolla sed/lb AE80 ALTERNATOR

AE80R-EEKDS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - May 1985

Engine 2AL

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8305- )4ALC..ARL ; (8305- )4ALC..SDZ ; (8305- )2AL#,4AL..ARL,EUR ; (8505-

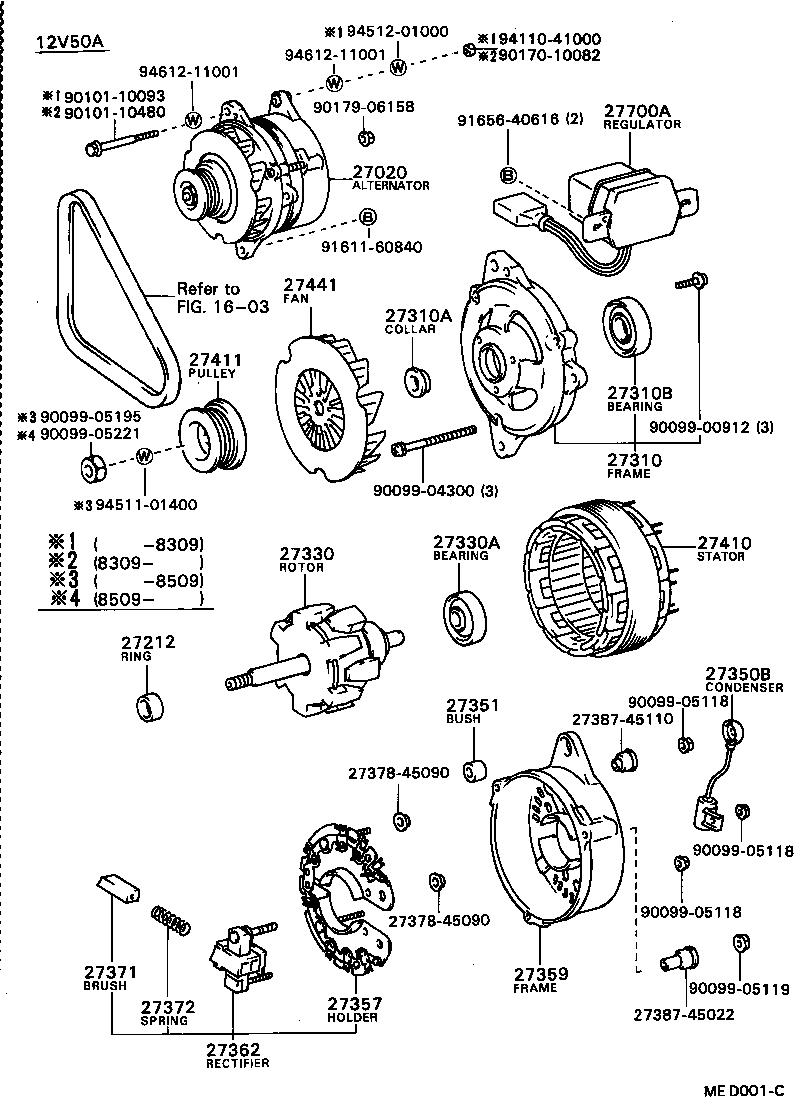

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-16040	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 05/1985	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 02/1985	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16040	2AL,4AL..AE8#..GEN,SAA 12V 45A	05/1983 - 12/1983	1
27310-16041	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	12/1983 - 05/1985	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-63030	2AL,4AL#..AE8# 12V 45A,50A	05/1983 - 12/1983	1
27412-16030	2AL,4AL#..AE8#..EUR,GEN,SA,SAA 12V 45A,50A	12/1983 - 02/1985	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142	2AL,4AL..AE8#;4ALC..AE82..SDZ 12V 45A,50A	05/1983 - 04/1988	1
27330 - ROTOR ASSY, ALTERNATOR
27330-15100	2AL,4AL..AE8#..GEN,SA 12V 45A	02/1985 - 05/1985	1
27330-16040	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 02/1985	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10111	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 05/1985	1
27350B - CONDENSER, ALTERNATOR
90099-52065	2AL,4AL..AE8#;4ALC..AE82..SDZ 12V 45A,50A	05/1983 - 04/1988	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051	2AL,4AL..AE8#;4ALC..AE82..SDZ 12V 45A,50A	05/1983 - 04/1988	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16040	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 05/1985	1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 05/1985	1
27371 - BRUSH, ALTERNATOR
27371-31011	2AL,4AL..AE8#;4ALC..AE82..SDZ 12V 45A,50A	05/1983 - 04/1988	2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011	2AL,4AL..AE8#;4ALC..AE82..SDZ 12V 45A,50A	05/1983 - 04/1988	2
27410 - STATOR ASSY, ALTERNATOR
27410-38120	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 05/1985	1
27411 - PULLEY, ALTERNATOR
27411-15150	2AL,4AL..AE8#;4ALC..AE82..SDZ 12V 45A,50A	05/1983 - 04/1988	1
27441 - FAN, ALTERNATOR
27441-16040	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 05/1985	1
27700A - REGULATOR ASSY, GENERATOR
27700-15030	2AL,4AL#,1CL..AE8#,CE80..EUR,GEN,SA,SAA	05/1983 - 12/1984	1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05118
90099-05119
90099-05195
90099-05221
90101-10093
90101-10480
90170-10082
90179-06158
91611-60840
91656-40616
94110-41000
94511-01400
94512-01000
94612-11001
Linked diagrams
1603

(8305-8505)2AL,4AL..GEN,SA,SAA ; (8505-8704)4AL..MTM..GEN ; (8505- )4AL..SA

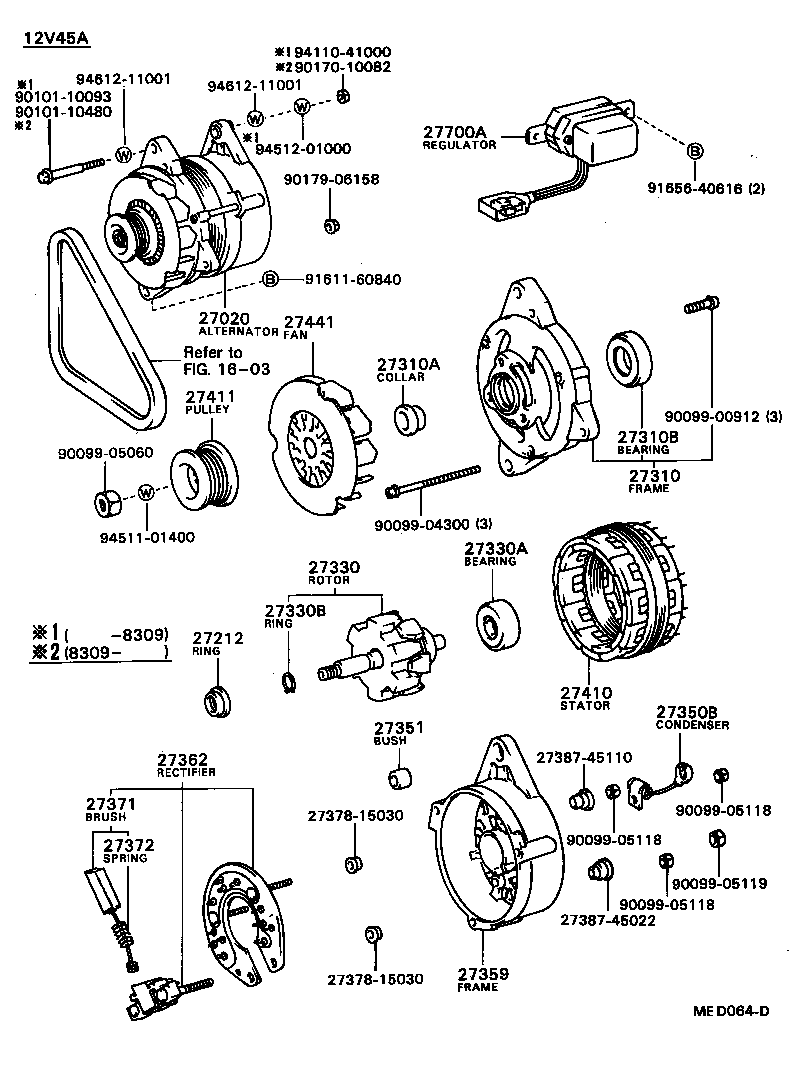

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-16040	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 05/1985	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 02/1985	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16040	2AL,4AL..AE8#..GEN,SAA 12V 45A	05/1983 - 12/1983	1
27310-16041	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	12/1983 - 05/1985	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-63030	2AL,4AL#..AE8# 12V 45A,50A	05/1983 - 12/1983	1
27412-16030	2AL,4AL#..AE8#..EUR,GEN,SA,SAA 12V 45A,50A	12/1983 - 02/1985	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142	2AL,4AL..AE8#;4ALC..AE82..SDZ 12V 45A,50A	05/1983 - 04/1988	1
27330 - ROTOR ASSY, ALTERNATOR
27330-15100	2AL,4AL..AE8#..GEN,SA 12V 45A	02/1985 - 05/1985	1
27330-16040	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 02/1985	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10111	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 05/1985	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 05/1985	1
27350B - CONDENSER, ALTERNATOR
90099-52065	2AL,4AL..AE8#;4ALC..AE82..SDZ 12V 45A,50A	05/1983 - 04/1988	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051	2AL,4AL..AE8#;4ALC..AE82..SDZ 12V 45A,50A	05/1983 - 04/1988	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16040	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 05/1985	1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 05/1985	1
27371 - BRUSH, ALTERNATOR
27371-31011	2AL,4AL..AE8#;4ALC..AE82..SDZ 12V 45A,50A	05/1983 - 04/1988	2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011	2AL,4AL..AE8#;4ALC..AE82..SDZ 12V 45A,50A	05/1983 - 04/1988	2
27410 - STATOR ASSY, ALTERNATOR
27410-38120	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 05/1985	1
27411 - PULLEY, ALTERNATOR
27411-15150	2AL,4AL..AE8#;4ALC..AE82..SDZ 12V 45A,50A	05/1983 - 04/1988	1
27441 - FAN, ALTERNATOR
27441-16040	2AL,4AL..AE8#..GEN,SA,SAA 12V 45A	05/1983 - 05/1985	1
27700A - REGULATOR ASSY, GENERATOR
27700-15030	2AL,4AL#,1CL..AE8#,CE80..EUR,GEN,SA,SAA	05/1983 - 12/1984	1
Common parts
27378-15030
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10093
90101-10480
90170-10082
90179-06158
91611-60840
91656-40616
94110-41000
94511-01400
94512-01000
94612-11001
Linked diagrams
1603
