AE80R-EEHNS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )AE8#,CE80..RHD..CS,CSX,DX,GL,S,SE,STD,XL

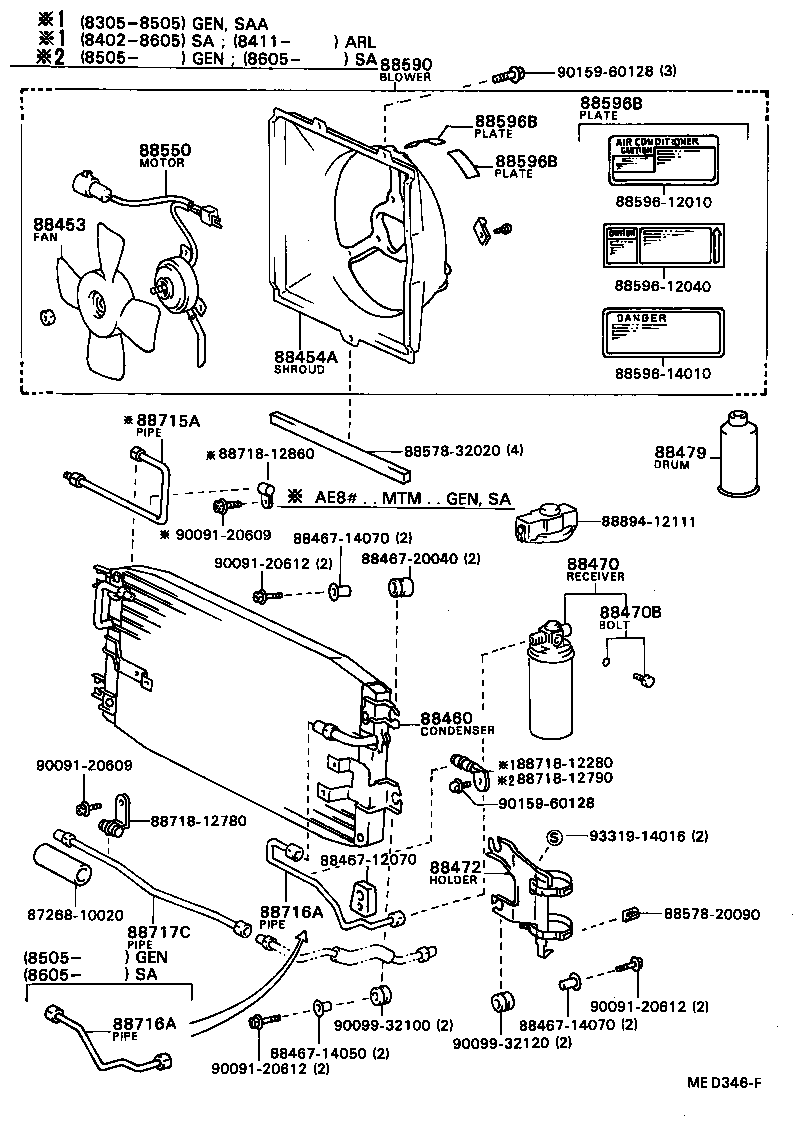

Click highlighted areas on diagram

diagram 8726810020 88453 88454A 88460 8846712070 8846714050 8846714070 8846714070 8846720040 88470 88470B 88472 88479 88550 8857820090 8857832020 88590 8859612010 8859612040 8859614010 88596B 88596B 88596B 88715A 88716A 88716A 88717C 8871812280 8871812780 8871812790 8871812860 8889412111 9009120609 9009120609 9009120612 9009120612 9009120612 9009932100 9009932120 9015960128 9015960128 9331914016
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
16361-28010

AE8#..(DX,GL,STD,XL)..(GEN,SA,SAA)

 1
88454A - SHROUD, FAN
88454-12050

AE8#..ATM..(GEN,SA,SAA)

 1
88460 - CONDENSER ASSY, COOLER
88460-12250

AE8#..ATM..(GEN,SA,SAA)

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12061

AE8#,CE80..GEN,SA,SAA

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-20010

AE8#,CE80,EE80..ARL,GEN,SA,SAA

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AE8#,CE80,EE80..ARL,GEN,SA,SAA

400G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12080

AE8#,CE80..(DX,GL,STD,XL)..(GEN,SA,SAA)

 1
88590 - BLOWER ASSY, W/SHROUD
88590-12040

AE8#..RHD..ATM..(GEN,SA)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12750

AE8#,CE80..RHD..(DX,GL,STD,XL)..(GEN,SA)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12750

AE8#,CE80..RHD..(DX,GL,STD,XL)..(GEN,SA)

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-12260

AE8#,CE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)..(ARL,GEN,SA)

B TYPE

 1
Common parts
87268-10020
88467-12070
88467-14050
88467-14070
88467-20040
88578-20090
88578-32020
88596-12010
88596-12040
88596-14010
88718-12280
88718-12780
88718-12790
88718-12860
88894-12111
90091-20609
90091-20612
90099-32100
90099-32120
90159-60128
93319-14016

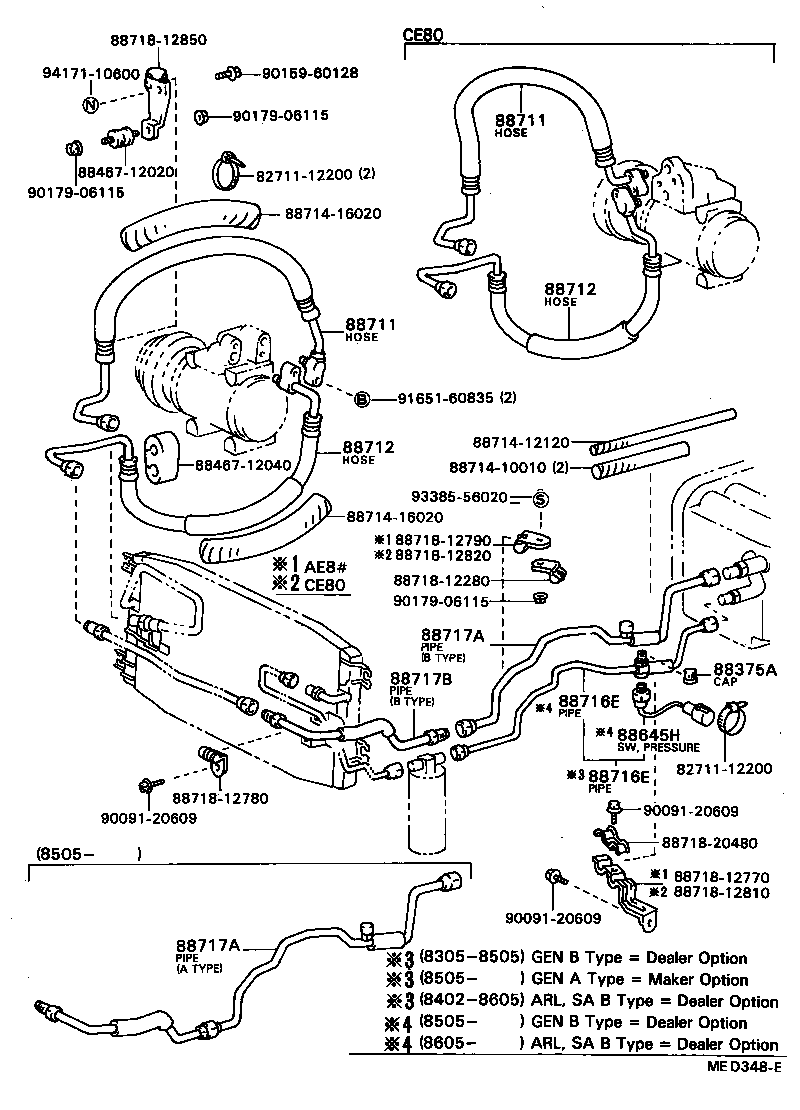

(8305- )AE8#,CE80..RHD..CS,CSX,DX,GL,S,SE,STD,XL

Click highlighted areas on diagram

diagram 8271112200 8271112200 88375A 8846712020 8846712040 88645H 88711 88711 88712 88712 8871410010 8871412120 8871416020 8871416020 88716E 88716E 88717A 88717A 88717B 8871812280 8871812770 8871812780 8871812790 8871812810 8871812820 8871812850 8871820480 9009120609 9009120609 9009120609 9015960128 9017906115 9017906115 9017906115 9165160835 9338556020 9417110600
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12260

AE8#..(DX,GL,STD,XL)..(GEN,SA,SAA)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12260

AE8#..(DX,GL,STD,XL)..(GEN,SA,SAA)

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12460

AE8#..RHD..GEN

B TYPE

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12460

AE8#..RHD..GEN

B TYPE

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12760

AE8#..RHD..GEN

B TYPE

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12760

AE8#..RHD..GEN

B TYPE

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12220

AE8#,EE80..RHD..(DX,GL,STD,XL)..(GEN,SA)

B TYPE

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12220

AE8#,EE80..RHD..(DX,GL,STD,XL)..(GEN,SA)

B TYPE

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-12230

AE8#,CE80..RHD..(CS,CSX,DX,GL,S,SE,STD,XL)..(ARL,GEN,SA)

B TYPE

 1
Common parts
82711-12200
88467-12020
88467-12040
88714-10010
88714-12120
88714-16020
88718-12280
88718-12770
88718-12780
88718-12790
88718-12810
88718-12820
88718-12850
88718-20480
90091-20609
90159-60128
90179-06115
91651-60835
93385-56020
94171-10600
