AE80L-ELMNSW (1983)
Toyota Corolla Sed/Lb
(8305- )

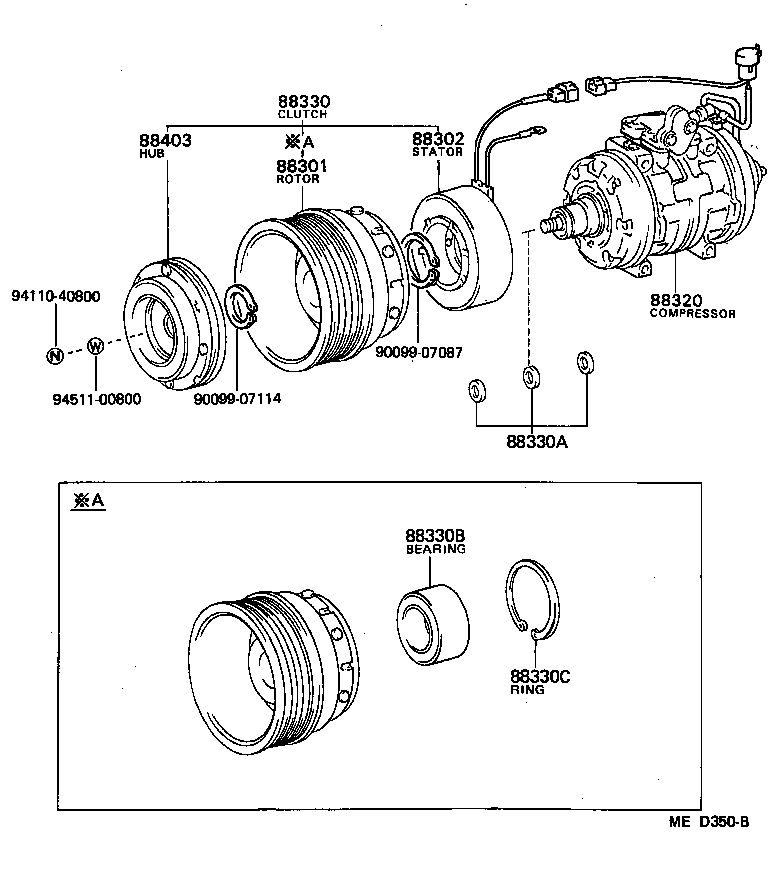

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14030 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-12100 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-12310 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-12180 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10135 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14040 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

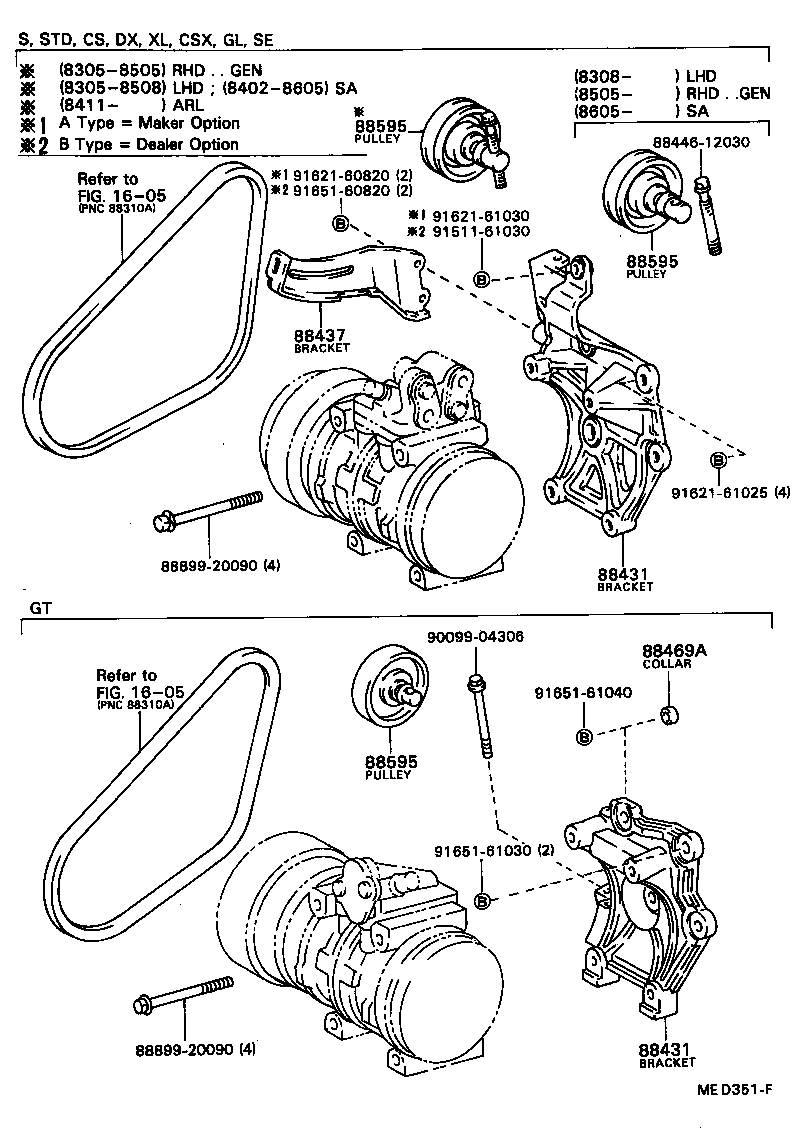

(8305- )AE8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12290 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12290 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88437 - BRACKET, COMPRESSOR MOUNTING, NO.7 | ||||
| 88437-12250 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| Common parts | ||||
| 88446-12030 | ||||
| 88899-20090 | ||||
| 90099-04306 | ||||
| 91511-61030 | ||||
| 91621-60820 | ||||
| 91621-61025 | ||||
| 91621-61030 | ||||
| 91651-60820 | ||||
| 91651-61030 | ||||
| 91651-61040 | ||||
| Linked diagrams | ||||
| 1605 | ||||

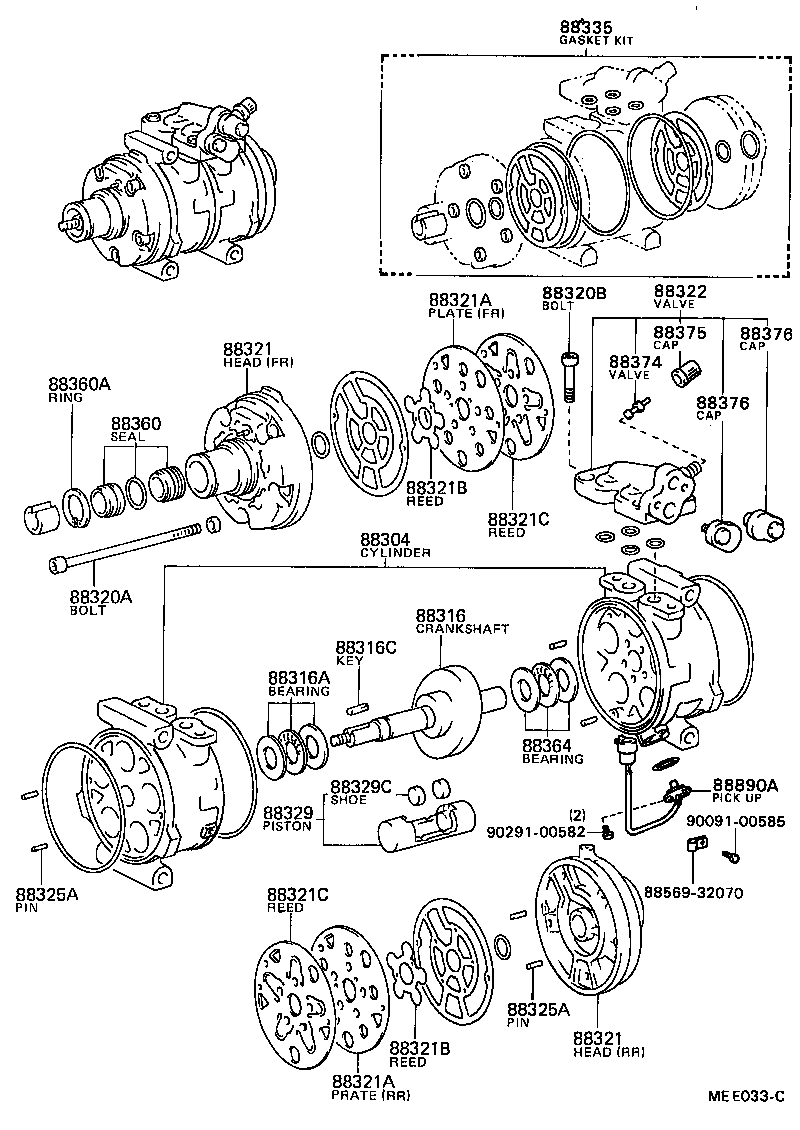

(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14041 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-14021 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-14010 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13024 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04968 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04255 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
AE80..LHD..MTM..EUG RR,FRENCH TERRITORY SPEC |
1 | ||
| 88321-14011 |
AE80..LHD..MTM..EUG FR,FRENCH TERRITORY SPEC |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
AE80..LHD..MTM..EUG RR,FRENCH TERRITORY SPEC |
1 | ||
| 88321-14011 |
AE80..LHD..MTM..EUG FR,FRENCH TERRITORY SPEC |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
AE80..LHD..MTM..EUG RR,FRENCH TERRITORY SPEC |
1 | ||
| 88341-14010 |
AE80..LHD..MTM..EUG FR,FRENCH TERRITORY SPEC |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
AE80..LHD..MTM..EUG RR,FRENCH TERRITORY SPEC |
1 | ||
| 88341-14010 |
AE80..LHD..MTM..EUG FR,FRENCH TERRITORY SPEC |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-20170 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12050 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
10 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-12030 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-40010 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC,NO.1 |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-14010 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-28020 |
AE80..LHD..MTM..EUG FRENCH TERRITORY,DISCHARGE |
1 | ||
| 88376-28010 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC,SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-28020 |
AE80..LHD..MTM..EUG FRENCH TERRITORY,DISCHARGE |
1 | ||
| 88376-28010 |
AE80..LHD..MTM..EUG FRENCH TERRITORY SPEC,SUCTION |
1 | ||
| Common parts | ||||
| 88569-32070 | ||||
| 90091-00585 | ||||
| 90291-00582 | ||||
