AE80L-ELMDSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )4DS,5D

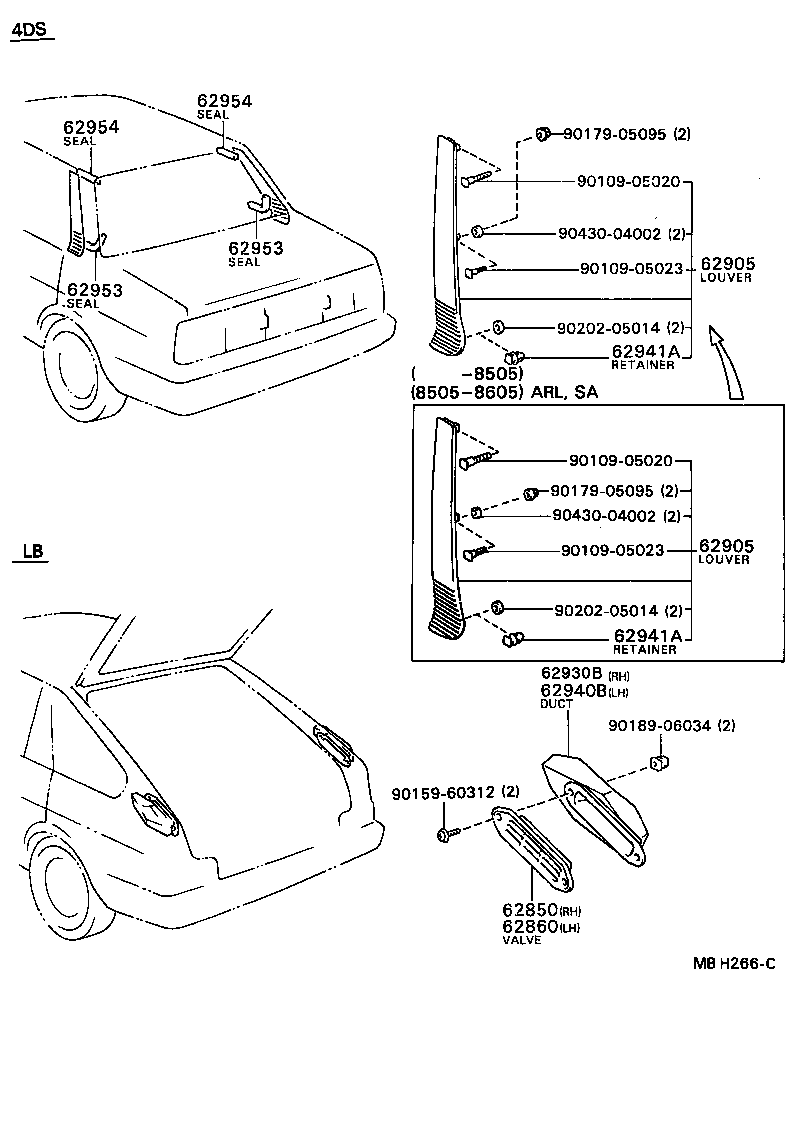

Click highlighted areas on diagram

diagram 62850 62860 62905 62905 62930B 62940B 62941A 62941A 62953 62953 62954 62954 9010905020 9010905020 9010905023 9010905023 9015960312 9017905095 9017905095 9018906034 9020205014 9020205014 9043004002 9043004002
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-12050

AE8#,CE80,EE80..5D

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62850-12050

AE8#,CE80,EE80..5D

 1
62930B - DUCT ASSY, QUARTER VENT, RH
62931-12180

AE8#,CE80,EE80..5D

 1
62940B - DUCT ASSY, QUARTER VENT, LH
62932-12180

AE8#,CE80,EE80..5D

 1
Common parts
90109-05020
90109-05023
90159-60312
90179-05095
90189-06034
90202-05014
90430-04002
