AE80L-ELMDSW (1983)
Toyota Corolla Sed/Lb
Production
May 1983
-
Oct 1984
Engine
2AL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )

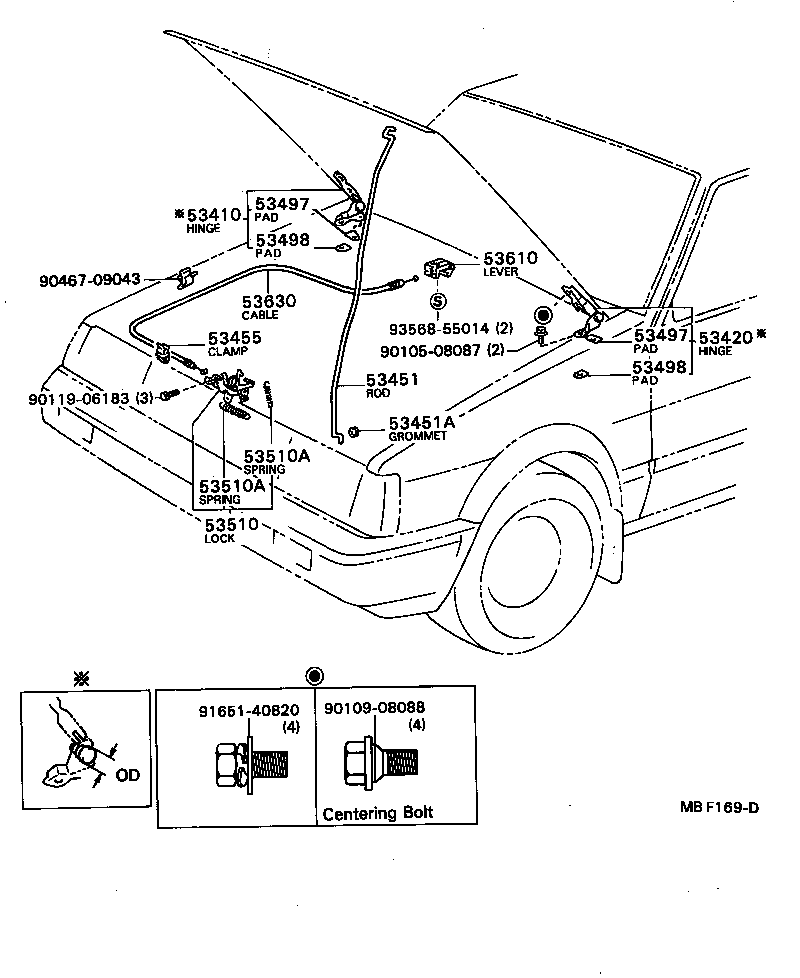

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-12050 |
AE8#,CE80,EE80 OD=16 |
1 | ||
| 53410-12080 |
AE8#,CE80,EE80 OD=20 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-12040 |
AE8#,CE80,EE80 OD=16 |
1 | ||
| 53420-12070 |
AE8#,CE80,EE80 OD=20 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-12040 |
AE8#,CE80 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15002 |
AE8#,CE80,EE80 |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-14020 |
AE8#,CE80,EE80 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12010 |
AE8#,CE80,EE80 T=1.0 |
2 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12010 |
AE8#,CE80,EE80 T=1.0 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-12010 |
AE8#,CE80,EE80 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-12010 |
AE8#,CE80,EE80 |
2 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-12230 |
AE8#,CE80..LHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09029 |
AE8#,CE80,EE80 WD=0.9,L=39.6 |
1 | ||
| 90506-20008 |
AE8#,CE80,EE80 WD=2.0,CW=17,L=60.0 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09029 |
AE8#,CE80,EE80 WD=0.9,L=39.6 |
1 | ||
| 90506-20008 |
AE8#,CE80,EE80 WD=2.0,CW=17,L=60.0 |
1 | ||
| 53610 - LEVER ASSY, HOOD LOCK RELEASE | ||||
| 53601-1202005 |
AE8#,CE80 BEIGE,BEIGE,TRIM3# |
1 | ||
| 53601-1202003 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 53601-1202004 |
AE8#,CE80..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 53601-1202004 |
AE8#,CE80 BLUE,BLUE,TRIM8# |
1 | ||
| 53601-1202003 |
AE8#,CE80..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 53601-1202005 |
AE8#,CE80..LHD BEIGE,BEIGE,TRIM3# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-12180 |
AE8#,CE80,EE80..LHD |
1 | ||
| Common parts | ||||
| 90105-08087 | ||||
| 90109-08088 | ||||
| 90119-06183 | ||||
| 90467-09043 | ||||
| 91651-40820 | ||||
| 93568-55014 | ||||
