AE80L-ELMDSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

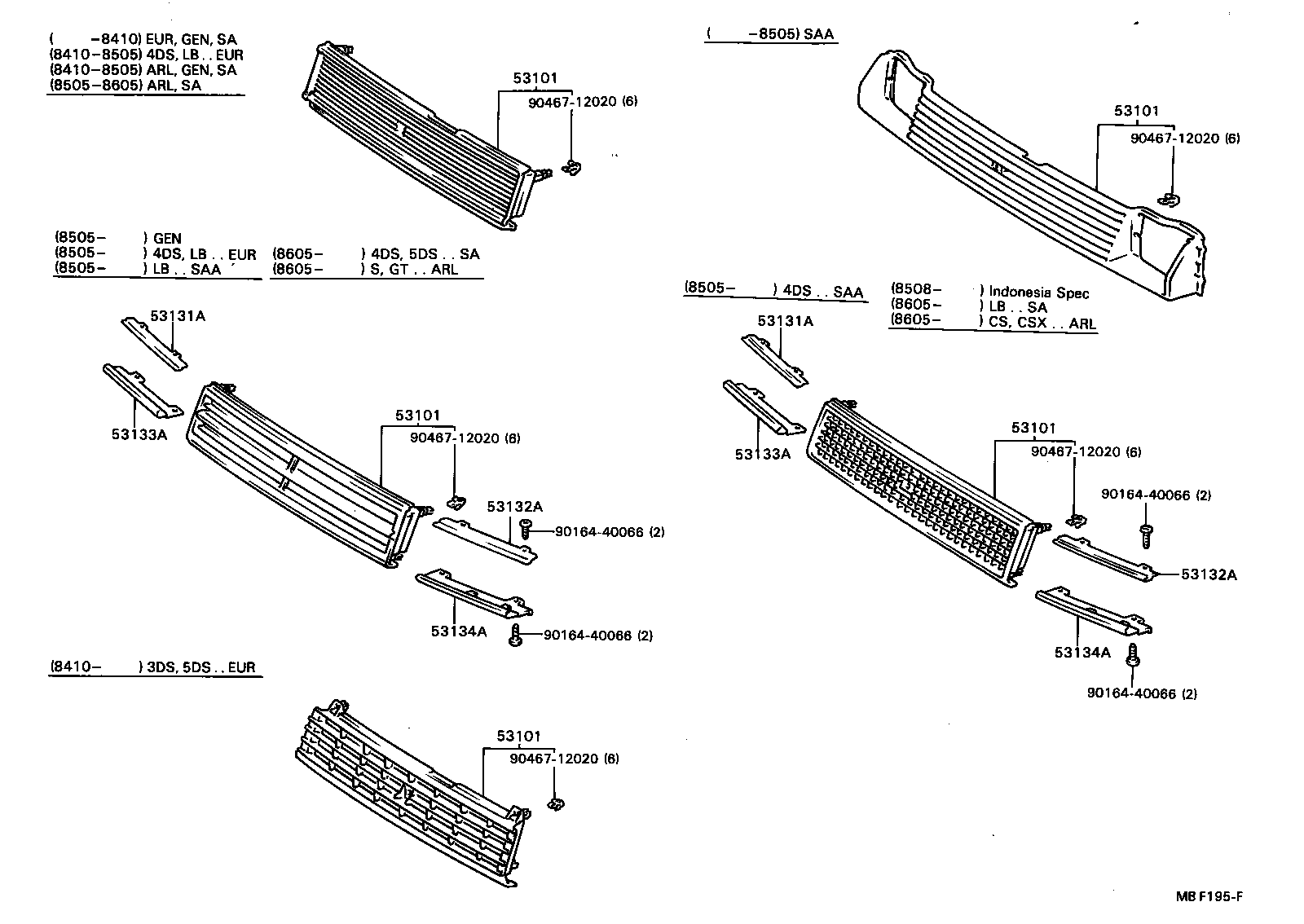

Click highlighted areas on diagram

diagram 53101 53101 53101 53101 53101 53131A 53131A 53132A 53132A 53133A 53133A 53134A 53134A 9016440066 9016440066 9016440066 9016440066 9046712020 9046712020 9046712020 9046712020 9046712020
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-12500

AE8#,CE80..EUR,GEN,SA

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-12500

AE8#,CE80..EUR,GEN,SA

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-12500

AE8#,CE80..EUR,GEN,SA

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-12500

AE8#,CE80..EUR,GEN,SA

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-12500

AE8#,CE80..EUR,GEN,SA

 1
Common parts
90164-40066
90467-12020
