AE80L-ELHDSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

Click highlighted areas on diagram

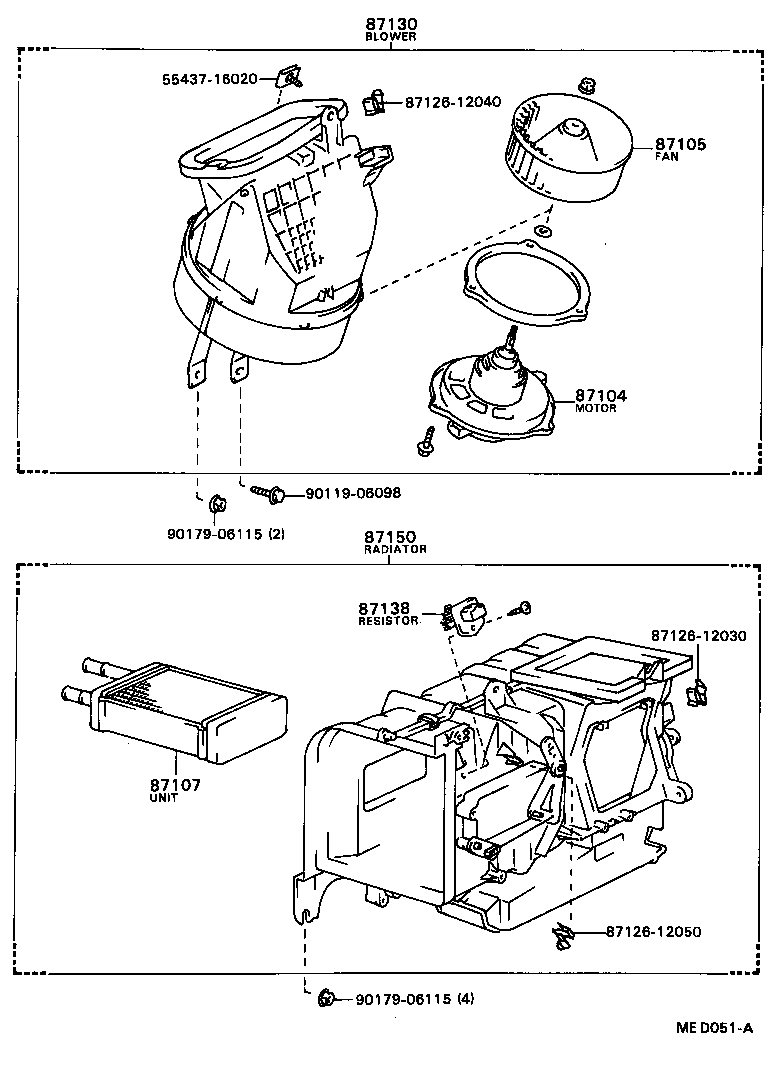

diagram 5543716020 87104 87105 87107 8712612030 8712612040 8712612050 87130 87138 87150 9011906098 9017906115 9017906115
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-12191

AE8#,CE80..LHD..EUR

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-20090

AE8#,CE80..LHD..EUR

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12320

AE8#,CE80..LHD

 1
87107-12340

AE8#,CE80,EE80..LHD..EUR

COLD SPEC

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-12181

AE8#,CE80,EE80..LHD..EUR

 1
87138 - RESISTOR, HEATER BLOWER
87138-16100

AE8#,CE80,EE80..LHD

 1
87150 - RADIATOR ASSY, HEATER
87150-12200

AE8#,CE80..LHD

 1
87150-12220

AE8#,CE80,EE80..LHD..EUR

COLD SPEC

 1
Common parts
55437-16020
87126-12030
87126-12040
87126-12050
90119-06098
90179-06115

(8305- )

Click highlighted areas on diagram

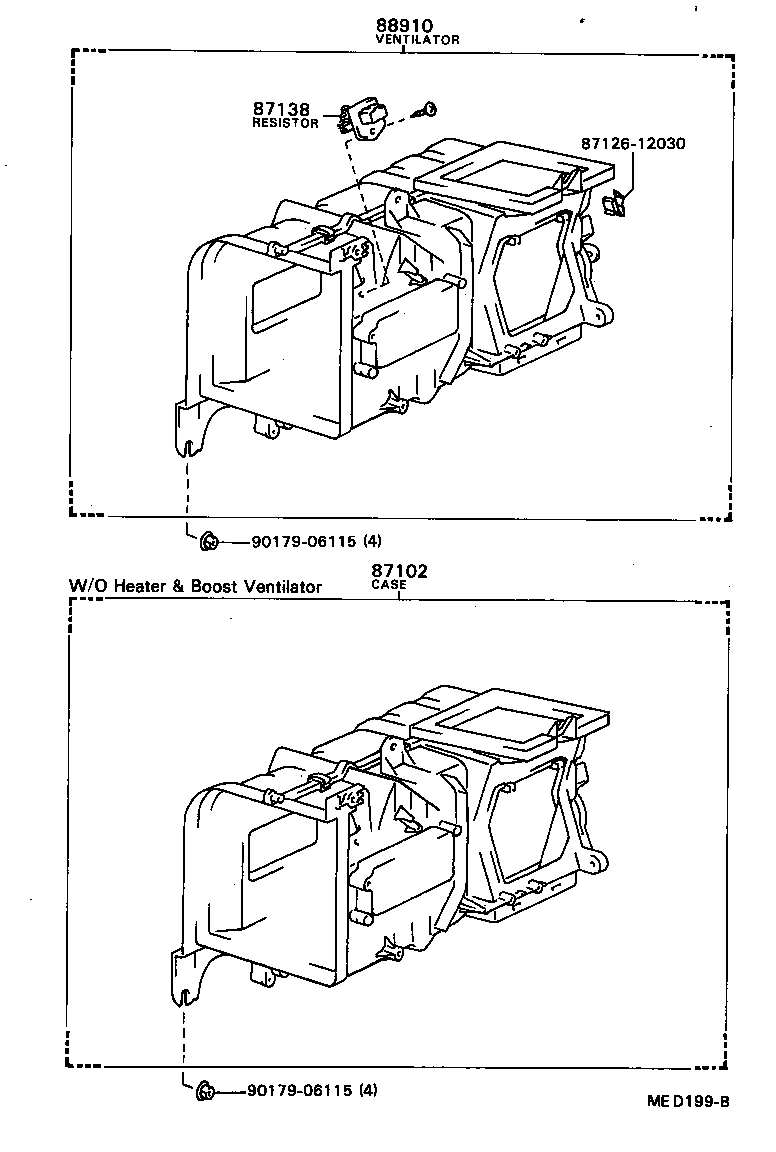

diagram 87102 8712612030 87138 88910 9017906115 9017906115
Part # Description Qty Price
87138 - RESISTOR, HEATER BLOWER
87138-16100

AE8#,CE80,EE80..LHD

 1
Common parts
87126-12030
90179-06115
