AE80L-ELHDSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )3FC

Click highlighted areas on diagram

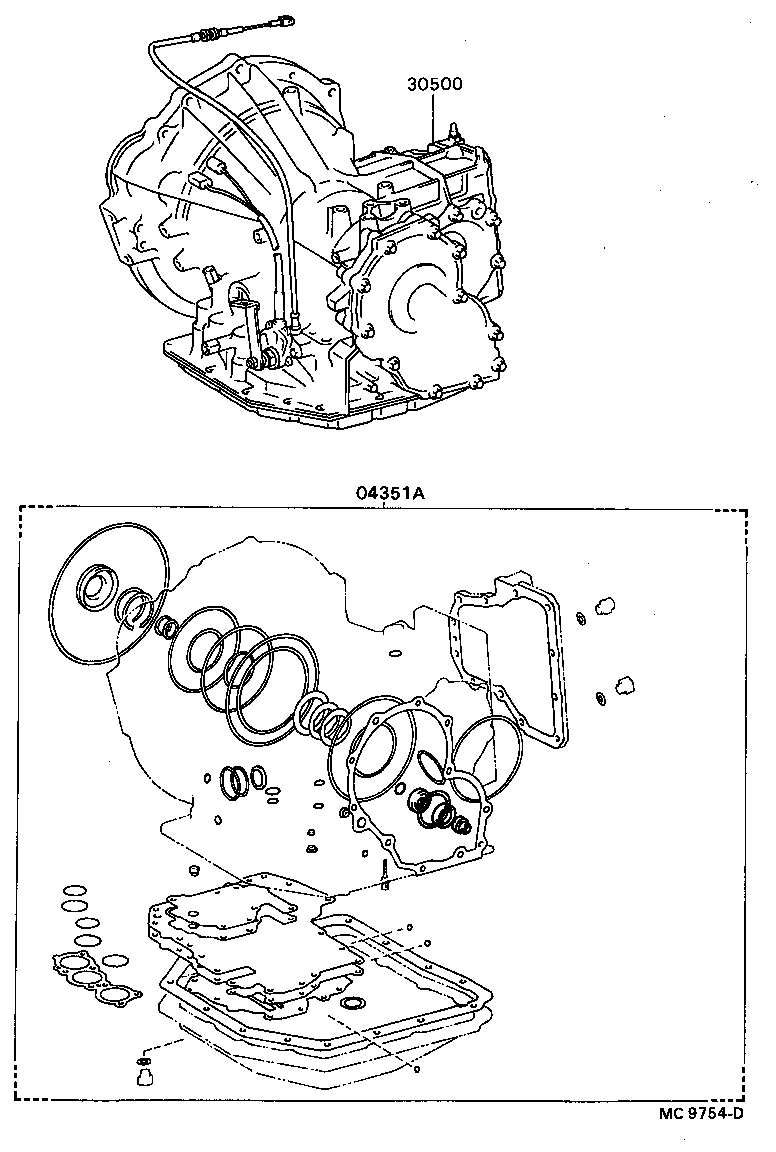

diagram 04351A 30500
Part # Description Qty Price
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-12021

AE8#..3FC

 1
30500 - TRANSAXLE ASSY, AUTOMATIC
30500-12070

AE80..3FC..(EUR,SAA)

 1
