AE80L-ELHDSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )2AL#,4AL#

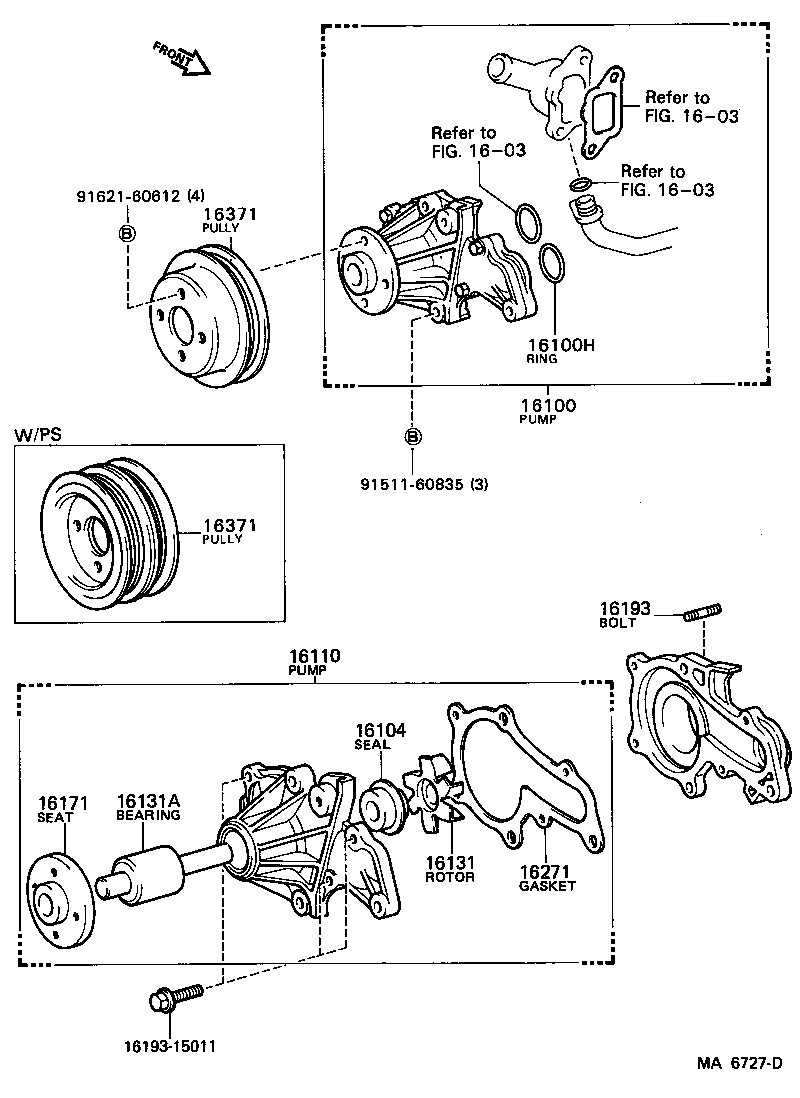

Click highlighted areas on diagram

diagram 1603 1603 1603 16100 16100H 16104 16110 16131 16131A 16171 16193 1619315011 16271 16371 16371 9151160835 9162160612
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-19105

2AL#,4AL#..AE8#

 1
16100H - RING, O(FOR WATER PUMP)
96711-24035

2AL#,4AG#,4AL#..AE8#

 1
16104 - SEAL SET, WATER PUMP
16104-41112

2AL,4AL#..AE8#

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-19045

2AL#,4AL#..AE8#

 1
16131 - ROTOR, WATER PUMP
16131-15050

2AL#,4AL#..AE8#

 1
16131A - BEARING, WATER PUMP
90369-35021

2AL#,4AG#,4AL#..AE8#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-15050

2AL#,4AL#..AE8#

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
92122-60816

2AL#,4AG#,4AL#..AE8#

 2
16271 - GASKET, WATER PUMP
16124-15010

2AL#,4AG#,4AL#..AE8#

 1
16371 - PULLEY, FAN
16371-15060

2AL#,4AL#..AE8#

 1
16371 - PULLEY, FAN
16371-15060

2AL#,4AL#..AE8#

 1
Common parts
16193-15011
91511-60835
91621-60612
Linked diagrams
1603
