AE80L-EEKRSV (1983)
Toyota Corolla Sed/Lb
(8305-8505)RHD ; (8505-8605)ARL,SA ; (8605- )ARL

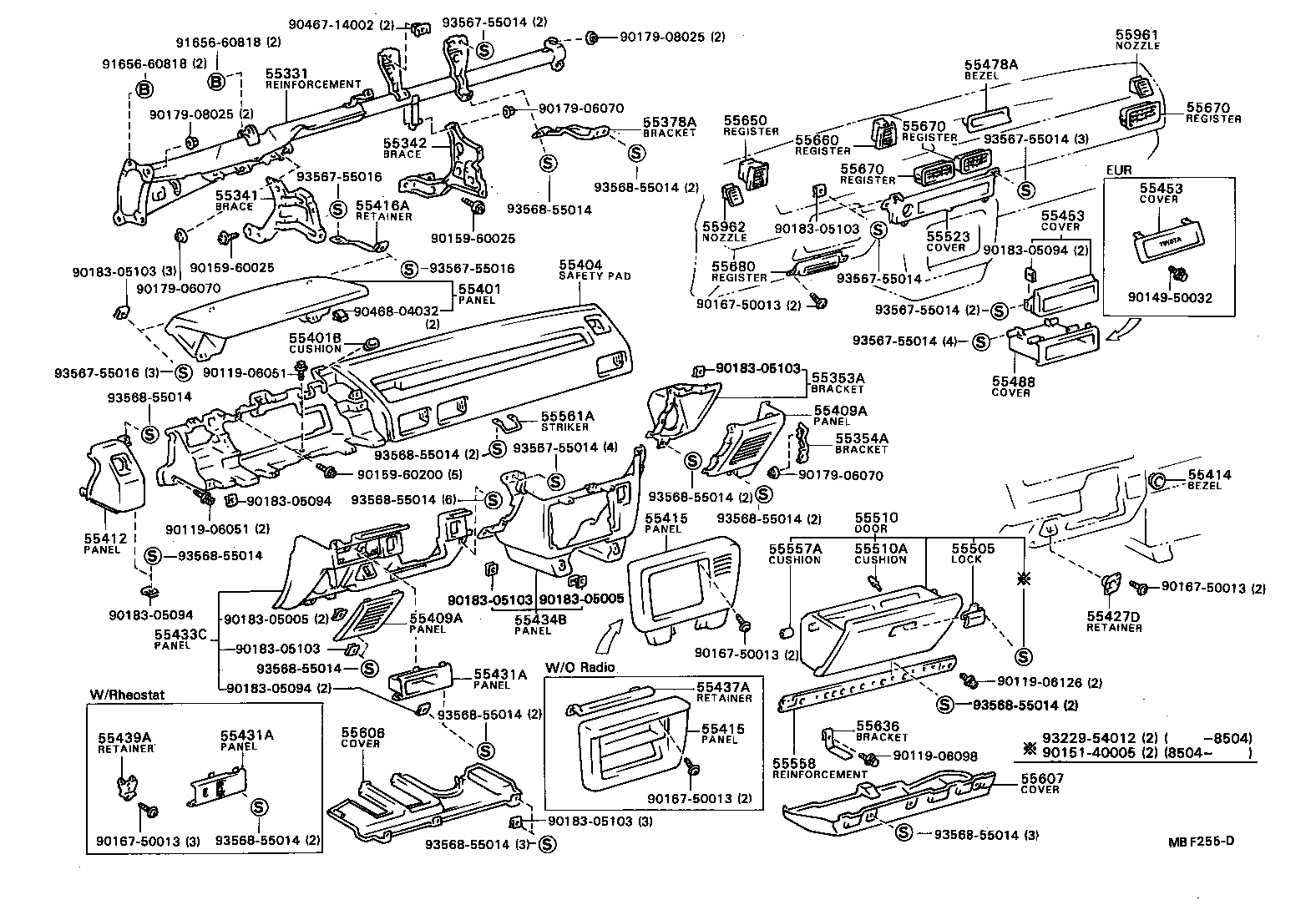

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12070 |
AE8#..LHD |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55351-12020 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12080 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55353A - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 55353-12030 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55354A - BRACKET, SPEAKER MOUNTING, NO.2 | ||||
| 55354-12030 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-12080 |
AE8#,CE80,EE80 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-1254002 |
AE8#,CE80..LHD MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55404-1254003 |
AE8#,CE80,EE80..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55404-1254004 |
AE8#,CE80,EE80..(4DS,5D)..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-16010 |
AE8#,CE80,EE80 |
2 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1215003 |
AE8#,CE80,EE80..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55401-1215004 |
AE8#,CE80,EE80..(4DS,5D)..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1215002 |
AE8#,CE80..LHD MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-1203005 |
AE8#,CE80..LHD LH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1203004 |
AE8#,CE80..LHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1205003 |
AE8#,CE80..LHD RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-1203003 |
AE8#,CE80..LHD LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-1205004 |
AE8#,CE80..LHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1205005 |
AE8#,CE80..LHD RH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-1203005 |
AE8#,CE80..LHD LH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1203004 |
AE8#,CE80..LHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1205003 |
AE8#,CE80..LHD RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-1203003 |
AE8#,CE80..LHD LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-1205004 |
AE8#,CE80..LHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1205005 |
AE8#,CE80..LHD RH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55412 - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-1207003 |
AE8#,CE80,EE80..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55414-1207002 |
AE8#,CE80..LHD MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55414-1207004 |
AE8#,CE80,EE80..(4DS,5D)..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12060 |
AE8#,CE80,EE80 |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-1225002 |
AE8#,CE80..LHD..(GEN,SAA) MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55412-1225003 |
AE8#,CE80,EE80..LHD..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 55412-1225006 |
AE8#,CE80,EE80..LHD..(GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 55412-1225004 |
AE8#,CE80,EE80..(4DS,5D)..LHD..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-1225002 |
AE8#,CE80..LHD..(GEN,SAA) MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55412-1225003 |
AE8#,CE80,EE80..LHD..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 55412-1225006 |
AE8#,CE80,EE80..LHD..(GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 55412-1225004 |
AE8#,CE80,EE80..(4DS,5D)..LHD..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-1219002 |
AE8#..(DX,STD)..SA MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-1203005 |
AE8#,CE80..LHD BEIGE,BEIGE,TRIM3# |
1 | ||
| 55434-1203003 |
AE8#,CE80..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55434-1203004 |
AE8#,CE80..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-12020 |
AE8#,CE80,EE80..EUR,SA |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-14070 |
AE8#,CE80,EE80..EUR,SA |
1 | ||
| 55522-32010 |
AE8#,CE80,EE80..GEN,SAA |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-14070 |
AE8#,CE80,EE80..EUR,SA |
1 | ||
| 55522-32010 |
AE8#,CE80,EE80..GEN,SAA |
1 | ||
| 55478A - BEZEL, AUTO CLOCK HOLE | ||||
| 55478-1203002 |
AE8#,CE80..EUR,GEN,SAA MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55478-1203004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55478-1203003 |
AE8#,CE80,EE80..EUR,GEN,SAA GRAY,GRAY,TRIM1# |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-16010 |
CE80..LHD;CE80..DX..GEN;AE8#,EE80..GEN,SAA;AE8#,EE80..LHD..EUR |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1205004 |
AE8#,CE80..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1205003 |
AE8#,CE80..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55560-1205005 |
AE8#,CE80..LHD BEIGE,BEIGE,TRIM3# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
AE8#,CE80,EE80 |
3 | ||
| 55523 - COVER, HEATER CONTROL OPENING | ||||
| 55523-12070 |
AE8#,CE80,EE80..LHD..(GEN,SAA) |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
AE8#,CE80 |
2 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-12030 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-12040 |
AE8#,CE80,EE80 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12110 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12190 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1208003 |
AE8#,CE80,EE80..EUR,SA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207002 |
AE8#,CE80..GEN,SAA MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670-1207003 |
AE8#,CE80,EE80..ARL,GEN,SAA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208002 |
AE8#,CE80..EUR,SA MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1208003 |
AE8#,CE80,EE80..EUR,SA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207002 |
AE8#,CE80..GEN,SAA MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670-1207003 |
AE8#,CE80,EE80..ARL,GEN,SAA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208002 |
AE8#,CE80..EUR,SA MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1208003 |
AE8#,CE80,EE80..EUR,SA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207002 |
AE8#,CE80..GEN,SAA MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670-1207003 |
AE8#,CE80,EE80..ARL,GEN,SAA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208002 |
AE8#,CE80..EUR,SA MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55093-1203004 |
AE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55093-1203003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55093-1203002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55094-1203002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55094-1203004 |
AE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55094-1203003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06051 | ||||
| 90119-06098 | ||||
| 90119-06126 | ||||
| 90149-50032 | ||||
| 90151-40005 | ||||
| 90159-60025 | ||||
| 90159-60200 | ||||
| 90167-50013 | ||||
| 90179-06070 | ||||
| 90179-08063 | ||||
| 90183-05005 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-14002 | ||||
| 90468-04032 | ||||
| 91656-60818 | ||||
| 93229-54012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
(8305-8505)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12070 |
AE8#..LHD |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55351-12020 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12080 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55353A - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 55353-12030 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55354A - BRACKET, SPEAKER MOUNTING, NO.2 | ||||
| 55354-12030 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-12080 |
AE8#,CE80,EE80 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-1254002 |
AE8#,CE80..LHD MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55404-1254003 |
AE8#,CE80,EE80..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55404-1254004 |
AE8#,CE80,EE80..(4DS,5D)..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-16010 |
AE8#,CE80,EE80 |
2 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1215003 |
AE8#,CE80,EE80..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55401-1215004 |
AE8#,CE80,EE80..(4DS,5D)..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1215002 |
AE8#,CE80..LHD MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-1203005 |
AE8#,CE80..LHD LH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1203004 |
AE8#,CE80..LHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1205003 |
AE8#,CE80..LHD RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-1203003 |
AE8#,CE80..LHD LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-1205004 |
AE8#,CE80..LHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1205005 |
AE8#,CE80..LHD RH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-1203005 |
AE8#,CE80..LHD LH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1203004 |
AE8#,CE80..LHD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1205003 |
AE8#,CE80..LHD RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-1203003 |
AE8#,CE80..LHD LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-1205004 |
AE8#,CE80..LHD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1205005 |
AE8#,CE80..LHD RH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55412 - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-1207003 |
AE8#,CE80,EE80..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55414-1207002 |
AE8#,CE80..LHD MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55414-1207004 |
AE8#,CE80,EE80..(4DS,5D)..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12060 |
AE8#,CE80,EE80 |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-1225002 |
AE8#,CE80..LHD..(GEN,SAA) MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55412-1225003 |
AE8#,CE80,EE80..LHD..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 55412-1225006 |
AE8#,CE80,EE80..LHD..(GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 55412-1225004 |
AE8#,CE80,EE80..(4DS,5D)..LHD..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-1225002 |
AE8#,CE80..LHD..(GEN,SAA) MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55412-1225003 |
AE8#,CE80,EE80..LHD..(GEN,SAA) GRAY,GRAY,TRIM1# |
1 | ||
| 55412-1225006 |
AE8#,CE80,EE80..LHD..(GEN,SAA) BROWN,BROWN,TRIM4# |
1 | ||
| 55412-1225004 |
AE8#,CE80,EE80..(4DS,5D)..LHD..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-12010 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-1238005 |
AE80..LHD..(GEN,SAA) W/O RHEOSTAT,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55431-1238003 |
AE80..LHD..(GEN,SAA) W/O RHEOSTAT,GRAY,GRAY,TRIM1# |
1 | ||
| 55431-1238004 |
AE80..LHD..(GEN,SAA) W/O RHEOSTAT,BLUE,BLUE,TRIM8# |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-1238005 |
AE80..LHD..(GEN,SAA) W/O RHEOSTAT,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55431-1238003 |
AE80..LHD..(GEN,SAA) W/O RHEOSTAT,GRAY,GRAY,TRIM1# |
1 | ||
| 55431-1238004 |
AE80..LHD..(GEN,SAA) W/O RHEOSTAT,BLUE,BLUE,TRIM8# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-1203003 |
AE8#,CE80..LHD W/O TILT STEERING,GRAY,GRAY,TRIM1# |
1 | ||
| 55433-1203005 |
AE8#,CE80..LHD W/O TILT STEERING,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55433-1203004 |
AE8#,CE80..LHD W/O TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-1203005 |
AE8#,CE80..LHD BEIGE,BEIGE,TRIM3# |
1 | ||
| 55434-1203003 |
AE8#,CE80..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55434-1203004 |
AE8#,CE80..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-12020 |
AE8#,CE80,EE80..EUR,SA |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-14070 |
AE8#,CE80,EE80..EUR,SA |
1 | ||
| 55522-32010 |
AE8#,CE80,EE80..GEN,SAA |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-14070 |
AE8#,CE80,EE80..EUR,SA |
1 | ||
| 55522-32010 |
AE8#,CE80,EE80..GEN,SAA |
1 | ||
| 55478A - BEZEL, AUTO CLOCK HOLE | ||||
| 55478-1203002 |
AE8#,CE80..EUR,GEN,SAA MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55478-1203004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55478-1203003 |
AE8#,CE80,EE80..EUR,GEN,SAA GRAY,GRAY,TRIM1# |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-16010 |
CE80..LHD;CE80..DX..GEN;AE8#,EE80..GEN,SAA;AE8#,EE80..LHD..EUR |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1205004 |
AE8#,CE80..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1205003 |
AE8#,CE80..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55560-1205005 |
AE8#,CE80..LHD BEIGE,BEIGE,TRIM3# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1222005 |
AE8#,CE80..LHD BEIGE,BEIGE,TRIM3# |
1 | ||
| 55550-1222003 |
AE8#,CE80..LHD GRAY,GRAY,TRIM1# |
1 | ||
| 55550-1222004 |
AE8#,CE80..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
AE8#,CE80,EE80 |
3 | ||
| 55523 - COVER, HEATER CONTROL OPENING | ||||
| 55523-12070 |
AE8#,CE80,EE80..LHD..(GEN,SAA) |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
AE8#,CE80 |
2 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-12030 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-12040 |
AE8#,CE80,EE80 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12110 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12190 |
AE8#,CE80,EE80..LHD |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1208003 |
AE8#,CE80,EE80..EUR,SA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207002 |
AE8#,CE80..GEN,SAA MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670-1207003 |
AE8#,CE80,EE80..ARL,GEN,SAA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208002 |
AE8#,CE80..EUR,SA MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1208003 |
AE8#,CE80,EE80..EUR,SA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207002 |
AE8#,CE80..GEN,SAA MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670-1207003 |
AE8#,CE80,EE80..ARL,GEN,SAA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208002 |
AE8#,CE80..EUR,SA MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1208003 |
AE8#,CE80,EE80..EUR,SA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD)..(EUR,SA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207004 |
AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL)..(GEN,SAA) BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207002 |
AE8#,CE80..GEN,SAA MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670-1207003 |
AE8#,CE80,EE80..ARL,GEN,SAA GRAY,GRAY,TRIM1# |
3 | ||
| 55670-1208002 |
AE8#,CE80..EUR,SA MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-32010 |
AE8#,CE80,EE80..LHD..(DX,GL,STD,XL)..(GEN,SAA) |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55093-1203004 |
AE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55093-1203003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55093-1203002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55094-1203002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55094-1203004 |
AE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 55094-1203003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06051 | ||||
| 90119-06098 | ||||
| 90119-06126 | ||||
| 90149-50032 | ||||
| 90151-40005 | ||||
| 90159-60025 | ||||
| 90159-60200 | ||||
| 90167-50013 | ||||
| 90179-06070 | ||||
| 90179-08025 | ||||
| 90183-05005 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-14002 | ||||
| 90468-04032 | ||||
| 91656-60818 | ||||
| 93229-54012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
