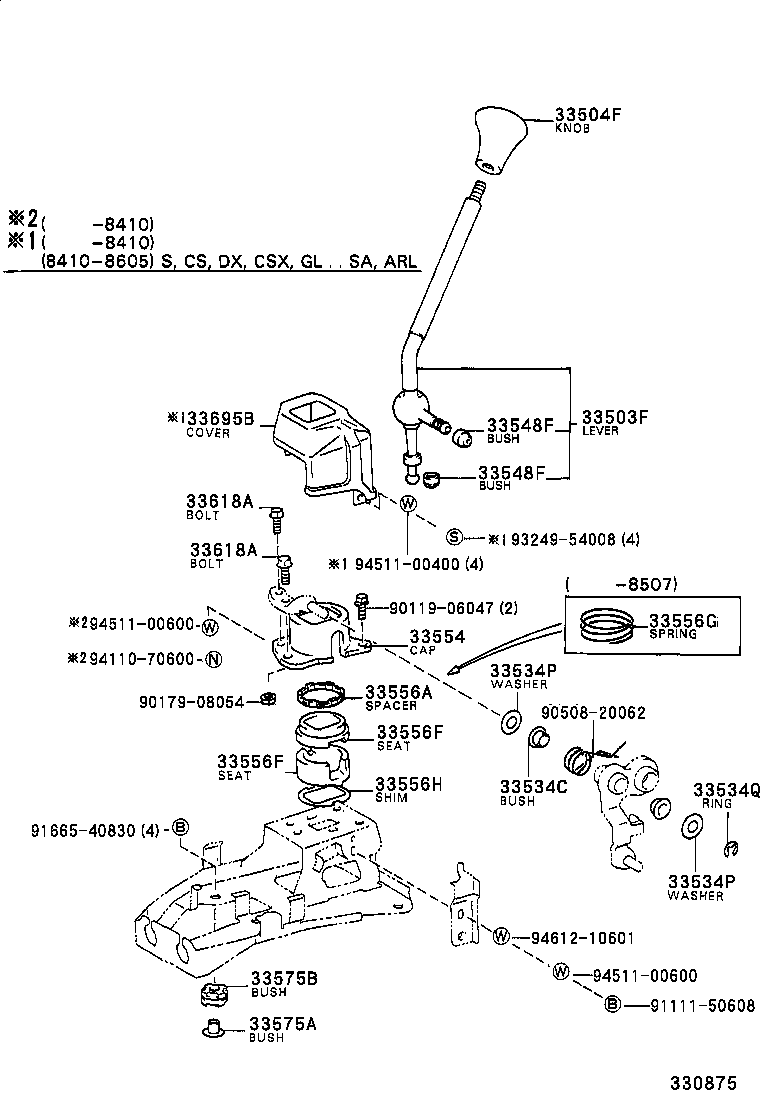

AE80L-EEKDSW (1983)
Toyota Corolla Sed/Lb
(8305- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12241 |
AE8#,CE80,EE80..LHD..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-1404012 |
AE80..4F MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33504-1404004 |
AE8#,EE80..(4DS,5D)..4F..(DX,STD,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 33504-1404013 |
AE8#,EE80..4F..(DX,STD,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
AE8#,CE80,EE80..MTM |
2 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12029 |
AE8#,CE80,EE80..MTM |
2 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12029 |
AE8#,CE80,EE80..MTM |
2 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
AE8#,CE80,EE80..MTM |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
AE8#,CE80,EE80..MTM |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
AE8#,CE80,EE80..MTM |
2 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-12040 |
AE8#,CE80,EE80..MTM |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12030 |
AE8#,CE80,EE80..MTM UPR |
2 | ||
| 33556-12020 |
AE8#,CE80,EE80..MTM LWR |
2 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12030 |
AE8#,CE80,EE80..MTM UPR |
2 | ||
| 33556-12020 |
AE8#,CE80,EE80..MTM LWR |
2 | ||
| 33556G - SPRING (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90501-10075 |
AE8#,CE80,EE80..MTM |
1 | ||
| 33556H - SHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90564-30005 |
AE8#,CE80,EE80..MTM T=0.7,MARK E 0R 7,T=0.7 |
1 | ||
| 90564-30006 |
AE8#,CE80,EE80..MTM T=0.8,MARK F 0R 8,T=0.8 |
1 | ||
| 90564-30004 |
AE8#,CE80,EE80..MTM T=0.6,MARK D 0R 6,T=0.6 |
1 | ||
| 90564-30010 |
AE8#,CE80,EE80..MTM T=1.2,MARK L 0R 12,T=1.2 |
1 | ||
| 90564-30007 |
AE8#,CE80,EE80..MTM T=0.9,MARK G 0R 9,T=0.9 |
1 | ||
| 90564-30008 |
AE8#,CE80,EE80..MTM T=1.0,MARK H 0R 10,T=1.0 |
1 | ||
| 90564-30009 |
AE8#,CE80,EE80..MTM T=1.1,MARK K 0R 11,T=1.1 |
1 | ||
| 90564-30003 |
AE8#,CE80,EE80..MTM T=0.5,MARK C 0R 5,T=0.5 |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
AE8#,CE80,EE80..MTM |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10014 |
AE8#,CE80..MTM |
4 | ||
| 33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT) | ||||
| 90105-06048 |
AE8#,CE80..MTM *6-1.00PX25-10 |
1 | ||
| 90105-08078 |
AE8#,CE80,EE80..MTM *8-1.25PX28-13,*8-1.25PX28-13 |
1 | ||
| 33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT) | ||||
| 90105-06048 |
AE8#,CE80..MTM *6-1.00PX25-10 |
1 | ||
| 90105-08078 |
AE8#,CE80,EE80..MTM *8-1.25PX28-13,*8-1.25PX28-13 |
1 | ||
| 33695B - COVER, SELECTING SPRING (FOR FLOOR SHIFT) | ||||
| 33695-12010 |
AE8#,CE80..MTM |
1 | ||
| Common parts | ||||
| 90119-06047 | ||||
| 90179-08054 | ||||
| 90508-20062 | ||||
| 91111-50608 | ||||
| 91665-40830 | ||||
| 93249-54008 | ||||
| 94110-70600 | ||||
| 94511-00400 | ||||
| 94511-00600 | ||||
| 94612-10601 | ||||
(8305- )AE8#,EE80..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 90389-10009 |
AE8#,EE80..MTM |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-12010 |
AE8#,EE80..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-12030 |
AE8#,EE80..MTM |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE8#,CE80,EE80..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE8#,CE80,EE80..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AE8#,CE80,EE80..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-12010 |
AE8#,EE80..MTM |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-12020 |
AE8#,EE80..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12031 |
AE8#,EE80..MTM |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01202 |
AE8#,CE80,EE80..MTM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01263 |
AE8#,CE80,EE80..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
AE8#,CE80,EE80..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE8#,CE80,EE80..MTM SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
AE8#,CE80,EE80..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE8#,CE80,EE80..MTM SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
AE8#,CE80,EE80..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE8#,CE80,EE80..MTM SHIFT LEVER SIDE |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-12031 |
AE8#,EE80..MTM |
1 | ||
| Common parts | ||||
| 90468-14014 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14020 | ||||
| 90950-01061 | ||||
| 91611-60822 | ||||
| 91612-61020 | ||||
| 91656-40616 | ||||
| 93560-15020 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
