AE80L-EEHNSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )4DS

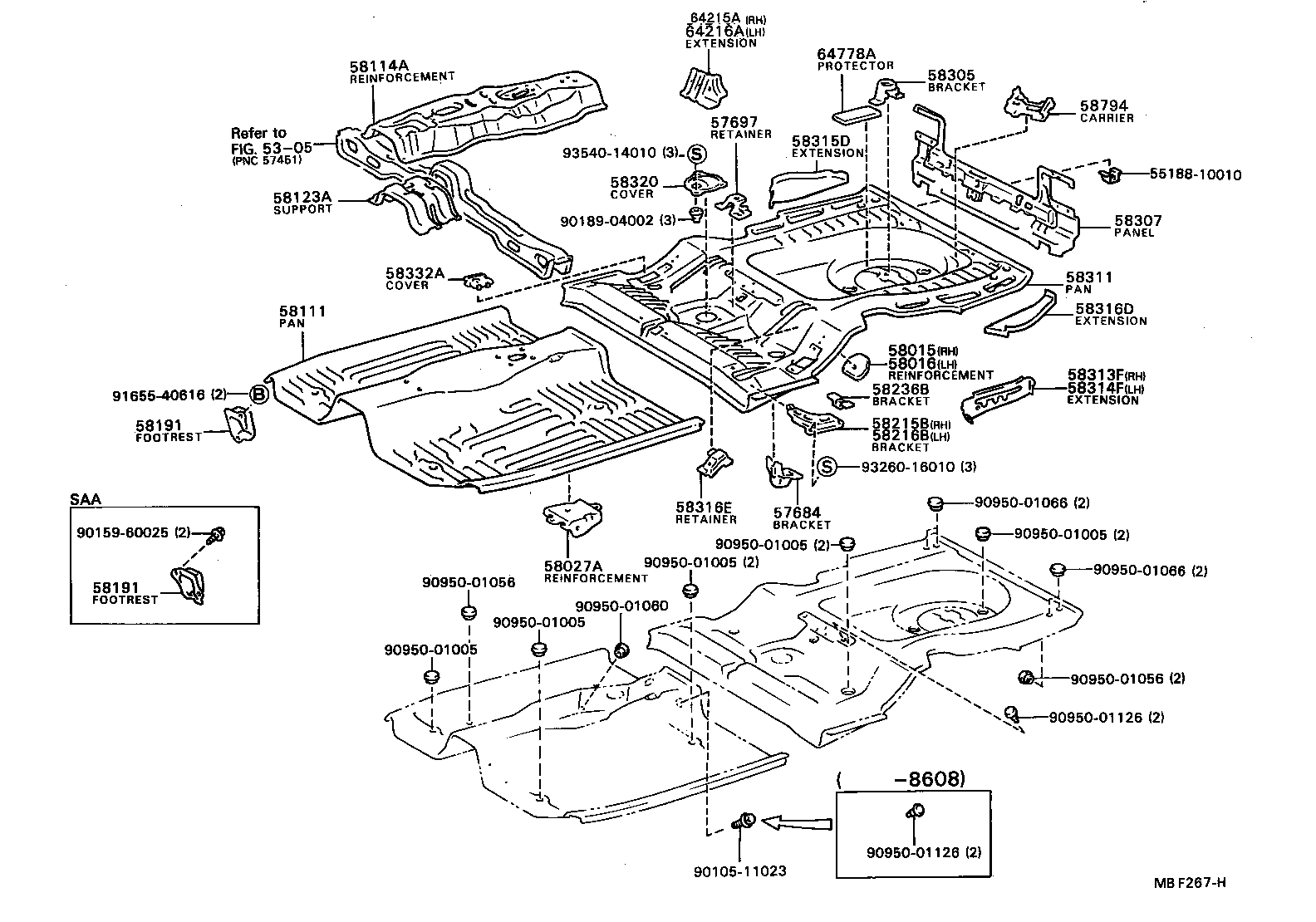

Click highlighted areas on diagram

diagram 5305 5518810010 57684 57697 58015 58016 58027A 58111 58114A 58123A 58191 58191 58215B 58216B 58236B 58305 58307 58311 58313F 58314F 58315D 58316D 58316E 58320 58332A 58794 64215A 64216A 64778A 9010511023 9015960025 9018904002 9095001005 9095001005 9095001005 9095001005 9095001005 9095001056 9095001056 9095001060 9095001066 9095001066 9095001126 9095001126 9165540616 9326016010 9354014010
Part # Description Qty Price
57684 - BRACKET, FUEL TANK, REAR
57687-16011

AE8#,CE80,EE80

LH

 1
57686-16011

AE8#,CE80,EE80

RH

 1
57697 - RETAINER, REAR SEAT CUSHION
57697-16010

AE8#,CE80,EE80

 1
58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58015-16010

AE8#,CE80

 1
58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58015-16010

AE8#,CE80

 1
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-12010

AE8#,CE80,EE80..EUR

 1
58111 - PAN, FRONT FLOOR
58111-12170

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-12020

AE8#,CE80,EE80..EUR,GEN,SA,SAA

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58013-12010

AE8#,CE80,EE80

 1
58215B - BRACKET, REAR SEAT MOUNTING, RH
58215-16010

AE8#,CE80,EE80

 1
58216B - BRACKET, REAR SEAT MOUNTING, LH
58216-16010

AE8#,CE80,EE80

 1
58236B - BRACKET, CENTER FLOOR HEAT INSULATOR
58236-14010

AE8#,CE80,EE80

 2
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

AE8#,CE80,EE80

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-12820

AE8#,CE80,EE80..4DS

 1
58311 - PAN, REAR FLOOR
58311-12110

AE8#,CE80,EE80..4DS..(CS,CSX,GL,GT,SE)

 1
58311-12100

AE8#,CE80,EE80..4DS..(DX,S,STD,XL)

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-12180

AE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA)

*GIS

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-12180

AE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA)

*GIS

 1
58315D - EXTENSION, REAR FLOOR PAN, RH
58315-12010

AE8#,CE80,EE80..4DS,5D

 1
58316D - EXTENSION, REAR FLOOR PAN, LH
58316-12010

AE8#,CE80,EE80..4DS,5D

 1
58316E - RETAINER, REAR SEAT SET
58316-16030

AE8#,CE80,EE80..4DS..(DX,S,STD,XL)

 2
58320 - COVER, REAR FLOOR SERVICE HOLE
58325-16020

AE8#,CE80,EE80

 1
58332A - COVER, REAR FLOOR SIDE SERVICE HOLE
58332-16010

AE8#,CE80,EE80

LH

 1
58331-16010

AE8#,CE80,EE80

RH

 1
58794 - CARRIER, JACK
58791-16031

AE8#,CE80

 1
64215A - EXTENSION, REAR FLOOR TO PACKAGE TRAY, RH
64215-12010

AE8#,CE80,EE80..4DS

 1
64216A - EXTENSION, REAR FLOOR TO PACKAGE TRAY, LH
64216-12010

AE8#,CE80,EE80..4DS

 1
64778A - PROTECTOR, SPARE WHEEL
64778-12010

AE8#,CE80,EE80

 2
Common parts
55188-10010
90105-11023
90159-60025
90189-04002
90950-01005
90950-01056
90950-01060
90950-01066
90950-01126
91655-40616
93260-16010
93540-14010
Linked diagrams
5305
