AE80L-EEHNS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Oct 1984
Engine 2AL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

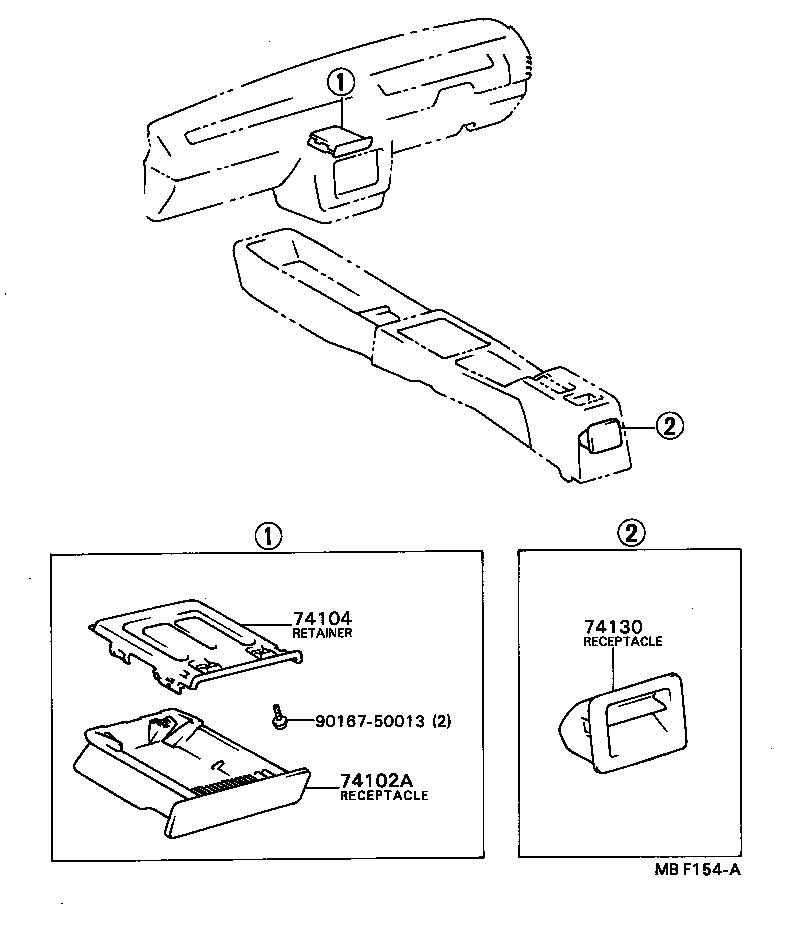

Click highlighted areas on diagram

diagram 74102A 74104 74130 9016750013
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-1217002

AE8#,CE80..GEN,SAA

MAROON,RED/MAROON,TRIM3#

 1
74102-1217004

AE8#,CE80,EE80..(4DS,5D)..(DX,GL,STD,XL)..(GEN,SAA)

BLUE,BLUE,TRIM8#

 1
74102-1217003

AE8#,CE80,EE80..ARL,GEN,SAA

GRAY,GRAY,TRIM1#

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-12150

AE8#,CE80,EE80

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-1204022

AE8#,CE80

MAROON,RED/MAROON,TRIM3#

 1
74130-1204023

AE8#,CE80,EE80

GRAY,GRAY,TRIM1#

 1
74130-1204014

AE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)

BLUE,BLUE,TRIM8#

 1
Common parts
90167-50013
