AE80L-EEHNS (1983)
Toyota Corolla Sed/Lb
Production
May 1983
-
Oct 1984
Engine
2AL
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305-8505)2AL ; (8305-8605)4AL..GEN,SA ; (8605-)4AL..GEN

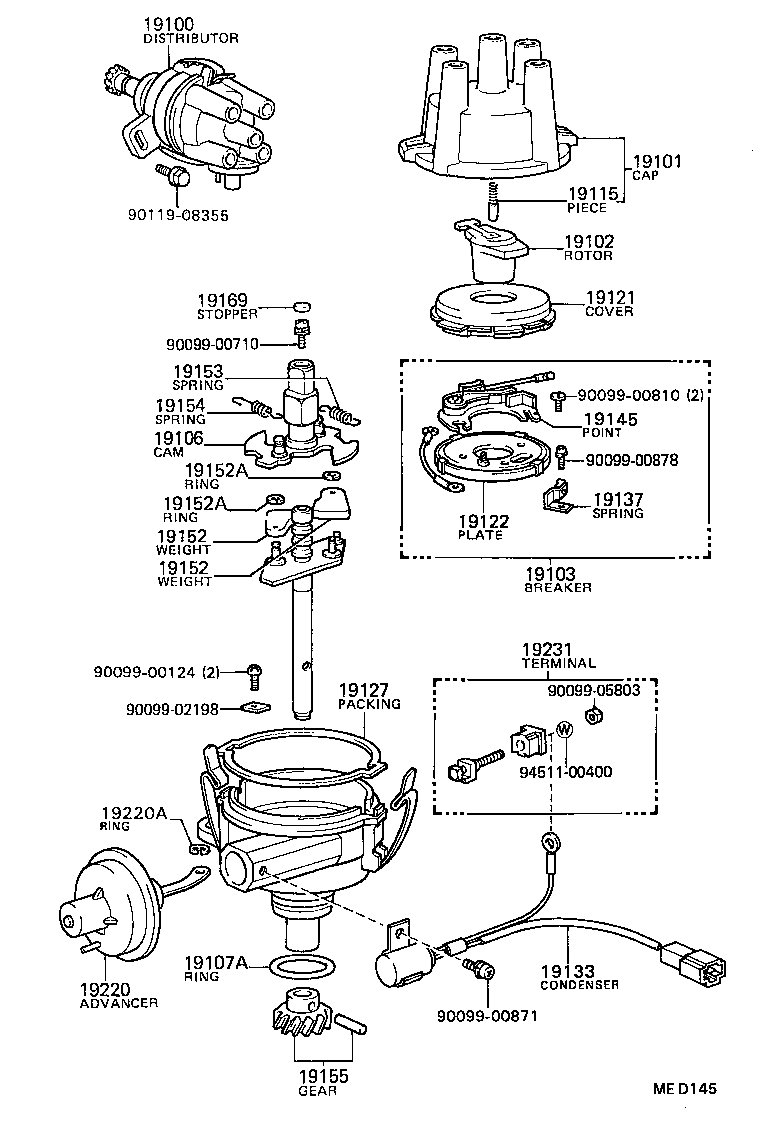

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-14100 |
2AL..AE80..GEN,SAA |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-15010 |
2AL..AE80 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-33012 |
2AL,4AL..AE8#..GEN,SAA |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-14010 |
2AL..AE80 |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-14100 |
2AL..AE80..GEN,SAA |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 96710-04030 |
2AL,4AL#..AE8# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
2AL..AE80 |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38030 |
2AL..AE80 |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-14010 |
2AL..AE80 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15010 |
2AL..AE80 |
1 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52076 |
2AL..AE80 |
1 | ||
| 19137 - SPRING SUB-ASSY, DAMPER | ||||
| 19137-14010 |
2AL..AE80 |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 19145-14010 |
2AL..AE80 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-44170 |
2AL..AE80 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
2AL..AE80 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
2AL..AE80 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-14060 |
2AL..AE80..GEN,SAA |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19153-14060 |
2AL..AE80..GEN,SAA |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-15021 |
2AL,4AL#..AE8#..EUR,GEN,SA,SAA |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
2AL,4AL#..AE8# |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-14100 |
2AL..AE80..GEN,SAA |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
2AL..AE80 |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-24140 |
2AL..AE80 |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00810 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-02198 | ||||
| 90099-05803 | ||||
| 90119-08355 | ||||
| 94511-00400 | ||||
