AE80L-EEHDS (1983)
Toyota Corolla Sed/Lb
(8305- )3FC

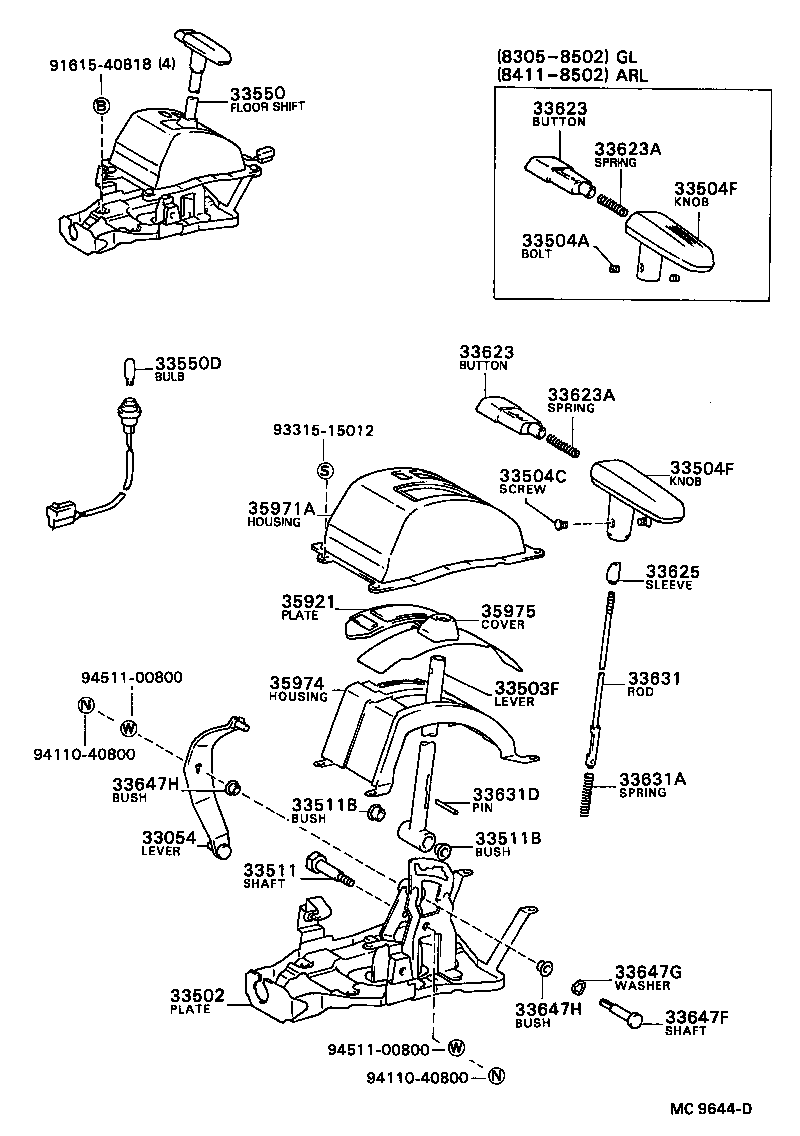

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-12200 |
AE8#,EE80..LHD..3FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12200 |
AE8#,EE80..3FC..(DX,XL) |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90149-40004 |
AE8#,EE80..3FC..(DX,XL) |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-1211002 |
AE8#..3FC..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33542-1211003 |
AE8#,EE80..3FC..(DX,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 33542-1211004 |
AE8#,EE80..(4DS,5D)..3FC..(DX,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-1211002 |
AE8#..3FC..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33542-1211003 |
AE8#,EE80..3FC..(DX,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 33542-1211004 |
AE8#,EE80..(4DS,5D)..3FC..(DX,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20240 |
AE8#,EE80..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
AE8#,EE80..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
AE8#,EE80..ATM |
2 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-1233002 |
AE80..LHD..3FC..DX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33550-1233003 |
AE8#,EE80..LHD..3FC..(DX,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 33550-1233004 |
AE8#,EE80..(4DS,5D)..LHD..3FC..(DX,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 33550-1233006 |
AE8#,EE80..LHD..3FC..(DX,XL) BROWN,BROWN,TRIM4# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11036 |
AE8#,EE80..ATM 12V 1.7W,12V 1.7W |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3004014 |
AE8#,EE80..(4DS,5D)..3FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-3004033 |
AE8#,EE80..3FC GRAY,GRAY,TRIM1# |
1 | ||
| 33623-3004022 |
AE8#..3FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3004014 |
AE8#,EE80..(4DS,5D)..3FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-3004033 |
AE8#,EE80..3FC GRAY,GRAY,TRIM1# |
1 | ||
| 33623-3004022 |
AE8#..3FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AE8#,EE80..ATM |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AE8#,EE80..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
AE8#,EE80..3FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-32021 |
AE8#,EE80..3FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
AE8#,EE80..3FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04001 |
AE8#,EE80..ATM |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-32010 |
AE8#,EE80..ATM |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-10003 |
AE8#,EE80..ATM |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
AE8#,EE80..ATM |
2 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
AE8#,EE80..ATM |
2 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12190 |
AE8#,EE80..LHD..3FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-12100 |
AE8#,EE80..LHD..3FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-12090 |
AE8#,EE80..LHD..3FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12080 |
AE8#,EE80..3FC |
1 | ||
| Common parts | ||||
| 91615-40818 | ||||
| 93315-15012 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

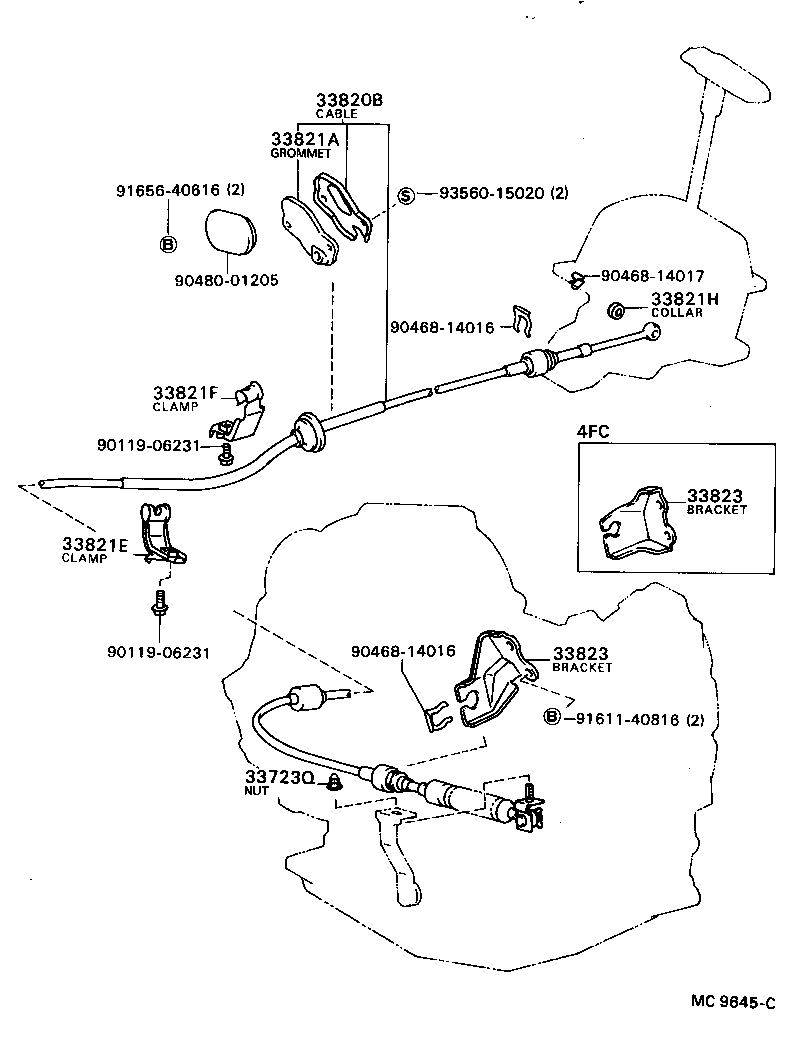

(8305- )AE8#..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08070 |
AE8#,EE80..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-20020 |
AE8#..ATM |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01203 |
AE8#..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01070 |
AE8#..ATM |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01130 |
AE8#..3FC |
1 | ||
| 33821H - COLLAR (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90386-10014 |
AE8#,EE80..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12010 |
AE8#..3FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12010 |
AE8#..3FC |
1 | ||
| Common parts | ||||
| 90119-06231 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90480-01205 | ||||
| 91611-40816 | ||||
| 91656-40616 | ||||
| 93560-15020 | ||||
