EE90R-AEMDSW (1987)
Toyota Corolla Sed/Lb/Wg

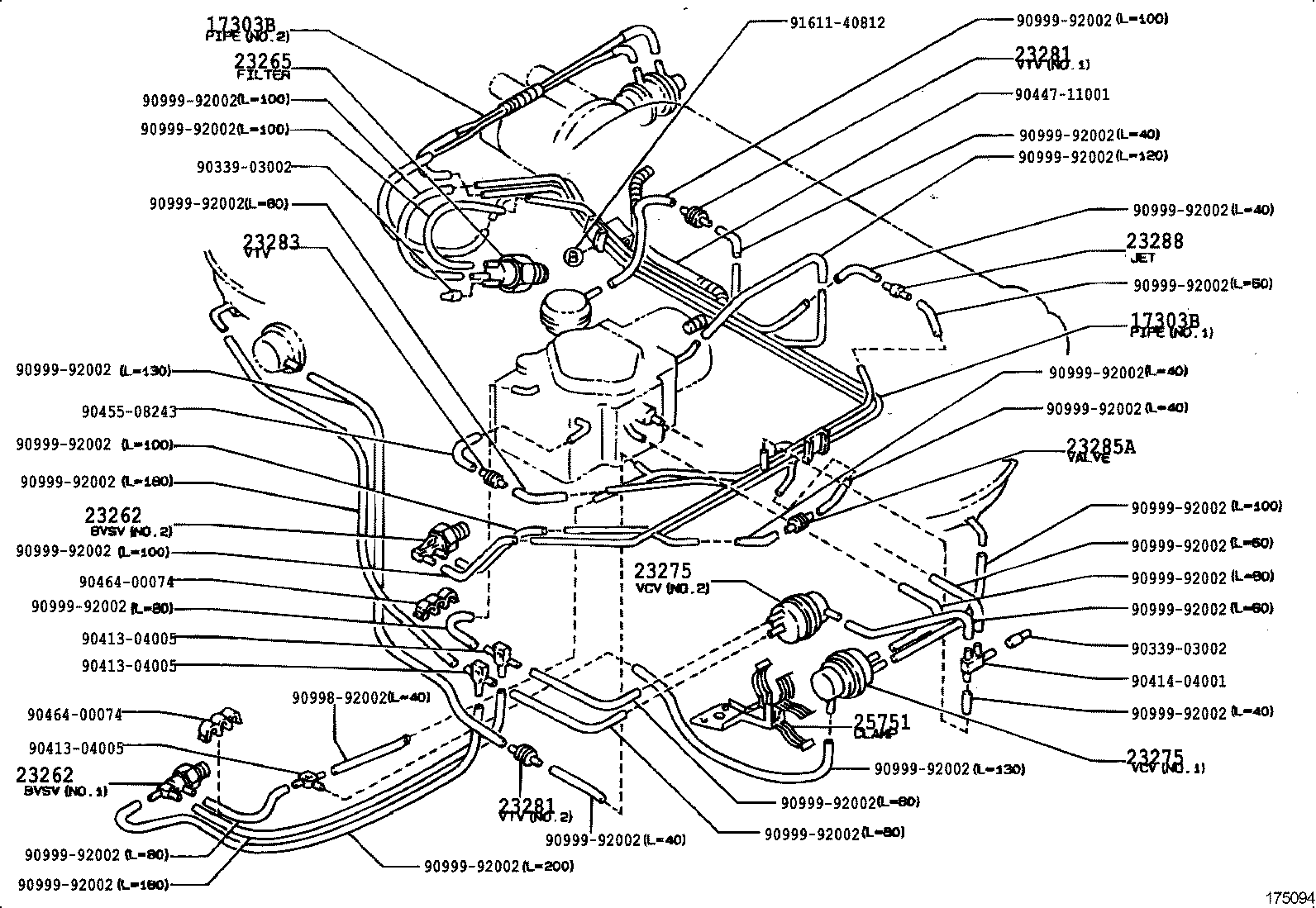

(8705-8908)2E
EX.EMISSION CONT.=PHASE C/ANNEX25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11051 |
2E..EE90 |
1 | ||
| 17303-11550 |
2E..EE90 NO.3 |
1 | ||
| 17303-11052 |
2E..EE90 |
1 | ||
| 17303-11570 |
2E..EE90 NO.3 |
1 | ||
| 17303-11550 |
2E..EE90 W(POWER STEERING),NO.3 |
1 | ||
| 17303-11440 |
2E..EE90 NO.2 |
1 | ||
| 17303-11460 |
2E..EE90 NO.1 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11051 |
2E..EE90 |
1 | ||
| 17303-11550 |
2E..EE90 NO.3 |
1 | ||
| 17303-11052 |
2E..EE90 |
1 | ||
| 17303-11570 |
2E..EE90 NO.3 |
1 | ||
| 17303-11550 |
2E..EE90 W(POWER STEERING),NO.3 |
1 | ||
| 17303-11440 |
2E..EE90 NO.2 |
1 | ||
| 17303-11460 |
2E..EE90 NO.1 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05035 |
2E..EE90 NO.2 |
1 | ||
| 25820-11040 |
2E..EE90 |
1 | ||
| 25820-11020 |
2E..EE90 NO.1 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05035 |
2E..EE90 NO.2 |
1 | ||
| 25820-11040 |
2E..EE90 |
1 | ||
| 25820-11020 |
2E..EE90 NO.1 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2E..EE90 |
1 | ||
| 90917-11027 |
2E..EE90 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03175 |
2E..EE90 NO.2 |
1 | ||
| 90925-03181 |
2E..EE90 NO.1 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03175 |
2E..EE90 NO.2 |
1 | ||
| 90925-03181 |
2E..EE90 NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
2E..EE90 NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
2E..EE90 NO.1 |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01091 |
2E..EE90 |
1 | ||
| 90925-01021 |
2E..EE90 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EE90 |
2 | ||
| 90917-10049 |
2E..EE90 EX. EMISSION CONTROL(*77) |
1 | ||
| 90917-10049 |
2E..EE90 W(POWER STEERING) |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-01101 |
2E..EE90 |
1 | ||
| 90925-01101 |
2E..EE90 |
2 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-11050 |
2E..EE90 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90447-11001 | ||||
| 90455-08243 | ||||
| 90464-00074 | ||||
| 90998-92002 | ||||
| 90999-92002 | ||||
| 91611-40812 | ||||

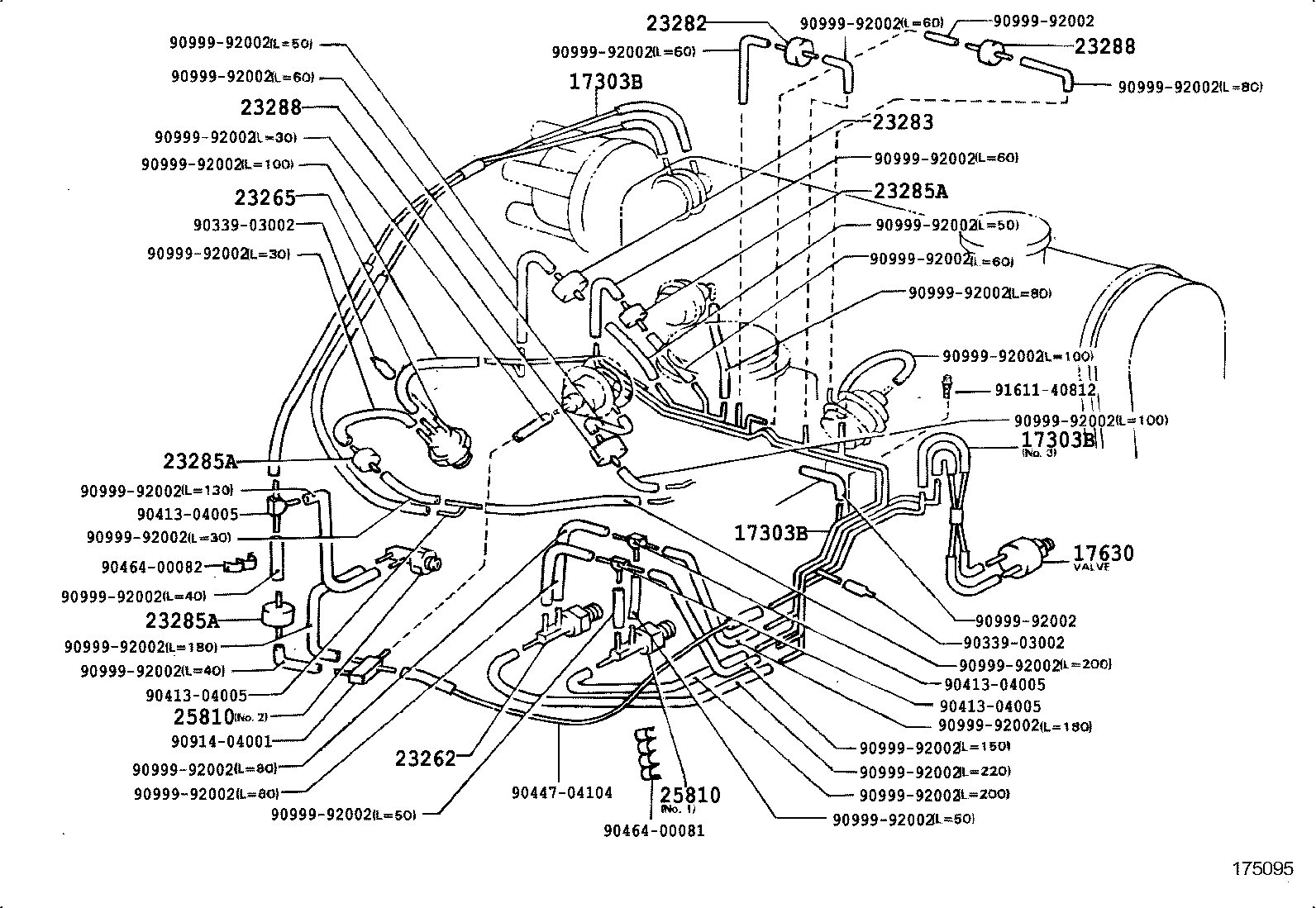

(8908- )2E
W(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11051 |
2E..EE90 |
1 | ||
| 17303-11550 |
2E..EE90 NO.3 |
1 | ||
| 17303-11052 |
2E..EE90 |
1 | ||
| 17303-11570 |
2E..EE90 NO.3 |
1 | ||
| 17303-11550 |
2E..EE90 W(POWER STEERING),NO.3 |
1 | ||
| 17303-11440 |
2E..EE90 NO.2 |
1 | ||
| 17303-11460 |
2E..EE90 NO.1 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11051 |
2E..EE90 |
1 | ||
| 17303-11550 |
2E..EE90 NO.3 |
1 | ||
| 17303-11052 |
2E..EE90 |
1 | ||
| 17303-11570 |
2E..EE90 NO.3 |
1 | ||
| 17303-11550 |
2E..EE90 W(POWER STEERING),NO.3 |
1 | ||
| 17303-11440 |
2E..EE90 NO.2 |
1 | ||
| 17303-11460 |
2E..EE90 NO.1 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11051 |
2E..EE90 |
1 | ||
| 17303-11550 |
2E..EE90 NO.3 |
1 | ||
| 17303-11052 |
2E..EE90 |
1 | ||
| 17303-11570 |
2E..EE90 NO.3 |
1 | ||
| 17303-11550 |
2E..EE90 W(POWER STEERING),NO.3 |
1 | ||
| 17303-11440 |
2E..EE90 NO.2 |
1 | ||
| 17303-11460 |
2E..EE90 NO.1 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15030 |
2E..EE90 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05035 |
2E..EE90 NO.2 |
1 | ||
| 25820-11040 |
2E..EE90 |
1 | ||
| 25820-11020 |
2E..EE90 NO.1 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2E..EE90 |
1 | ||
| 90917-11027 |
2E..EE90 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
2E..EE90 |
1 | ||
| 90925-01021 |
2E..EE90 |
2 | ||
| 90925-01091 |
2E..EE90 |
2 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01091 |
2E..EE90 |
1 | ||
| 90925-01021 |
2E..EE90 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EE90 |
2 | ||
| 90917-10049 |
2E..EE90 EX. EMISSION CONTROL(*77) |
1 | ||
| 90917-10049 |
2E..EE90 W(POWER STEERING) |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EE90 |
2 | ||
| 90917-10049 |
2E..EE90 EX. EMISSION CONTROL(*77) |
1 | ||
| 90917-10049 |
2E..EE90 W(POWER STEERING) |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EE90 |
2 | ||
| 90917-10049 |
2E..EE90 EX. EMISSION CONTROL(*77) |
1 | ||
| 90917-10049 |
2E..EE90 W(POWER STEERING) |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-01101 |
2E..EE90 |
1 | ||
| 90925-01101 |
2E..EE90 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-01101 |
2E..EE90 |
1 | ||
| 90925-01101 |
2E..EE90 |
2 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11080 |
2E..EE90 NO.2 |
1 | ||
| 25810-11070 |
2E..EE90 NO.1 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11080 |
2E..EE90 NO.2 |
1 | ||
| 25810-11070 |
2E..EE90 NO.1 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90447-04104 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90914-04001 | ||||
| 90999-92002 | ||||
| 91611-40812 | ||||
(8705-8908)2E
EXHAUST EMISSION CONTROL(US'83)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11051 |
2E..EE90 |
1 | ||
| 17303-11550 |
2E..EE90 NO.3 |
1 | ||
| 17303-11052 |
2E..EE90 |
1 | ||
| 17303-11570 |
2E..EE90 NO.3 |
1 | ||
| 17303-11550 |
2E..EE90 W(POWER STEERING),NO.3 |
1 | ||
| 17303-11440 |
2E..EE90 NO.2 |
1 | ||
| 17303-11460 |
2E..EE90 NO.1 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11051 |
2E..EE90 |
1 | ||
| 17303-11550 |
2E..EE90 NO.3 |
1 | ||
| 17303-11052 |
2E..EE90 |
1 | ||
| 17303-11570 |
2E..EE90 NO.3 |
1 | ||
| 17303-11550 |
2E..EE90 W(POWER STEERING),NO.3 |
1 | ||
| 17303-11440 |
2E..EE90 NO.2 |
1 | ||
| 17303-11460 |
2E..EE90 NO.1 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05035 |
2E..EE90 NO.2 |
1 | ||
| 25820-11040 |
2E..EE90 |
1 | ||
| 25820-11020 |
2E..EE90 NO.1 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05035 |
2E..EE90 NO.2 |
1 | ||
| 25820-11040 |
2E..EE90 |
1 | ||
| 25820-11020 |
2E..EE90 NO.1 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2E..EE90 |
1 | ||
| 90917-11027 |
2E..EE90 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03175 |
2E..EE90 NO.2 |
1 | ||
| 90925-03181 |
2E..EE90 NO.1 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03175 |
2E..EE90 NO.2 |
1 | ||
| 90925-03181 |
2E..EE90 NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
2E..EE90 NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
2E..EE90 NO.1 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EE90 |
2 | ||
| 90917-10049 |
2E..EE90 EX. EMISSION CONTROL(*77) |
1 | ||
| 90917-10049 |
2E..EE90 W(POWER STEERING) |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EE90 |
2 | ||
| 90917-10049 |
2E..EE90 EX. EMISSION CONTROL(*77) |
1 | ||
| 90917-10049 |
2E..EE90 W(POWER STEERING) |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-01101 |
2E..EE90 |
1 | ||
| 90925-01101 |
2E..EE90 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-01101 |
2E..EE90 |
1 | ||
| 90925-01101 |
2E..EE90 |
2 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-11050 |
2E..EE90 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11080 |
2E..EE90 NO.2 |
1 | ||
| 25810-11070 |
2E..EE90 NO.1 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11080 |
2E..EE90 NO.2 |
1 | ||
| 25810-11070 |
2E..EE90 NO.1 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90412-06003 | ||||
| 90413-04005 | ||||
| 90413-04015 | ||||
| 90413-06002 | ||||
| 90445-11040 | ||||
| 90445-11059 | ||||
| 90445-11079 | ||||
| 90447-11002 | ||||
| 90464-00082 | ||||
| 90464-00491 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-60812 | ||||
| 91651-40814 | ||||
(8705- )2E#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
(8908- )2E
W/O(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11051 |
2E..EE90 |
1 | ||
| 17303-11550 |
2E..EE90 NO.3 |
1 | ||
| 17303-11052 |
2E..EE90 |
1 | ||
| 17303-11570 |
2E..EE90 NO.3 |
1 | ||
| 17303-11550 |
2E..EE90 W(POWER STEERING),NO.3 |
1 | ||
| 17303-11440 |
2E..EE90 NO.2 |
1 | ||
| 17303-11460 |
2E..EE90 NO.1 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11051 |
2E..EE90 |
1 | ||
| 17303-11550 |
2E..EE90 NO.3 |
1 | ||
| 17303-11052 |
2E..EE90 |
1 | ||
| 17303-11570 |
2E..EE90 NO.3 |
1 | ||
| 17303-11550 |
2E..EE90 W(POWER STEERING),NO.3 |
1 | ||
| 17303-11440 |
2E..EE90 NO.2 |
1 | ||
| 17303-11460 |
2E..EE90 NO.1 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11051 |
2E..EE90 |
1 | ||
| 17303-11550 |
2E..EE90 NO.3 |
1 | ||
| 17303-11052 |
2E..EE90 |
1 | ||
| 17303-11570 |
2E..EE90 NO.3 |
1 | ||
| 17303-11550 |
2E..EE90 W(POWER STEERING),NO.3 |
1 | ||
| 17303-11440 |
2E..EE90 NO.2 |
1 | ||
| 17303-11460 |
2E..EE90 NO.1 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11051 |
2E..EE90 |
1 | ||
| 17303-11550 |
2E..EE90 NO.3 |
1 | ||
| 17303-11052 |
2E..EE90 |
1 | ||
| 17303-11570 |
2E..EE90 NO.3 |
1 | ||
| 17303-11550 |
2E..EE90 W(POWER STEERING),NO.3 |
1 | ||
| 17303-11440 |
2E..EE90 NO.2 |
1 | ||
| 17303-11460 |
2E..EE90 NO.1 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05035 |
2E..EE90 NO.2 |
1 | ||
| 25820-11040 |
2E..EE90 |
1 | ||
| 25820-11020 |
2E..EE90 NO.1 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2E..EE90 |
1 | ||
| 90917-11027 |
2E..EE90 |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01091 |
2E..EE90 |
1 | ||
| 90925-01021 |
2E..EE90 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EE90 |
2 | ||
| 90917-10049 |
2E..EE90 EX. EMISSION CONTROL(*77) |
1 | ||
| 90917-10049 |
2E..EE90 W(POWER STEERING) |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EE90 |
2 | ||
| 90917-10049 |
2E..EE90 EX. EMISSION CONTROL(*77) |
1 | ||
| 90917-10049 |
2E..EE90 W(POWER STEERING) |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EE90 |
2 | ||
| 90917-10049 |
2E..EE90 EX. EMISSION CONTROL(*77) |
1 | ||
| 90917-10049 |
2E..EE90 W(POWER STEERING) |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-01101 |
2E..EE90 |
1 | ||
| 90925-01101 |
2E..EE90 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-01101 |
2E..EE90 |
1 | ||
| 90925-01101 |
2E..EE90 |
2 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11080 |
2E..EE90 NO.2 |
1 | ||
| 25810-11070 |
2E..EE90 NO.1 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11080 |
2E..EE90 NO.2 |
1 | ||
| 25810-11070 |
2E..EE90 NO.1 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
| 91611-40812 | ||||
(8705-8908)2E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11051 |
2E..EE90 |
1 | ||
| 17303-11550 |
2E..EE90 NO.3 |
1 | ||
| 17303-11052 |
2E..EE90 |
1 | ||
| 17303-11570 |
2E..EE90 NO.3 |
1 | ||
| 17303-11550 |
2E..EE90 W(POWER STEERING),NO.3 |
1 | ||
| 17303-11440 |
2E..EE90 NO.2 |
1 | ||
| 17303-11460 |
2E..EE90 NO.1 |
1 | ||
| 17368A - SUPPORT, AIR TUBE | ||||
| 17368-11010 |
2E..EE90 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05035 |
2E..EE90 NO.2 |
1 | ||
| 25820-11040 |
2E..EE90 |
1 | ||
| 25820-11020 |
2E..EE90 NO.1 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05035 |
2E..EE90 NO.2 |
1 | ||
| 25820-11040 |
2E..EE90 |
1 | ||
| 25820-11020 |
2E..EE90 NO.1 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2E..EE90 |
1 | ||
| 90917-11027 |
2E..EE90 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03175 |
2E..EE90 NO.2 |
1 | ||
| 90925-03181 |
2E..EE90 NO.1 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03175 |
2E..EE90 NO.2 |
1 | ||
| 90925-03181 |
2E..EE90 NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
2E..EE90 NO.1 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EE90 |
2 | ||
| 90917-10049 |
2E..EE90 EX. EMISSION CONTROL(*77) |
1 | ||
| 90917-10049 |
2E..EE90 W(POWER STEERING) |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-11050 |
2E..EE90 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90445-08243 | ||||
| 90447-04055 | ||||
| 90447-04057 | ||||
| 90447-08015 | ||||
| 90447-08016 | ||||
| 90447-08019 | ||||
| 90447-08020 | ||||
| 90447-11001 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00154 | ||||
| 90999-92002 | ||||
| 91611-40812 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
