EE90L-AWMDSW (1987)

Toyota Corolla Sed/Lb/Wg

Production Aug 1987 - May 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )AE92,CE90,EE90..WG

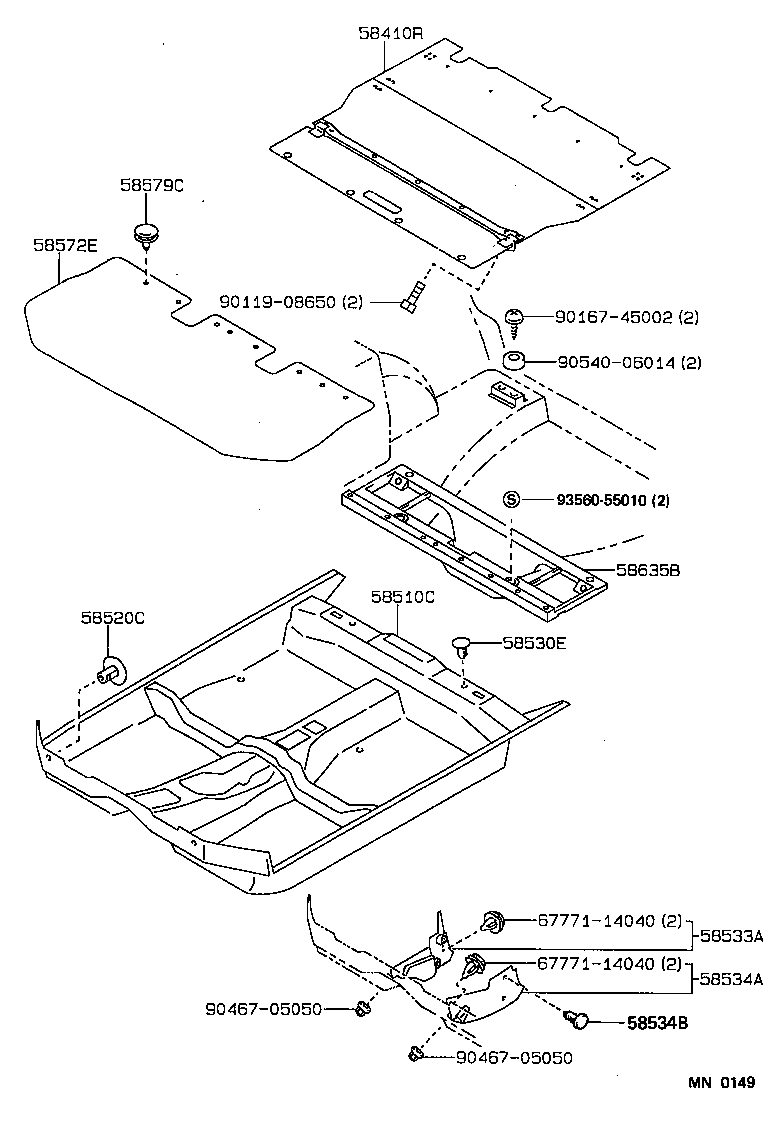

Click highlighted areas on diagram

diagram 58410R 58510C 58520C 58530E 58533A 58534A 58534B 58572E 58579C 58635B 6777114040 6777114040 9011908650 9016745002 9046705050 9046705050 9054006014 9356055010
Part # Description Qty Price
58410R - BOARD ASSY, DECK
58410-1301103

AE92,CE90,EE90..WG

SHADOW GRAY,TRIM1#

 1
58410-1301005

AE92,CE90,EE90..WG

DARK BEIGE,TRIM4#

 1
58410-1301104

AE92,CE90,EE90..WG

DARK BLUE,TRIM8#

 1
58410-1301004

AE92,CE90,EE90..LHD..WG..XL

DARK BLUE,TRIM8#

 1
58410-1301003

AE92,CE90,EE90..WG

SHADOW GRAY,TRIM1#

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-1A18005

AE92,CE90,EE90..LHD..(STD,XL)

DARK BEIGE,TRIM4#

 1
58510-1A19005

AE92,CE90,EE90..LHD..(STD,XL)

COLD SPEC,DARK BEIGE,TRIM4#

 1
58510-1A19004

AE92,CE90,EE90..LHD..XL

COLD SPEC,DARK BLUE,TRIM8#

 1
58510-1A18004

AE92,CE90,EE90..LHD..XL

DARK BLUE,TRIM8#

 1
58510-1A19003

AE92,CE90,EE90..LHD..(STD,XL,XLI)

COLD SPEC,SHADOW GRAY,TRIM1#

 1
58510-1A18003

AE92,CE90,EE90..LHD..(STD,XL,XLI)

SHADOW GRAY,TRIM1#

 1
58510-1A19004

AE92,CE90,EE90..LHD..(STD,XL,XLI)

COLD SPEC,DARK BLUE,TRIM8#

 1
58510-1A18004

AE92,CE90,EE90..LHD..(STD,XL,XLI)

DARK BLUE,TRIM8#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0906814

AE92,CE90,EE90..LHD..WG..XL

DARK BLUE,TRIM8#

 2
90467-09068J0

AE92,CE90,EE90..LHD..WG..XL

DARK BLUE,TRIM8#

 2
90467-0906805

AE92,CE90,EE90..WG

DARK BEIGE,TRIM4#

 2
90467-0906803

AE92,CE90,EE90..WG

SHADOW GRAY,TRIM1#

 2
90467-0906811

EE90..RHD..LB;EE90..SED..STD;AE92,CE90,EE90..WG;AE9#..RHD..(LB,WG)

BLACK,TRIM1#,8#

 2
90467-0906811

AE95..RHD;EE90..SED..STD;AE92,CE90,EE90..(LB,WG)..(GL,GLI,STD,XL,XLI)

BLACK,TRIM1#,8#

 2
90467-09068E0

AE92,CE90,EE90..WG

DARK BEIGE,TRIM4#

 2
58530E - CLIP(FOR FRONT FLOOR REAR CARPET)
90467-0604915

AE9#,CE90,EE90..GL,GLI,STD,XL,XLI

DARK BEIGE,TRIM4#

 2
90467-0604903

AE9#,CE90,EE90

GRAY,TRIM1#

 2
90467-0604924

AE95..RHD..WG;AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI)

DARK BLUE,TRIM8#

 2
90467-0604901

EE90..SED..STD;AE9#,CE90,EE90..RHD;AE92,CE90,EE90..LHD..WG

BLACK,TRIM1#,8#

 2
90467-06049J1

AE95..RHD..WG;AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI)

DARK BLUE,TRIM8#

 2
90467-06049B0

AE9#,CE90,EE90

SHADOW GRAY,TRIM1#

 2
90467-0604901

EE90..SED..STD;EE90..LHD..(LB,WG);AE95,CE90,EE90..RHD;AE92,CE90..(LB,WG)..(GL,GLI,STD,XL,XLI)

BLACK,TRIM1#,8#

 2
90467-06049E0

AE9#,CE90,EE90..GL,GLI,STD,XL,XLI

DARK BEIGE,TRIM4#

 2
90467-06049J1

AE9#,CE90,EE90..GL,GLI,STD,XL,XLI

DARK BLUE,TRIM8#

 2
58533A - COVER, FLOOR CARPET, CENTER RH
58533-12010

AE92,CE90,EE90..LHD

 1
58534A - MAT, TRANSMISSION COVER
58534-12020

AE9#,CE90,EE90..LHD

 1
58534B - CLIP(FOR FLOOR CARPET CENTER COVER)
90467-1003401

AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI)

BLACK,TRIM1#,4#,8#

 1
90467-1003401

EE90..SED..STD;AE92,CE90,EE90..LHD..(LB,WG)..(GL,GLI,STD,XL,XLI)

BLACK,TRIM1#,8#

 1
58572E - MAT, REAR FLOOR, FRONT
58572-12040

AE92,CE90,EE90..LB,WG

 1
58572-12041

AE92,CE90,EE90..LB,WG

 1
58572-12040

AE92,CE90,EE90..LB,WG

 1
58579C - CLIP, REAR FLOOR CARPET SET
90467-0707705

AE92,CE90,EE90..WG

DARK BEIGE,TRIM4#

 6
90467-0707703

AE92,CE90,EE90..WG

SHADOW GRAY,TRIM1#

 5
90467-0707705

AE92,CE90,EE90..WG

DARK BEIGE,TRIM4#

 5
90467-0707704

AE92,CE90,EE90..LHD..WG..XL

DARK BLUE,TRIM8#

 5
90467-0707704

AE92,CE90,EE90..LHD..WG..XL

DARK BLUE,TRIM8#

 6
90467-0707704

AE92,CE90,EE90..WG

DARK BLUE,TRIM8#

 6
90467-0707703

AE92,CE90,EE90..WG

SHADOW GRAY,TRIM1#

 6
58635B - BOX, SEAT FLOOR
58635-13010

AE92,CE90,EE90..WG

 1
Common parts
67771-14040
90119-08650
90167-45002
90467-05050
90540-06014
93560-55010
