EE90L-AWKRSW (1987)

Toyota Corolla Sed/Lb/Wg

Production Aug 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

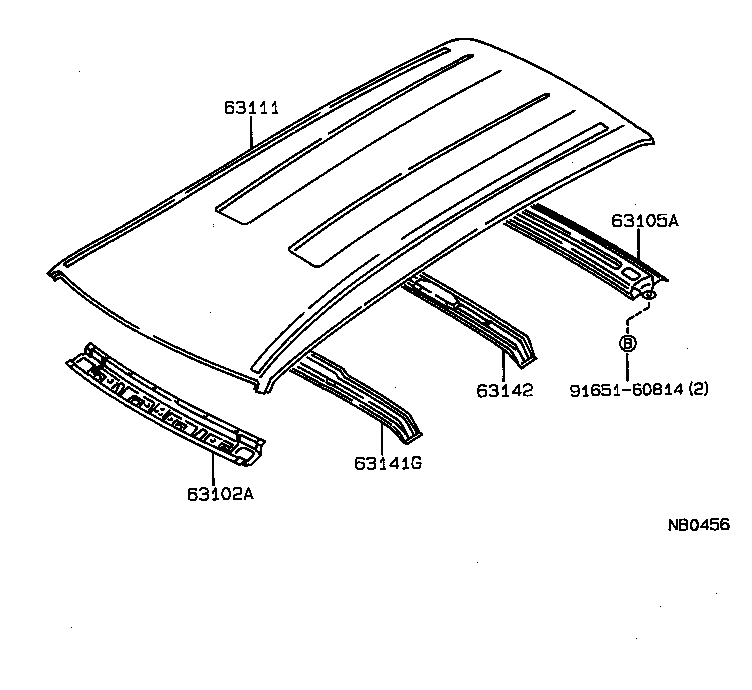

ILLUST NO. 1 OF 2(8708- )AE92,CE90,EE90..WG

Click highlighted areas on diagram

diagram 63102A 63105A 63111 63141G 63142 9165160814
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-13010

AE92,CE90,EE90..WG

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-13090

AE92,CE90,EE90..WG

 1
63105-13100

CE90,EE90..WG..STD

 1
63111 - PANEL, ROOF
63111-13070

AE92,CE90,EE90..WG

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-13050

AE92,CE90,EE90..WG

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-13040

AE92,CE90,EE90..WG

 1
Common parts
91651-60814
