EE90L-AWKRSW (1987)

Toyota Corolla Sed/Lb/Wg

Production Aug 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8908)AE92,CE90,EE90..WG

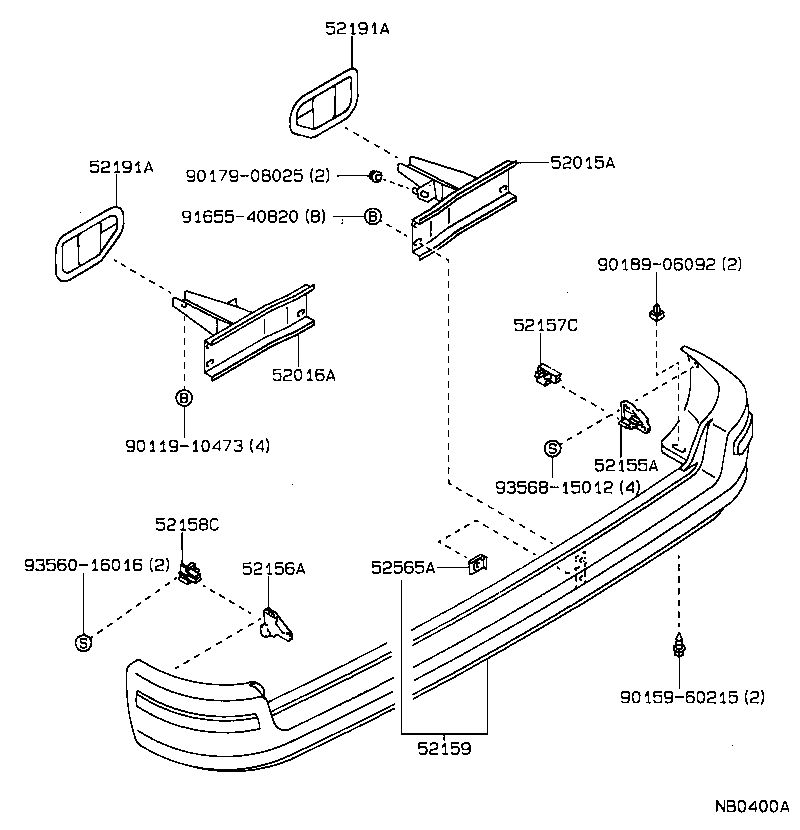

Click highlighted areas on diagram

diagram 52015A 52016A 52155A 52156A 52157C 52158C 52159 52191A 52191A 52565A 9011910473 9015960215 9017908025 9018906092 9165540820 9356016016 9356815012
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-13080

AE92,CE90,EE90..WG

 1
52015-13080

AE92,CE90,EE90..WG

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-13070

AE92,CE90,EE90..WG

 1
52016-13070

AE92,CE90,EE90..WG

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-13030

AE92,CE90,EE90..WG

 1
52155-13030

AE92,CE90,EE90..WG

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-13030

AE92,CE90,EE90..WG

 1
52156-13030

AE92,CE90,EE90..WG

 1
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-13020

AE92,CE90,EE90..WG

 1
52157-13020

AE92,CE90,EE90..WG

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-13020

AE92,CE90,EE90..WG

 1
52158-13020

AE92,CE90,EE90..WG

 1
52159 - COVER, REAR BUMPER
52159-13020

AE92,CE90,EE90..WG

 1
52159-13020

AE92,CE90,EE90..WG

 1
52191A - SEAL, REAR BUMPER ARM
52191-13100

AE92,CE90,EE90..WG

RH

 1
52191-13100

AE92,CE90,EE90..WG

RH

 1
52192-13090

AE92,CE90,EE90..WG

LH

 1
52192-13090

AE92,CE90,EE90..WG

LH

 1
52191A - SEAL, REAR BUMPER ARM
52191-13100

AE92,CE90,EE90..WG

RH

 1
52191-13100

AE92,CE90,EE90..WG

RH

 1
52192-13090

AE92,CE90,EE90..WG

LH

 1
52192-13090

AE92,CE90,EE90..WG

LH

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

AE9#,CE90,EE90..LB,WG

 8
52565-12040

AE9#,CE90,EE90..LB,WG

 8
52565-12040

AE9#,CE90,EE90..WG

 8
52565-12040

AE9#,CE90,EE90..WG

 8
52565-12040

AE92,CE90,EE90..WG

 8
52565-12040

AE92,CE90,EE90..WG

 8
Common parts
90119-10473
90159-60215
90179-08025
90189-06092
91655-40820
93560-16016
93568-15012

(8908- )AE92,CE90,EE90..WG

Click highlighted areas on diagram

diagram 52015A 52016A 52155A 52156A 52157C 52158C 52159 52191A 52191A 52565A 9011910473 9015960215 9017908025 9018906092 9165540820 9356016016 9356815012
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-13080

AE92,CE90,EE90..WG

 1
52015-13080

AE92,CE90,EE90..WG

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-13070

AE92,CE90,EE90..WG

 1
52016-13070

AE92,CE90,EE90..WG

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-13030

AE92,CE90,EE90..WG

 1
52155-13030

AE92,CE90,EE90..WG

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-13030

AE92,CE90,EE90..WG

 1
52156-13030

AE92,CE90,EE90..WG

 1
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-13020

AE92,CE90,EE90..WG

 1
52157-13020

AE92,CE90,EE90..WG

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-13020

AE92,CE90,EE90..WG

 1
52158-13020

AE92,CE90,EE90..WG

 1
52159 - COVER, REAR BUMPER
52159-13020

AE92,CE90,EE90..WG

 1
52159-13020

AE92,CE90,EE90..WG

 1
52191A - SEAL, REAR BUMPER ARM
52191-13100

AE92,CE90,EE90..WG

RH

 1
52191-13100

AE92,CE90,EE90..WG

RH

 1
52192-13090

AE92,CE90,EE90..WG

LH

 1
52192-13090

AE92,CE90,EE90..WG

LH

 1
52191A - SEAL, REAR BUMPER ARM
52191-13100

AE92,CE90,EE90..WG

RH

 1
52191-13100

AE92,CE90,EE90..WG

RH

 1
52192-13090

AE92,CE90,EE90..WG

LH

 1
52192-13090

AE92,CE90,EE90..WG

LH

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

AE9#,CE90,EE90..LB,WG

 8
52565-12040

AE9#,CE90,EE90..LB,WG

 8
52565-12040

AE9#,CE90,EE90..WG

 8
52565-12040

AE9#,CE90,EE90..WG

 8
52565-12040

AE92,CE90,EE90..WG

 8
52565-12040

AE92,CE90,EE90..WG

 8
Common parts
90119-10473
90159-60215
90179-08025
90189-06092
91655-40820
93560-16016
93568-15012
