EE90L-ALMDSW (1987)
Toyota Corolla Sed/Lb/Wg
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-12040 |
AE9#,CE90,EE90 |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-12040 |
AE9#,CE90,EE90 |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-12050 |
AE9#,CE90,EE90 |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-12040 |
AE9#,CE90,EE90 |
1 | ||
| 69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-1209006 |
AE95..LHD;AE92,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI) BROWN,TRIM4# |
2 | ||
| 69260-1209003 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 69260-1209004 |
AE9#,CE90,EE90..GL,GLI,XL,XLI BLUE,TRIM8# |
2 | ||
| 69260-1209004 |
AE95..RHD..WG;AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI) BLUE,TRIM8# |
2 | ||
| 69260-1209005 |
AE9#,CE90,EE90..GL,GLI,XL,XLI DARK BEIGE,TRIM4# |
2 | ||
| 69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-1209006 |
AE95..LHD;AE92,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI) BROWN,TRIM4# |
2 | ||
| 69260-1209003 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 69260-1209004 |
AE9#,CE90,EE90..GL,GLI,XL,XLI BLUE,TRIM8# |
2 | ||
| 69260-1209004 |
AE95..RHD..WG;AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI) BLUE,TRIM8# |
2 | ||
| 69260-1209005 |
AE9#,CE90,EE90..GL,GLI,XL,XLI DARK BEIGE,TRIM4# |
2 | ||
| 69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90520-01005 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI |
2 | ||
| 69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90520-01005 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI |
2 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-12070 |
AE92,CE90,EE90..LB W(*PW) |
1 | ||
| 69830-12160 |
AE92,CE90,EE90..LB |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-12070 |
AE92,CE90,EE90..LB W(*PW) |
1 | ||
| 69830-12160 |
AE92,CE90,EE90..LB |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-12070 |
AE92,CE90,EE90..LB W(*PW) |
1 | ||
| 69840-12160 |
AE92,CE90,EE90..LB |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-12070 |
AE92,CE90,EE90..LB W(*PW) |
1 | ||
| 69840-12160 |
AE92,CE90,EE90..LB |
1 | ||
| 69839 - PAD, REAR DOOR WINDOW REGULATOR | ||||
| 69839-95800 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-12010 |
AE92,CE90,EE90..LB 7X65 |
4 | ||
| 69839-12010 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839-95800 |
AE92,CE90,EE90..LB 25X25 |
2 | ||
| 69839-95800 |
EE90..STD..EFI;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-12010 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839-12010 |
AE92,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839-95800 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-12010 |
EE90..STD..EFI;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839-95800 |
AE92,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-95800 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-12010 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839 - PAD, REAR DOOR WINDOW REGULATOR | ||||
| 69839-95800 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-12010 |
AE92,CE90,EE90..LB 7X65 |
4 | ||
| 69839-12010 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839-95800 |
AE92,CE90,EE90..LB 25X25 |
2 | ||
| 69839-95800 |
EE90..STD..EFI;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-12010 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839-12010 |
AE92,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839-95800 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-12010 |
EE90..STD..EFI;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839-95800 |
AE92,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-95800 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-12010 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839 - PAD, REAR DOOR WINDOW REGULATOR | ||||
| 69839-95800 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-12010 |
AE92,CE90,EE90..LB 7X65 |
4 | ||
| 69839-12010 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839-95800 |
AE92,CE90,EE90..LB 25X25 |
2 | ||
| 69839-95800 |
EE90..STD..EFI;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-12010 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839-12010 |
AE92,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839-95800 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-12010 |
EE90..STD..EFI;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69839-95800 |
AE92,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-95800 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 25X25 |
2 | ||
| 69839-12010 |
AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI 7X65 |
4 | ||
| 69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-12110 |
AE9#,CE90,EE90 |
1 | ||
| 69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-12100 |
AE9#,CE90,EE90 |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-12010 |
AE9#,CE90,EE90 |
2 | ||
| Common parts | ||||
| 90119-08093 | ||||
| 90168-50040 | ||||
| 91511-40608 | ||||

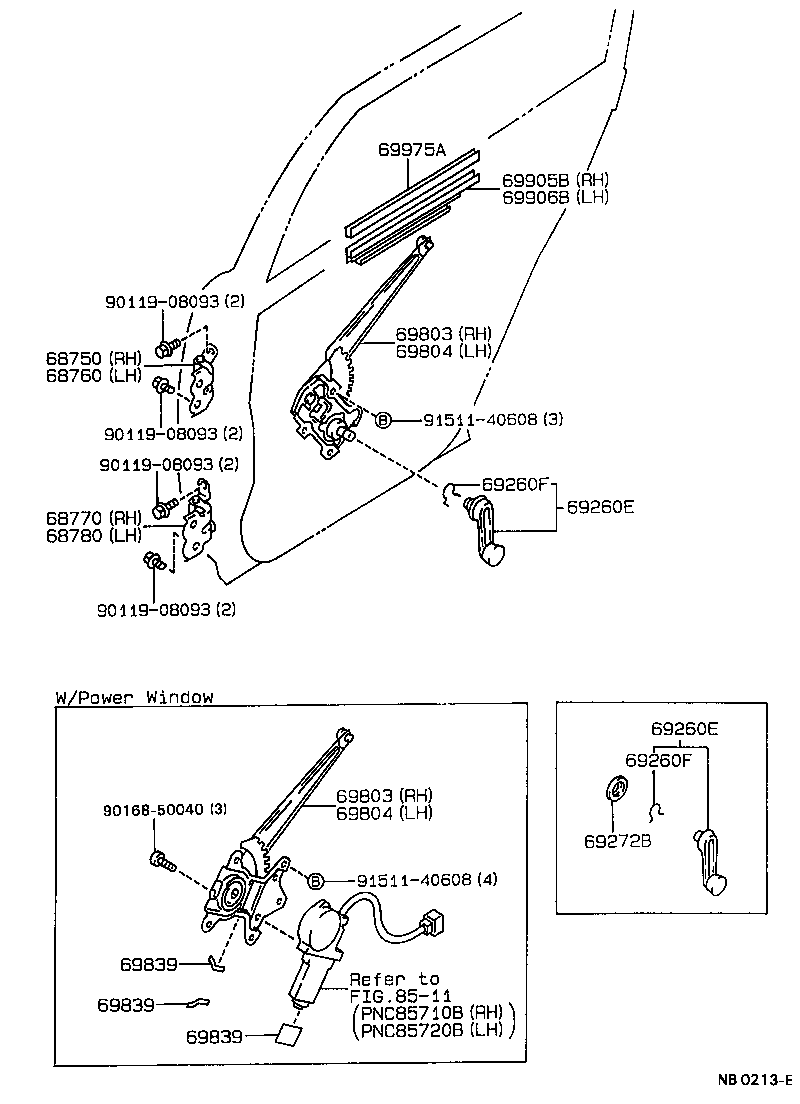

| Linked diagrams | ||||
| 8511 | ||||
