EE90L-AEKRSW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )CE90,EE90..LHD

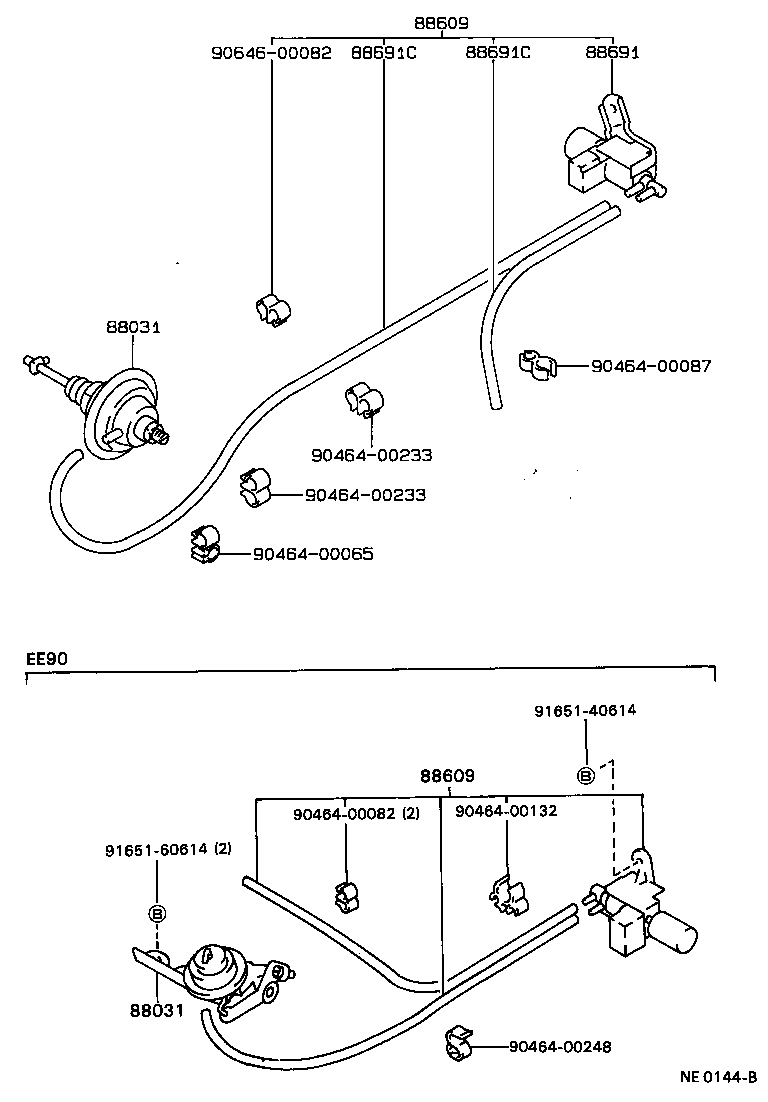

Click highlighted areas on diagram

AIR CONDITIONER IDLE UP

diagram 88031 88031 88609 88609 88691 88691C 88691C 9046400065 9046400082 9046400087 9046400132 9046400233 9046400233 9046400248 9064600082 9165140614 9165160614
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-12200

EE90..LHD..CBR

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12200

EE90..LHD..CBR

 1
88609 - DEVICE SUB-ASSY, IDLE UP
88609-12430

EE90..LHD..CBR

 1
88609 - DEVICE SUB-ASSY, IDLE UP
88609-12430

EE90..LHD..CBR

 1
Common parts
90464-00065
90464-00082
90464-00087
90464-00132
90464-00233
90464-00248
90646-00082
91651-40614
91651-60614
