EE90L-AEKRSW (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

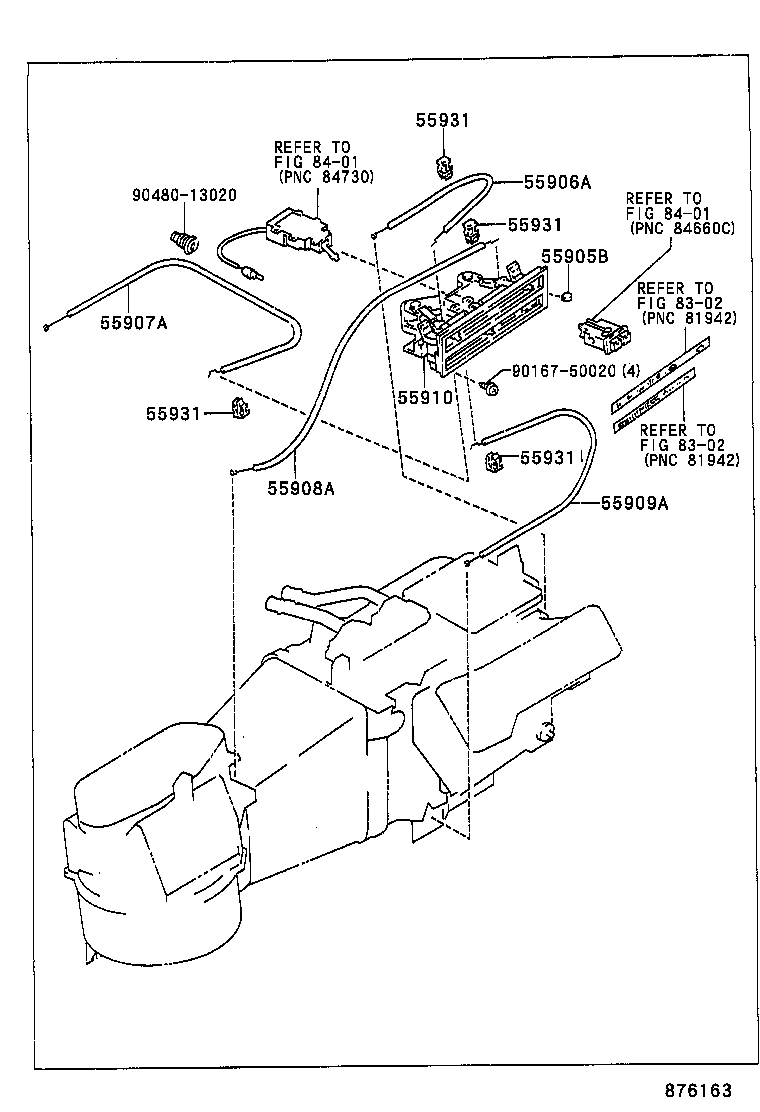

Click highlighted areas on diagram

diagram 55905B 55906A 55907A 55908A 55909A 55910 55931 55931 55931 55931 8302 8302 8401 8401 9016750020 9048013020
Part # Description Qty Price
55905B - KNOB, HEATER CONTROL, NO.2
55905-12100

EE90..SED..STD;EE90..LHD..(GL,XL);AE92,CE90..LHD..5F

*IPM

 4
55905-12130

AE9#,CE90,EE90..LHD

 4
55905-12100

EE90..LHD..(GL,XL);AE9#,CE90..LHD..5F..(GL,GTI,STD,XL);AE92,EE90..LHD..(LB,SED)..(3FC,4F)..(GL,STD)..CBR

*IPM

 4
55905-12100

AE9#,EE90..LHD..CBR

*IPM

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12290

AE9#,CE90,EE90..LHD

 1
55906-12300

AE9#,CE90,EE90..LHD

 1
55906-12290

AE95,CE90..LHD;EE90..LHD..CBR;AE92..LHD..(GL,GTI,XL)

 1
55906-12290

AE9#,CE90,EE90..LHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12280

AE9#,CE90,EE90..LHD

 1
55907-12280

AE9#,CE90,EE90..LHD

 1
55907-12280

AE95,CE90..LHD;EE90..LHD..CBR;AE92..LHD..(GL,GTI,XL)

 1
55907-12330

AE9#,CE90,EE90..LHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12190

AE9#,CE90,EE90

 1
55908-12190

AE9#,CE90,EE90

 1
55908-12190

AE95;EE90..CBR;AE92,CE90..GL,GTI,STD,XL

 1
55908-12230

AE9#,CE90,EE90

 1
55908-12230

AE9#,CE90,EE90..LHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12170

AE9#,CE90,EE90

 1
55909-12170

AE9#,CE90,EE90

 1
55909-12170

AE95;EE90..CBR;AE92,CE90..GL,GTI,STD,XL

 1
55909-12190

AE9#,CE90,EE90

 1
55909-12190

AE9#,CE90,EE90..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12461

AE9#,CE90,EE90..LHD

 1
55910-12460

AE95,CE90..LHD;EE90..LHD..CBR;AE92..LHD..(GL,GTI,XL)

 1
55910-12460

AE9#,CE90,EE90..LHD

 1
55910-12460

AE9#,CE90,EE90..LHD

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

AE9#,CE90,EE90

 4
55933-10010

AE9#,CE90,EE90

 4
55933-10010

AE95;EE90..CBR;AE92,CE90..GL,GTI,STD,XL

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

AE9#,CE90,EE90

 4
55933-10010

AE9#,CE90,EE90

 4
55933-10010

AE95;EE90..CBR;AE92,CE90..GL,GTI,STD,XL

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

AE9#,CE90,EE90

 4
55933-10010

AE9#,CE90,EE90

 4
55933-10010

AE95;EE90..CBR;AE92,CE90..GL,GTI,STD,XL

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

AE9#,CE90,EE90

 4
55933-10010

AE9#,CE90,EE90

 4
55933-10010

AE95;EE90..CBR;AE92,CE90..GL,GTI,STD,XL

 4
Common parts
90167-50020
90480-13020
Linked diagrams
8302
8401

(8705- )LHD

Click highlighted areas on diagram

diagram 55843A 55844 55845A 55846A 55847B 87201 87212 87213 87215F 9015950220 9015960125 9016745011 9016745011 9016745011 9048026022
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-12180

AE9#,CE90,EE90..LHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-12220

AE9#,CE90,EE90..LHD

 1
55844-12240

EE90..LHD..CBR;AE9#,CE90..LHD..5F..(CBR,DSL)

W(AIR CONDITIONER)

 1
55844-12240

AE92,CE90,EE90..LHD..(CBR,DSL)

W(AIR CONDITIONER)

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-12120

AE9#,CE90,EE90..LHD

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-12100

AE9#,CE90,EE90..LHD

 1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-12071

AE92,CE90,EE90..LHD..(CBR,DSL)

 1
55847-12070

AE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL)

 1
55847-12071

EE90..LHD..CBR;AE9#,CE90..LHD..5F..(CBR,DSL)

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-12140

AE9#,CE90,EE90..LHD

COLD SPEC

 1
87201-12140

AE9#,CE90,EE90..LHD

COLD SPEC

 1
87201-12130

AE9#,CE90,EE90..LHD

 1
87212 - DUCT, AIR, REAR NO.1
87212-12060

AE92,CE90,EE90..LHD

COLD SPEC

 1
87213 - DUCT, AIR, REAR NO.2
87213-12030

AE92,CE90,EE90..LHD

COLD SPEC

 1
87215F - DUCT, AIR, REAR NO.3
87215-12010

AE9#,CE90,EE90..LHD

COLD SPEC

 1
Common parts
90159-50220
90159-60125
90167-45011
90480-26022
