EE90L-AEKRSW (1987)
Toyota Corolla Sed/Lb/Wg
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

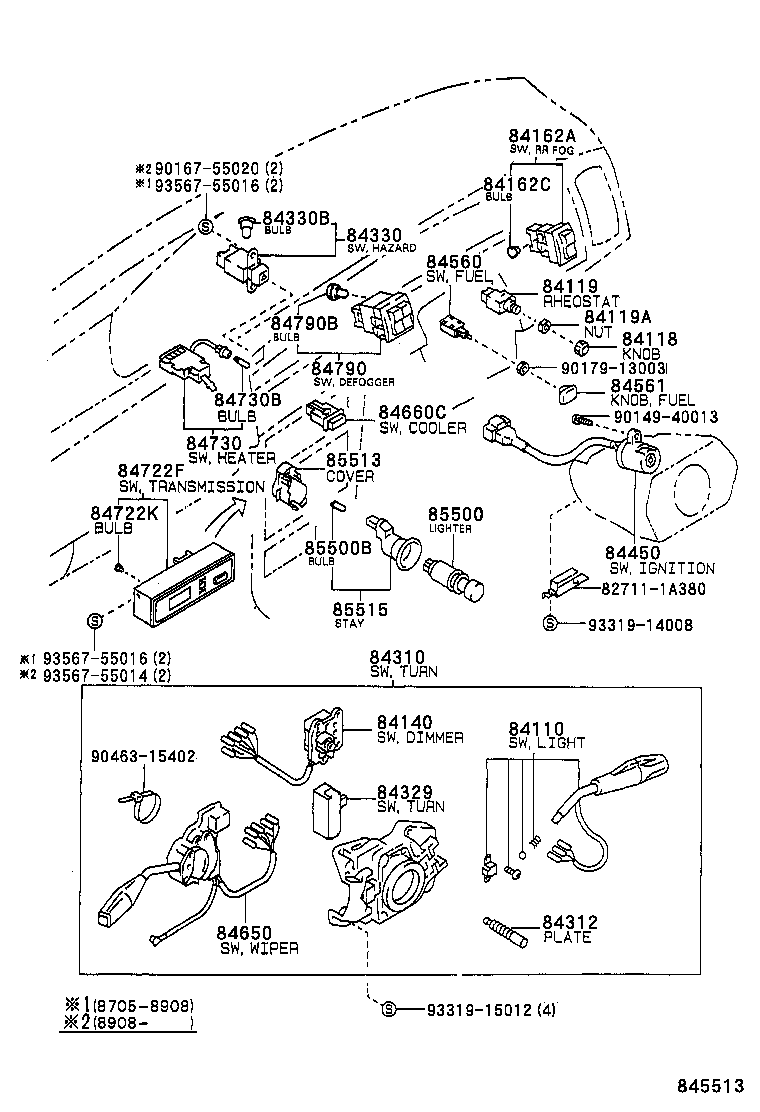

| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80001 |
AE9#,CE90,EE90..LHD MATSUSHITA |
1 | ||
| 84112-80002 |
AE9#,CE90,EE90..LHD TOKAIRIKA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12260 |
AE9#,CE90,EE90..LHD TOKAIRIKA |
1 | ||
| 84140-12250 |
AE9#,CE90,EE90..LHD MATSUSHITA |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84162-1204001 |
AE92,CE90,EE90..LHD..(GTI,STD) BLACK,TRIM1# |
1 | ||
| 84162-1207001 |
AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) BLACK,TRIM1#,8# |
1 | ||
| 84162-1204005 |
AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) DARK BEIGE,TRIM4# |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10170 |
AE9#,CE90,EE90 12V 1.12W |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A151 |
AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 84310-1A150 |
AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 84310-1A370 |
AE9#,CE90,EE90..LHD..SED W(WASHER LINKED *IW) |
1 | ||
| 84310-1A171 |
AE9#,CE90,EE90..LHD..(LB,SED)..(GL,GLI,STD,XL,XLI) W(*IW) |
1 | ||
| 84310-1A151 |
AE95..WG..EFI;AE95..LHD..SED;AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE9#,CE90,EE90 MATSUSHITA |
1 | ||
| 84312-12040 |
AE9#,CE90,EE90 TOKAIRIKA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12030 |
AE9#,CE90,EE90..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12270 |
AE9#,CE90,EE90..LHD |
1 | ||
| 84332-12310 |
AE9#,CE90,EE90..LHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10360 |
AE9#,CE90,EE90..LHD 14V 1.4W |
1 | ||
| 84999-10370 |
AE9#,CE90,EE90..LHD 28V 1.12W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE9#,CE90,EE90 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12770 |
AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) MATSUSHITA |
1 | ||
| 84652-12780 |
AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) TOKAIRIKA |
1 | ||
| 84652-12770 |
AE95..WG..EFI;AE95..LHD..SED;AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) MATSUSHITA |
1 | ||
| 84652-12780 |
AE95..WG..EFI;AE95..LHD..SED;AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) TOKAIRIKA |
1 | ||
| 84652-12800 |
AE9#,CE90,EE90..LHD..(LB,SED)..(GL,GLI,STD,XL,XLI) W(*IW),TOKAIRIKA |
1 | ||
| 84652-12790 |
AE9#,CE90,EE90..LHD..(LB,SED)..(GL,GLI,STD,XL,XLI) W(*IW),MATSUSHITA |
1 | ||
| 84652-12880 |
AE9#,CE90,EE90..LHD..SED W(*IW),WASHER INTER-LINKED,TOKAIRIKA |
1 | ||
| 84652-12870 |
AE9#,CE90,EE90..LHD..SED W(*IW),WASHER INTER-LINKED,MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12100 |
AE9#,CE90,EE90..LHD..(GL,GTI,STD,XL) |
1 | ||
| 84660-12110 |
AE92,EE90..LHD..CBR |
1 | ||
| 84660-12110 |
EE90..LHD..CBR;AE9#..LHD..5F..CBR |
1 | ||
| 84660-12100 |
AE92..LHD..5F..CBR;AE95,EE90..LHD..CBR |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12270 |
AE9#,CE90,EE90..LHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE9#,CE90,EE90 14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1225001 |
AE92,CE90,EE90..LHD..(GTI,STD) W(HEADLAMP CLEANER),BLACK,TRIM1# |
1 | ||
| 84790-1223001 |
CE90,EE90..RHD;AE9#..RHD..(LB,SED);AE92,CE90,EE90..LHD..(GTI,STD) BLACK,TRIM1# |
1 | ||
| 84790-1223005 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI DARK BEIGE,TRIM4# |
1 | ||
| 84790-1225005 |
AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) W(HEADLAMP CLEANER),DARK BEIGE,TRIM4# |
1 | ||
| 84790-1229001 |
AE9#,CE90,EE90..GL,GLI,STD,XL,XLI BLACK,TRIM1#,8# |
1 | ||
| 84790-1230001 |
AE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) W(HEADLAMP CLEANER),BLACK,TRIM1#,8# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
AE9#,CE90,EE90 12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE9#,CE90,EE90 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE9#,CE90,EE90 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE9#,CE90,EE90 |
1 | ||
| 85513-12010 |
AE9#,CE90,EE90 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE9#,CE90,EE90 |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-55020 | ||||
| 90179-13003 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

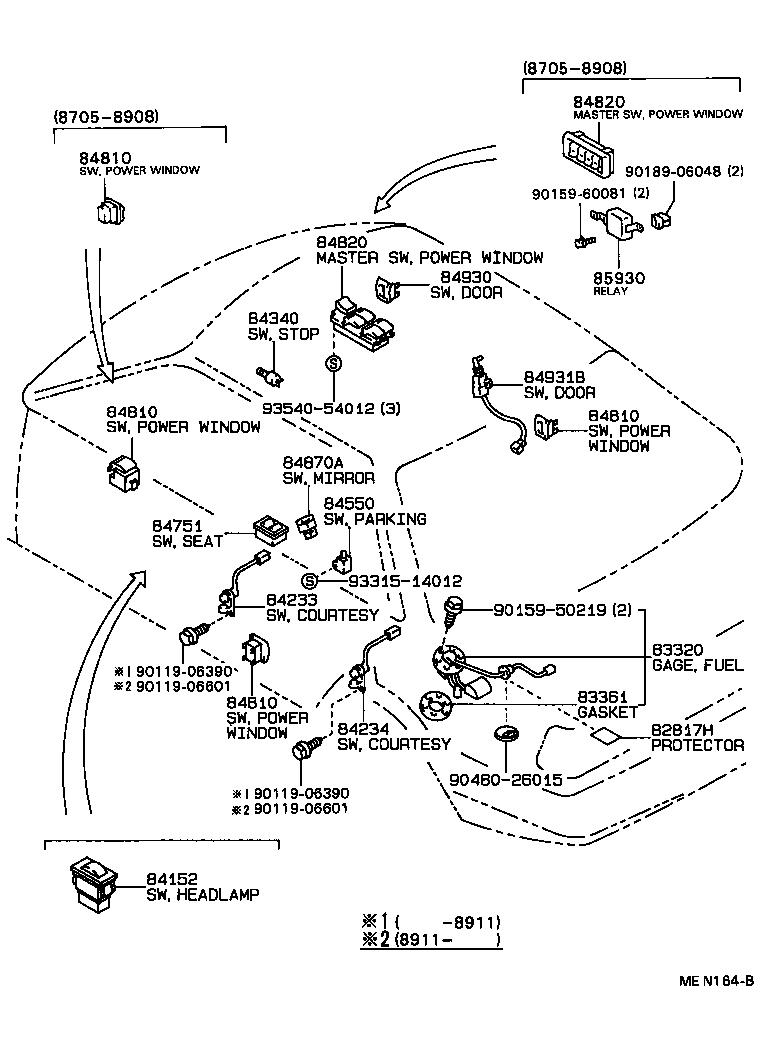

| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80081 |
CE90,EE90..STD..(CBR,DSL) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE9#,CE90,EE90 |
1 | ||
| 83361-32020 |
AE95;AE92,CE90,EE90..GL,STD,XL |
1 | ||
| 83361-32020 |
AE9#,CE90,EE90 |
1 | ||
| 83361-32020 |
AE92,CE90,EE90 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-12010 |
AE95..WG..EFI;AE95..LHD..CBR;AE92,CE90..LHD;EE90..SED..STD;EE90..LHD..(GL,XL,XLI) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
AE9#,CE90,EE90 |
2 | ||
| 84231-12060 |
AE9#,CE90,EE90 |
2 | ||
| 84231-16060 |
AE9#,CE90,EE90 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-16060 |
AE9#,CE90,EE90 |
2 | ||
| 84231-16060 |
AE9#,CE90,EE90 |
2 | ||
| 84231-12060 |
AE9#,CE90,EE90 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE9#,CE90,EE90 MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE9#,CE90,EE90 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90189-06048 | ||||
| 90480-26015 | ||||
| 93315-14012 | ||||
| 93540-54012 | ||||
(8705- )EE90
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE9#,CE90,EE90 30A,GREEN |
1 | ||
| 90982-07011 |
AE9#,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE9#,CE90,EE90 10A |
1 | ||
| 90982-09005 |
AE9#,CE90,EE90 7.5A |
1 | ||
| 90982-09002 |
AE9#,CE90,EE90 10A |
1 | ||
| 90982-09003 |
AE9#,CE90,EE90 15A |
1 | ||
| 90982-09003 |
AE9#,CE90,EE90 15A |
1 | ||
| 90982-09004 |
AE9#,CE90,EE90 20A,YELLOW |
1 | ||
| 90982-07011 |
AE9#,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE9#,CE90,EE90 10A |
1 | ||
| 90982-09005 |
AE9#,CE90,EE90 7.5A |
1 | ||
| 90982-09003 |
AE9#,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE9#,CE90,EE90 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE9#,CE90,EE90 30A,GREEN |
1 | ||
| 90982-07011 |
AE9#,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE9#,CE90,EE90 10A |
1 | ||
| 90982-09005 |
AE9#,CE90,EE90 7.5A |
1 | ||
| 90982-09002 |
AE9#,CE90,EE90 10A |
1 | ||
| 90982-09003 |
AE9#,CE90,EE90 15A |
1 | ||
| 90982-09003 |
AE9#,CE90,EE90 15A |
1 | ||
| 90982-09004 |
AE9#,CE90,EE90 20A,YELLOW |
1 | ||
| 90982-07011 |
AE9#,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE9#,CE90,EE90 10A |
1 | ||
| 90982-09005 |
AE9#,CE90,EE90 7.5A |
1 | ||
| 90982-09003 |
AE9#,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE9#,CE90,EE90 7.5A |
1 | ||

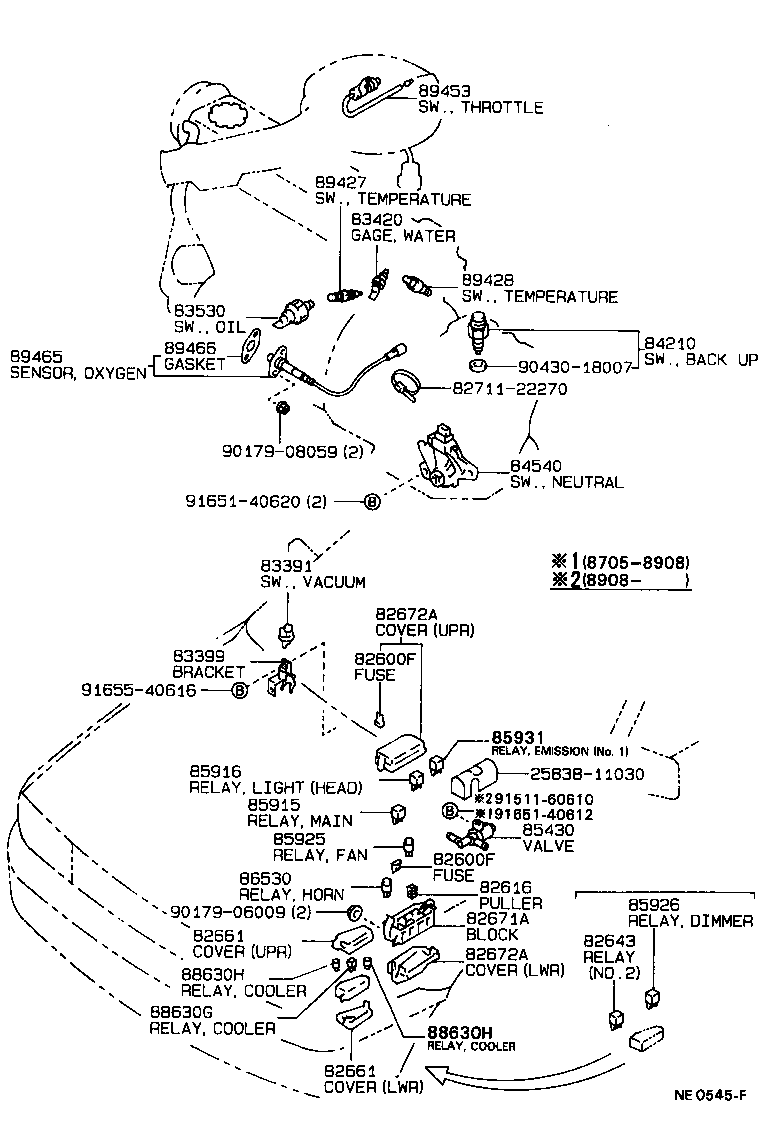

| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE9#,CE90,EE90 |
1 | ||
| 82616-12010 |
AE9#,CE90,EE90 |
1 | ||
| 82616-12010 |
AE95..LHD;AE92,CE90,EE90;AE95..RHD..SED |
1 | ||
| 82616-12010 |
AE9#,CE90,EE90 |
1 | ||

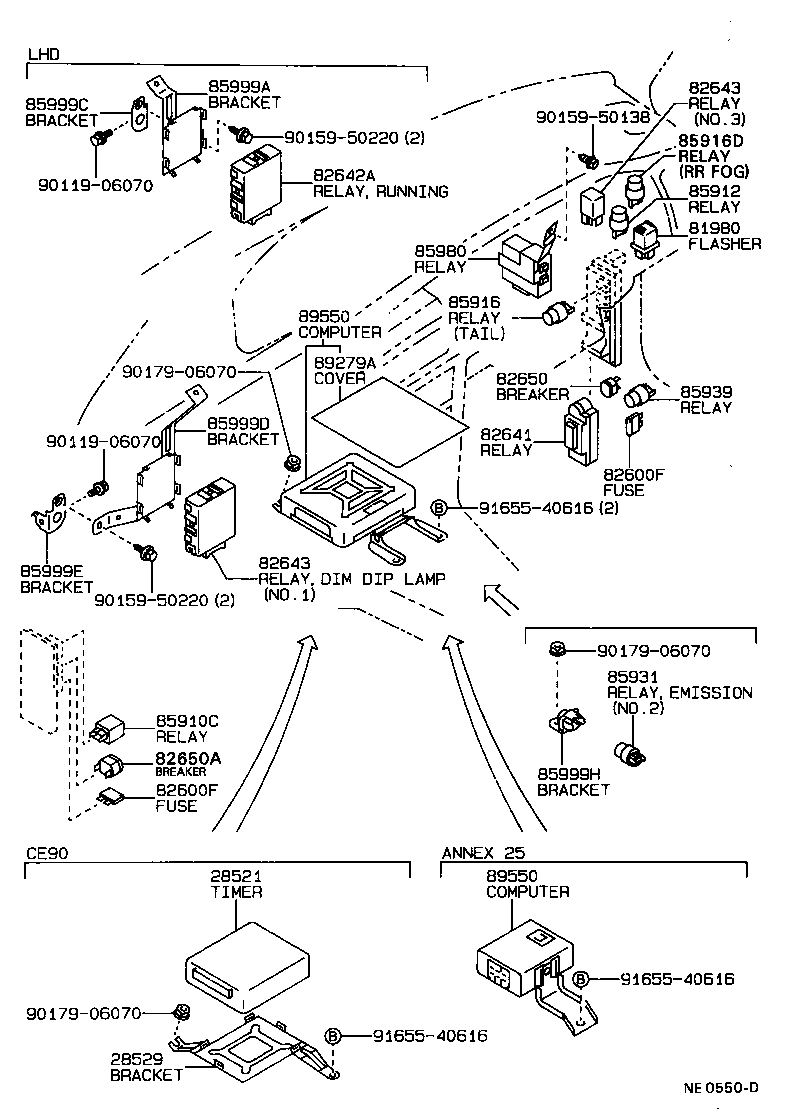

| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
EE90..SED..STD;EE90..LHD..(GL,XL);AE95,CE90..LHD..(CBR,DSL) *FRG OR NORWAY SPEC OR W(*AIC),LWR |
1 | ||
| 82661-12150 |
EE90..SED..STD;EE90..LHD..(GL,XL);AE95,CE90..LHD..(CBR,DSL) *FRG OR NORWAY SPEC,UPR |
1 | ||
| 82661-12160 |
CE90..LHD;EE90..SED..STD;EE90..LHD..(GL,XL) *FRG OR NORWAY SPEC OR W(*AIC),LWR |
1 | ||
| 82661-12140 |
AE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL) W(AIR CONDITIONER),UPR |
1 | ||
| 82661-12140 |
AE95..LHD..CBR;EE90..LHD..(LB,SED);AE92..LHD..(LB,SED)..5F..CBR W(AIR CONDITIONER),UPR |
1 | ||
| 82661-12160 |
EE90..LHD..(LB,SED) *FRG OR NORWAY SPEC OR W(*AIC),LWR |
1 | ||
| 82661-12150 |
CE90..LHD;EE90..SED..STD;EE90..LHD..(GL,XL) *FRG OR NORWAY SPEC,UPR |
1 | ||
| 82661-12150 |
CE90..LHD;EE90..LHD..WG..XL;EE90..LHD..(LB,SED)..(3FC,4F) *FRG OR NORWAY SPEC,UPR |
1 | ||
| 82661-12160 |
EE90..LHD..WG..XL;EE90..LHD..(LB,SED)..(3FC,4F) *FRG OR NORWAY SPEC OR W(*AIC),LWR |
1 | ||
| 82661-12140 |
AE95,EE90..LHD..CBR;AE92..LHD..(LB,SED)..5F..CBR W(AIR CONDITIONER),UPR |
1 | ||
| 82661-12160 |
AE95..WG..XL;EE90..SED..STD..CBR;EE90..LHD..(LB,SED)..(3FC,5F)..XL ANTI-PROJECT MEASURE COUNTRIES,LWR |
1 | ||
| 82661-12160 |
AE95..WG..XL;EE90..STD..CBR;EE90..LHD..(LB,SED)..(3FC,5F)..XL ANTI-PROJECT MEASURE COUNTRIES,LWR |
1 | ||
| 82661-12190 |
AE95..WG..XL;EE90..SED..STD..CBR;EE90..LHD..(LB,SED)..(3FC,5F)..XL *FRG OR ICELAND SPEC,UPR |
1 | ||
| 82661-12140 |
AE9#,EE90..LHD..CBR ANTI-PROJECT MEASURE COUNTRIES & W(*AIC),UPR |
1 | ||
| 82661-12140 |
EE90..LHD..CBR ANTI-PROJECT MEASURE COUNTRIES,UPR |
1 | ||
| 82661-12190 |
AE95..WG..XL;EE90..STD..CBR;EE90..3FC..EFI;EE90..LHD..(LB,SED)..(3FC,5F)..XL ICELAND SPEC,UPR |
1 | ||
| 82661-12160 |
AE95..WG..XL;EE90..STD..CBR;EE90..LHD..(LB,SED)..(3FC,5F)..XL ANTI-PROJECT MEASURE COUNTRIES,LWR |
1 | ||
| 82661-12140 |
AE92,CE90,EE90..LHD..(CBR,DSL) ANTI-PROJECT MEASURE COUNTRIES,UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
EE90..SED..STD;EE90..LHD..(GL,XL);AE95,CE90..LHD..(CBR,DSL) *FRG OR NORWAY SPEC OR W(*AIC),LWR |
1 | ||
| 82661-12150 |
EE90..SED..STD;EE90..LHD..(GL,XL);AE95,CE90..LHD..(CBR,DSL) *FRG OR NORWAY SPEC,UPR |
1 | ||
| 82661-12160 |
CE90..LHD;EE90..SED..STD;EE90..LHD..(GL,XL) *FRG OR NORWAY SPEC OR W(*AIC),LWR |
1 | ||
| 82661-12140 |
AE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL) W(AIR CONDITIONER),UPR |
1 | ||
| 82661-12140 |
AE95..LHD..CBR;EE90..LHD..(LB,SED);AE92..LHD..(LB,SED)..5F..CBR W(AIR CONDITIONER),UPR |
1 | ||
| 82661-12160 |
EE90..LHD..(LB,SED) *FRG OR NORWAY SPEC OR W(*AIC),LWR |
1 | ||
| 82661-12150 |
CE90..LHD;EE90..SED..STD;EE90..LHD..(GL,XL) *FRG OR NORWAY SPEC,UPR |
1 | ||
| 82661-12150 |
CE90..LHD;EE90..LHD..WG..XL;EE90..LHD..(LB,SED)..(3FC,4F) *FRG OR NORWAY SPEC,UPR |
1 | ||
| 82661-12160 |
EE90..LHD..WG..XL;EE90..LHD..(LB,SED)..(3FC,4F) *FRG OR NORWAY SPEC OR W(*AIC),LWR |
1 | ||
| 82661-12140 |
AE95,EE90..LHD..CBR;AE92..LHD..(LB,SED)..5F..CBR W(AIR CONDITIONER),UPR |
1 | ||
| 82661-12160 |
AE95..WG..XL;EE90..SED..STD..CBR;EE90..LHD..(LB,SED)..(3FC,5F)..XL ANTI-PROJECT MEASURE COUNTRIES,LWR |
1 | ||
| 82661-12160 |
AE95..WG..XL;EE90..STD..CBR;EE90..LHD..(LB,SED)..(3FC,5F)..XL ANTI-PROJECT MEASURE COUNTRIES,LWR |
1 | ||
| 82661-12190 |
AE95..WG..XL;EE90..SED..STD..CBR;EE90..LHD..(LB,SED)..(3FC,5F)..XL *FRG OR ICELAND SPEC,UPR |
1 | ||
| 82661-12140 |
AE9#,EE90..LHD..CBR ANTI-PROJECT MEASURE COUNTRIES & W(*AIC),UPR |
1 | ||
| 82661-12140 |
EE90..LHD..CBR ANTI-PROJECT MEASURE COUNTRIES,UPR |
1 | ||
| 82661-12190 |
AE95..WG..XL;EE90..STD..CBR;EE90..3FC..EFI;EE90..LHD..(LB,SED)..(3FC,5F)..XL ICELAND SPEC,UPR |
1 | ||
| 82661-12160 |
AE95..WG..XL;EE90..STD..CBR;EE90..LHD..(LB,SED)..(3FC,5F)..XL ANTI-PROJECT MEASURE COUNTRIES,LWR |
1 | ||
| 82661-12140 |
AE92,CE90,EE90..LHD..(CBR,DSL) ANTI-PROJECT MEASURE COUNTRIES,UPR |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12050 |
AE9#,EE90..CBR |
1 | ||
| 82671-12100 |
AE92..LHD..CBR;EE90..LHD..MTM EX.EMISSION CONTROL (A 11) |
1 | ||
| 82671-12090 |
EE90..LHD..WG..XL;AE95,CE90..LHD..(CBR,DSL);EE90..LHD..(LB,SED)..(3FC,4F) *FRG OR NORWAY SPEC |
1 | ||
| 82671-12090 |
EE90..SED..STD;EE90..LHD..(GL,XL);AE95,CE90..LHD..(CBR,DSL) *FRG OR NORWAY SPEC |
1 | ||
| 82671-12050 |
AE9#,EE90..CBR |
1 | ||
| 82671-12090 |
EE90..SED..STD..CBR;EE90..LHD..(LB,SED)..(3FC,5F)..XL *FRG OR ICELAND SPEC |
1 | ||
| 82671-12050 |
AE92,EE90..CBR;AE95..LHD..SED..CBR |
1 | ||
| 82671-12090 |
EE90..3FC..EFI;EE90..SED..STD..CBR;EE90..LHD..SED..(3FC,5F)..XL;EE90..LHD..(LB,WG)..(STD,XL)..CBR ICELAND SPEC |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12010 |
AE9#,EE90..CBR UPR |
1 | ||
| 82672-12060 |
AE92..LHD..CBR;EE90..LHD..MTM EX.EMISSION CONTROL (A 11),UPR |
1 | ||
| 82672-12070 |
AE9#,CE90,EE90 LWR |
1 | ||
| 82672-12040 |
EE90..SED..STD;EE90..LHD..(GL,XL);AE95,CE90..LHD..(CBR,DSL) *FRG OR NORWAY SPEC,UPR |
1 | ||
| 82672-12160 |
EE90..SED..STD..CBR;EE90..LHD..(LB,SED)..(3FC,5F)..XL *FRG OR ICELAND SPEC,UPR |
1 | ||
| 82672-12040 |
EE90..LHD..WG..XL;AE95,CE90..LHD..(CBR,DSL);EE90..LHD..(LB,SED)..(3FC,4F) *FRG OR NORWAY SPEC,UPR |
1 | ||
| 82672-12070 |
AE9#,CE90,EE90 LWR |
1 | ||
| 82672-12140 |
AE92,EE90..CBR;AE95..LHD..SED..CBR UPR |
1 | ||
| 82672-12070 |
AE9#,CE90,EE90 LWR |
1 | ||
| 82672-12160 |
EE90..3FC..EFI;EE90..SED..STD..CBR;EE90..LHD..SED..(3FC,5F)..XL;EE90..LHD..(LB,WG)..(STD,XL)..CBR ICELAND SPEC,UPR |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12010 |
AE9#,EE90..CBR UPR |
1 | ||
| 82672-12060 |
AE92..LHD..CBR;EE90..LHD..MTM EX.EMISSION CONTROL (A 11),UPR |
1 | ||
| 82672-12070 |
AE9#,CE90,EE90 LWR |
1 | ||
| 82672-12040 |
EE90..SED..STD;EE90..LHD..(GL,XL);AE95,CE90..LHD..(CBR,DSL) *FRG OR NORWAY SPEC,UPR |
1 | ||
| 82672-12160 |
EE90..SED..STD..CBR;EE90..LHD..(LB,SED)..(3FC,5F)..XL *FRG OR ICELAND SPEC,UPR |
1 | ||
| 82672-12040 |
EE90..LHD..WG..XL;AE95,CE90..LHD..(CBR,DSL);EE90..LHD..(LB,SED)..(3FC,4F) *FRG OR NORWAY SPEC,UPR |
1 | ||
| 82672-12070 |
AE9#,CE90,EE90 LWR |
1 | ||
| 82672-12140 |
AE92,EE90..CBR;AE95..LHD..SED..CBR UPR |
1 | ||
| 82672-12070 |
AE9#,CE90,EE90 LWR |
1 | ||
| 82672-12160 |
EE90..3FC..EFI;EE90..SED..STD..CBR;EE90..LHD..SED..(3FC,5F)..XL;EE90..LHD..(LB,WG)..(STD,XL)..CBR ICELAND SPEC,UPR |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12210 |
AE92..LHD..CBR;EE90..LHD..MTM MARK=80FM,TOKAIRIKA |
1 | ||
| 83391-12210 |
EE90..LHD..MTM MARK=80FM,TOKAIRIKA |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-12120 |
EE90..LHD..MTM |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE9#,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 83420-16020 |
AE92,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 83420-16020 |
EE90 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
EE90 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE9#,CE90,EE90..MTM..(GL,GLI,STD,XL,XLI) |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09011 |
EE90..LHD..MTM |
1 | ||
| 90925-09034 |
EE90..CBR |
2 | ||
| 90925-09015 |
EE90..LHD..MTM |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE9#,CE90,EE90 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
AE9#,CE90,EE90 NIPPONDENSO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE90,EE90 HEAD |
1 | ||
| 90987-02002 |
AE9#,CE90,EE90 MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE90,EE90 HEAD |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE9#,CE90,EE90 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
EE90..SED..STD;EE90..LHD..(GL,XL);AE95,CE90..LHD..(CBR,DSL) |
1 | ||
| 85926-30020 |
EE90..LHD..WG..XL;AE95,CE90..LHD..(CBR,DSL);EE90..LHD..(LB,SED)..(3FC,4F) |
1 | ||
| 85926-30020 |
AE95..WG..XL;EE90..SED..STD..CBR;EE90..LHD..(LB,SED)..(3FC,5F)..XL |
1 | ||
| 85926-30020 |
EE90..3FC..EFI;EE90..SED..STD..CBR;EE90..LHD..SED..(3FC,5F)..XL;AE95,EE90..LHD..(LB,WG)..(STD,XL)..CBR |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 90987-02004 |
EE90..CBR;AE95..WG..CBR NO.2 |
1 | ||
| 85950-12010 |
EE90..CBR;AE95..WG..CBR NO.1 |
1 | ||
| 90987-02006 |
AE92..LHD..CBR;EE90..LHD..MTM NO.1 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
AE9#,CE90,EE90 MARUKO |
1 | ||
| 90987-02004 |
AE9#,CE90,EE90 NIPPONDENSO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL) |
1 | ||
| 88630-32010 |
EE90..LHD..CBR;AE9#,CE90..LHD..5F..(CBR,DSL) |
1 | ||
| 88630-32010 |
EE90..LHD..CBR;AE92,CE90..LHD..5F..(CBR,DSL) |
1 | ||
| 88630-32010 |
AE92,CE90,EE90..LHD..(CBR,DSL) |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
EE90..LHD..CBR;AE9#,CE90..LHD..5F..(CBR,DSL) |
2 | ||
| 90987-02004 |
EE90..LHD..CBR;AE92,CE90..LHD..5F..(CBR,DSL) |
2 | ||
| 90987-02004 |
AE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL) |
2 | ||
| 90987-02004 |
AE92,CE90,EE90..LHD..(CBR,DSL) |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
EE90..LHD..CBR;AE9#,CE90..LHD..5F..(CBR,DSL) |
2 | ||
| 90987-02004 |
EE90..LHD..CBR;AE92,CE90..LHD..5F..(CBR,DSL) |
2 | ||
| 90987-02004 |
AE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL) |
2 | ||
| 90987-02004 |
AE92,CE90,EE90..LHD..(CBR,DSL) |
2 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12090 |
EE90..CBR;AE95..WG..CBR |
1 | ||
| 89427-12070 |
EE90..LHD..MTM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10100 |
EE90 AISIN |
1 | ||
| 89428-10110 |
EE90 NIPPONDENSO |
1 | ||
| 89428-20060 |
EE90 |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-16010 |
EE90..LHD..MTM |
1 | ||
| 89453-12050 |
EE90..LHD..MTM..CBR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19195 |
EE90..LHD..MTM |
1 | ||
| 89465-19275 |
EE90..LHD..MTM |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
AE95..EFI;EE90..LHD..MTM |
1 | ||
| 89466-30020 |
EE90..LHD..MTM |
1 | ||
| Common parts | ||||
| 25838-11030 | ||||
| 82711-22270 | ||||
| 90179-06009 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 91511-60610 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE9#,CE90,EE90 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE9#,CE90,EE90 30A,GREEN |
1 | ||
| 90982-07011 |
AE9#,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE9#,CE90,EE90 10A |
1 | ||
| 90982-09005 |
AE9#,CE90,EE90 7.5A |
1 | ||
| 90982-09002 |
AE9#,CE90,EE90 10A |
1 | ||
| 90982-09003 |
AE9#,CE90,EE90 15A |
1 | ||
| 90982-09003 |
AE9#,CE90,EE90 15A |
1 | ||
| 90982-09004 |
AE9#,CE90,EE90 20A,YELLOW |
1 | ||
| 90982-07011 |
AE9#,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE9#,CE90,EE90 10A |
1 | ||
| 90982-09005 |
AE9#,CE90,EE90 7.5A |
1 | ||
| 90982-09003 |
AE9#,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE9#,CE90,EE90 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE9#,CE90,EE90 30A,GREEN |
1 | ||
| 90982-07011 |
AE9#,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE9#,CE90,EE90 10A |
1 | ||
| 90982-09005 |
AE9#,CE90,EE90 7.5A |
1 | ||
| 90982-09002 |
AE9#,CE90,EE90 10A |
1 | ||
| 90982-09003 |
AE9#,CE90,EE90 15A |
1 | ||
| 90982-09003 |
AE9#,CE90,EE90 15A |
1 | ||
| 90982-09004 |
AE9#,CE90,EE90 20A,YELLOW |
1 | ||
| 90982-07011 |
AE9#,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE9#,CE90,EE90 10A |
1 | ||
| 90982-09005 |
AE9#,CE90,EE90 7.5A |
1 | ||
| 90982-09003 |
AE9#,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE9#,CE90,EE90 7.5A |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12010 |
AE9#,CE90,EE90 |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-28010 |
AE95,CE90,EE90..LHD..(CBR,DSL) NORWAY SPEC |
1 | ||
| 82642-28010 |
EE90..LHD..WG;AE95,CE90..LHD..(CBR,DSL);EE90..LHD..(LB,SED)..(3FC,4F) NORWAY SPEC |
1 | ||
| 82642-12030 |
EE90..3FC..EFI;EE90..SED..STD..CBR;EE90..LHD..SED..(3FC,5F)..XL;AE95,EE90..LHD..(LB,WG)..(STD,XL)..CBR |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE9#,CE90,EE90 30A |
1 | ||
| 82650-20011 |
AE92,CE90,EE90 30A |
1 | ||
| 82650-20011 |
AE92,CE90,EE90 30A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE9#,CE90,EE90 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
AE9#,CE90,EE90..LHD MARUKO |
1 | ||
| 90987-02004 |
AE9#,CE90,EE90..LHD NIPPONDENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
AE9#,CE90,EE90 NIPPONDENSO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE90,EE90 HEAD |
1 | ||
| 90987-02002 |
AE9#,CE90,EE90 MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE90,EE90 HEAD |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02002 |
AE9#,CE90,EE90 MARUKO |
1 | ||
| 90987-02004 |
AE9#,CE90,EE90 NIPPONDENSO |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 90987-02004 |
EE90..CBR;AE95..WG..CBR NO.2 |
1 | ||
| 85950-12010 |
EE90..CBR;AE95..WG..CBR NO.1 |
1 | ||
| 90987-02006 |
AE92..LHD..CBR;EE90..LHD..MTM NO.1 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12100 |
EE90..3FC..EFI;EE90..SED..STD..CBR;EE90..LHD..SED..(3FC,5F)..XL;AE95,EE90..LHD..(LB,WG)..(STD,XL)..CBR |
1 | ||
| 85999-12100 |
EE90..LHD..WG;AE95,CE90..LHD..(CBR,DSL);EE90..LHD..(LB,SED)..(3FC,4F) |
1 | ||
| 85999-12100 |
AE95,CE90,EE90..LHD..(CBR,DSL) |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-12090 |
AE95,CE90,EE90..LHD..(CBR,DSL) |
1 | ||
| 85999-12090 |
EE90..3FC..EFI;EE90..SED..STD..CBR;EE90..LHD..SED..(3FC,5F)..XL;AE95,EE90..LHD..(LB,WG)..(STD,XL)..CBR |
1 | ||
| 85999-12090 |
EE90..LHD..WG;AE95,CE90..LHD..(CBR,DSL);EE90..LHD..(LB,SED)..(3FC,4F) |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-12050 |
EE90..CBR;AE95..WG..CBR |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-12040 |
EE90..LHD..MTM |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-1A060 |
EE90..LHD..MTM EX.EMISSION CONTROL(US83) |
1 | ||
| 89550-1A070 |
EE90..LHD..MTM EX.EMISSION CONTROL(SEVERE) |
1 | ||
| 89550-1A210 |
EE90..LHD..MTM..CBR |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-1A060 |
EE90..LHD..MTM EX.EMISSION CONTROL(US83) |
1 | ||
| 89550-1A070 |
EE90..LHD..MTM EX.EMISSION CONTROL(SEVERE) |
1 | ||
| 89550-1A210 |
EE90..LHD..MTM..CBR |
1 | ||
| Common parts | ||||
| 90119-06070 | ||||
| 90159-50138 | ||||
| 90159-50220 | ||||
| 90179-06070 | ||||
| 91655-40616 | ||||
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

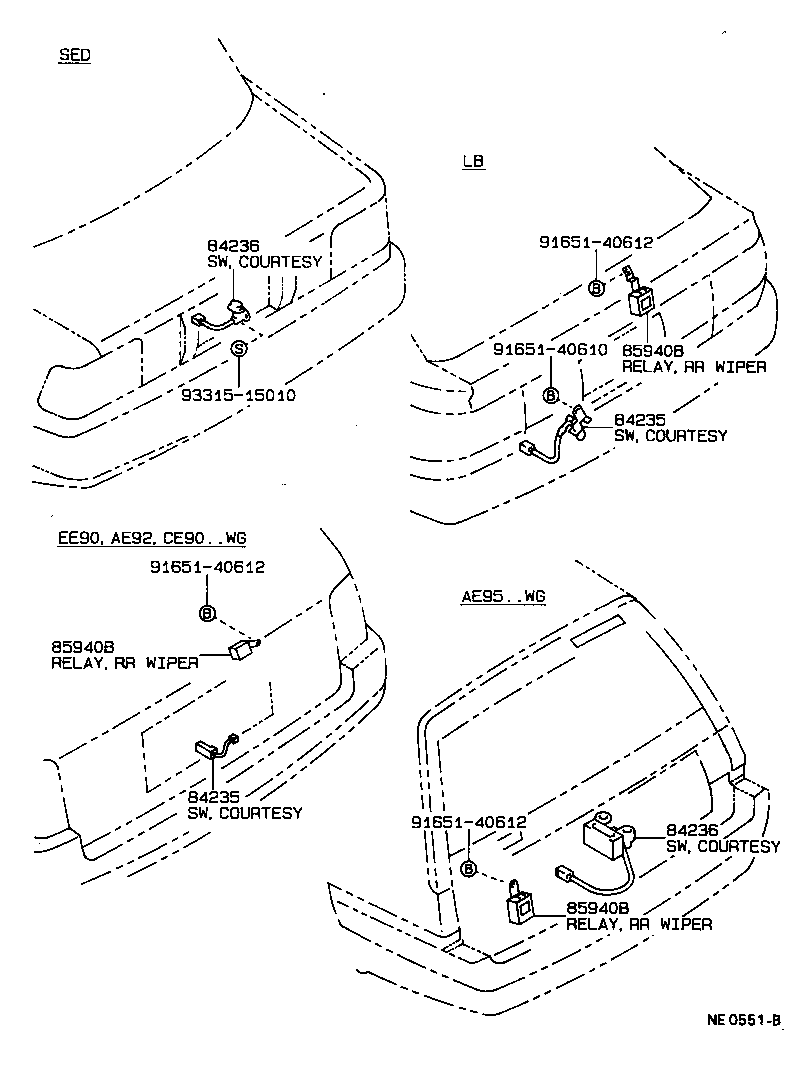

| Common parts | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 93315-15010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
