EE90L-AEKRSW (1987)
Toyota Corolla Sed/Lb/Wg
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12300 | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-16450 | ||||
| 82711-16460 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-1A330 | ||||
| 82711-1A400 | ||||
| 82711-1A410 | ||||
| 82711-1A420 | ||||
| 82711-1A430 | ||||
| 82711-1A440 | ||||
| 82711-1A450 | ||||
| 82711-1A500 | ||||
| 82711-1A510 | ||||
| 82711-1A540 | ||||
| 82711-1A630 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-24210 | ||||
| 82711-30130 | ||||
| 82711-95718 | ||||

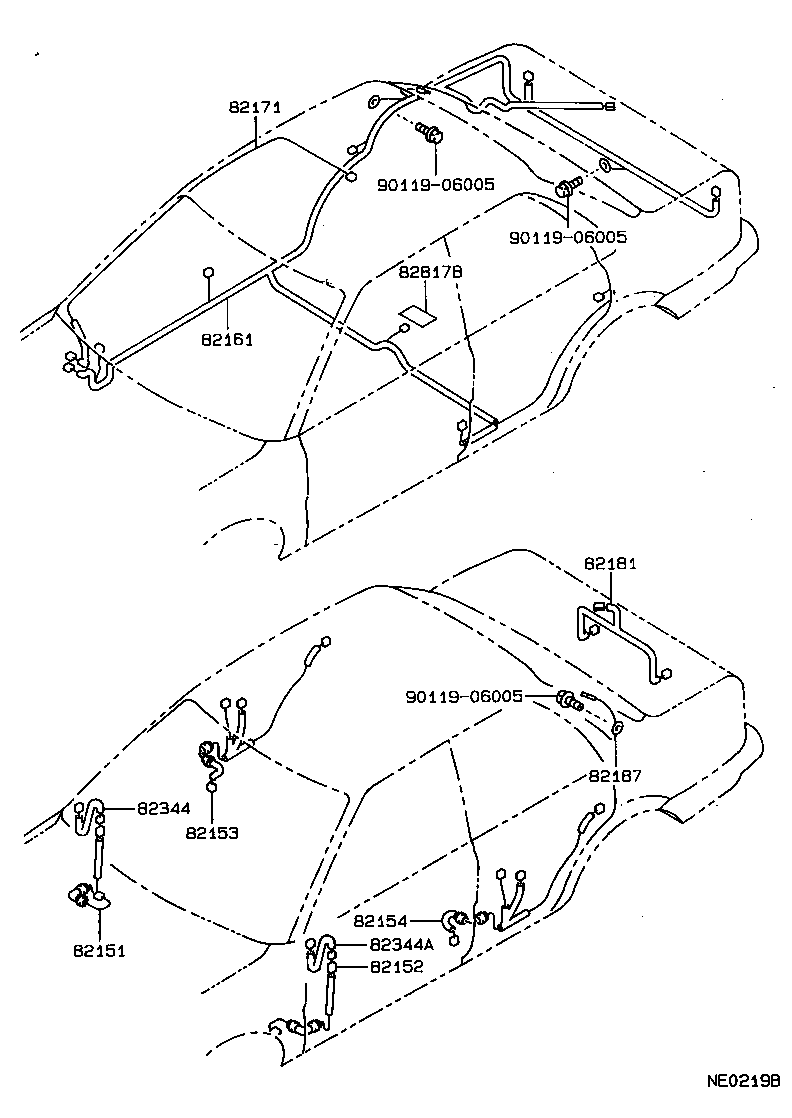

ILLUST NO. 2 OF 5(8705- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-1A120 |
AE92,CE90,EE90..LHD..SED |
1 | ||
| 82161-1E500 |
AE92,CE90,EE90..LHD..SED..(CBR,DSL) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12160 |
AE9#,CE90,EE90..LHD..SED |
1 | ||
| 82171-12340 |
AE9#,CE90,EE90..LHD..SED |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-12120 |
AE9#,CE90,EE90..SED |
1 | ||
| 82181-12150 |
AE9#,CE90,EE90..SED |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12130 |
AE9#,CE90,EE90..SED |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE92,CE90,EE90 |
1 | ||
| 82817-16100 |
AE92,CE90,EE90 |
1 | ||
| 82817-12140 |
AE92,CE90,EE90..LB,SED |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
ILLUST NO. 3 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-32020 |
AE95..EFI;AE92..5F..CBR;AE92..RHD..3FC;EE90..LHD..MTM;AE95,CE90,EE90..RHD NO.8 |
1 | ||
| 82345-12030 |
EE90..SED..STD NO.2 |
1 | ||
| 82345-32020 |
CE90..WG;AE95..EFI;AE92..5F..CBR;AE92..RHD..3FC;CE90,EE90..RHD;EE90..LHD..MTM..CBR NO.8 |
1 | ||
| 82345-32020 |
EE90..SED..STD NO.8 |
2 | ||
| 82345-12030 |
EE90..SED..STD..CBR NO.2 |
1 | ||
| 82345-32020 |
AE95..EFI;AE92..5F..CBR;CE90,EE90..RHD;AE92..RHD..3FC;EE90..LHD..MTM NO.8 |
1 | ||
| 82345-12030 |
EE90..SED..STD..CBR NO.2 |
1 | ||
| 82345-32020 |
AE95..EFI;AE92..5F..CBR;CE90,EE90..RHD;AE92..RHD..3FC;EE90..LHD..MTM..CBR NO.8 |
1 | ||
| 82345-12030 |
EE90..SED..STD..CBR NO.2 |
1 | ||
| Common parts | ||||
| 82345-12030 | ||||
| 82345-12040 | ||||
| 82345-12050 | ||||
| 82345-32020 | ||||
(8705- )EE90
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
EE90 NO.1 |
1 | ||
| 90980-07293 |
EE90 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
EE90 NO.1 |
1 | ||
| 90980-07293 |
EE90 NO.2 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1A290 |
CE90..LHD;EE90..SED..STD;EE90..LHD..(GL,XL) *FRG OR NORWAY SPEC |
1 | ||
| 82111-1A270 |
AE9#,CE90,EE90..LHD |
1 | ||
| 82111-1A300 |
AE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL) W(AIR CONDITIONER) |
1 | ||
| 82111-1A280 |
AE9#,CE90,EE90..LHD W(HEADLAMP CLEANER) |
1 | ||
| 82111-1A290 |
EE90..SED..STD;EE90..LHD..(GL,XL);AE95,CE90..LHD..(CBR,DSL) *FRG OR NORWAY SPEC |
1 | ||
| 82111-1A300 |
AE95..LHD..CBR;EE90..LHD..(LB,SED);AE92..LHD..(LB,SED)..5F..CBR W(AIR CONDITIONER) |
1 | ||
| 82111-1A290 |
CE90..LHD;EE90..LHD..WG..XL;EE90..LHD..(LB,SED)..(3FC,4F) *FRG OR NORWAY SPEC |
1 | ||
| 82111-1A300 |
AE95,EE90..LHD..CBR;AE92..LHD..(LB,SED)..5F..CBR W(AIR CONDITIONER) |
1 | ||
| 82111-1A780 |
AE9#,EE90..LHD..CBR ANTI-PROJECT MEASURE COUNTRIES & W(*AIC) |
1 | ||
| 82111-1A790 |
AE95..WG..EFI;AE95..LHD..CBR;AE92,CE90..LHD;EE90..SED..STD;EE90..LHD..(GL,XL,XLI) *FRG |
1 | ||
| 82111-1A780 |
EE90..LHD..CBR;AE9#,CE90..LHD..5F..(CBR,DSL) ANTI-PROJECT MEASURE COUNTRIES |
1 | ||
| 82111-1A770 |
AE95..WG..XL;EE90..STD..CBR;EE90..3FC..EFI;EE90..LHD..(LB,SED)..(3FC,5F)..XL ICELAND SPEC |
1 | ||
| 82111-1A750 |
AE9#,CE90,EE90..LHD |
1 | ||
| 82111-1A760 |
AE9#,CE90,EE90..LHD W(HEADLAMP CLEANER) |
1 | ||
| 82111-1A780 |
AE92,CE90,EE90..LHD..(CBR,DSL) ANTI-PROJECT MEASURE COUNTRIES |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-1A390 |
EE90..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 82121-1A350 |
EE90..LHD..MTM |
1 | ||
| 82121-1A380 |
EE90..LHD..MTM EX.EMISSION CONTROL (A 11) |
1 | ||
| 82121-1A391 |
EE90..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 82121-1A370 |
EE90..LHD..MTM EX.EMISSION CONTROL (ANNEX 25) |
1 | ||
| 82121-1A351 |
EE90..LHD..MTM |
1 | ||
| 82121-1A391 |
EE90..LHD..(LB,SED)..MTM W(AIR CONDITIONER) |
1 | ||
| 82121-1A391 |
EE90..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 82121-1E540 |
EE90..LHD..(LB,SED)..MTM..CBR W(AIR CONDITIONER) |
1 | ||
| 82121-1E530 |
EE90..LHD..MTM..CBR EX.EMISSION CONTROL (ANNEX 25) |
1 | ||
| 82121-1E510 |
EE90..LHD..MTM..CBR |
1 | ||
| 82121-1E540 |
EE90..LHD..MTM..CBR ANTI-PROJECT MEASURE COUNTRIES |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12170 |
AE9#,EE90..MTM |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1A800 |
AE92,EE90..LHD..MTM..CBR |
1 | ||
| 82131-1A810 |
EE90..SED..STD EX.EMISSION CONTROL (A 11) |
1 | ||
| 82131-1E010 |
EE90..SED..STD;EE90..LHD..3FC;CE90..LHD..(LB,SED) W(AIR CONDITIONER) |
1 | ||
| 82131-1A840 |
CE90..LHD;EE90..SED..STD;AE92,EE90..LHD..3FC *FRG |
1 | ||
| 82131-1A870 |
CE90..LHD;EE90..SED..STD;EE90..LHD..3FC NORWAY SPEC |
1 | ||
| 82131-1A801 |
AE92,EE90..LHD..MTM..CBR |
1 | ||
| 82131-1A811 |
EE90..SED..STD EX.EMISSION CONTROL (A 11) |
1 | ||
| 82131-1A841 |
CE90..LHD;EE90..SED..STD;AE92,EE90..LHD..3FC *FRG |
1 | ||
| 82131-1A871 |
CE90..LHD;EE90..SED..STD;EE90..LHD..3FC NORWAY SPEC |
1 | ||
| 82131-1E011 |
EE90..SED..STD;EE90..LHD..3FC;CE90..LHD..(LB,SED) W(AIR CONDITIONER) |
1 | ||
| 82131-1H750 |
CE90..WG;AE92,EE90..LHD..MTM..CBR |
1 | ||
| 82131-1K140 |
CE90..LHD;EE90..LHD..3FC;AE92,EE90..LHD..(LB,SED)..(3FC,4F)..(GL,STD)..CBR *FRG |
1 | ||
| 82131-1K140 |
CE90..STD;EE90..LHD..3FC;CE90..LHD..(LB,SED);AE92,EE90..LHD..(LB,SED)..(3FC,4F)..(GL,STD)..CBR *FRG |
1 | ||
| 82131-1H770 |
EE90..LHD..3FC;EE90..SED..STD..CBR ANTI-PROJECT MEASURE COUNTRIES & W(*AIC) |
1 | ||
| 82131-1H750 |
AE92,EE90..LHD..MTM..CBR |
1 | ||
| 82131-1K080 |
EE90..STD..CBR;EE90..LHD..3FC..CBR ICELAND SPEC |
1 | ||
| 82131-1H780 |
EE90..SED..STD..CBR;EE90..LHD..SED..3FC..CBR FINLAND OR DENMARK SPEC & W(*SH) |
1 | ||
| 82131-1H770 |
CE90..LHD;EE90..LHD..3FC..CBR;AE92,EE90..LHD..(3FC,4F)..(GL,STD)..CBR ANTI-PROJECT MEASURE COUNTRIES |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9#,CE90,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08188 |
AE9#,CE90,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
AE9#,EE90..CBR 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08188 |
AE9#,CE90,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08223 |
EE90 30A,TERM.:MALE,PNK,30A,TERMINAL:MALE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9#,CE90,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08188 |
AE9#,CE90,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
AE9#,EE90..CBR 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08188 |
AE9#,CE90,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08223 |
EE90 30A,TERM.:MALE,PNK,30A,TERMINAL:MALE |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
AE95..EFI;AE92..5F..CBR;AE92..RHD..3FC;EE90..LHD..MTM;AE95,CE90,EE90..RHD NO.8 |
1 | ||
| 82345-12030 |
EE90..SED..STD NO.2 |
1 | ||
| 82345-32020 |
CE90..WG;AE95..EFI;AE92..5F..CBR;AE92..RHD..3FC;CE90,EE90..RHD;EE90..LHD..MTM..CBR NO.8 |
1 | ||
| 82345-32020 |
EE90..SED..STD NO.8 |
2 | ||
| 82345-12030 |
EE90..SED..STD..CBR NO.2 |
1 | ||
| 82345-32020 |
AE95..EFI;AE92..5F..CBR;CE90,EE90..RHD;AE92..RHD..3FC;EE90..LHD..MTM NO.8 |
1 | ||
| 82345-12030 |
EE90..SED..STD..CBR NO.2 |
1 | ||
| 82345-32020 |
AE95..EFI;AE92..5F..CBR;CE90,EE90..RHD;AE92..RHD..3FC;EE90..LHD..MTM..CBR NO.8 |
1 | ||
| 82345-12030 |
EE90..SED..STD..CBR NO.2 |
1 | ||
| 82625 - TERMINAL, FUSIBLE LINK | ||||
| 82625-12010 |
AE9#,EE90..CBR |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12100 |
AE95..WG..EFI;EE90..SED..STD;EE90..LHD..(GL,XL);AE9#,CE90..LHD..(GL,GTI,STD,XL) *FRG |
1 | ||
| 82670-12090 |
AE9#,CE90,EE90 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12030 |
AE92,CE90,EE90..LHD NO.1 |
1 | ||
| 82671-12070 |
AE9#,CE90,EE90 NO.2 |
1 | ||
| 82671-12070 |
AE92,CE90,EE90..LHD NO.2 |
1 | ||
| 82671-12030 |
AE9#,CE90,EE90 NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12030 |
AE92,CE90,EE90..LHD NO.1 |
1 | ||
| 82671-12070 |
AE9#,CE90,EE90 NO.2 |
1 | ||
| 82671-12070 |
AE92,CE90,EE90..LHD NO.2 |
1 | ||
| 82671-12030 |
AE9#,CE90,EE90 NO.1 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-12110 |
AE92..LHD..5F;CE90,EE90..LHD |
1 | ||
| 82672-12111 |
AE9#,CE90,EE90..LHD |
1 | ||
| 82672-12110 |
AE9#,CE90,EE90..LHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9#,CE90,EE90 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9#,CE90,EE90 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9#,CE90,EE90 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9#,CE90,EE90 |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12190 |
CE90..LHD;AE9#,EE90..GL,GTI,STD,XL |
1 | ||
| 82821-12180 |
EE90;CE90..RHD;AE9#..CBR |
1 | ||
| 82821-12180 |
CE90..RHD;AE92,EE90..CBR |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
AE95,EE90;AE92..GL,GTI,XL |
1 | ||
| 82823-22050 |
AE9#,EE90 |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-08063 | ||||
| 90119-08443 | ||||
| 90167-45011 | ||||
| 90179-06132 | ||||
| 91656-40620 | ||||
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-17010 |
AE9#,CE90,EE90 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22050 |
AE9#,CE90,EE90 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-10020 |
AE9#,CE90,EE90 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
AE9#,CE90,EE90 |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-12010 |
AE9#,CE90,EE90 |
1 | ||
| Common parts | ||||
| 82981-17010 | ||||
| 82982-22050 | ||||
| 82983-10020 | ||||
| 82984-20010 | ||||
| 82985-12010 | ||||
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12030 |
AE9#,CE90,EE90 NO.1 |
1 | ||
| 82991-12040 |
AE9#,CE90,EE90 NO.2 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12030 |
AE9#,CE90,EE90 NO.1 |
1 | ||
| 82991-12040 |
AE9#,CE90,EE90 NO.2 |
1 | ||
| Common parts | ||||
| 82991-12030 | ||||
| 82991-12040 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16470 | ||||
| 82711-1A620 | ||||
| 82711-22270 | ||||
| 82715-12010 | ||||
| 82715-12020 | ||||
| 82715-12030 | ||||
| 82715-89113 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
