EE90L-AEKRSW (1987)
Toyota Corolla Sed/Lb/Wg
Production
May 1987
-
May 1992
Engine
2E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

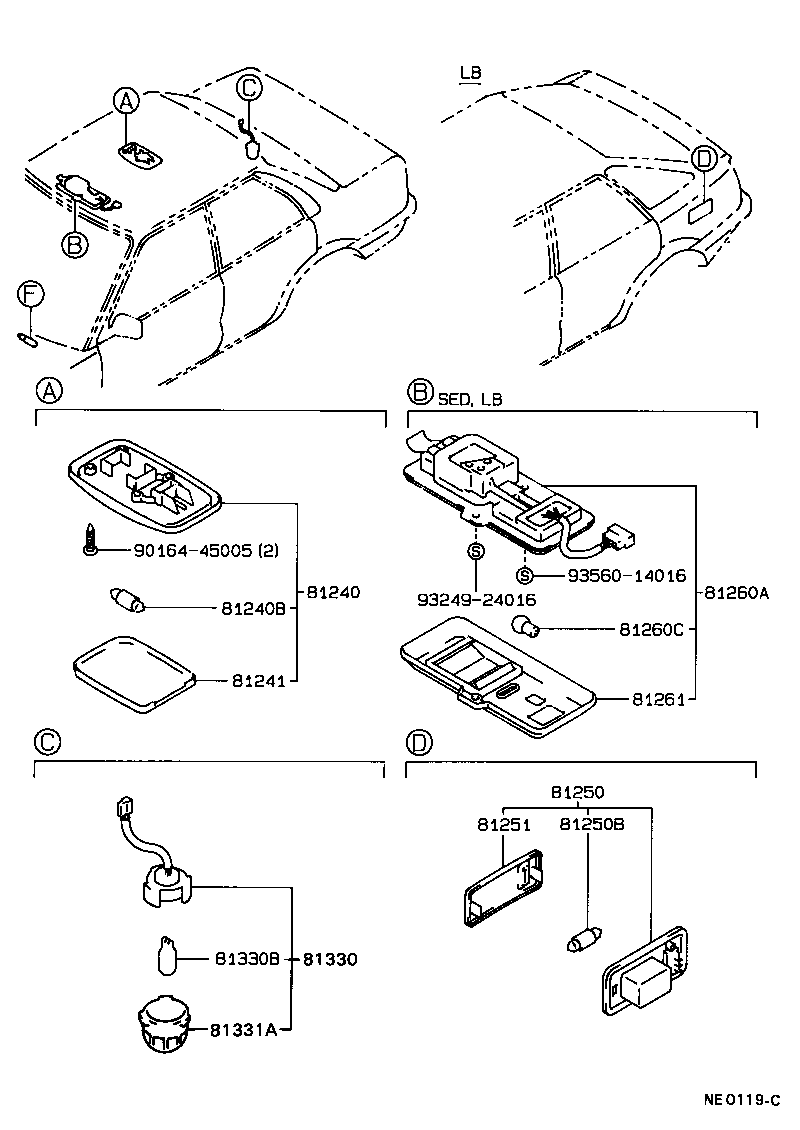

ILLUST NO. 1 OF 2(8705- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-1202003 |
CE90,EE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI LIGHT GRAY,TRIM1# |
1 | ||
| 81240-1202003 |
EE90..SED..STD;AE9#,CE90,EE90..(SED,WG)..(GL,GLI,XL,XLI) LIGHT GRAY,TRIM1# |
1 | ||
| 81240-1202005 |
CE90,EE90..SED..STD;AE9#,CE90,EE90..GL,GLI,XL,XLI LIGHT BEIGE,TRIM4# |
1 | ||
| 81240-1202004 |
EE90..SED..STD;AE9#,CE90,EE90..GL,GLI,XL,XLI LIGHT BLUE,TRIM8# |
1 | ||
| 81240-12020S3 |
EE90..SED..STD;AE92,CE90,EE90..GL,GLI,GTI,XL,XLI LIGHT GRAY,TRIM1# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AE9#,CE90,EE90 12V 10W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-12020 |
AE9#,CE90,EE90 |
1 | ||
| Common parts | ||||
| 90164-45005 | ||||
| 93249-24016 | ||||
| 93560-14016 | ||||

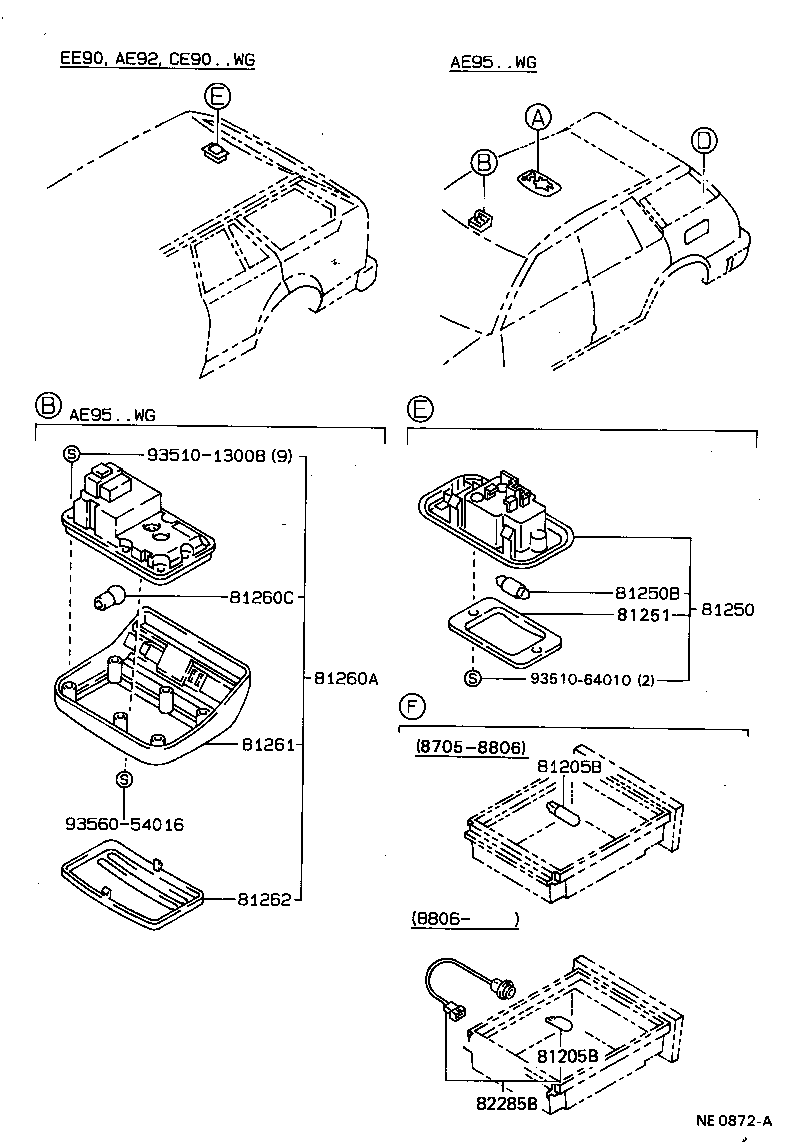

ILLUST NO. 2 OF 2(8705- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11014 |
AE9#,CE90,EE90 14V 1.4W |
1 | ||
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11014 |
AE9#,CE90,EE90 14V 1.4W |
1 | ||
| 82285B - WIRE, ILLUMINATION | ||||
| 82285-12010 |
AE9#,CE90,EE90 |
1 | ||
| Common parts | ||||
| 93510-13008 | ||||
| 93510-64010 | ||||
| 93560-54016 | ||||
