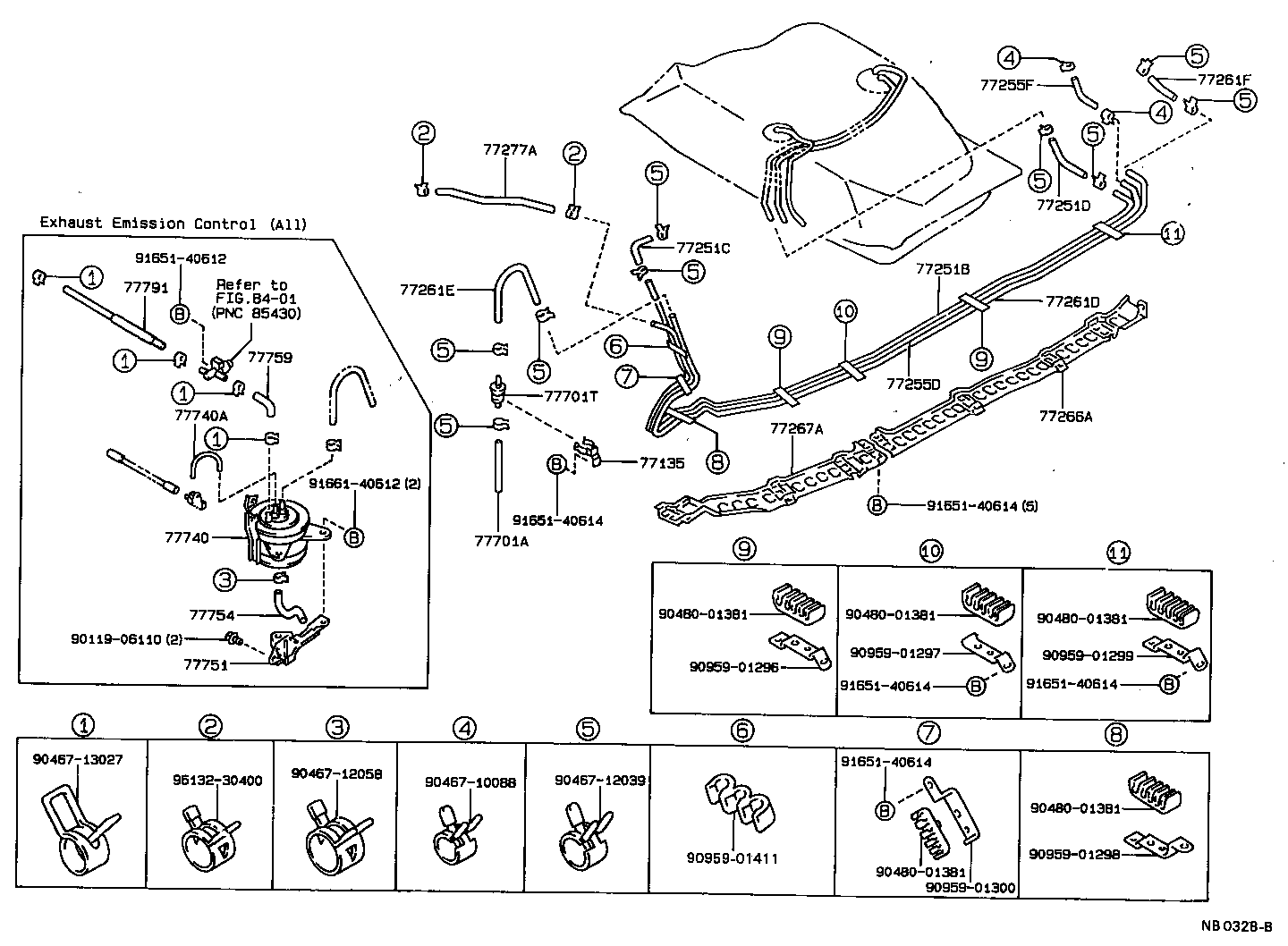

EE90L-AEKRSW (1987)
Toyota Corolla Sed/Lb/Wg
ILLUST NO. 3 OF 3(8908- )EE90
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20050 |
AE92,EE90 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12380 |
AE92,EE90..LHD..CBR |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-12150 |
AE9#,EE90..LHD..CBR |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
AE92,EE90..CBR *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE90..CBR *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE90..CBR *H,L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12350 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77255-12350 |
AE92,EE90..LHD..CBR |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04015 |
AE92,EE90..CBR *H,L=150 |
1 | ||
| 95333-04015 |
AE92..CBR;EE90..LHD..MTM *H,L=150 |
1 | ||
| 95333-04015 |
AE92..CBR;EE90..RHD..WG;EE90..LHD..CBR *H,L=150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12260 |
AE92,CE90,EE90..LHD |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12130 |
AE92..LHD..CBR;EE90..LHD..MTM EX.EMISSION CONTROL(US'83) |
1 | ||
| 77259-12140 |
AE92,CE90,EE90 |
1 | ||
| 77259-12130 |
EE90..RHD..WG;EE90..LHD..CBR |
1 | ||
| 77259-12130 |
EE90..CBR |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE92,CE90,EE90 *H,L=200 |
1 | ||
| 95333-06020 |
AE92,CE90,EE90 *H,L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE92,CE90,EE90 |
1 | ||
| 77266-12030 |
AE92,CE90,EE90 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE9#,CE90,EE90 |
1 | ||
| 77267-12060 |
AE9#,CE90,EE90 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-11021 |
EE90..LHD..MTM L=350 |
1 | ||
| 23271-11011 |
EE90..CBR *H,L=400 |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 77249-12050 |
AE92,CE90,EE90 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10069 |
AE9#,CE90,EE90..GL,GTI,STD,XL |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12480 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77704-12361 |
EE90..CBR |
1 | ||
| 77740-12480 |
EE90..LHD..MTM |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12480 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77704-12361 |
EE90..CBR |
1 | ||
| 77740-12480 |
EE90..LHD..MTM |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12480 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77704-12361 |
EE90..CBR |
1 | ||
| 77740-12480 |
EE90..LHD..MTM |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90447-04075 |
EE90..CBR |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77753-12010 |
EE90..LHD..MTM |
1 | ||
| 77753-12010 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77751-12140 |
EE90..CBR |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77753-12010 |
EE90..LHD..MTM |
1 | ||
| 77753-12010 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77751-12140 |
EE90..CBR |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77753-12010 |
EE90..LHD..MTM |
1 | ||
| 77753-12010 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77751-12140 |
EE90..CBR |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12080 |
EE90..CBR |
1 | ||
| 77754-12090 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77754-12090 |
EE90..LHD..MTM |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12080 |
EE90..CBR |
1 | ||
| 77754-12090 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77754-12090 |
EE90..LHD..MTM |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12080 |
EE90..CBR |
1 | ||
| 77754-12090 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77754-12090 |
EE90..LHD..MTM |
1 | ||
| 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR | ||||
| 77209-12070 |
EE90..LHD..MTM |
1 | ||
| 77791-12100 |
EE90..CBR |
1 | ||
| Common parts | ||||
| 90119-06092 | ||||
| 90162-30800 | ||||
| 90464-00479 | ||||
| 90467-10088 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90467-13027 | ||||
| 90480-01380 | ||||
| 90480-01381 | ||||
| 90959-01296 | ||||
| 90959-01297 | ||||
| 90959-01298 | ||||
| 90959-01299 | ||||
| 90959-01300 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 96132-30400 | ||||

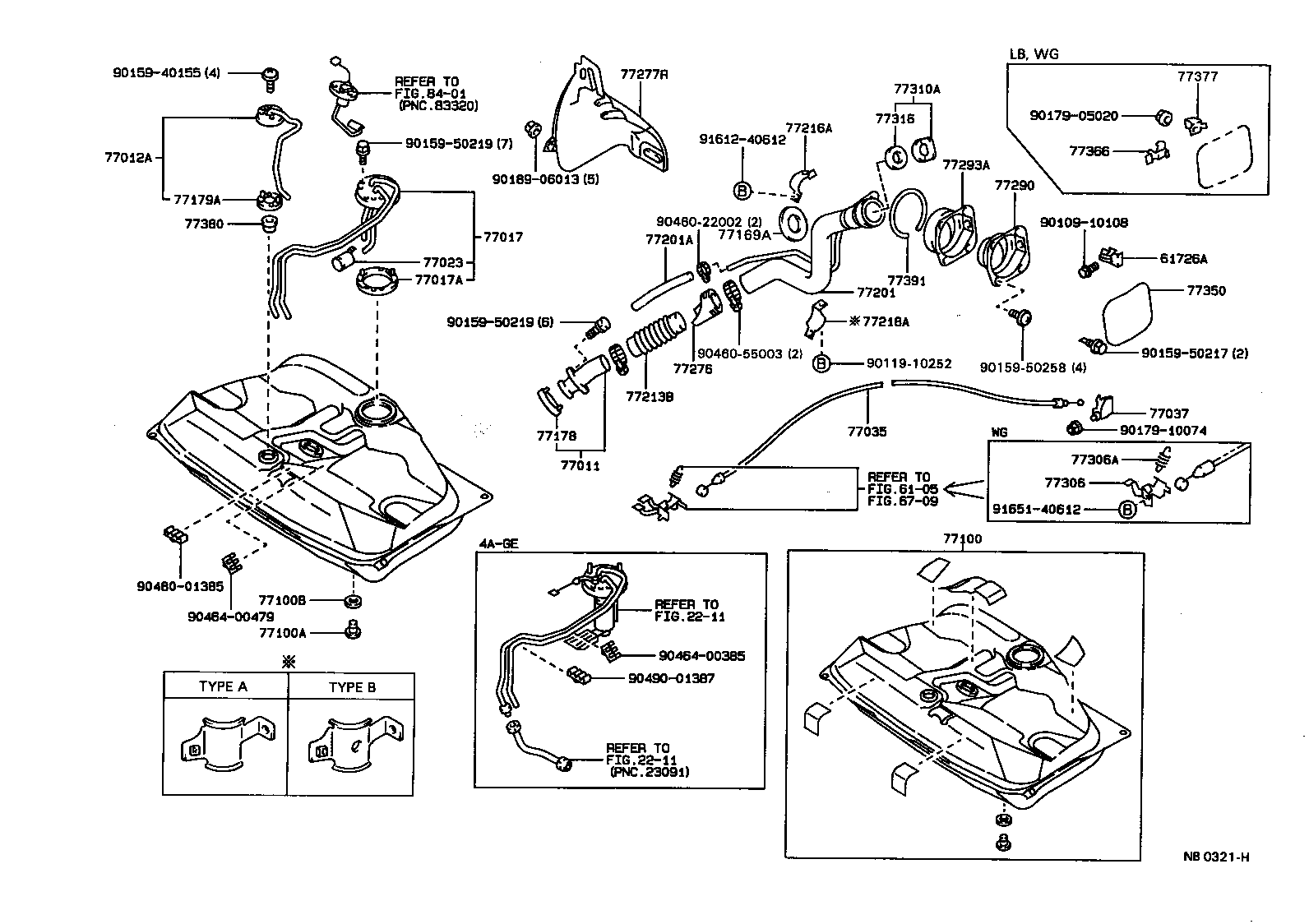

ILLUST NO. 1 OF 3(8705- )AE92,CE90,EE90
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61726A - PLATE, FUEL INLET BOX COVER | ||||
| 61726-12050 |
CE90,EE90..SED..STD;AE92,CE90,EE90..WG..(STD,XL,XLI) |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12040 |
AE92,EE90 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12030 |
AE92,CE90,EE90 |
1 | ||
| 77012-12010 |
EE90..STD EX.EMISSION CONTROL(US'83) |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-12310 |
EE90..LHD..MTM EX.EMISSION CONTROL(US'83) |
1 | ||
| 77017-12330 |
EE90 |
1 | ||
| 77017-12310 |
AE92,EE90..CBR |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-12020 |
AE95;AE92,CE90,EE90..CBR,DSL |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
AE9#,EE90..CBR |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19545 |
AE92,EE90..CBR |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-12010 |
AE92,CE90,EE90 |
1 | ||
| 77178-20010 |
AE92,CE90,EE90 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
AE9#,CE90,EE90 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12340 |
AE92,EE90..LHD..MTM..CBR EX.EMISSION CONTROL=(US'83) OR (A 11) |
1 | ||
| 77201-12340 |
AE92..LHD..5F..CBR;EE90..LHD..(LB,SED)..MTM..CBR EX.EMISSION CONTROL(A 11) |
1 | ||
| 77201-12350 |
EE90..CBR;AE92,CE90..GL,GTI,STD,XL |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22011 |
AE92,CE90,EE90 L=220 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12140 |
AE92,CE90,EE90 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12040 |
AE92,CE90,EE90 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-12010 |
AE92,CE90,EE90 |
1 | ||
| 77218-12010 |
AE92,EE90..LHD..MTM..CBR EX.EMISSION CONTROL=(US'83) OR (A 11) |
1 | ||
| 77218-12010 |
AE92..LHD..5F..CBR;EE90..LHD..(LB,SED)..MTM..CBR EX.EMISSION CONTROL(A 11) |
1 | ||
| 77218-12020 |
EE90..CBR;AE92,CE90..GL,GTI,STD,XL |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12040 |
AE92,CE90,EE90 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12080 |
AE92,CE90,EE90..LB,SED |
1 | ||
| 77277-12081 |
AE92,CE90,EE90..LB,SED |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12060 |
AE95..SED;AE92,CE90,EE90 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12030 |
AE95..SED;AE92,CE90,EE90 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AE92,EE90..LHD..MTM..CBR EX.EMISSION CONTROL(A 11) |
1 | ||
| 77310-16010 |
AE92,EE90..LHD..MTM..CBR EX.EMISSION CONTROL=(US'83) OR (A 11) |
1 | ||
| 77310-12100 |
EE90..CBR;AE9#..GL,GTI,XL |
1 | ||
| 77310-16011 |
AE92,EE90..LHD..MTM..CBR EX.EMISSION CONTROL=(US'83) OR (A 11) |
1 | ||
| 77310-16011 |
AE95..LHD..SED..CBR;AE92,EE90..LHD..MTM..CBR EX.EMISSION CONTROL(A 11) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AE92,EE90..LHD..MTM..CBR EX.EMISSION CONTROL=(US'83) OR (A 11) |
1 | ||
| 77316-12050 |
EE90..CBR;AE9#,CE90..GL,GTI,STD,XL |
1 | ||
| 77316-16010 |
AE95..LHD..SED..CBR;AE92,EE90..LHD..MTM..CBR EX.EMISSION CONTROL(A 11) |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12250 |
CE90,EE90..SED..STD |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
AE9#,CE90,EE90 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE9#,CE90,EE90 |
1 | ||
| Common parts | ||||
| 90109-10108 | ||||
| 90119-10252 | ||||
| 90159-40155 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-50258 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90189-06013 | ||||
| 90460-22002 | ||||
| 90460-55003 | ||||
| 90464-00385 | ||||
| 90464-00479 | ||||
| 90480-01385 | ||||
| 90490-01387 | ||||
| 91612-40612 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
| 6709 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(8705-8908)AE92,EE90..CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20050 |
AE92,EE90 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12380 |
AE92,EE90..LHD..CBR |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-12150 |
AE9#,EE90..LHD..CBR |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
AE92,EE90..CBR *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE90..CBR *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE90..CBR *H,L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12350 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77255-12350 |
AE92,EE90..LHD..CBR |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04015 |
AE92,EE90..CBR *H,L=150 |
1 | ||
| 95333-04015 |
AE92..CBR;EE90..LHD..MTM *H,L=150 |
1 | ||
| 95333-04015 |
AE92..CBR;EE90..RHD..WG;EE90..LHD..CBR *H,L=150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12260 |
AE92,CE90,EE90..LHD |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12130 |
AE92..LHD..CBR;EE90..LHD..MTM EX.EMISSION CONTROL(US'83) |
1 | ||
| 77259-12140 |
AE92,CE90,EE90 |
1 | ||
| 77259-12130 |
EE90..RHD..WG;EE90..LHD..CBR |
1 | ||
| 77259-12130 |
EE90..CBR |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE92,CE90,EE90 *H,L=200 |
1 | ||
| 95333-06020 |
AE92,CE90,EE90 *H,L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE92,CE90,EE90 |
1 | ||
| 77266-12030 |
AE92,CE90,EE90 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE9#,CE90,EE90 |
1 | ||
| 77267-12060 |
AE9#,CE90,EE90 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-11021 |
EE90..LHD..MTM L=350 |
1 | ||
| 23271-11011 |
EE90..CBR *H,L=400 |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 77249-12050 |
AE92,CE90,EE90 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10069 |
AE9#,CE90,EE90..GL,GTI,STD,XL |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12480 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77704-12361 |
EE90..CBR |
1 | ||
| 77740-12480 |
EE90..LHD..MTM |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90447-04075 |
EE90..CBR |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77753-12010 |
EE90..LHD..MTM |
1 | ||
| 77753-12010 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77751-12140 |
EE90..CBR |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12080 |
EE90..CBR |
1 | ||
| 77754-12090 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77754-12090 |
EE90..LHD..MTM |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-12080 |
AE92..LHD..CBR;EE90..LHD..MTM |
1 | ||
| 77759-12080 |
EE90..LHD..MTM |
1 | ||
| 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR | ||||
| 77209-12070 |
EE90..LHD..MTM |
1 | ||
| 77791-12100 |
EE90..CBR |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90467-10088 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90467-13027 | ||||
| 90480-01381 | ||||
| 90959-01296 | ||||
| 90959-01297 | ||||
| 90959-01298 | ||||
| 90959-01299 | ||||
| 90959-01300 | ||||
| 90959-01411 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91661-40612 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12110 |
EE90..CBR;AE92,CE90..GL,GTI,STD,XL |
1 | ||
| 77601-12100 |
AE92,EE90..LHD..MTM..CBR EX.EMISSION CONTROL(A 11) |
1 | ||
| 77601-12100 |
AE92,EE90..LHD..MTM..CBR EX.EMISSION CONTROL=(US'83) OR (A 11) |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12110 |
EE90..CBR;AE92,CE90..GL,GTI,STD,XL |
1 | ||
| 77601-12100 |
AE92,EE90..LHD..MTM..CBR EX.EMISSION CONTROL(A 11) |
1 | ||
| 77601-12100 |
AE92,EE90..LHD..MTM..CBR EX.EMISSION CONTROL=(US'83) OR (A 11) |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12060 |
AE92,CE90,EE90 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12060 |
AE92,CE90,EE90 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
AE92,CE90,EE90 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-12010 |
AE92,CE90,EE90 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-12010 |
AE92,CE90,EE90 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-12010 |
AE92,CE90,EE90 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-12010 |
AE92,CE90,EE90 |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-12090 |
AE92,CE90,EE90 |
1 | ||
| 77653-12070 |
AE92,CE90,EE90 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-16060 |
AE92,CE90,EE90 |
2 | ||
| 77652-16050 |
AE92,CE90,EE90 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-16060 |
AE92,CE90,EE90 |
2 | ||
| 77652-16050 |
AE92,CE90,EE90 |
2 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-12030 |
AE92,CE90,EE90 |
2 | ||
| 77654-12060 |
AE92,CE90,EE90 |
2 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-12030 |
AE92,CE90,EE90 |
2 | ||
| 77654-12060 |
AE92,CE90,EE90 |
2 | ||
| Common parts | ||||
| 90119-06407 | ||||
| 90119-08499 | ||||
| 90119-10477 | ||||
| 90467-09085 | ||||
| 91655-61040 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
